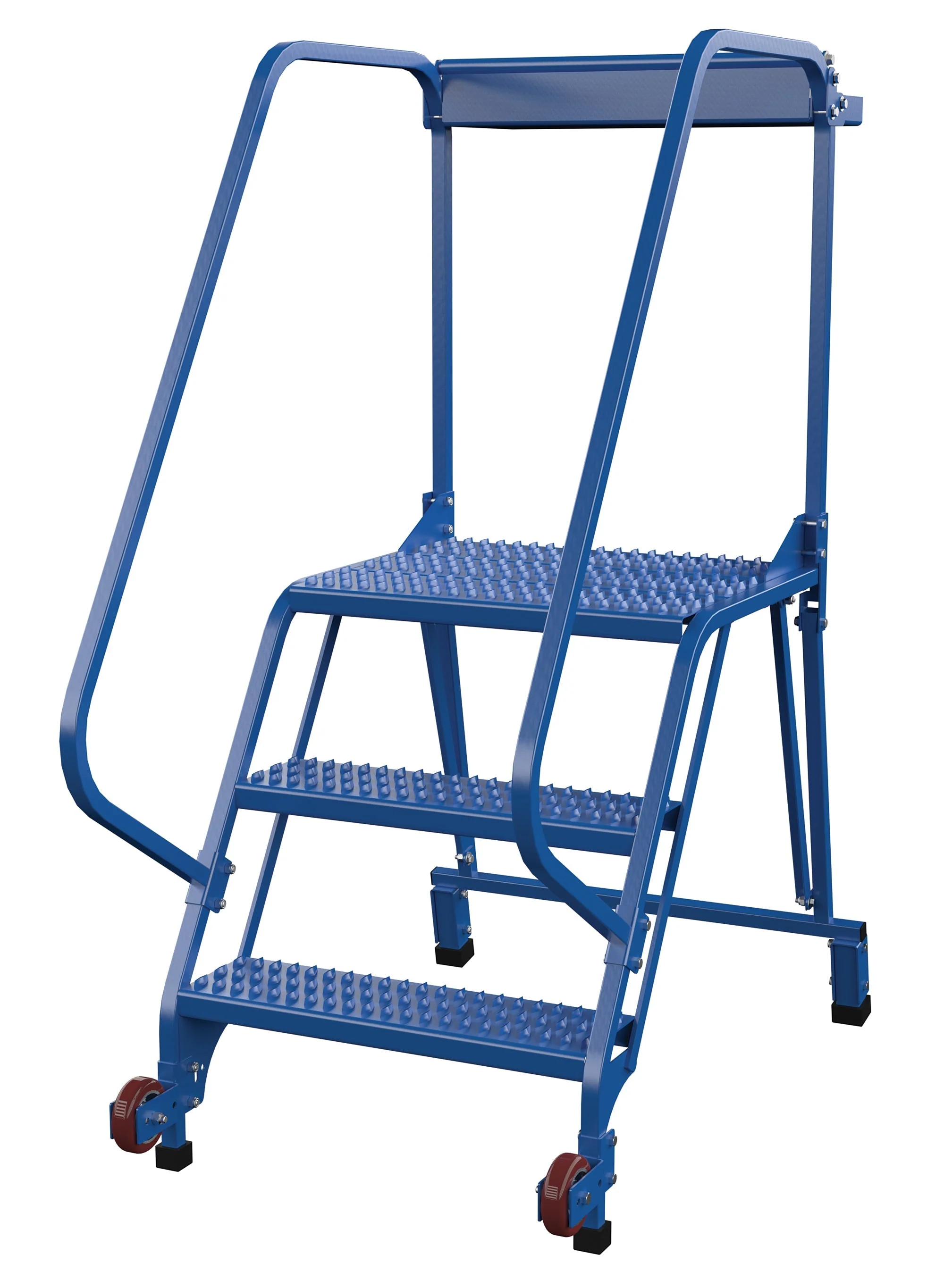

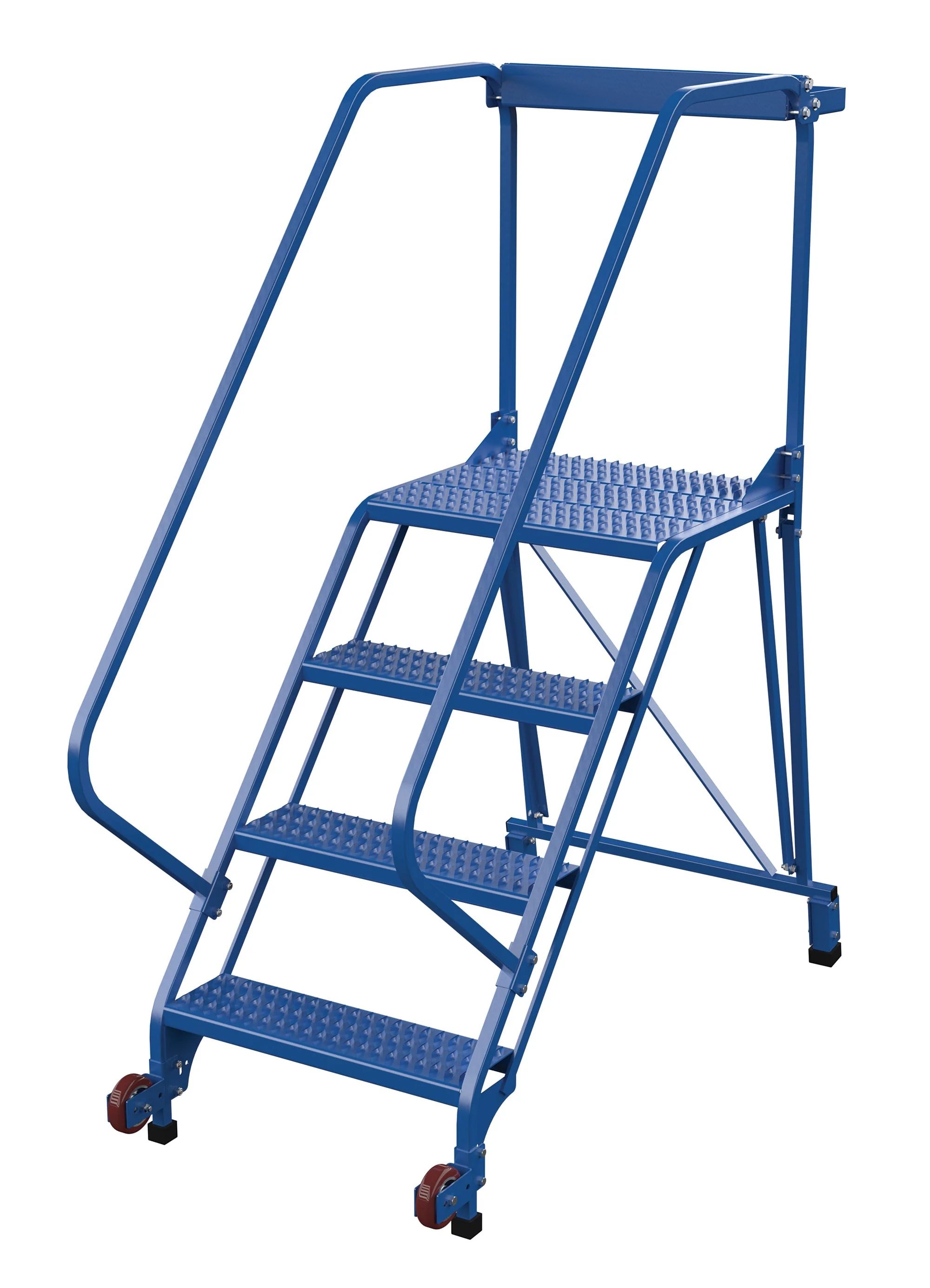

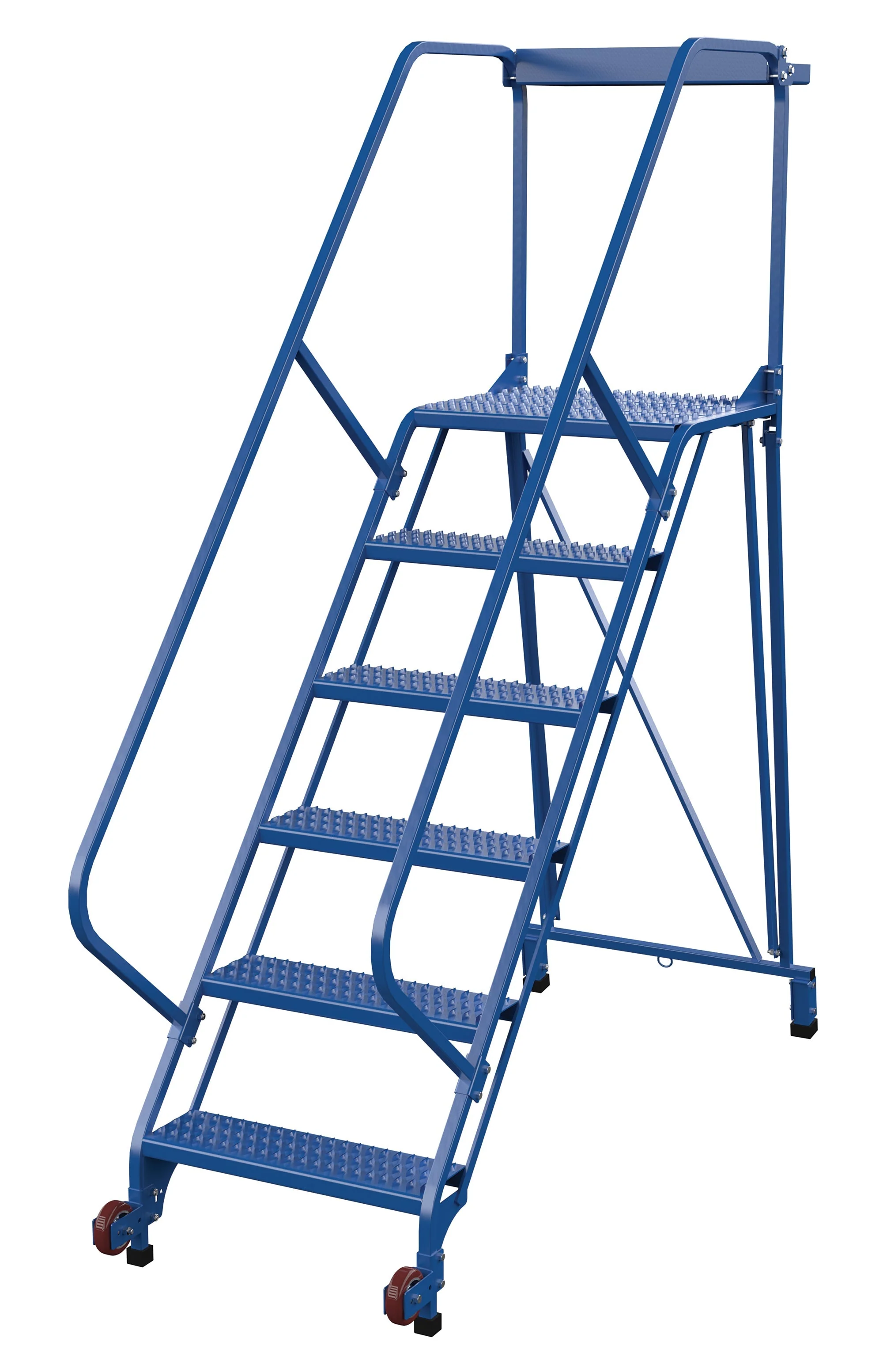

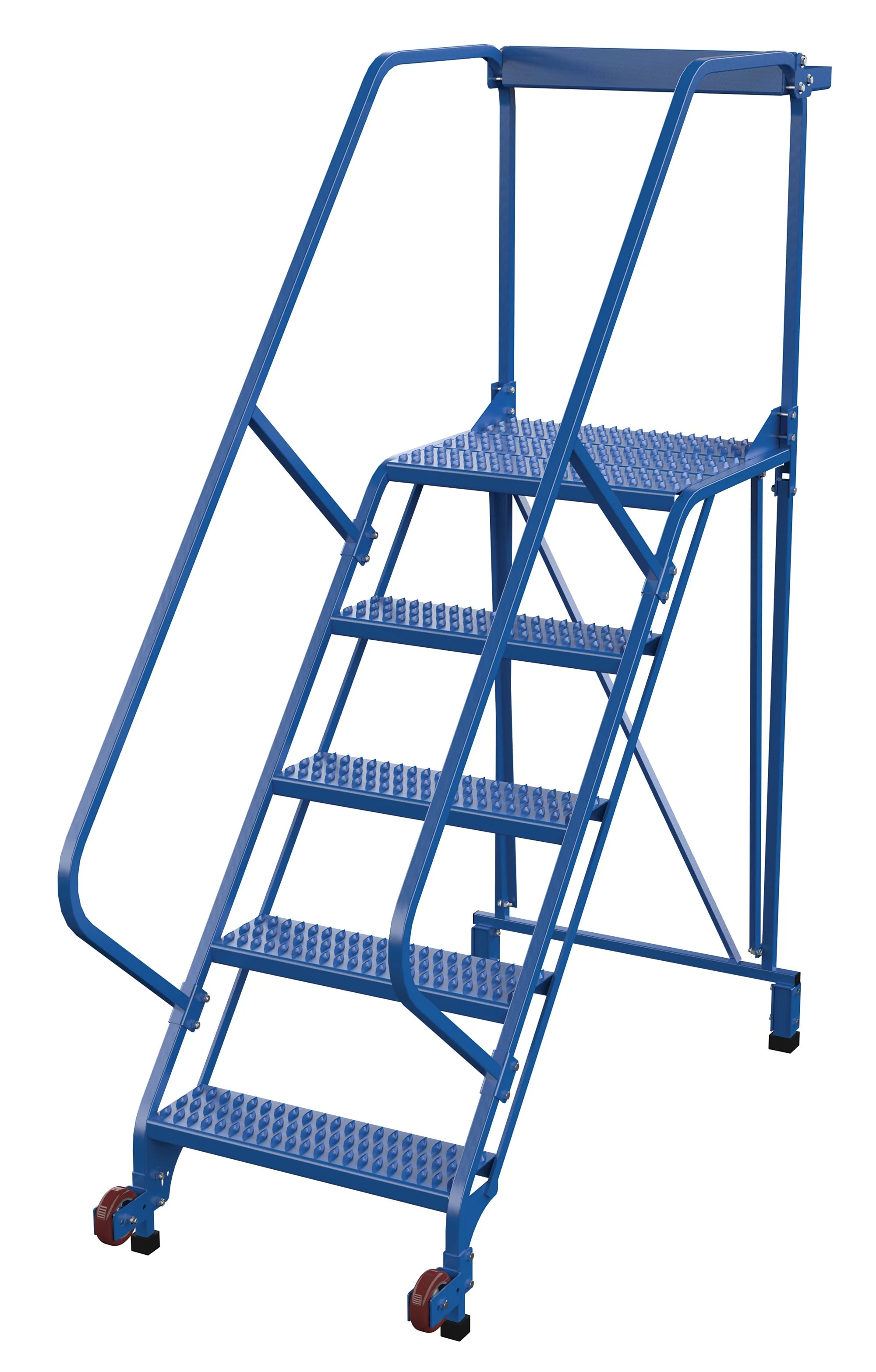

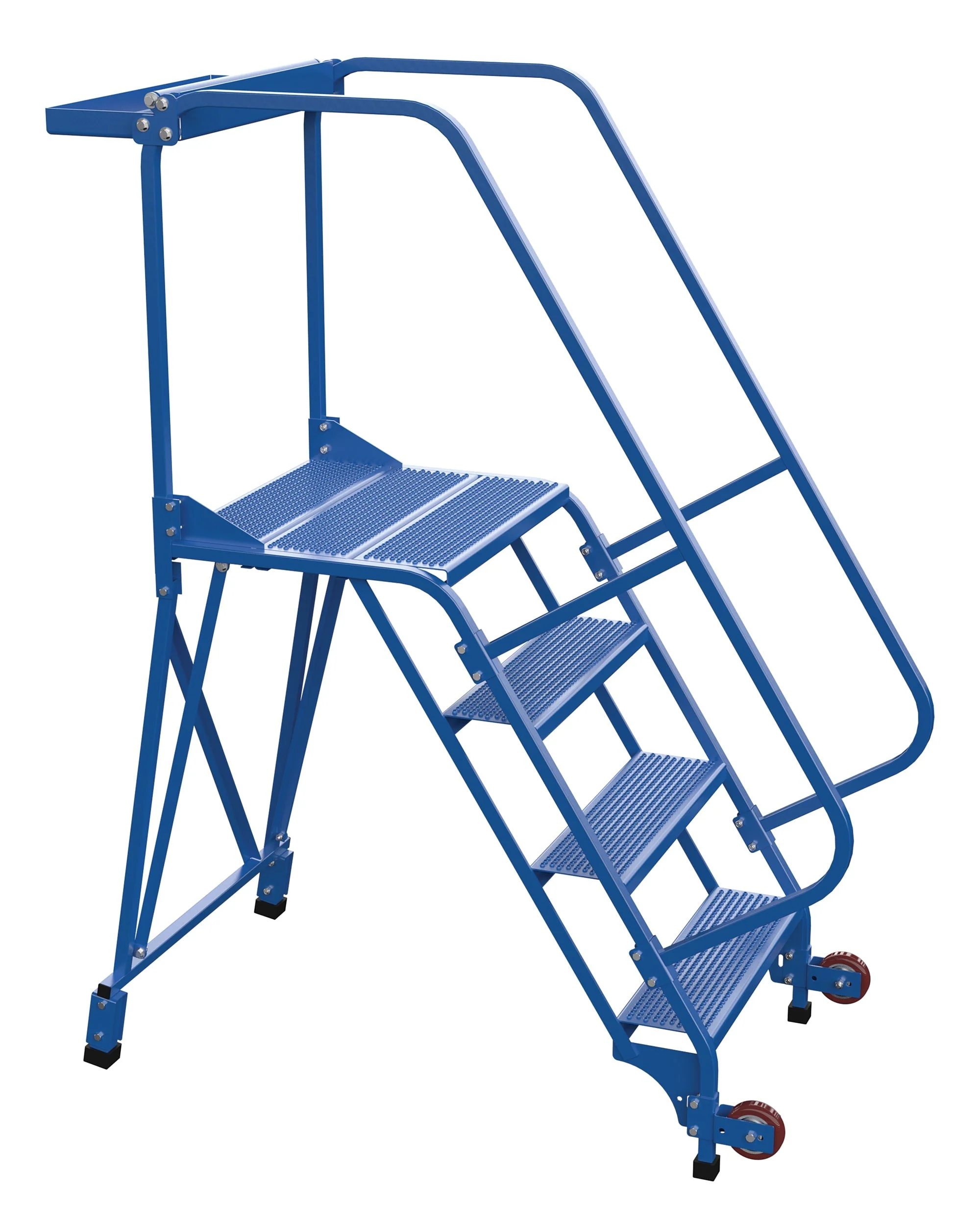

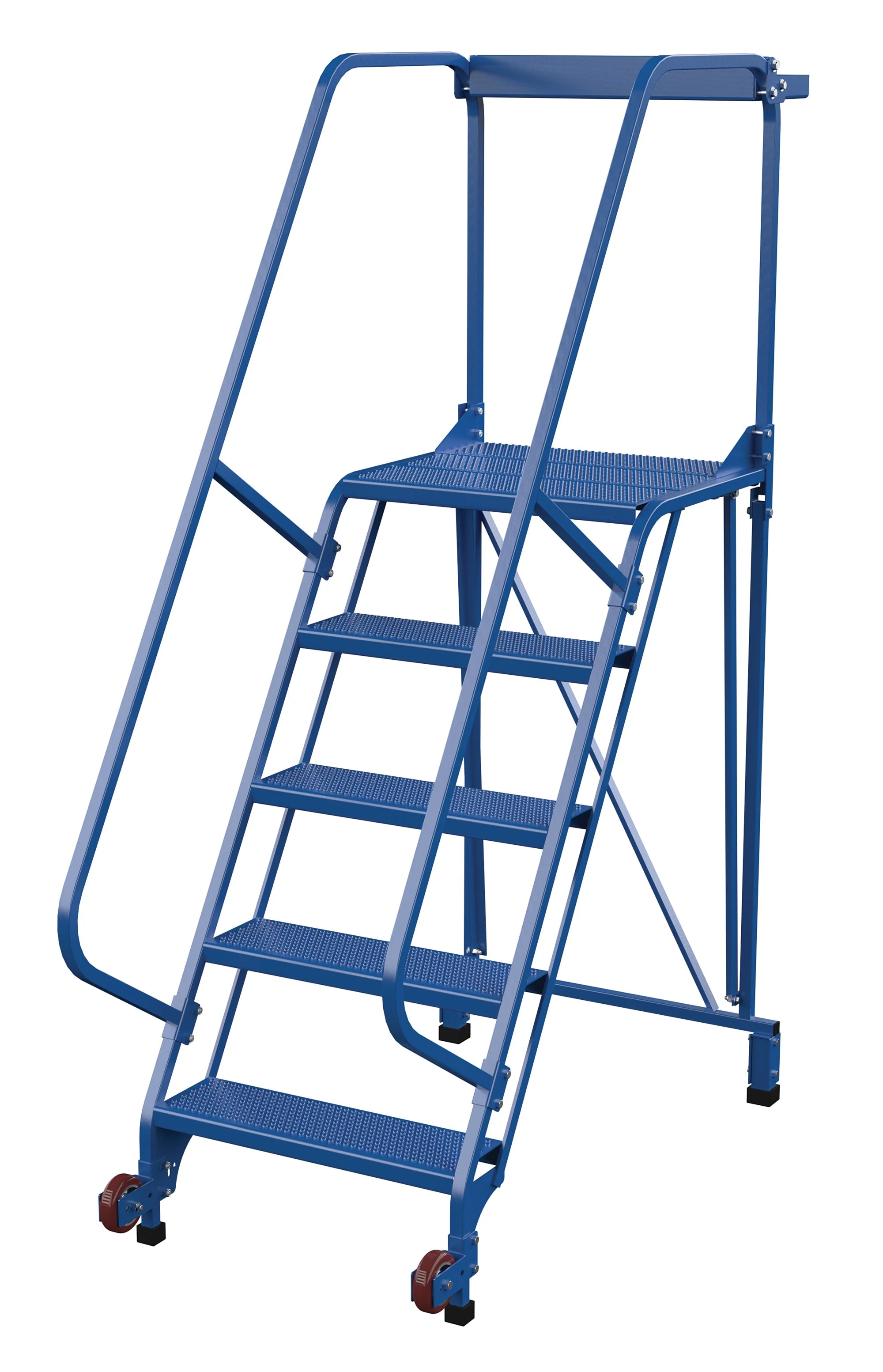

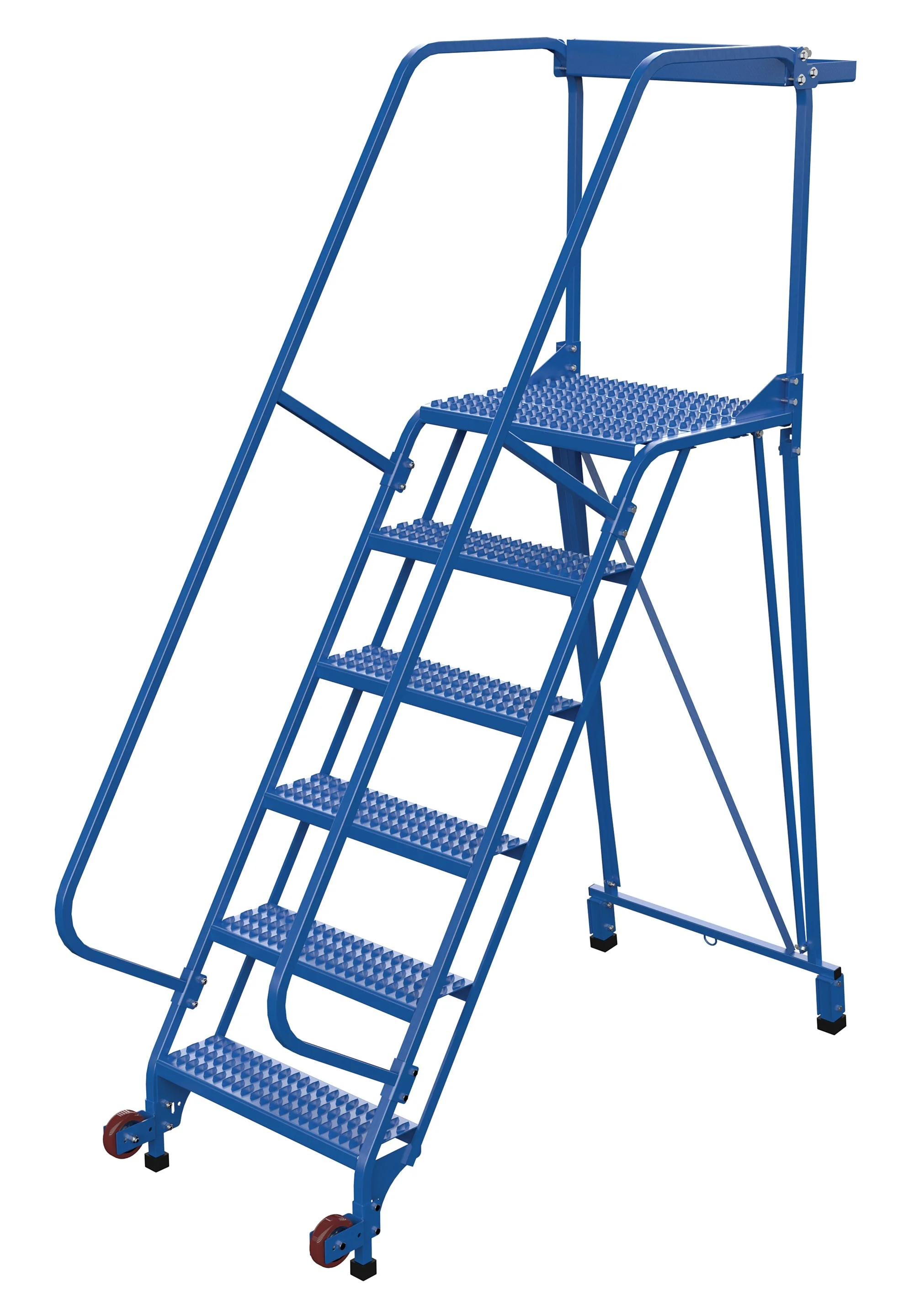

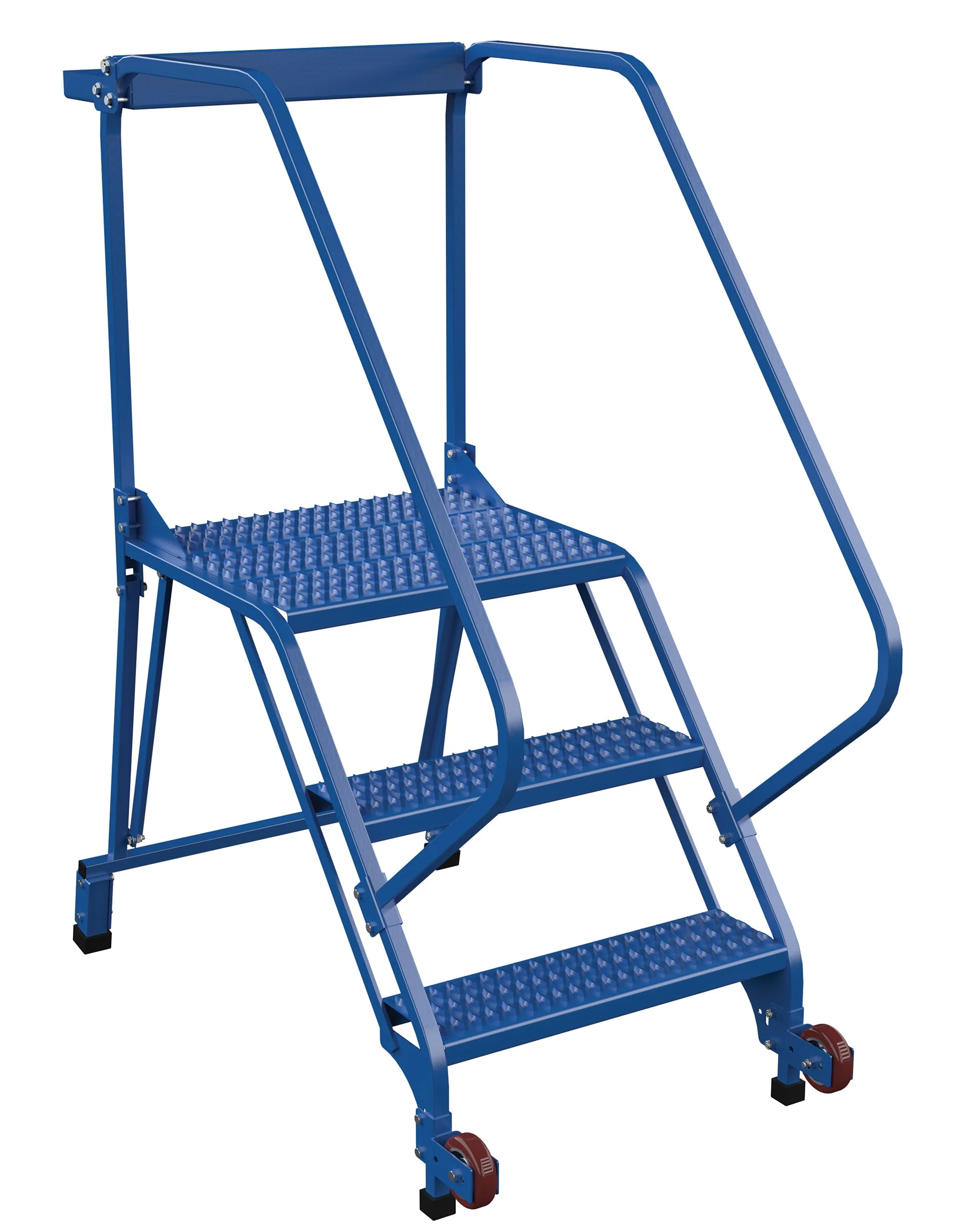

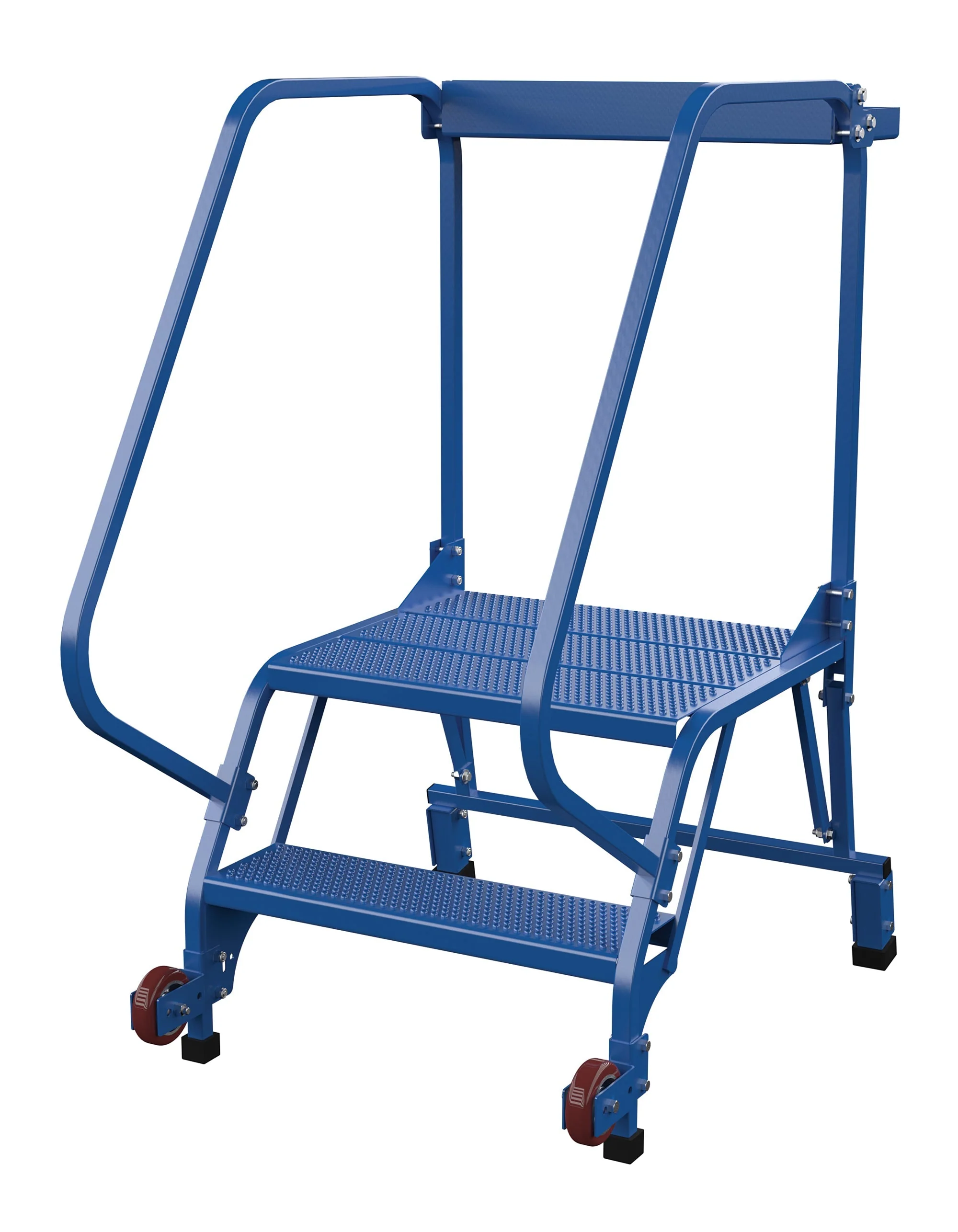

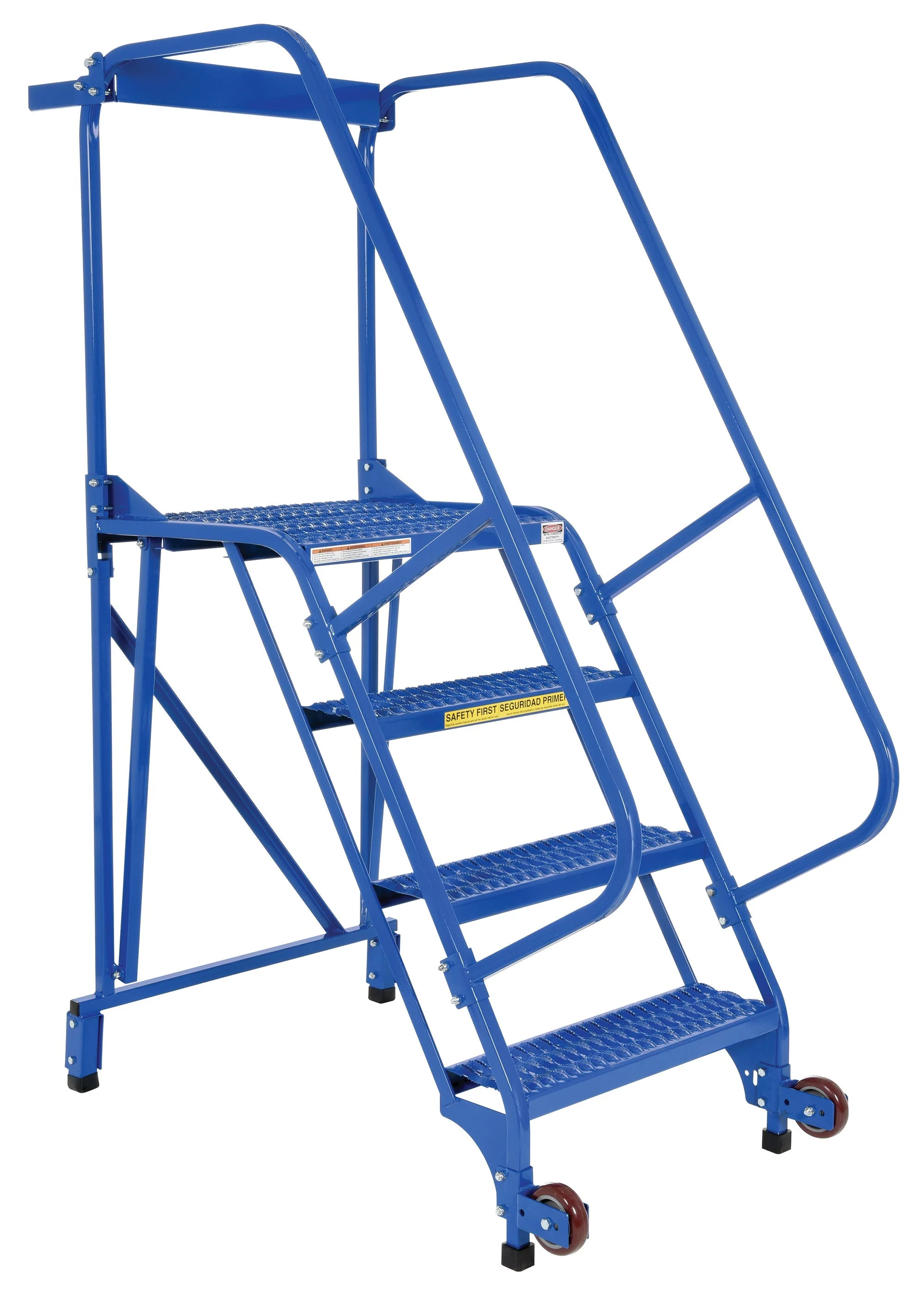

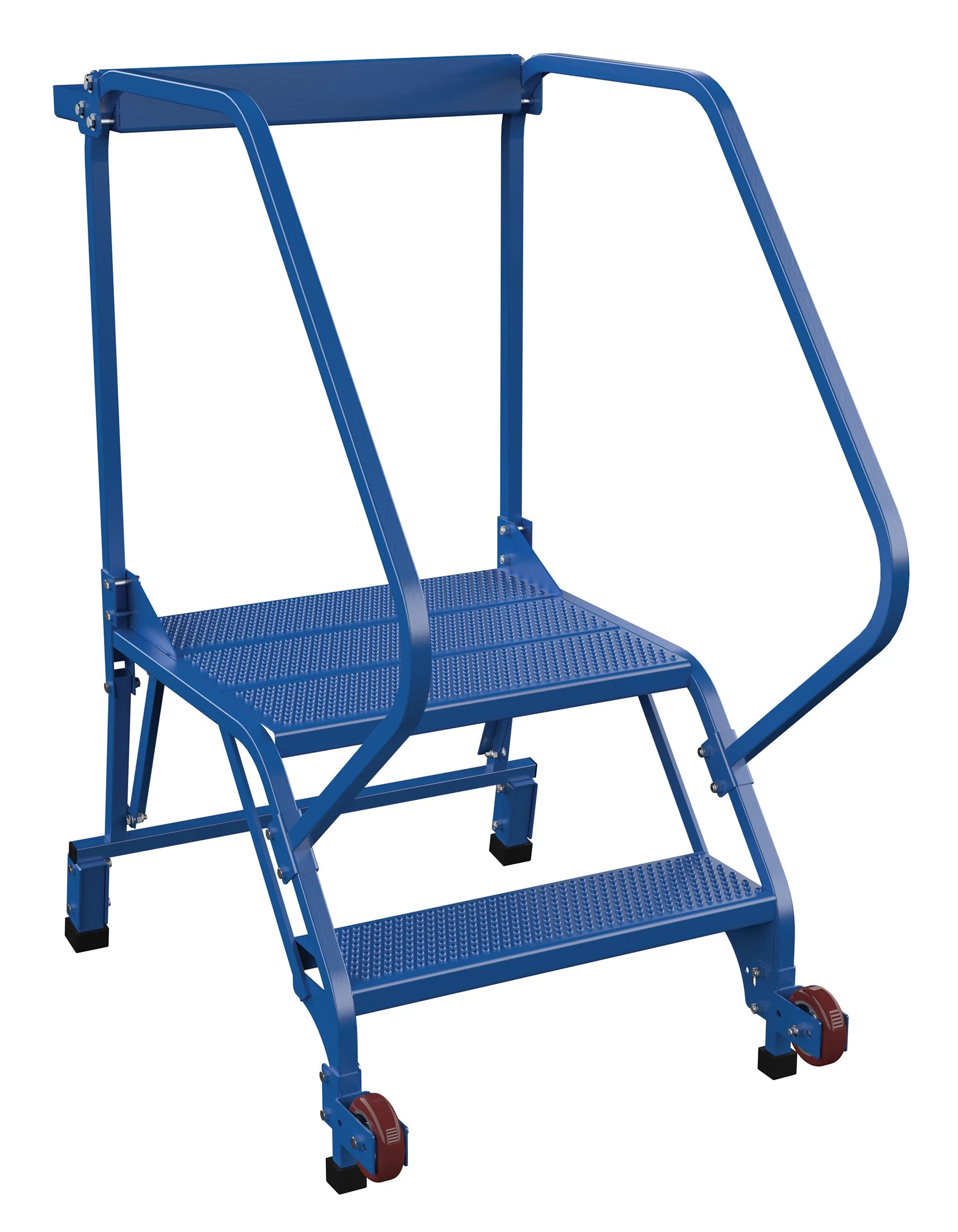

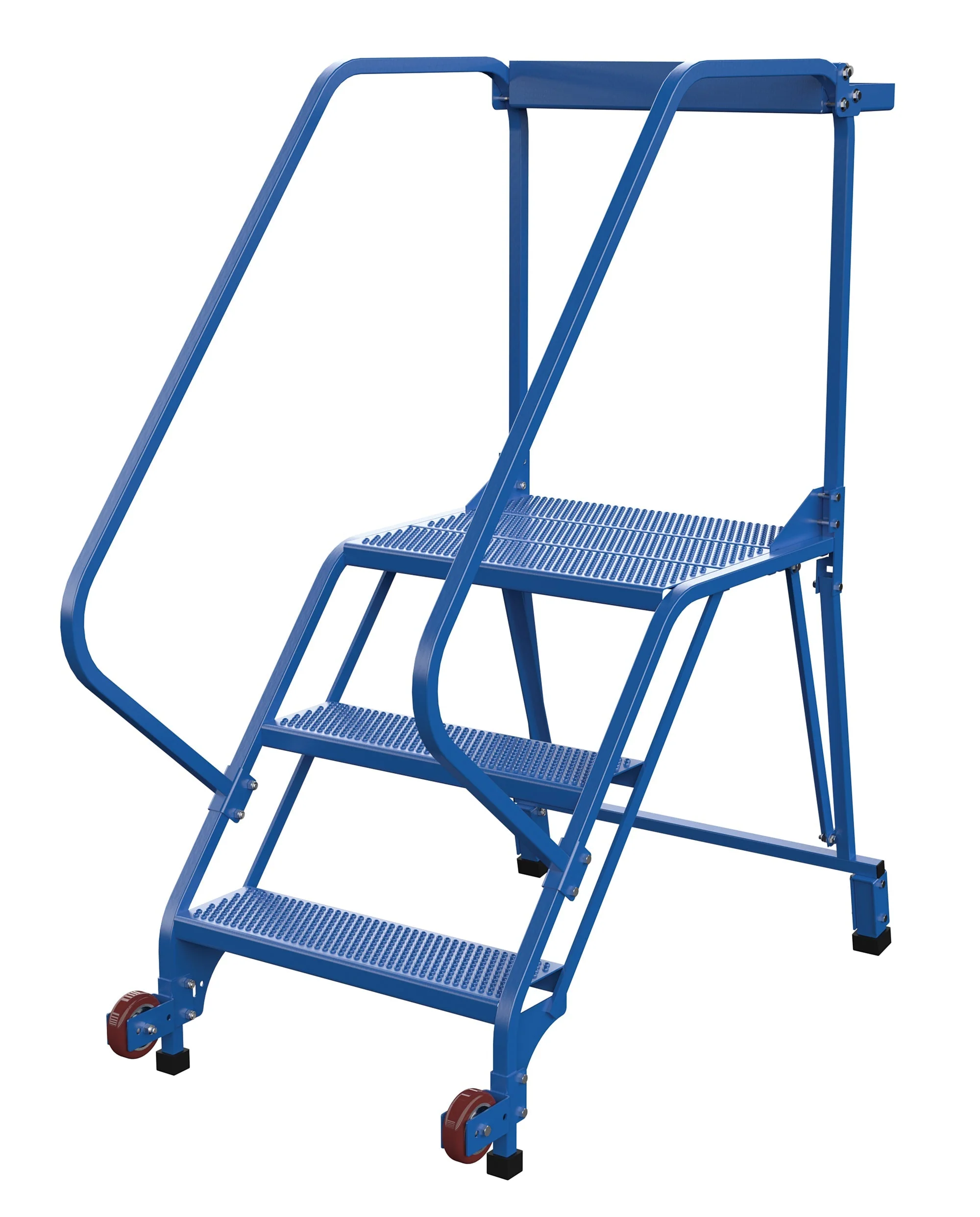

Vestil Tip-N-Roll Mobile Straddle Ladders

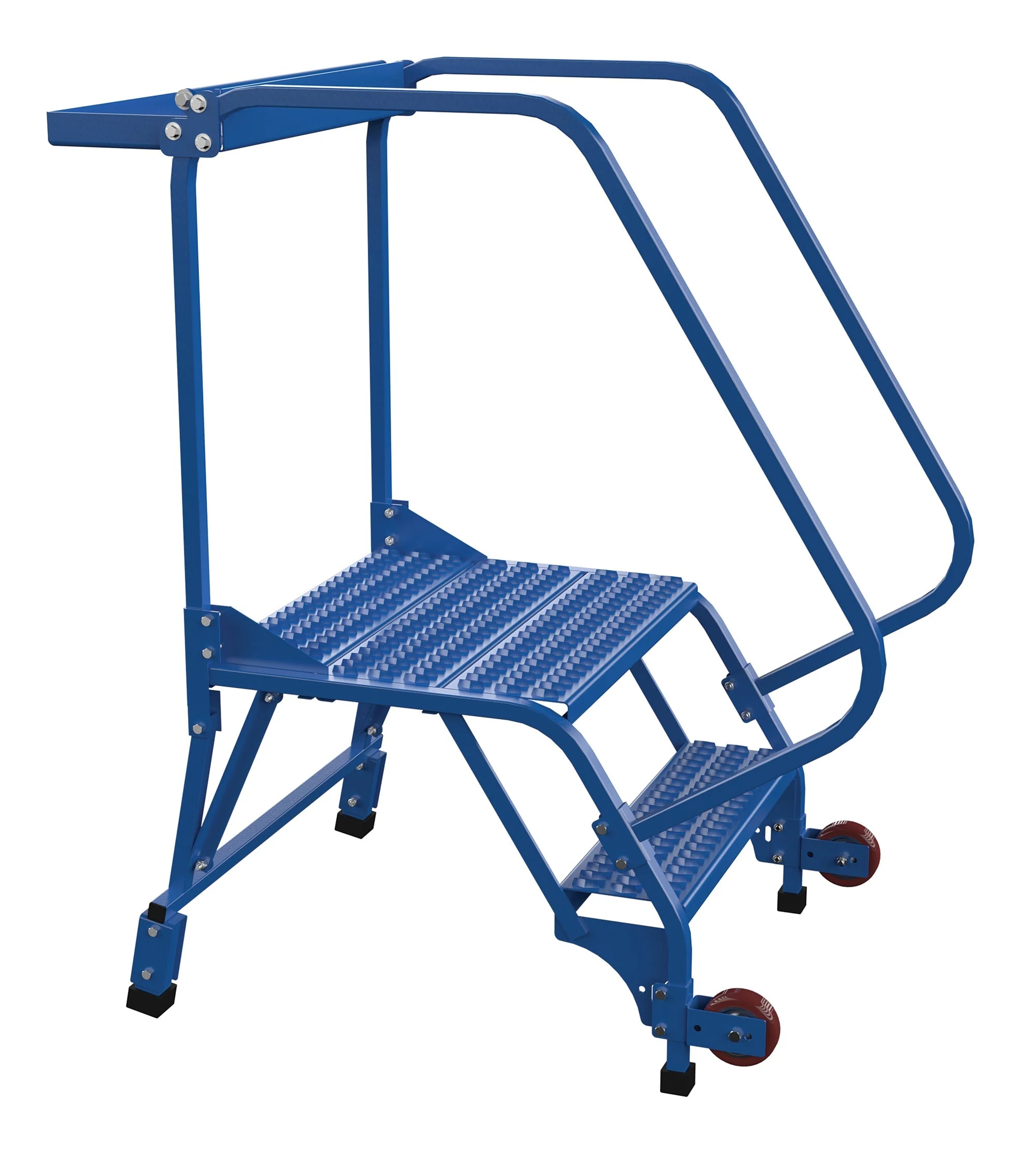

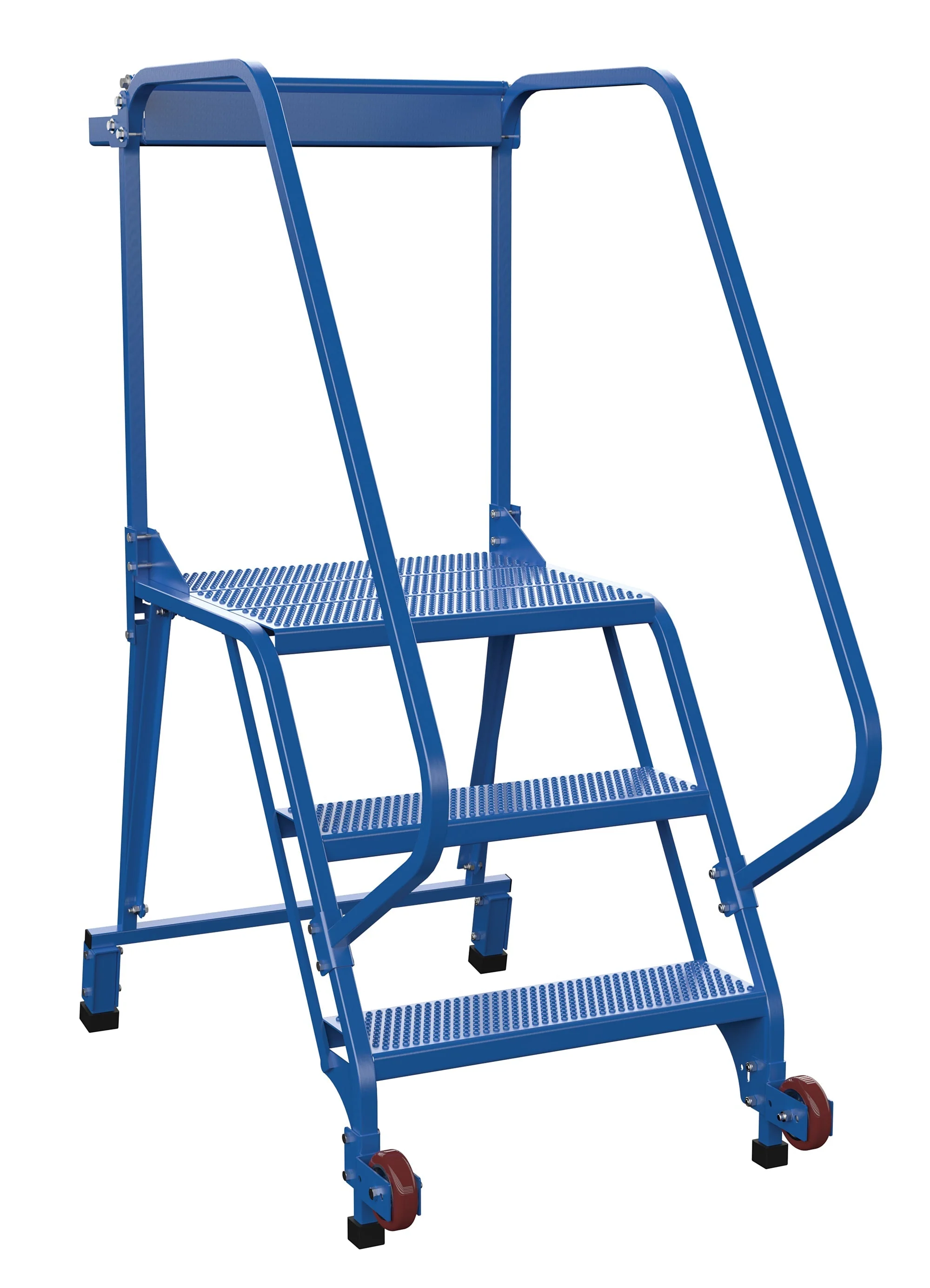

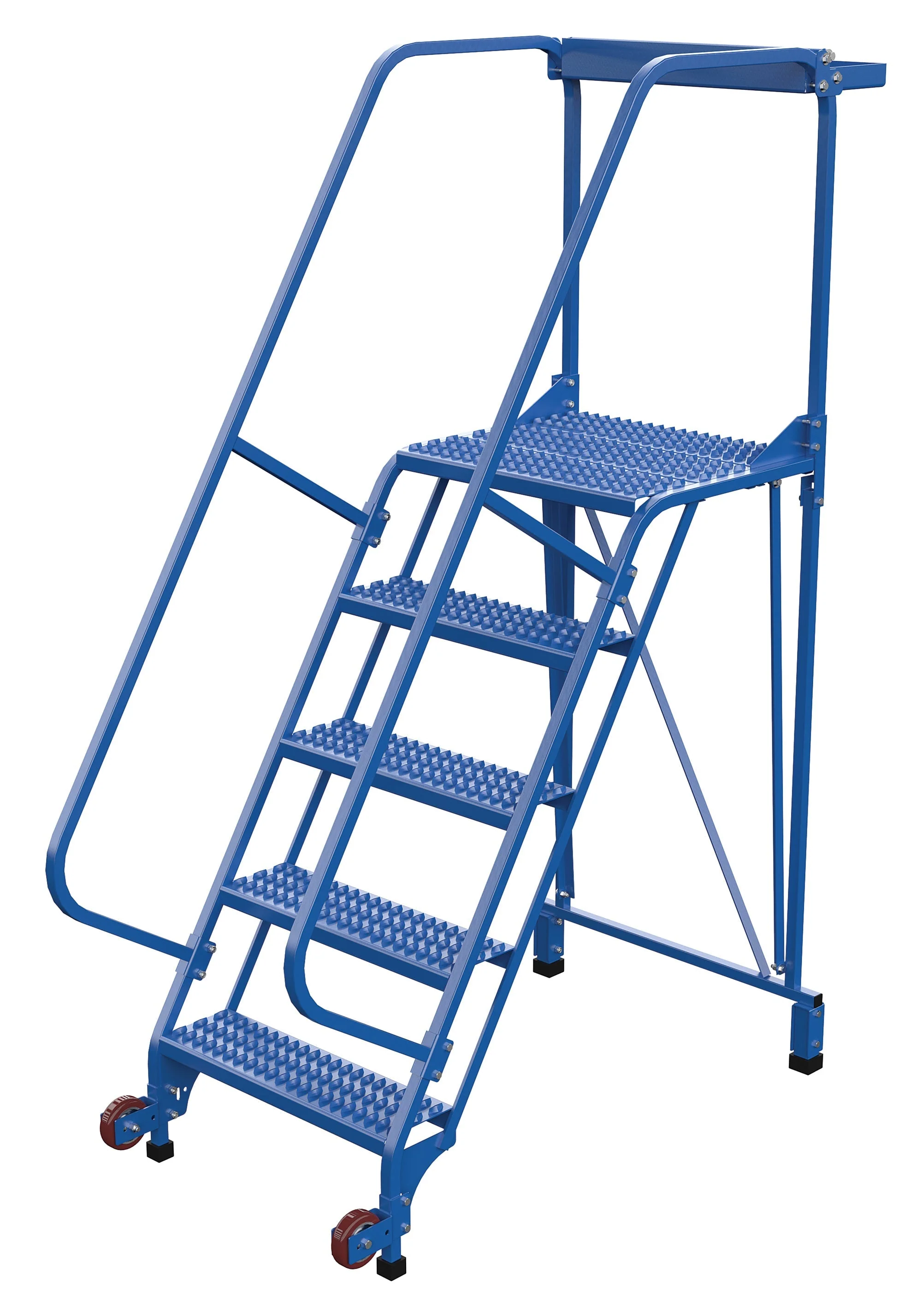

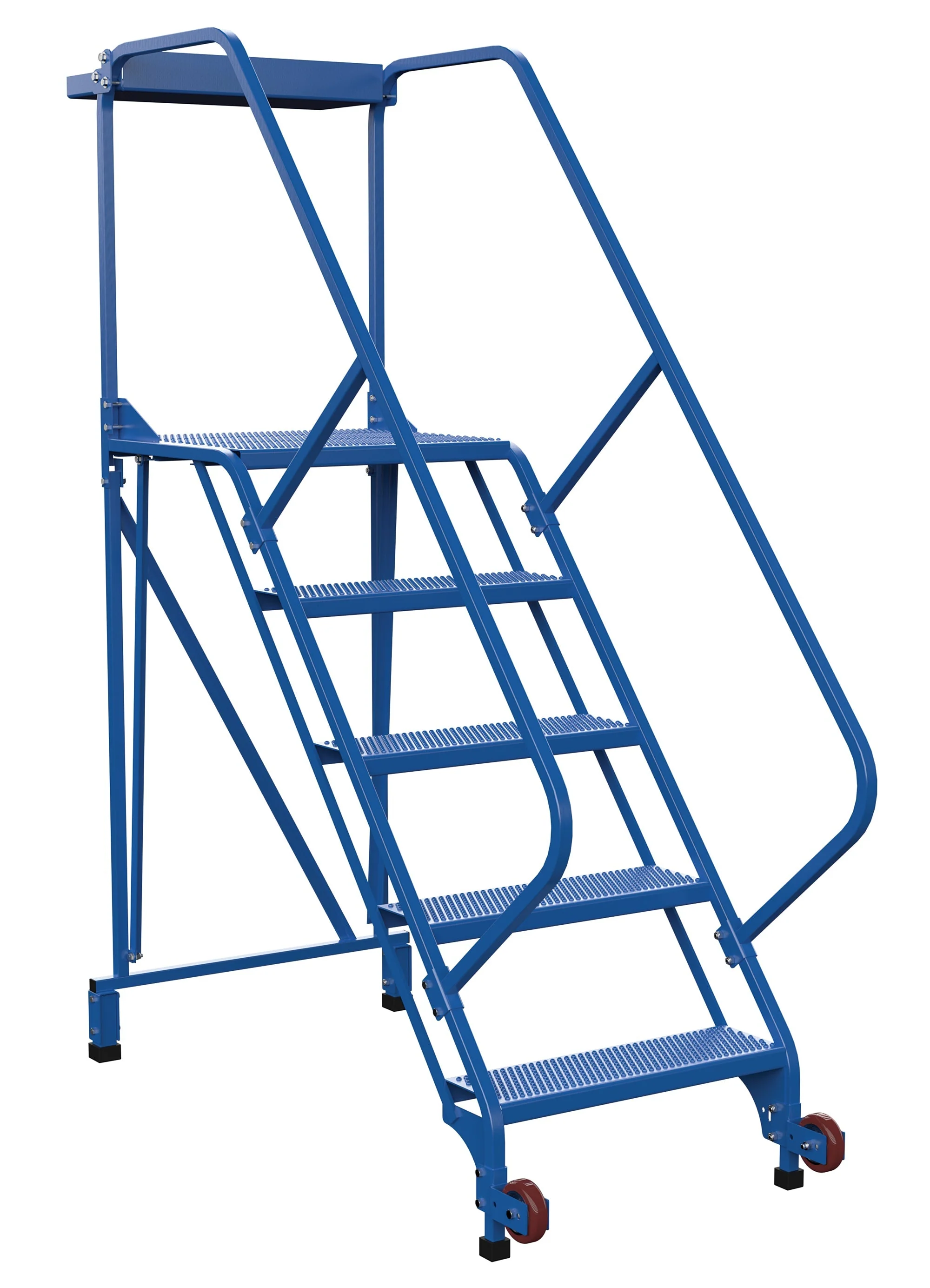

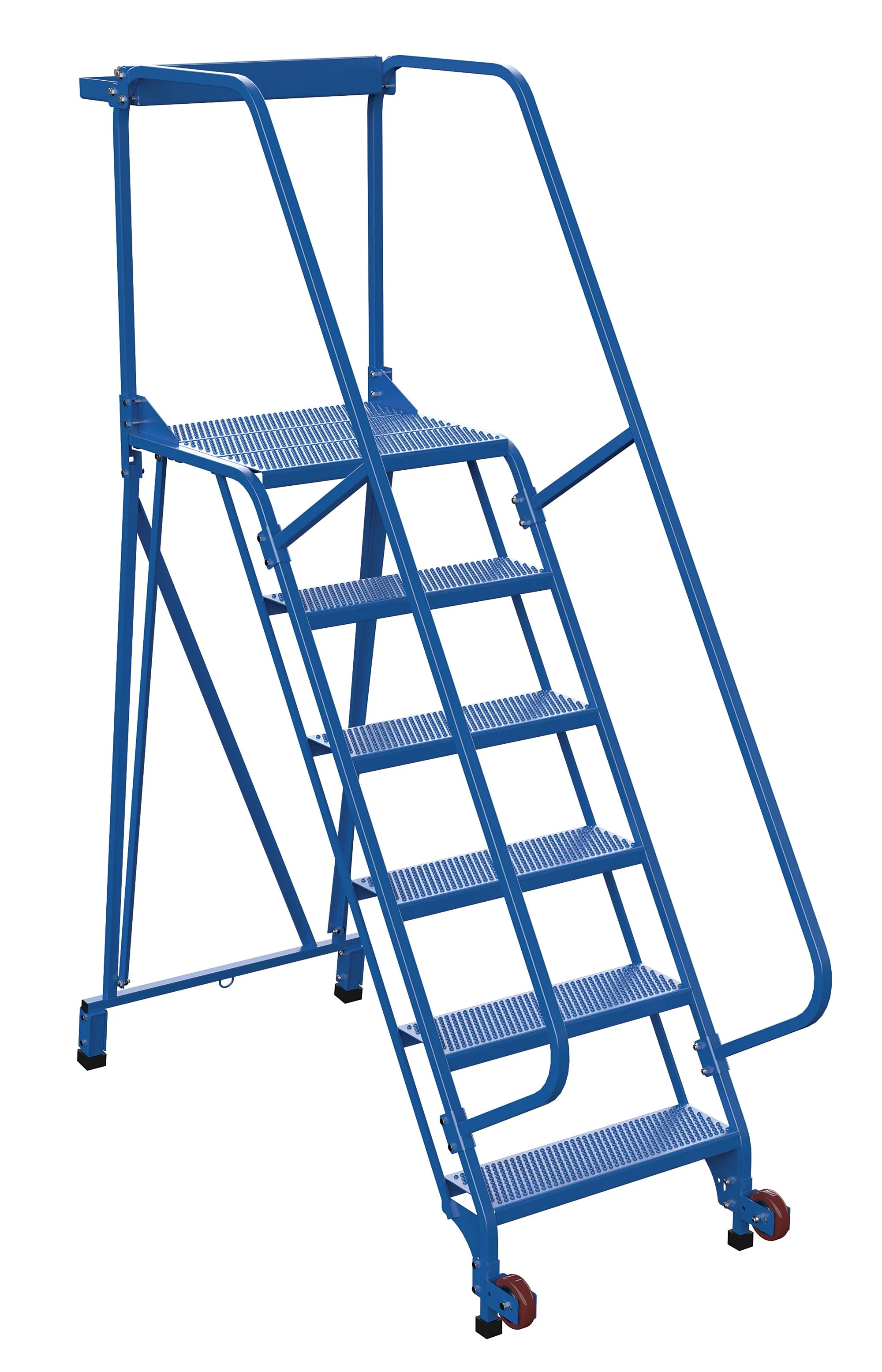

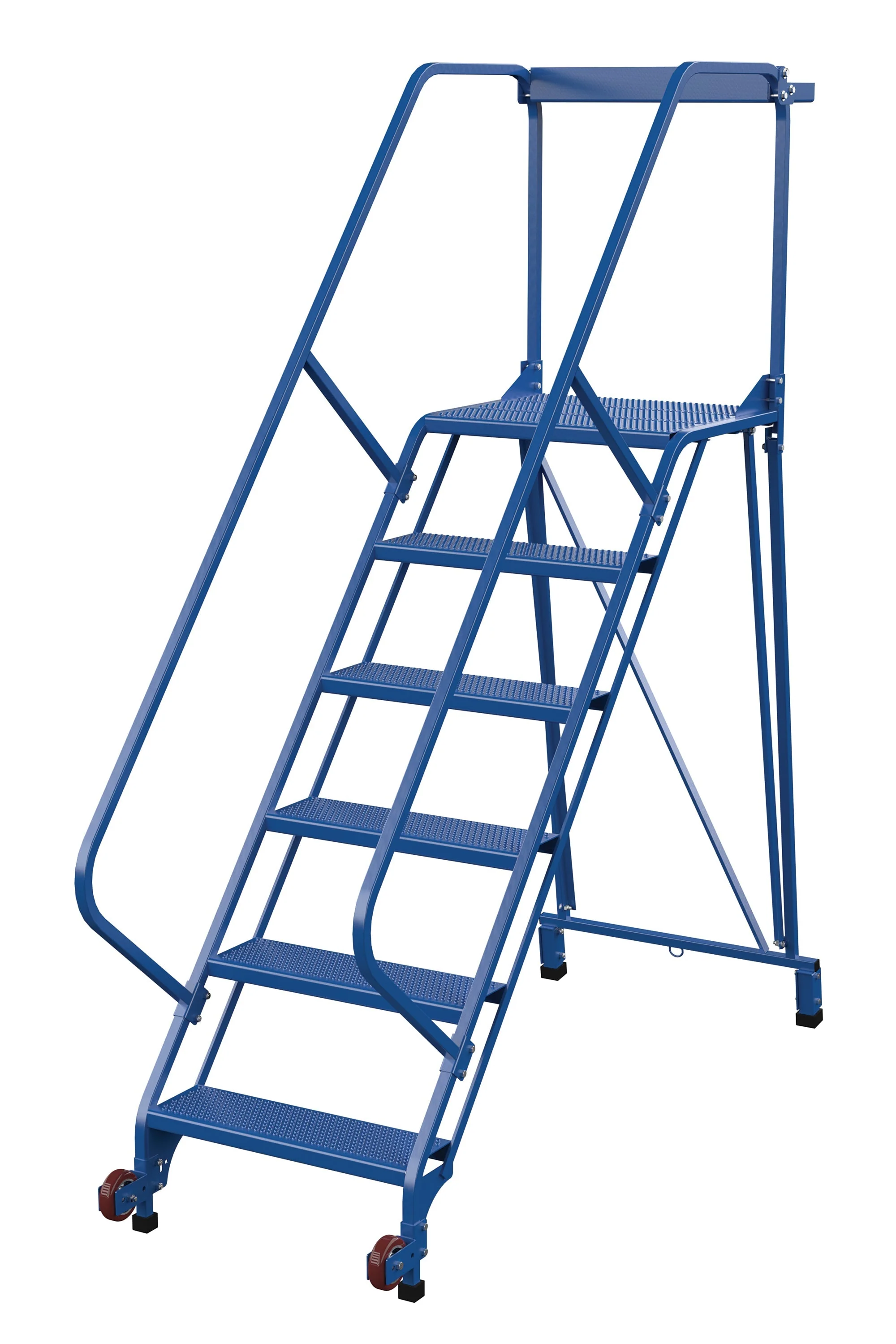

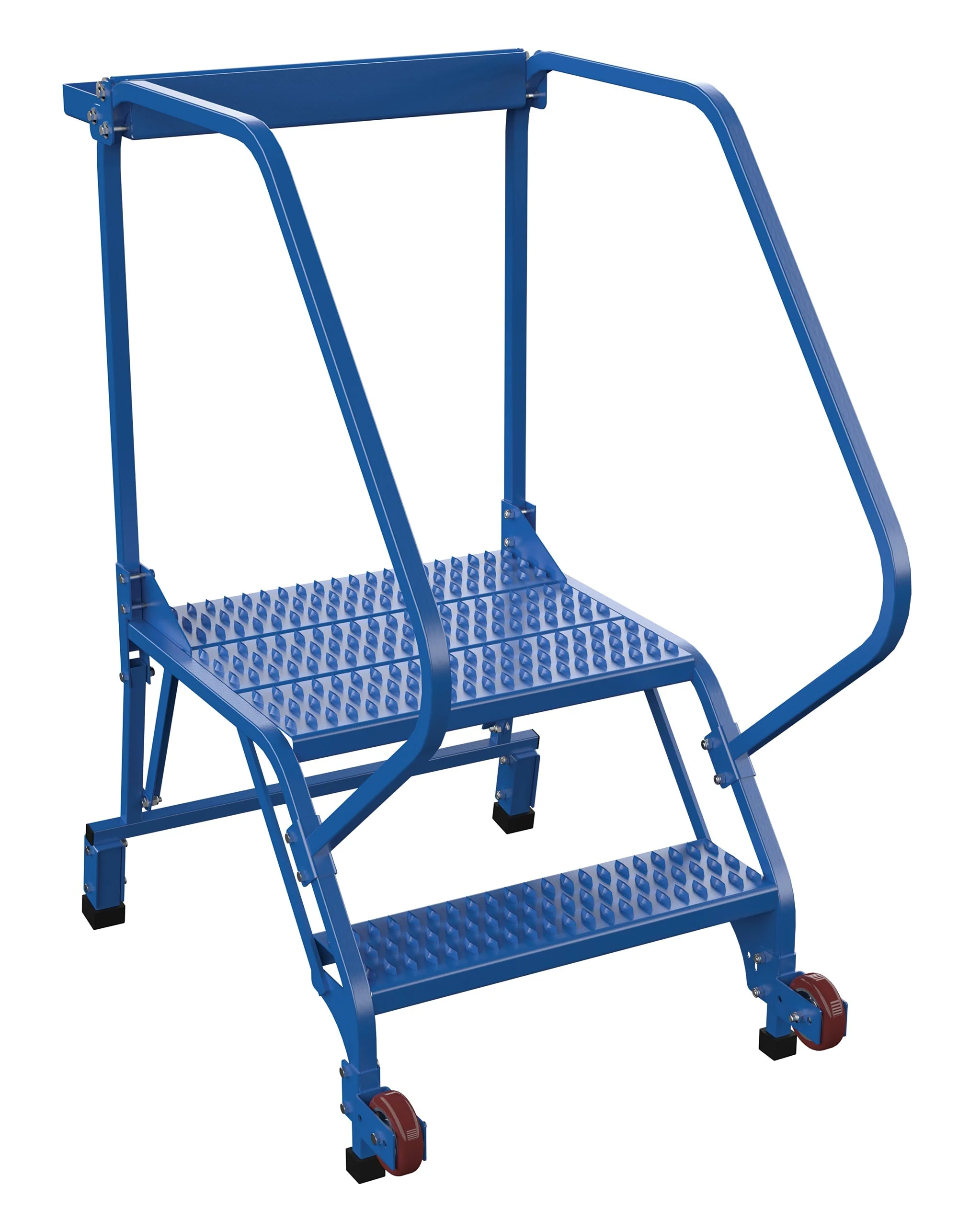

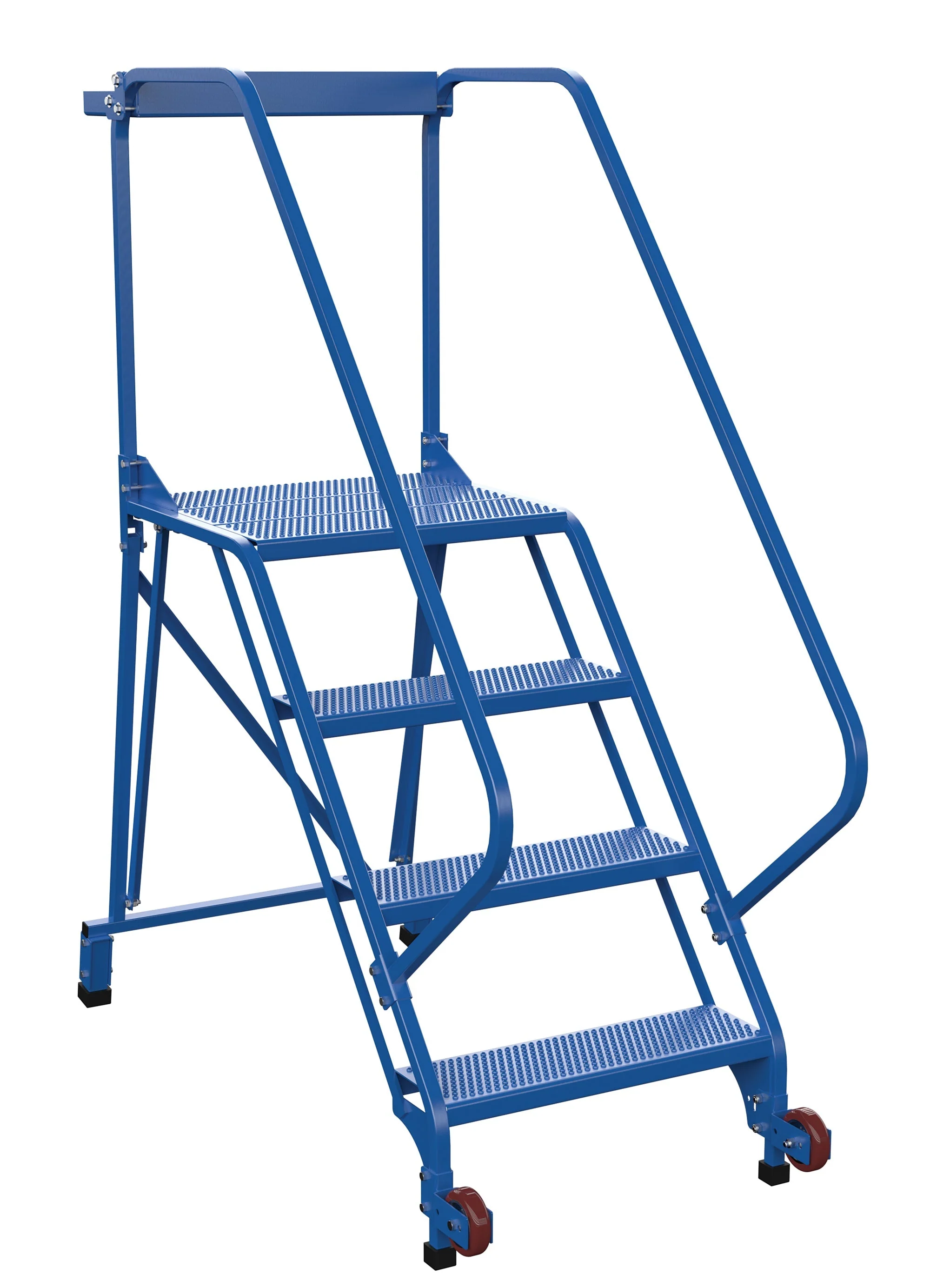

Straddle base for areas with permanent obstructions. When tilted, ladder rolls smoothly on 4" wheels. Include a removable tool tray that measures 24" x 10". Uniform capacity is 350 lbs. Available with perforated steps or grip strut steps. Blue baked-in powder-coated for added toughness. Units are shipped knockdown, some assembly required.
|
Tip-N-Go Mobile Ladders |
||||||
| Model | Step Type |
# Of Steps |
Angle |
Top Step (WxD) |
Overall Size (WxDxH) |
Wt. (lbs) |
|
Non-Straddle Design |
||||||
| LAD-TRN-50-2-P | Perforated | 2 | 50 degrees | 24"x14" | 29-1/2"x 30-15/16"x 50" | 108 |
| LAD-TRN-50-3-P | Perforated | 3 | 50 degrees | 24"x14" | 29-1/2"x 38-1/2"x 60" | 117 |
| LAD-TRN-50-4-P | Perforated | 4 | 50 degrees | 24"x14" | 29-1/2"x 47"x 70" | 167 |
| LAD-TRN-50-5-P | Perforated | 5 | 50 degrees | 24"x14" | 29-1/2"x 55-1/2"x 80" | 202 |
| LAD-TRN-50-6-P | Perforated | 6 | 50 degrees | 24"x14" | 29-1/2"x 63-3/8" x 90" | 215 |
| LAD-TRN-60-2-P | Perforated | 2 | 58 degrees | 24"x14" | 29-1/2"x 30-1/8"x 50" | 111 |
| LAD-TRN-60-3-P | Perforated | 3 | 58 degrees | 24"x14" | 29-1/2"x 35-13/16"x 60" | 121 |
| LAD-TRN-60-4-P | Perforated | 4 | 58 degrees | 24"x14" | 29-1/2"x42-1/16"x 70" | 144 |
| LAD-TRN-60-5-P | Perforated | 5 | 58 degrees | 24"x14" | 29-1/2"x 48-3/16"x 80" | 182 |
|
LAD-TRN-60-6-P |
Perforated | 6 | 58 degrees | 24"x14" | 29-1/2"x 54-5/16"x 90" | 188 |
| LAD-TRN-50-2-G | Grip-Strut | 2 | 50 degrees | 24"x14" | 29-1/2"x 30-15/16"x 50" | 108 |
| LAD-TRN-50-3-G | Grip-Strut | 3 | 50 degrees | 24"x14" | 29-1/2"x 38-1/2"x 60" | 117 |
| LAD-TRN-50-4-G | Grip-Strut | 4 | 50 degrees | 24"x14" | 29-1/2"x 47"x 70" | 167 |
| LAD-TRN-50-5-G | Grip-Strut | 5 | 50 degrees | 24"x14" | 29-1/2"x 55-1/2"x 80" | 202 |
| LAD-TRN-50-6-G | Grip-Strut | 6 | 50 degrees | 24"x14" | 29-1/2"x 63-3/8" x 90" | 215 |
| LAD-TRN-60-2-G | Grip-Strut | 2 | 58 degrees | 24"x14" | 29-1/2"x 30-1/8"x 50" | 111 |
| LAD-TRN-60-3-G | Grip-Strut | 3 | 58 degrees | 24"x14" | 29-1/2"x 35-13/16"x 60" | 121 |
| LAD-TRN-60-4-G | Grip-Strut | 4 | 58 degrees | 24"x14" | 29-1/2"x42-1/16"x 70" | 144 |
| LAD-TRN-60-5-G | Grip-Strut | 5 | 58 degrees | 24"x14" | 29-1/2"x 48-3/16"x 80" | 182 |
| LAD-TRN-60-6-G | Grip-Strut | 6 | 58 degrees | 24"x14" | 29-1/2"x 54-5/16"x 90" | 188 |
| Straddle Design | ||||||
| LAD-TRS-50-2-P | Perforated | 2 | 50 degrees | 24"x21" | 29-1/2"x 44-13/16"x 50" | 120 |
| LAD-TRS-50-3-P | Perforated | 3 | 50 degrees | 24"x21" | 29-1/2"x 52-9/16"x 60" | 128 |
| LAD-TRS-50-4-P | Perforated | 4 | 50 degrees | 24"x21" | 29-1/2"x 60-15/16"x 70" | 144 |
| LAD-TRS-50-5-P | Perforated | 5 | 50 degrees | 24"x21" | 29-1/2"x 69-3/8"x 80" | 204 |
| LAD-TRS-50-6-P | Perforated | 6 | 50 degrees | 24"x21" | 29-1/2"x 77-1/8"x 90" | 268 |
| LAD-TRS-60-2-P | Perforated | 2 | 58 degrees | 24"x21" | 29-1/2"x 44-3/16"x 50" | 120 |
| LAD-TRS-60-3-P | Perforated | 3 | 58 degrees | 24"x21" | 29-1/2"x 50-7/16"x 60" | 126 |
| LAD-TRS-60-4-P | Perforated | 4 | 58 degrees | 24"x21" | 29-1/2"x 55-3/4"x 70" | 174 |
| LAD-TRS-60-5-P | Perforated | 5 | 58 degrees | 24"x21" | 29-1/2"x 62"x 80" | 228 |
| LAD-TRS-60-6-P | Perforated | 6 | 58 degrees | 24"x21" | 29-1/2"x 68-1/4"x 90" | 232 |
| LAD-TRS-50-2-G | Grip-Strut | 2 | 50 degrees | 24"x21" | 29-1/2"x 44-13/16"x 50" | 120 |
| LAD-TRS-50-3-G | Grip-Strut | 3 | 50 degrees | 24"x21" | 29-1/2"x 52-9/16"x 60" | 128 |
| LAD-TRS-50-4-G | Grip-Strut | 4 | 50 degrees | 24"x21" | 29-1/2"x 60-15/16"x 70" | 144 |
| LAD-TRS-50-5-G | Grip-Strut | 5 | 50 degrees | 24"x21" | 29-1/2"x 69-3/8"x 80" | 204 |
| LAD-TRS-50-6-G | Grip-Strut | 6 | 50 degrees | 24"x21" | 29-1/2"x 77-1/8"x 90" | 268 |
| LAD-TRS-60-2-G | Grip-Strut | 2 | 58 degrees | 24"x21" | 29-1/2"x 44-3/16"x 50" | 120 |
| LAD-TRS-60-3-G | Grip-Strut | 3 | 58 degrees | 24"x21" | 29-1/2"x 50-7/16"x 60" | 128 |
| LAD-TRS-60-4-G | Grip-Strut | 4 | 58 degrees | 24"x21" | 29-1/2"x 55-3/4"x 70" | 174 |
| LAD-TRS-60-5-G | Grip-Strut | 5 | 58 degrees | 24"x21" | 29-1/2"x 62"x 80" | 228 |
| LAD-TRS-60-6-G | Grip-Strut | 6 | 58 degrees | 24"x21" | 29-1/2"x 68-1/4"x 90" | 232 |
