Vestil Tripod Hoist Stands

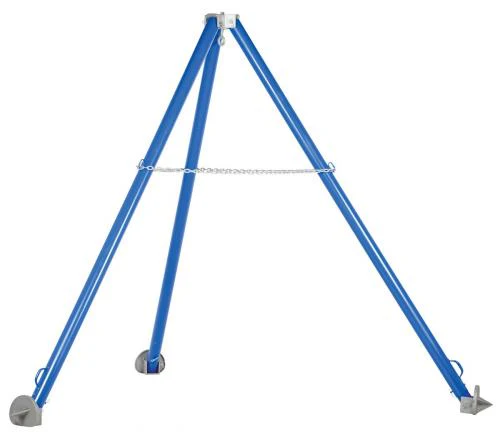

If you’re looking for portable, convenient, and economical lifting support, Vestil has you covered with their range of Tripod Hoist Stands .

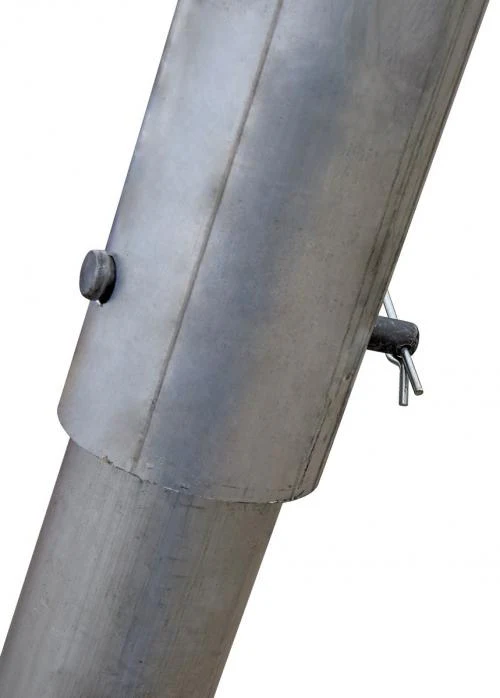

Available in heavy duty steel constructions with fixed and adjustable legs, the legs on these tripod hoist stands can be independently adjusted (in 6 inch increments) making them superb for areas with uneven terrains.

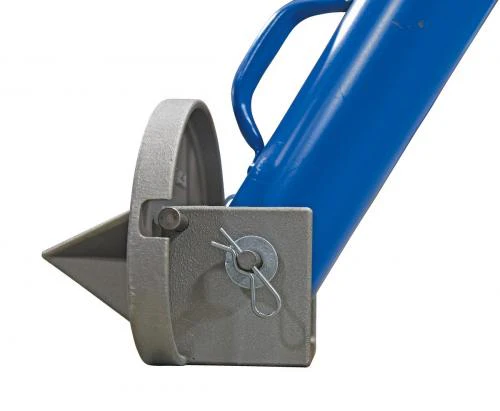

A classic foldable design for convenient portability and storage, the spiked feet design is fitted with a swivel eyebolt and safety chain as standard, and meets ANSI safety requirements for confined space in accordance with Z117.1.



NOTE: Please Contact Us for pricing on Aluminum versions. Quote Code in Specification Table

• 1000 – 2000lbs capacity
• Portable and adjustable
• Fixed and Independently adjustable leg versions
• Meets ANSI Z117.1 confined space standards
• Swivel eyebolt and safety chain as standard

Tripod Hoist Stands
Model	Description	Eyelet Height Min./Max.	Capacity (lbs)	Wt. (lbs)
Steel Construction
TRI-SA	Adjustable Height Legs	105" to 165-3/4"	2,000	322
TRI-SF	Fixed Height Legs	107-3/4" (fixed)	2,000	250
Aluminum Construction
TRI-AA	Adjustable Height Legs	104-1/4" to 164-1/2"	1,000	247
TRI-AF	Fixed Height Legs	104-1/2" (fixed)	1,000	215

Model	Image	Description	Attributes	Net Wt. (lbs)
TRI-AA		Aluminum Adjustable Height Tripod Stand 115-5/8 In. x 115-5/8 In. x 111-5/8 In. 1,000 Lb. Capacity Silver	Uniform Capacity (lb.): 1,000 Eyelet Height Min./Max. (in.): 104-1/4 to 164-1/2	247
TRI-AF		Aluminum Fixed Tripod Stand 114-1/8 In. x 114-1/8 In. x 112 In. 1,000 Lb. Capacity Silver	Uniform Capacity (lb.): 1,000 Eyelet Height (in.): 104-1/2	215
TRI-SA		Steel Adjustable Height Tripod Stand 113 In. x 113 In. x 112-3/8 In. 2,000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Eyelet Height Min./Max. (in.): 105 to 165-3/4	322
TRI-SF		Steel Fixed Tripod Stand 106-3/4 In. x 106-3/4 In. x 115-1/8 In. 2,000 Lb. Capacity Blue	Uniform Capacity (lb.): 2,000 Eyelet Height (in.): 107-3/4	250
