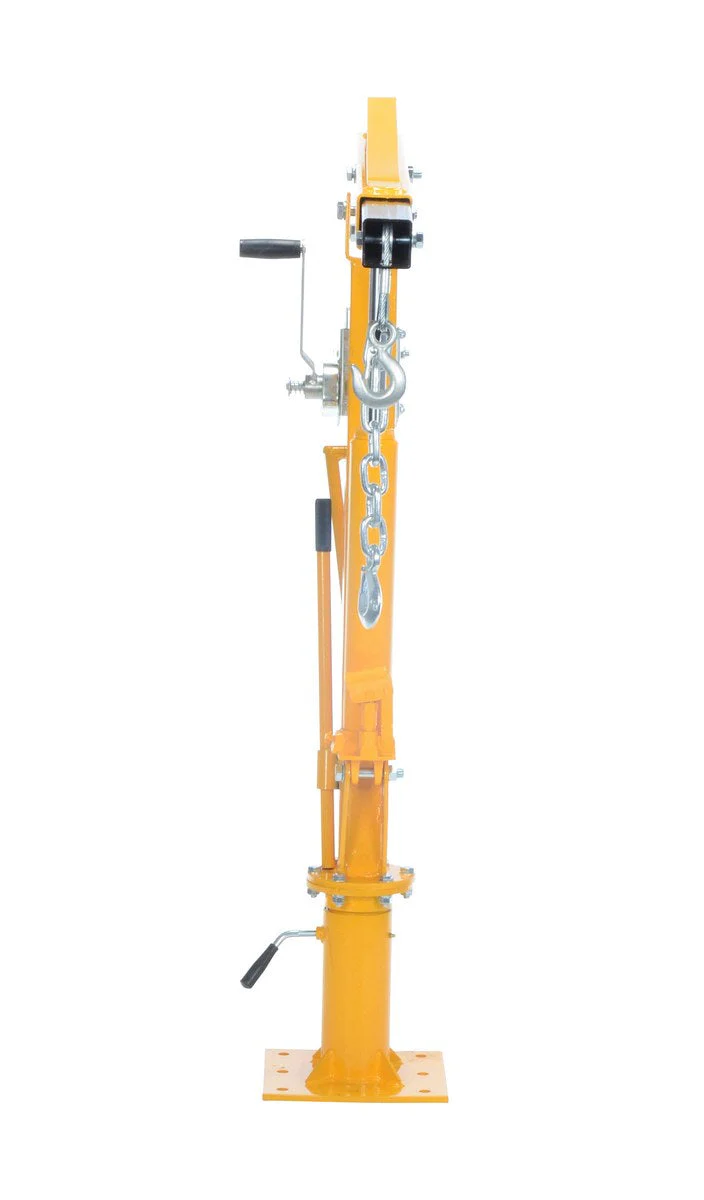

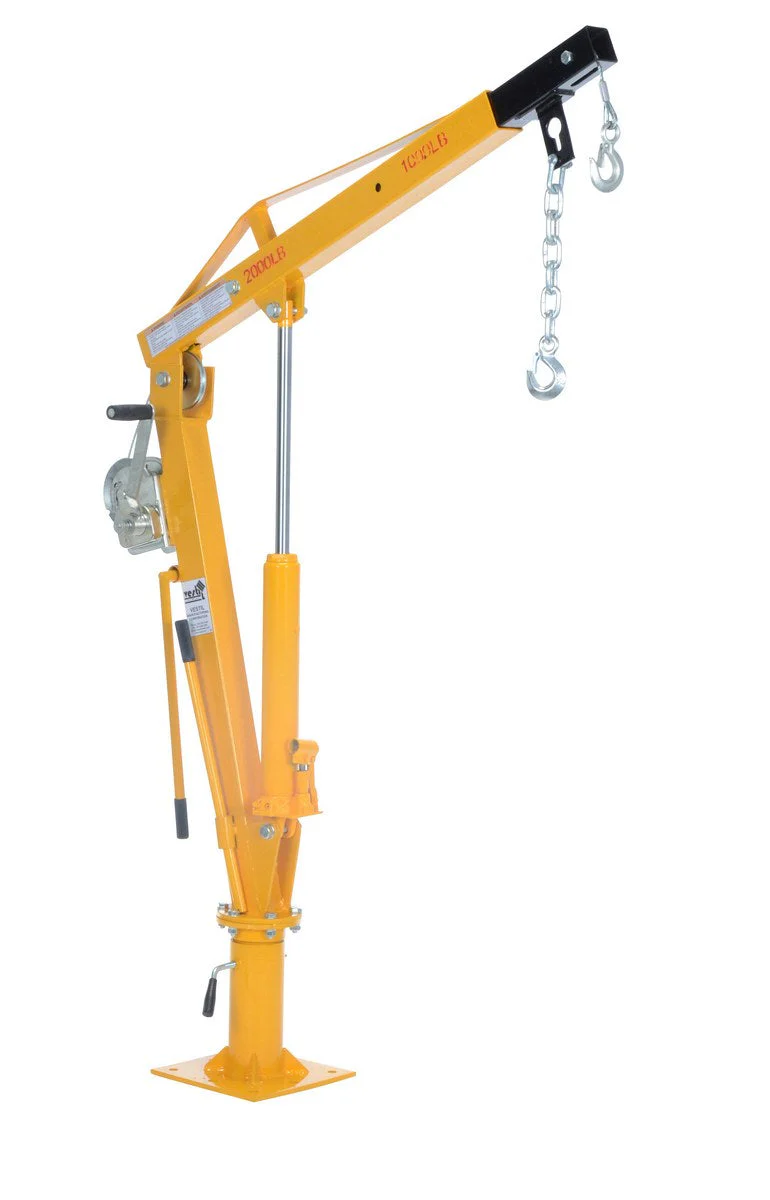

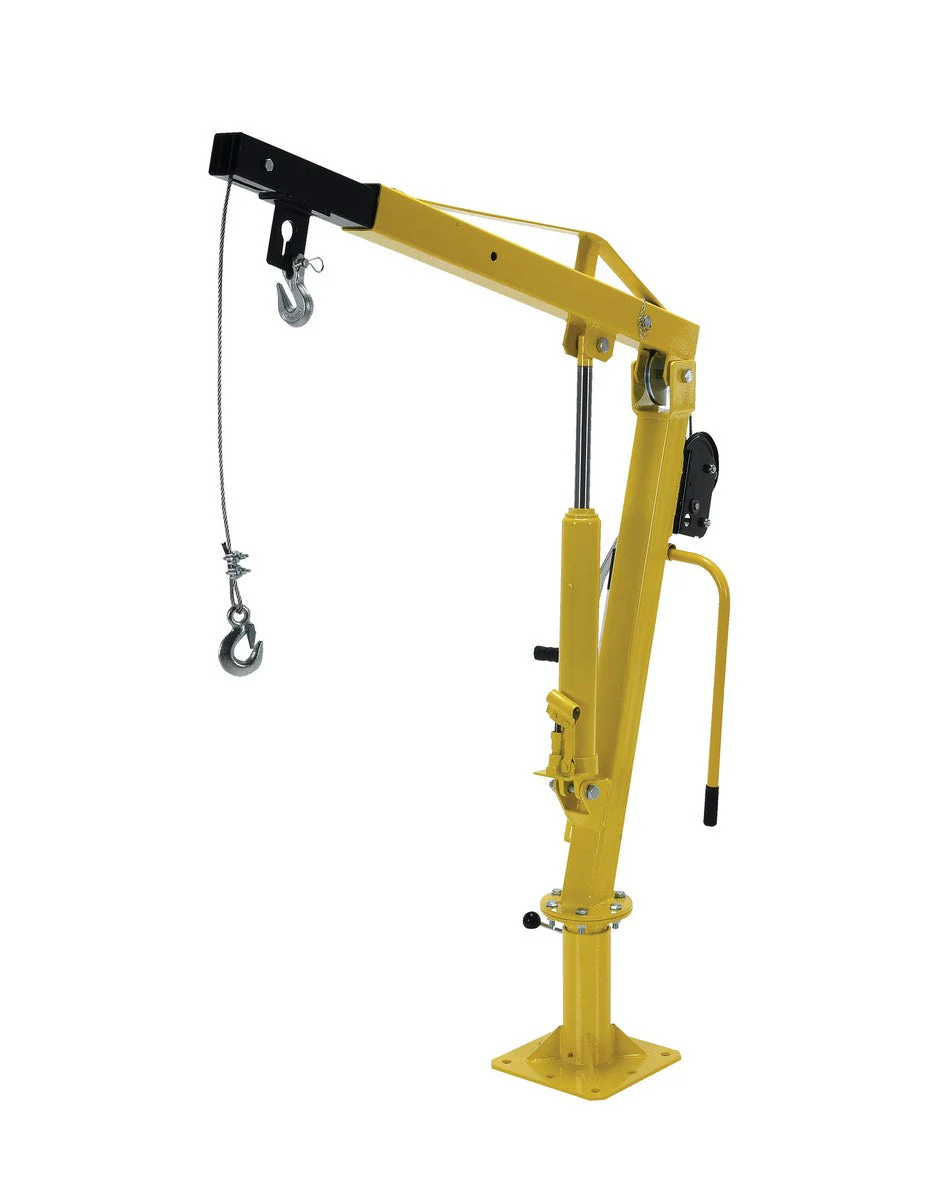

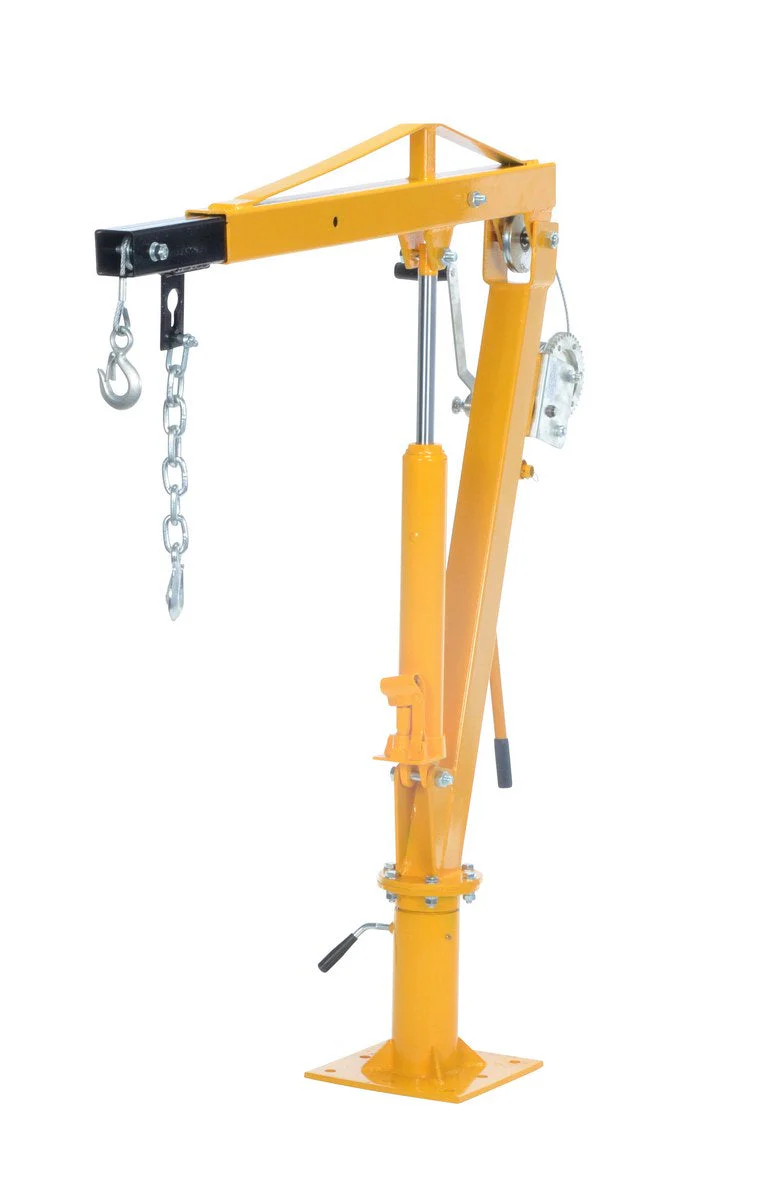

Vestil Truck Mounted Davit Crane

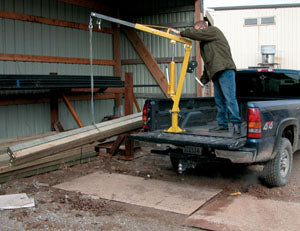

Truck Mounted Davit Cranes from Vestil offer a bolt-down solution for lifting and loading/unloading heavy goods from the back flat bed of a pick-up truck.

Includes telescopic boom design with manual hydraulic hand pump to pivot boom up and down. Manual cable winch to lift and lower loads up to 500 pounds. Friction brake winch locks automatically when operator turns the handle counterclockwise to lower load. Cable usable length for all models is 24', except WTJ-2 (9' model WTJ-2). Unit comes with one fixed hook, one chain slot lock, and one cable hook with latch. The crane swivels on a 360 degree base. Safety yellow, galvanized or stainless steel finish available. Welded steel construction. 12V DC power option available.

Winch Operated Truck Jib Crane
Model	Image	Operation	Boom	Fixed Hook Capacity (lbs)	Boom Reach	Lift Range	Wt. (lbs)
Painted Safety Yellow Finish
WTJ-2		Hand Pump	Extended Retracted	500 1,000	54" 30-1/4"	0 TO 102" 10" TO 89-1/2"	135

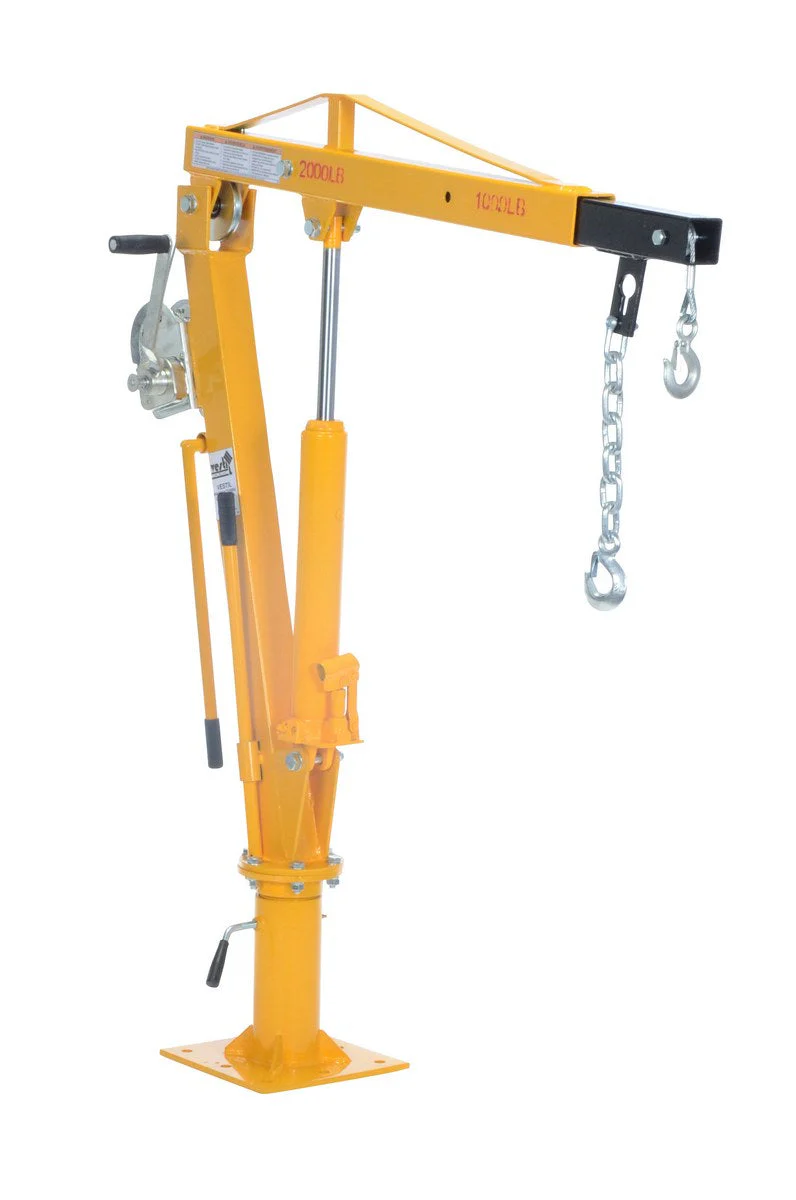

WTJ-4		Hand Pump	Extended Retracted	1,000 2,000	44" 30"	0 TO 86-1/2" 13-1/2" TO 77-1/2"	145

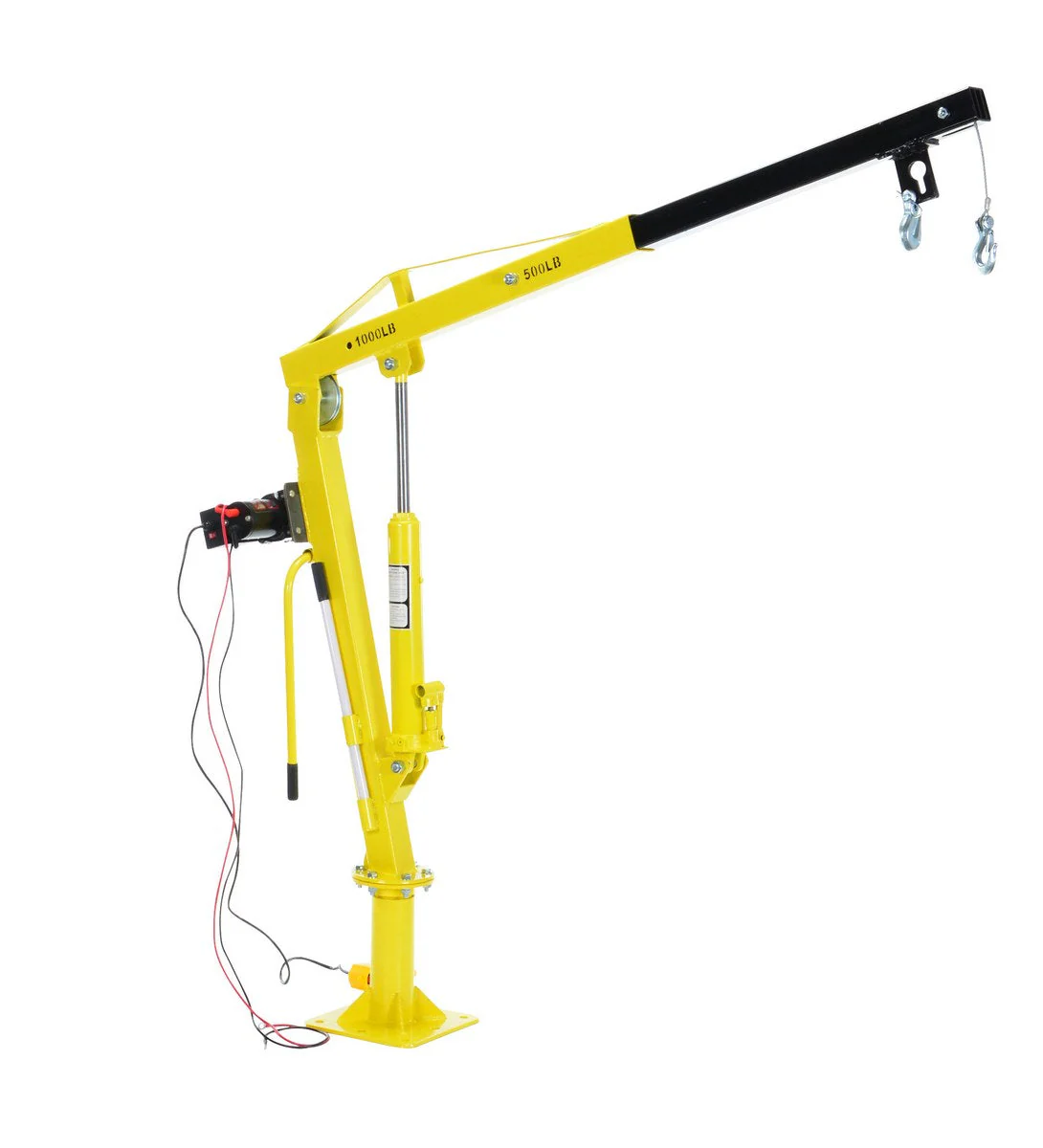

WTJ-2-DC		12V DC	Extended Retracted	500 1,000	54" 30-1/4"	0 TO 102" 10" TO 89-1/2"	160

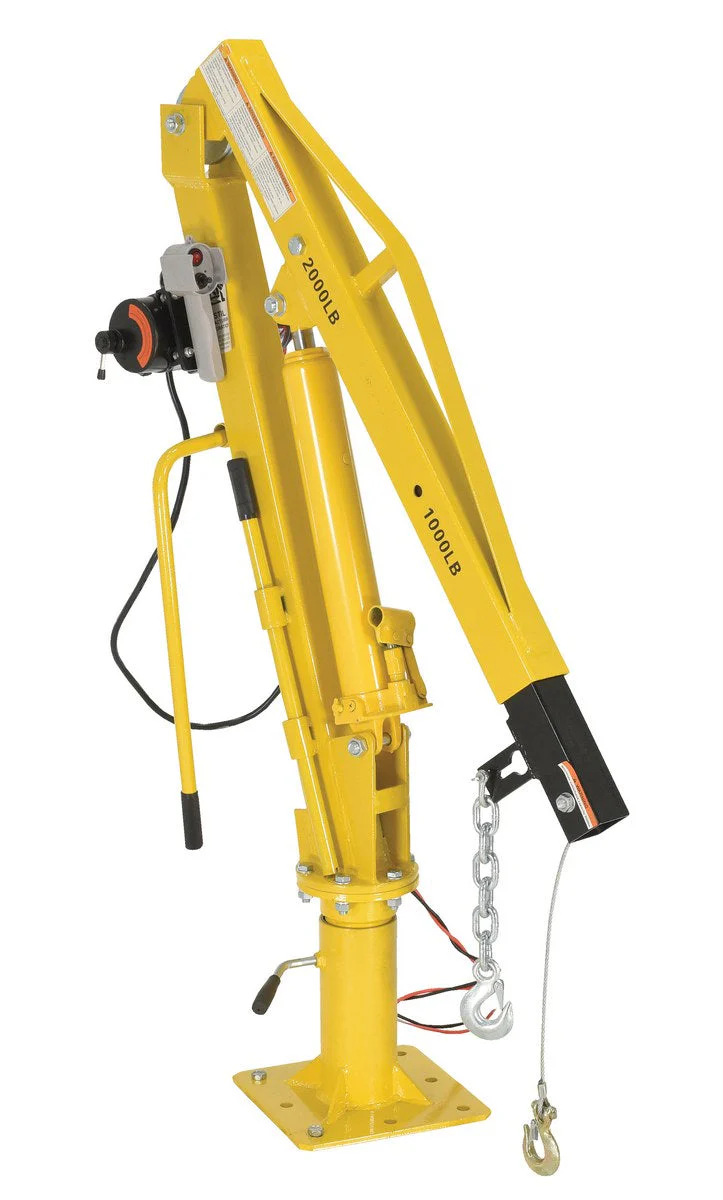

WTJ-4-DC		12V DC	Extended Retracted	1,000 2,000	44" 30"	0 TO 86-1/2" 13-1/2" TO 77-1/2"	170
Galvanized Finish

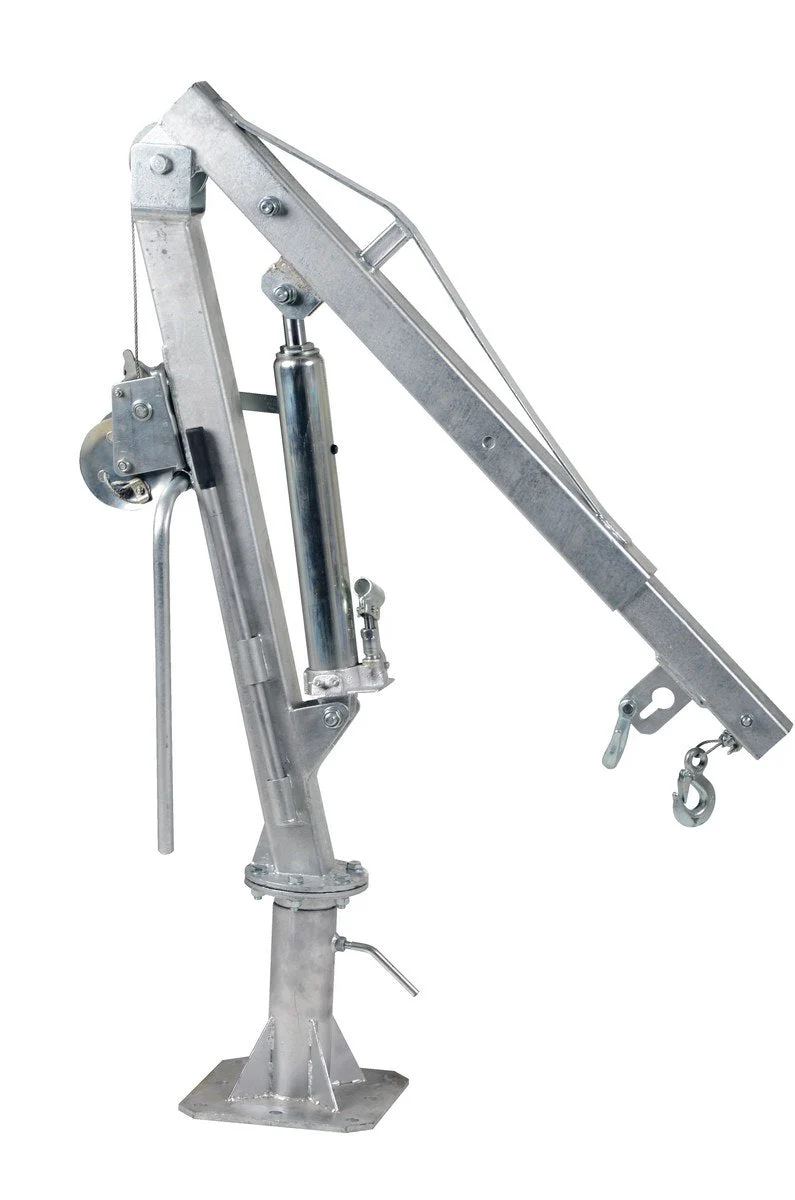

WTJ-2-G		Hand Pump	Extended Retracted	500 1,000	52" 30-1/2	0 TO 86" 15-1/2" TO 72"	134

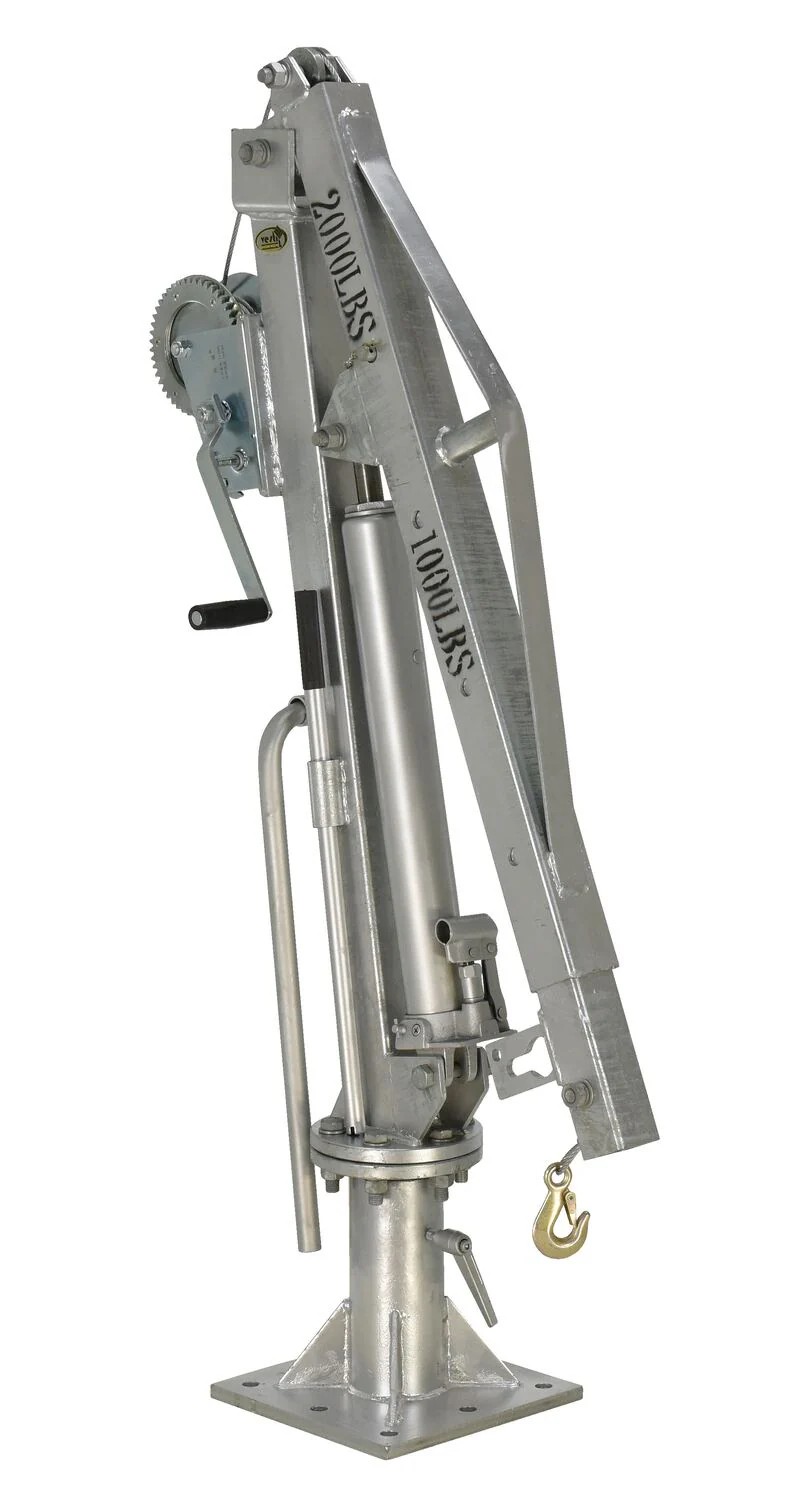

WTJ-4-G		Hand Pump	Extended Retracted	1,000 2,000	52" 31"	0 TO 85-7/8" 15-1/2" TO 74-1/2"	218

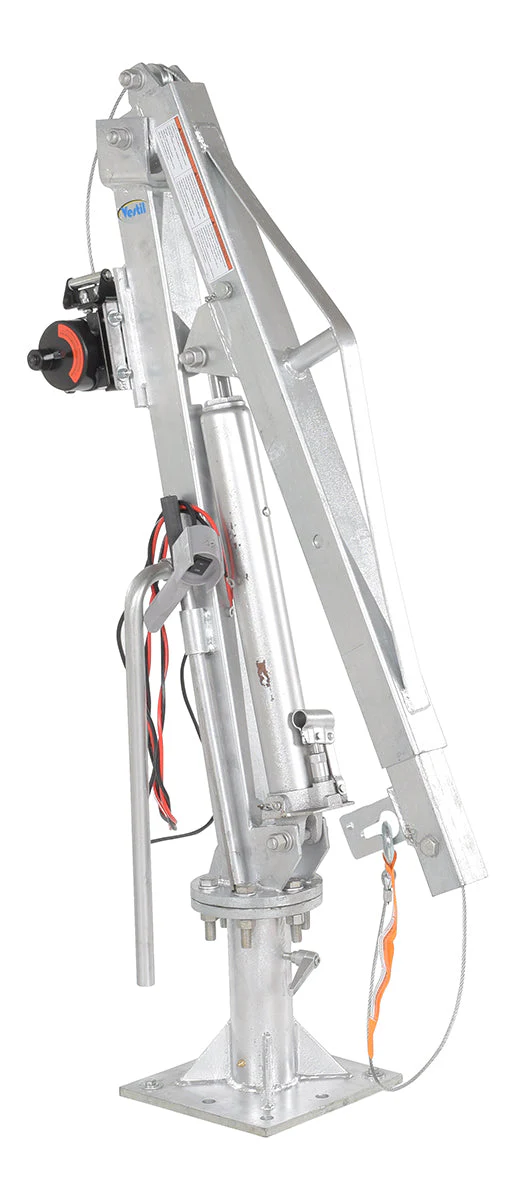

WTJ-2-G-DC		12V DC	Extended Retracted	500 1,000	52" 30-12"	0 TO 86" 15-1/2" TO 72"	165

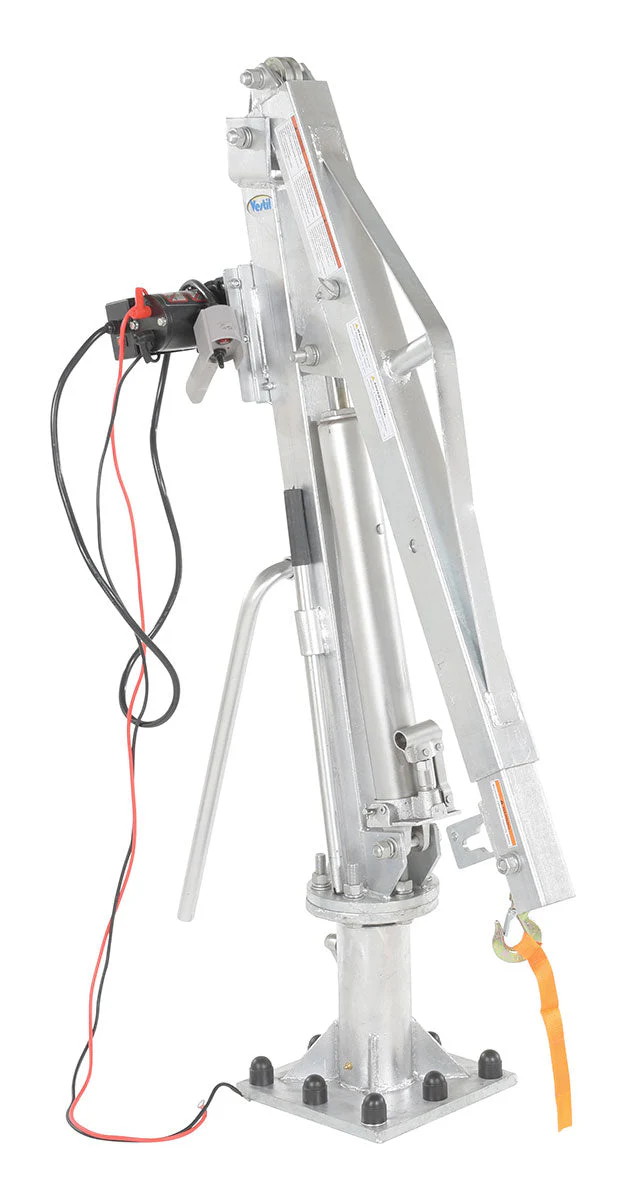

WTJ-4-G-DC		12V DC	Extended Retracted	1,000 2,000	52" 31"	0 TO 85-7/8" 15-1/2" TO 74-1/2"	245
Stainless Steel Finish
WTJ-2-SS		Hand Pump	Extended Retracted	500 1,000	52" 30-1/2"	0 to 86" 15-1/2" to 72"	134
WTJ-4-SS		Hand Pump	Extended Retracted	1,000 2,000	52" 31"	0 TO 85-7/8" 15-1/2" TO 74-1/2"	218
