Vestil Vertical Clamps with Chain

DISCONTINUED

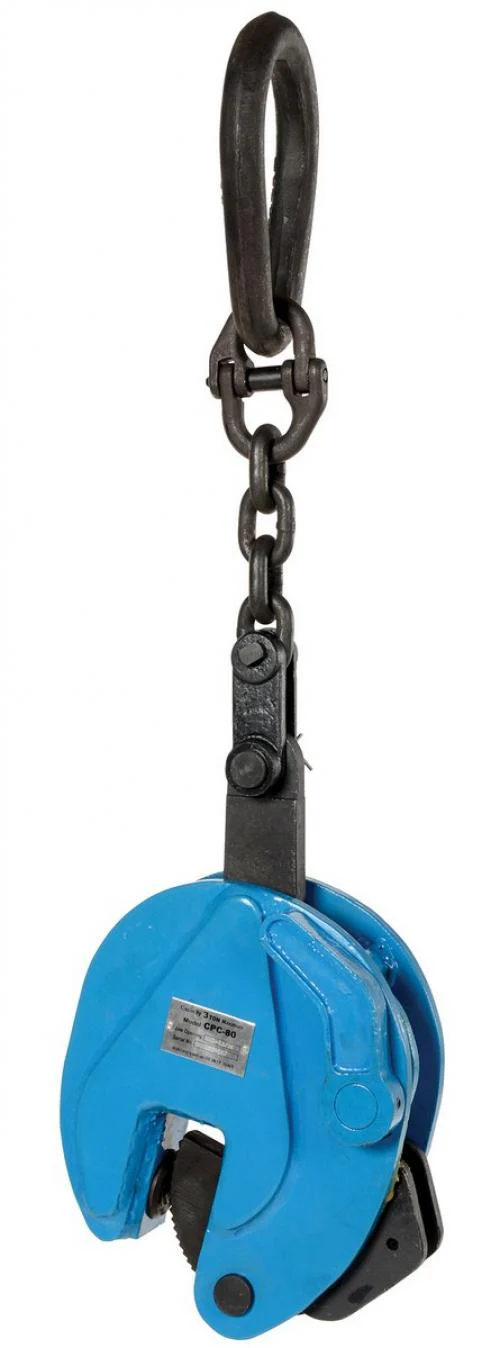

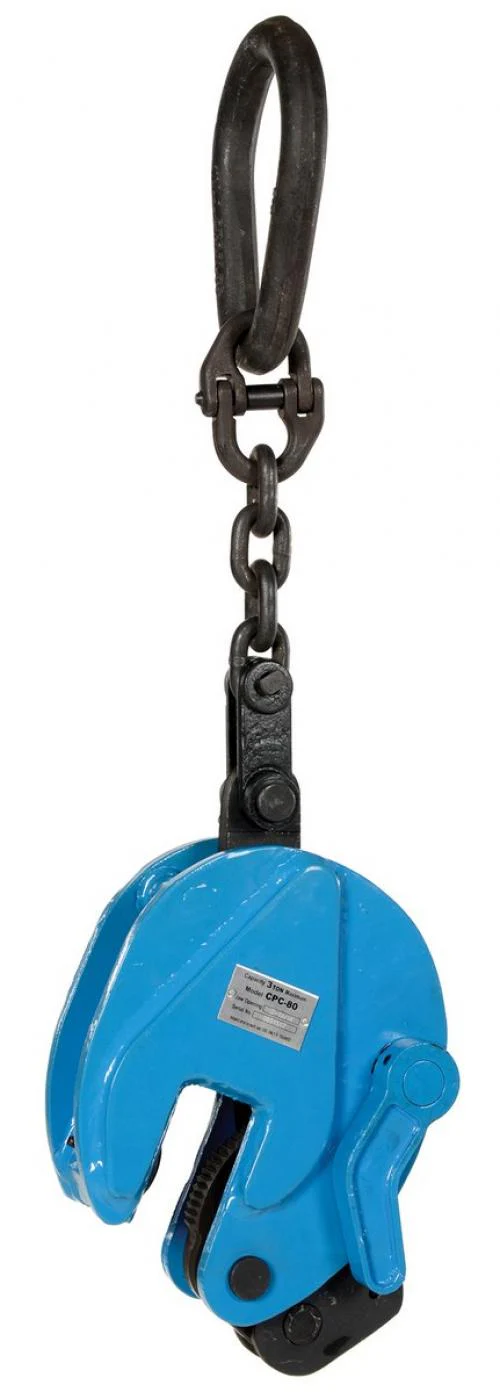

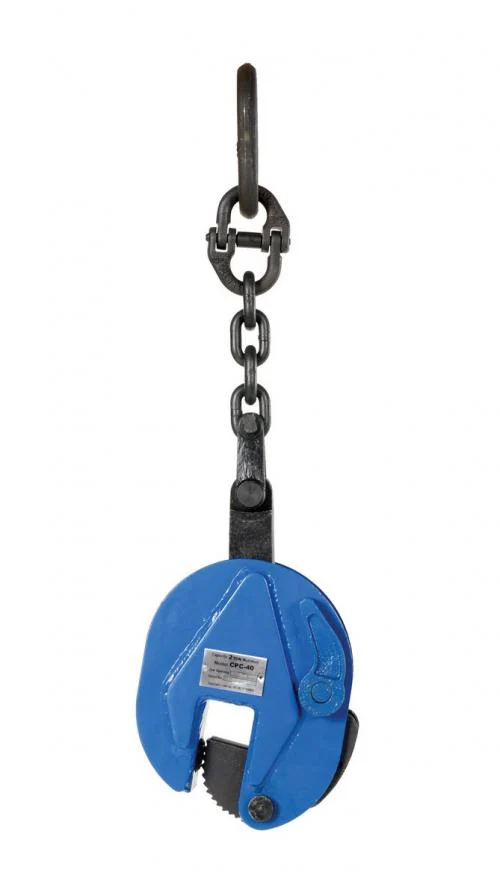

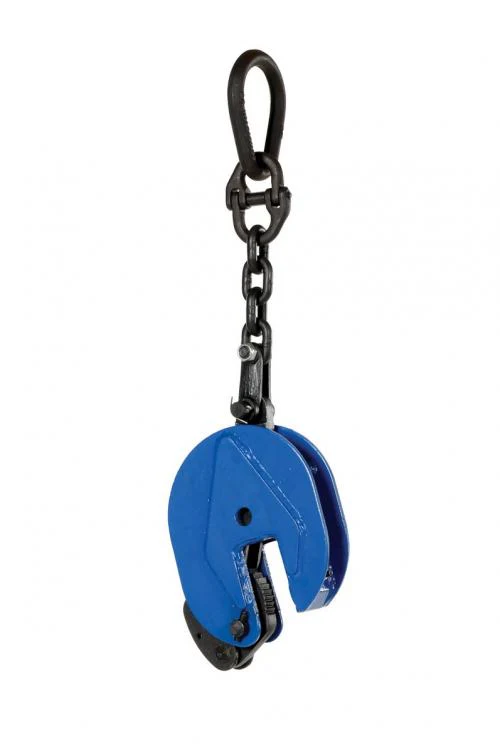

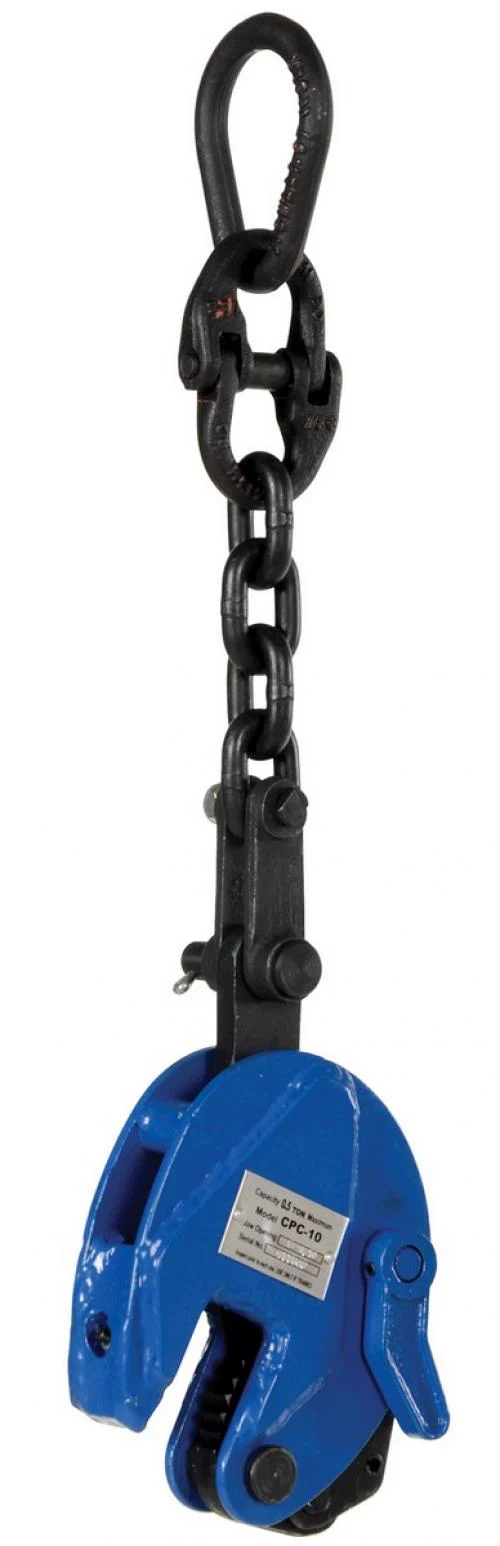

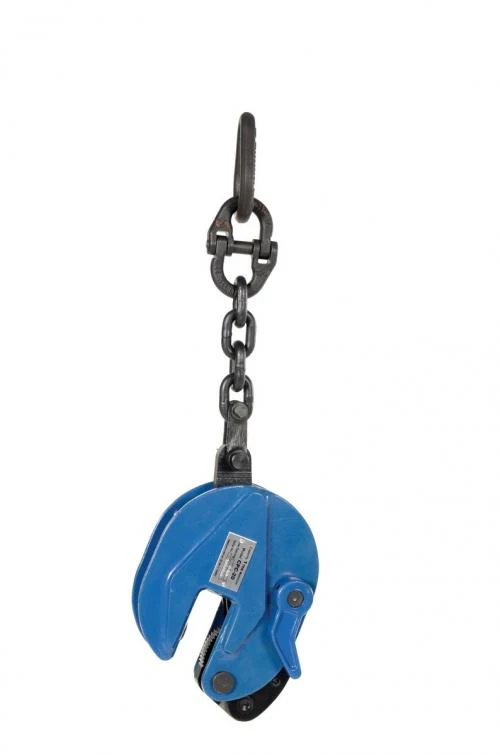

Vestil’s CPC vertical clamp series has been specifically designed to lift plate material easily in a vertical position.



Complete with a lifting eye with chain for greater versatility, reliable use over the coming years is guaranteed through the heavy-duty steel construction. Each piece in the series is meets ASME B30.20 specifications.



*NOTE: Do not use plate clamps to lift loads less than 20% of rated capacity. Lift only one plate at a time. Plates must be clear of oil. Not designed for use on stainless steel or aluminium plates.

• Designed for vertical lifting
• Versatile – lifting eye included
• Reliable – heavy-duty steel construction
• Meets MSME B30.20 specs
• For use with materials with a surface hardness to 30 RC (300 HB)

Model	Image	Description	Attributes	Net Wt. (lbs)
CPC-10		Steel Vertical Plate Clamp with Chain 4 In. x 1-31/32 In. x 16-7/8 In. 1000 Lb. Capacity Blue	Min Uniform Plate Weight (lb.): 200 Uniform Working Load Limit (lb.): 1,000	6
CPC-20		Steel Vertical Plate Clamp with Chain 6-1/2 In. x 2-1/2 In. x 22 In. 2000 Lb. Capacity Blue	Min Uniform Plate Weight (lb.): 400 Uniform Working Load Limit (lb.): 2,000	14
CPC-40		Steel Vertical Plate Clamp with Chain 7 In. x 2-3/4 In. x 23-1/2 In. 4000 Lb. Capacity Blue	Min Uniform Plate Weight (lb.): 800 Uniform Working Load Limit (lb.): 4,000	17
CPC-80		Steel Vertical Plate Clamp with Chain 9-3/4 In. x 4-3/4 In. x 27-1/2 In. 8000 Lb. Capacity Blue	Min Uniform Plate Weight (lb.): 1,320 Uniform Working Load Limit (lb.): 6,600	33
