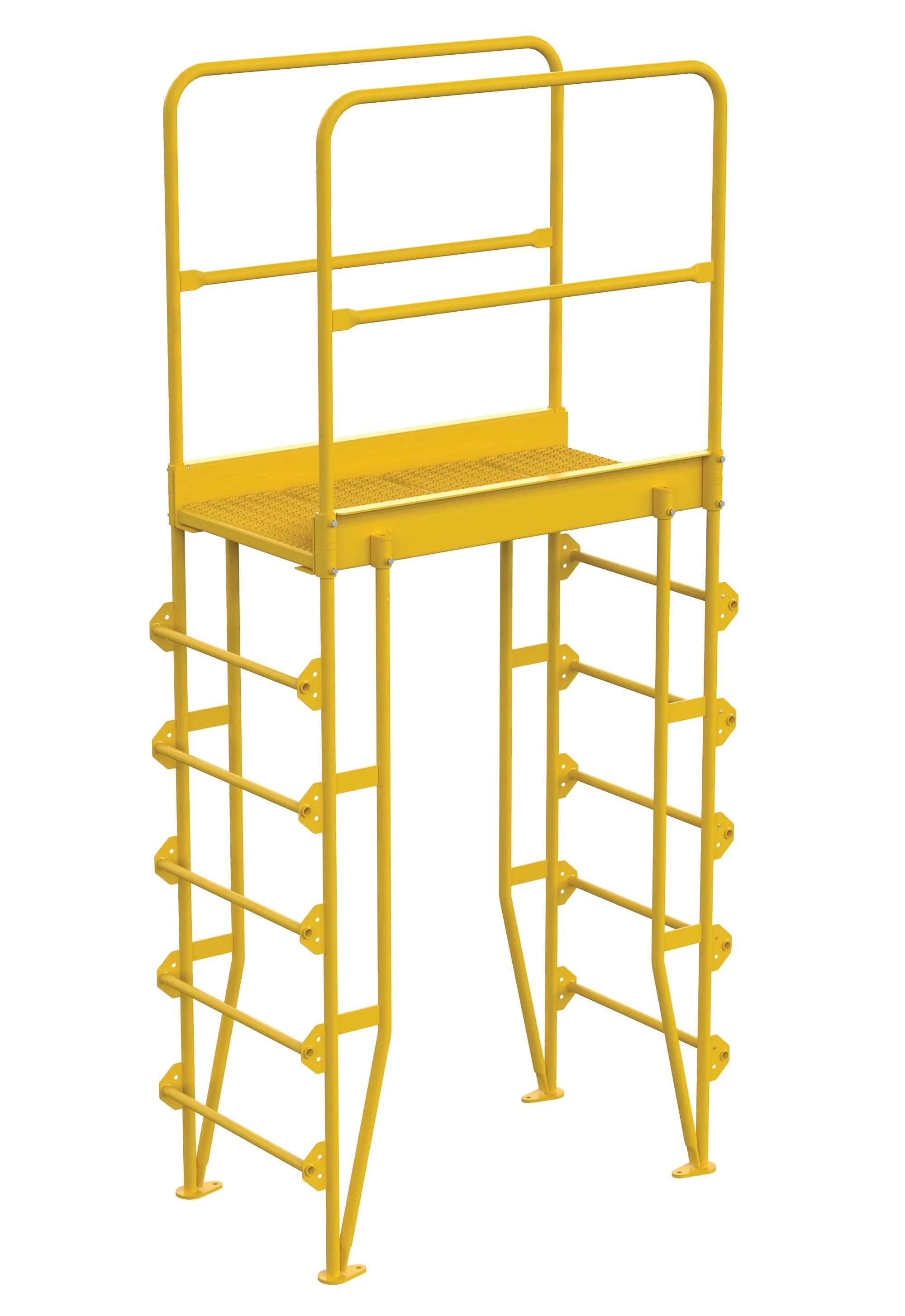

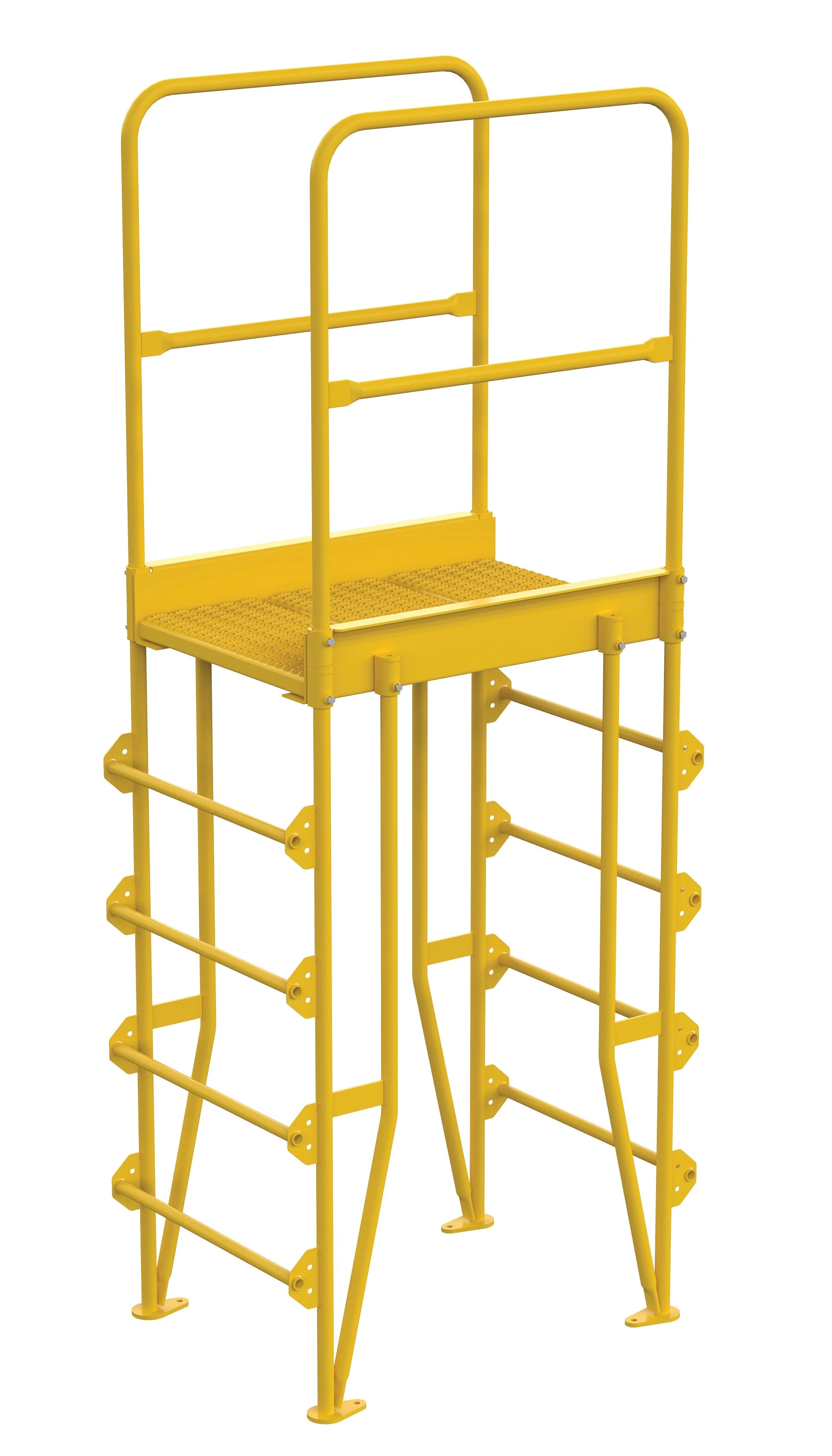

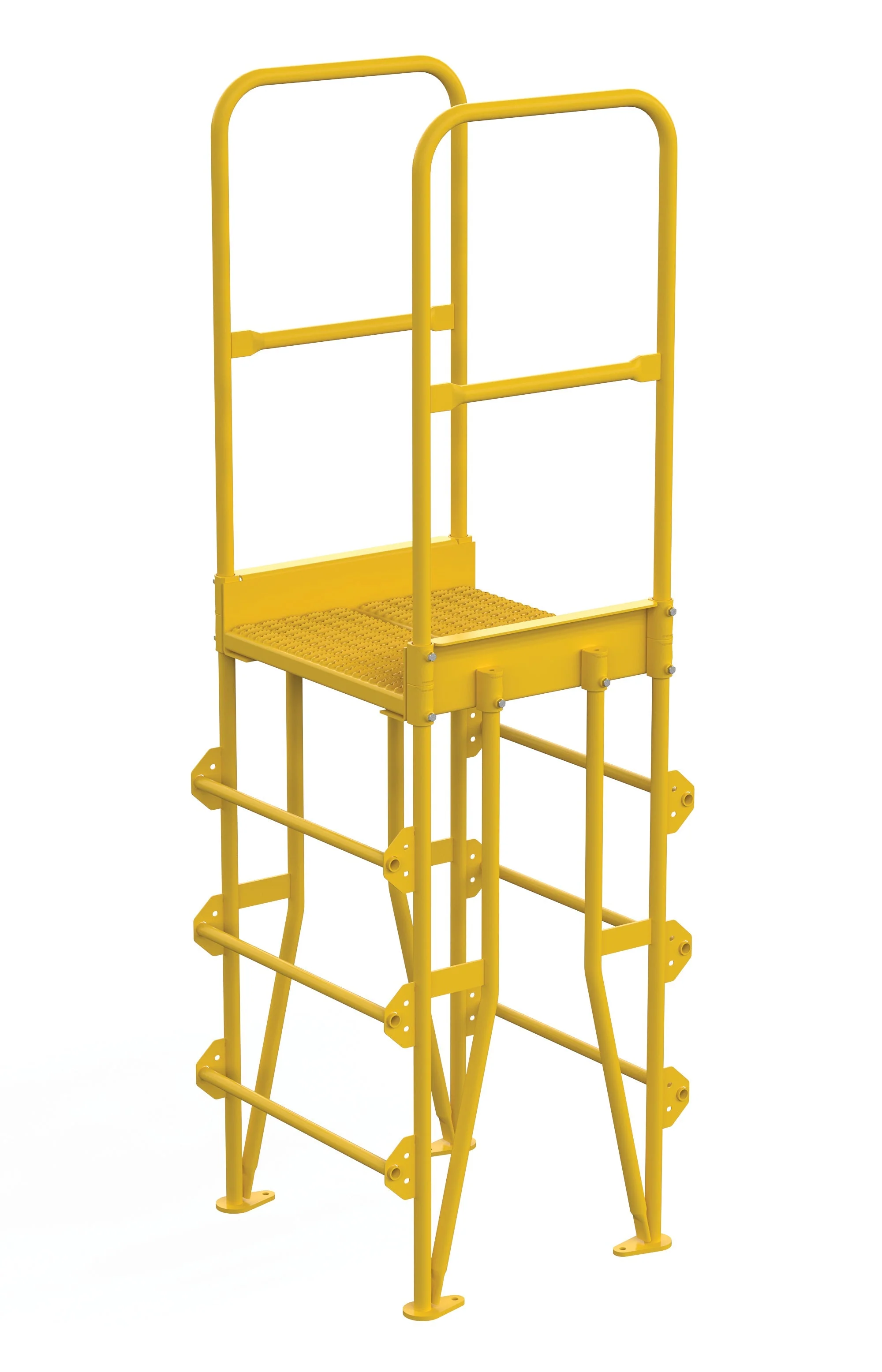

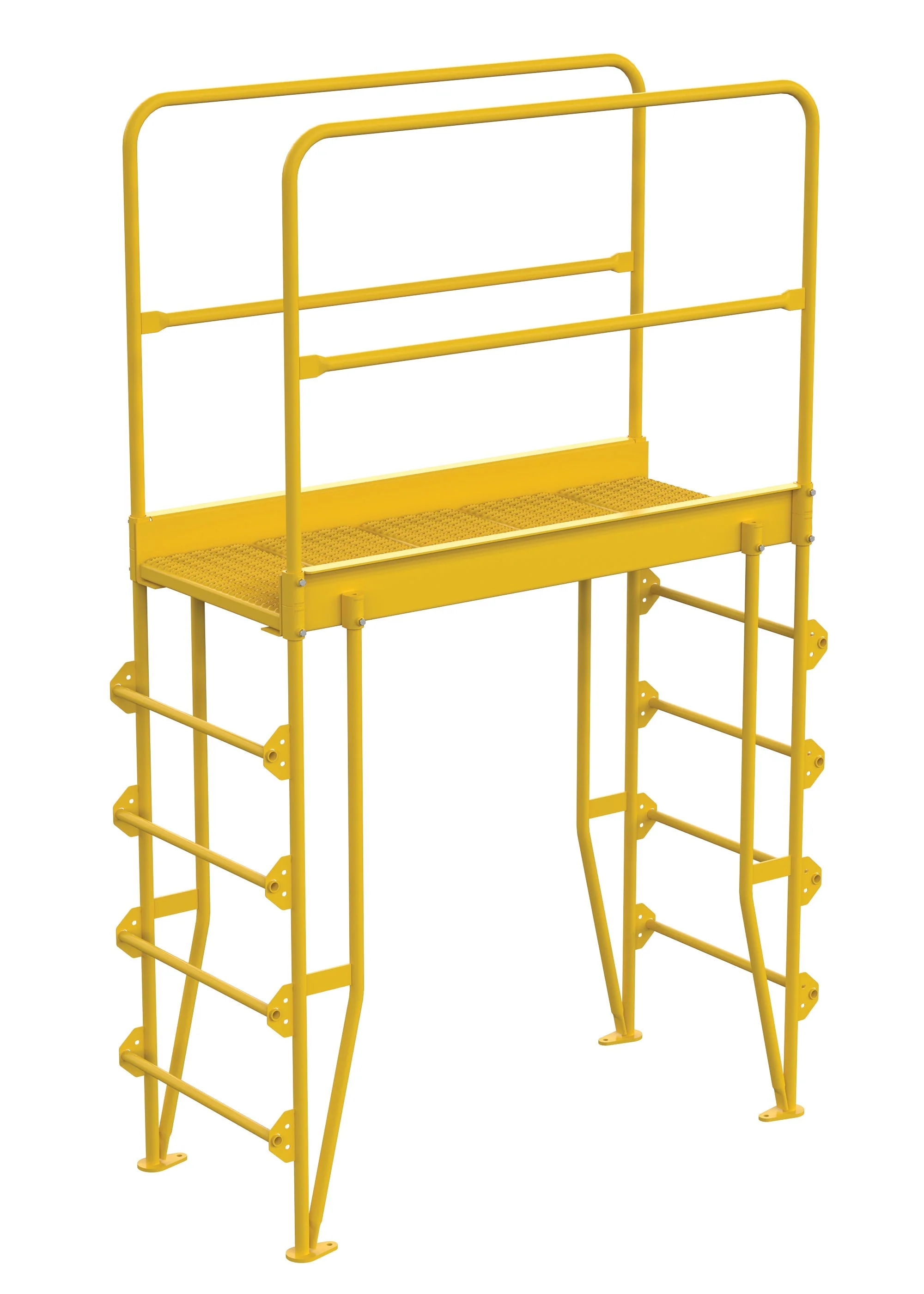

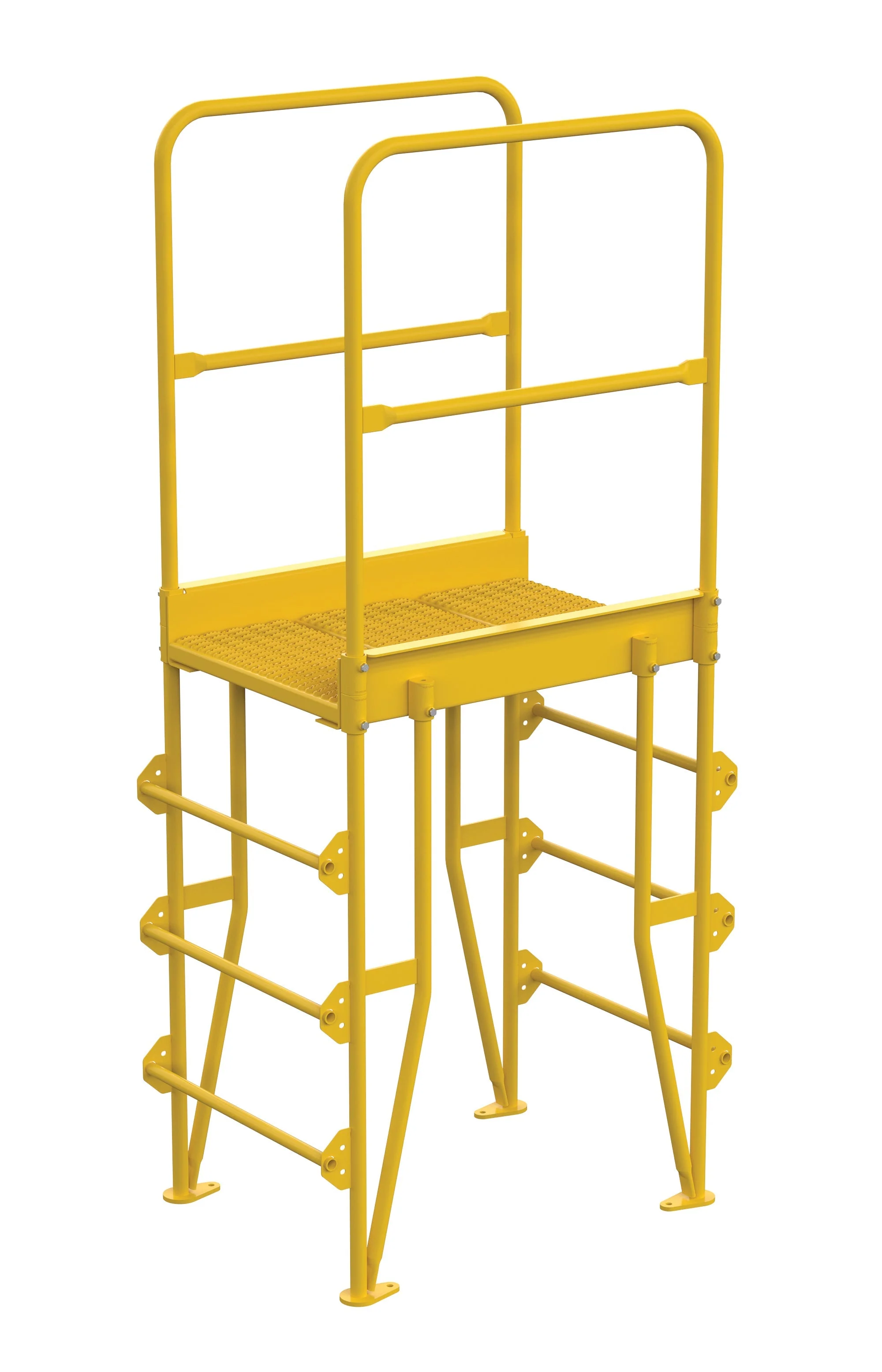

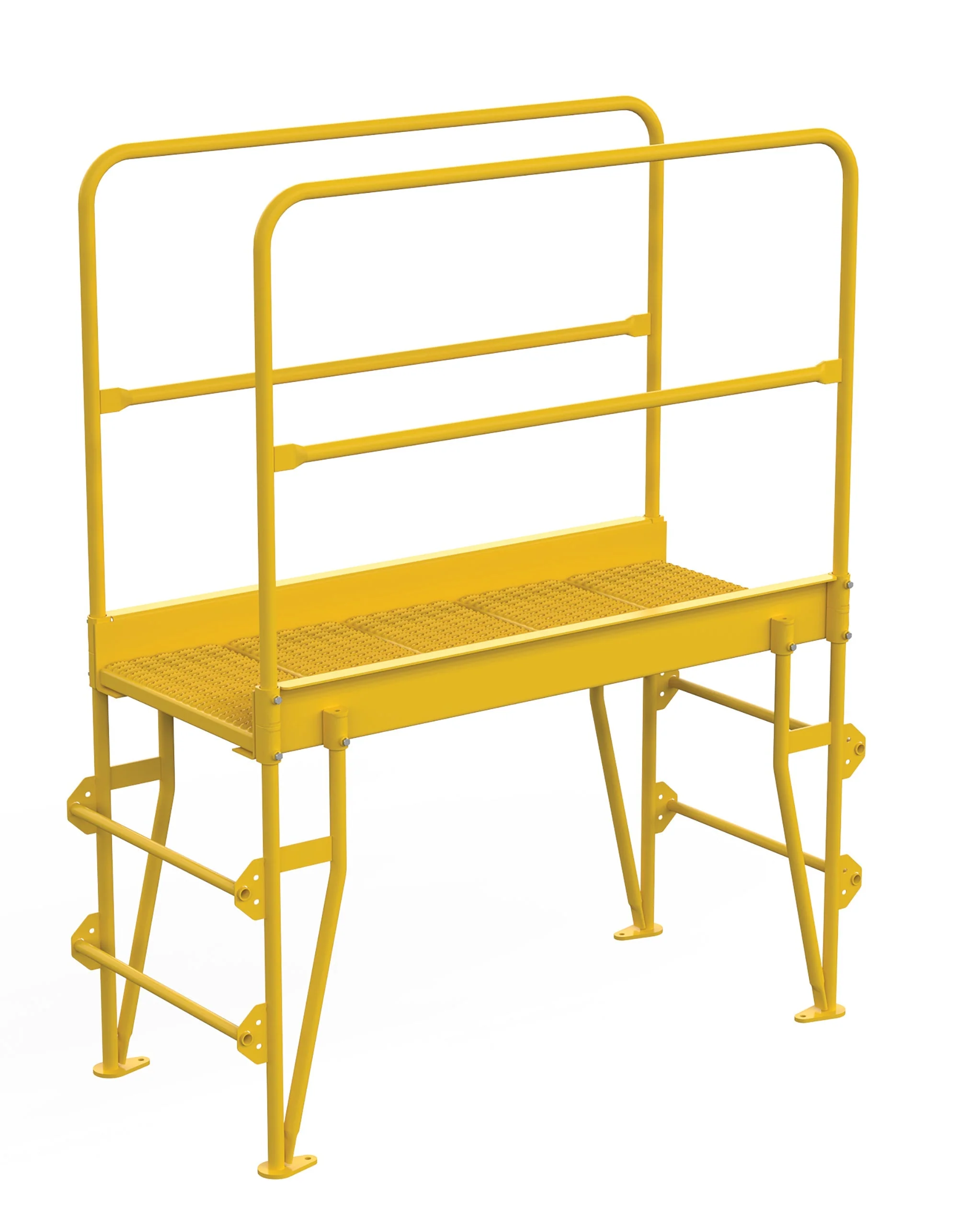

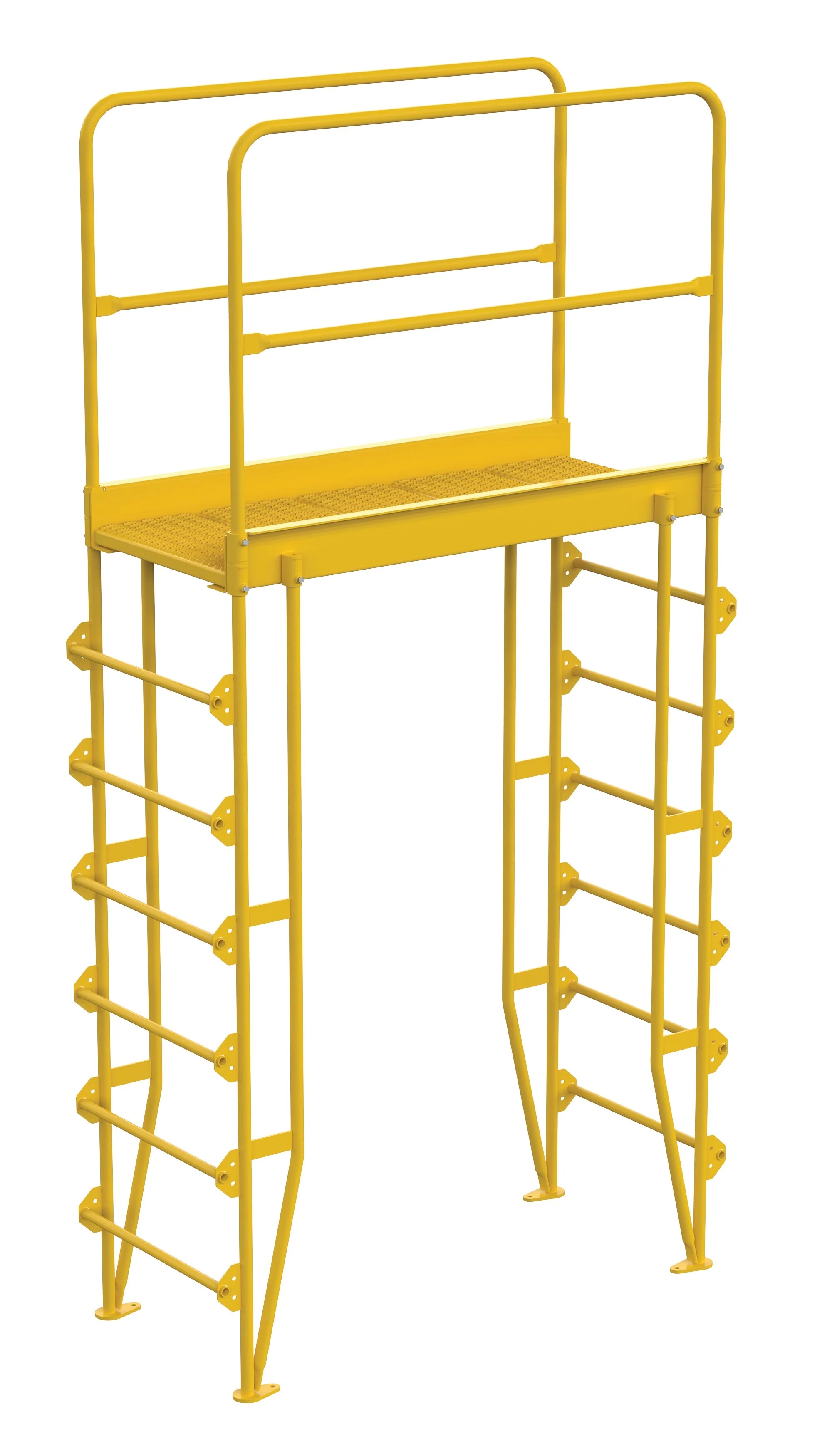

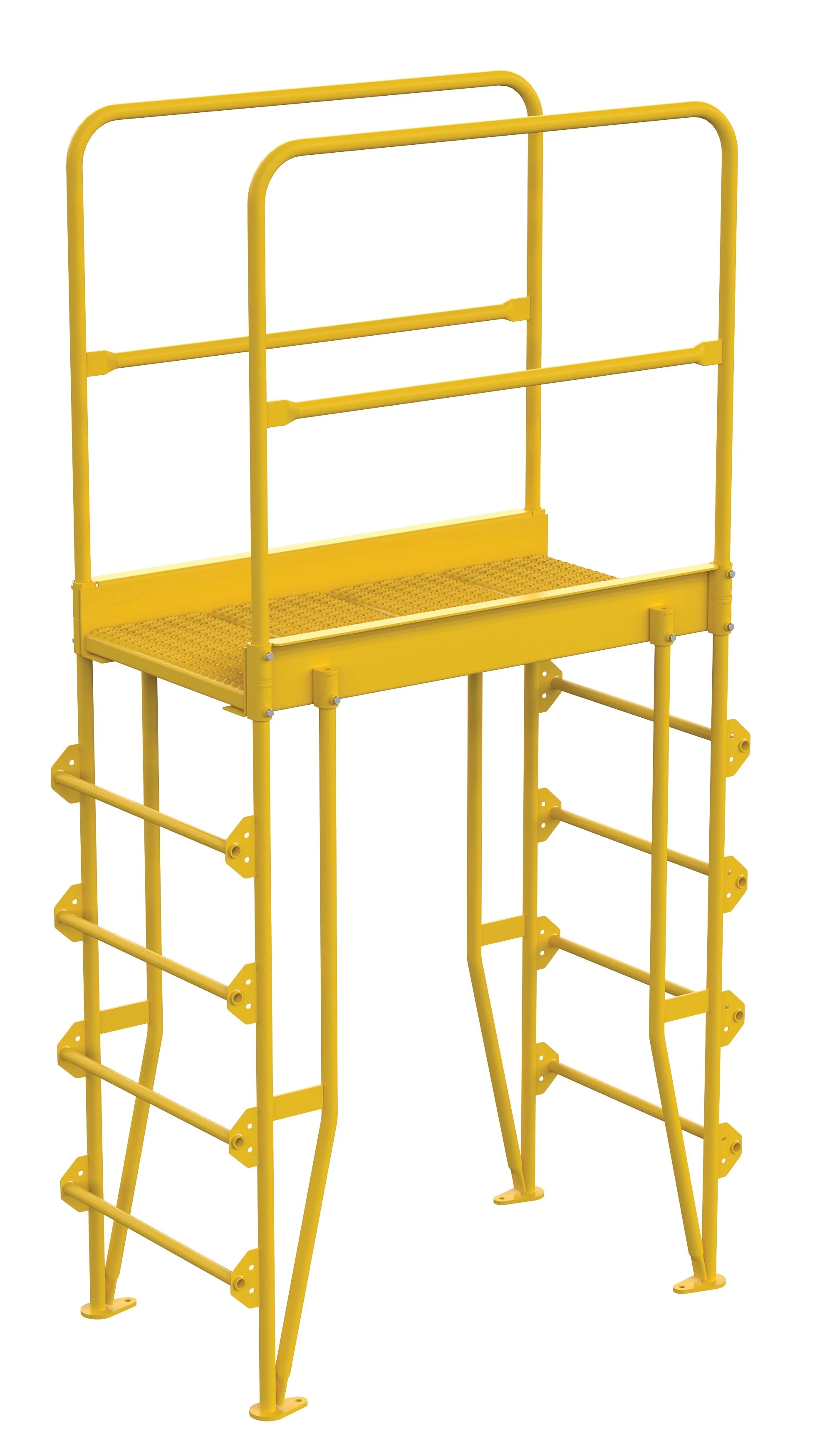

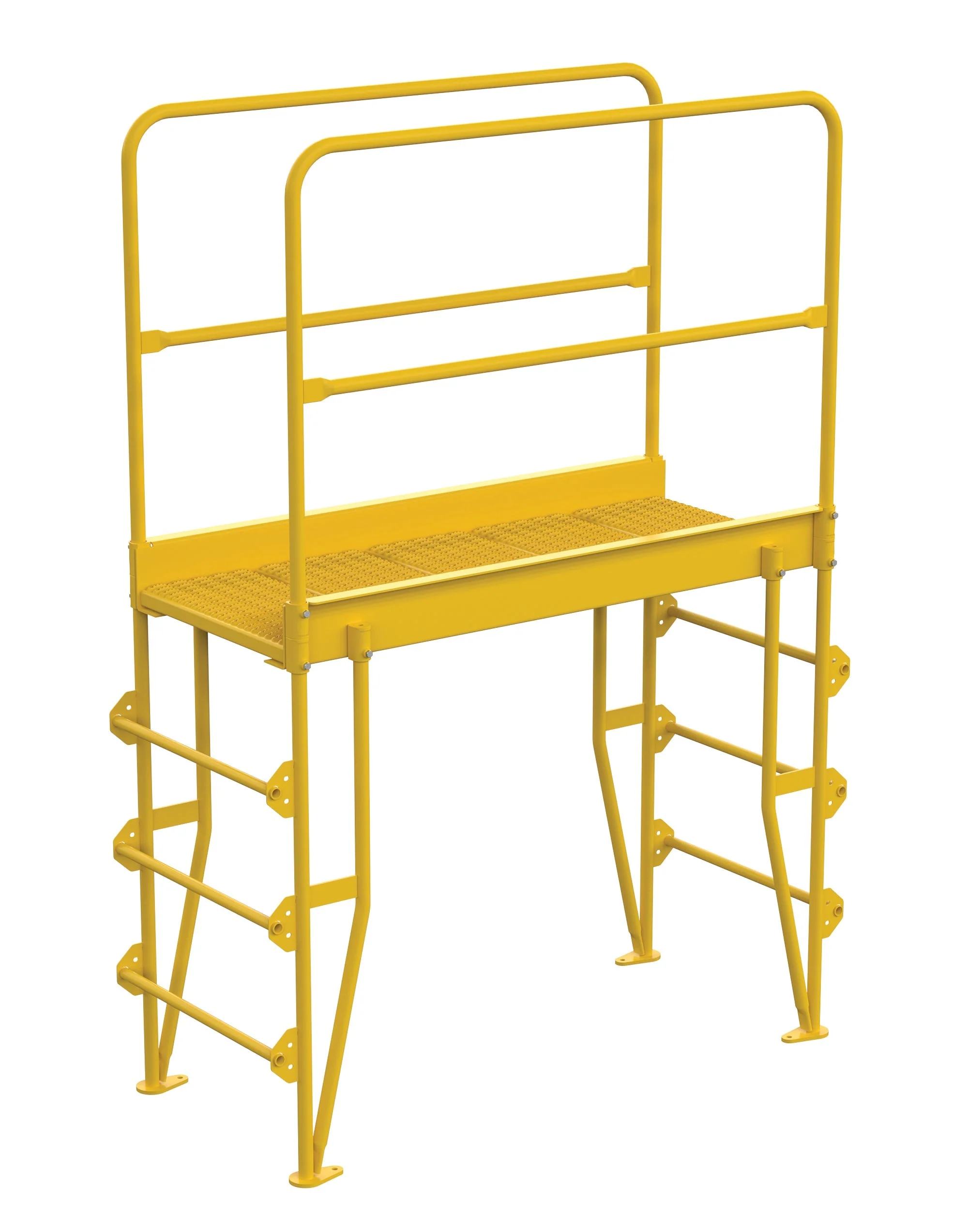

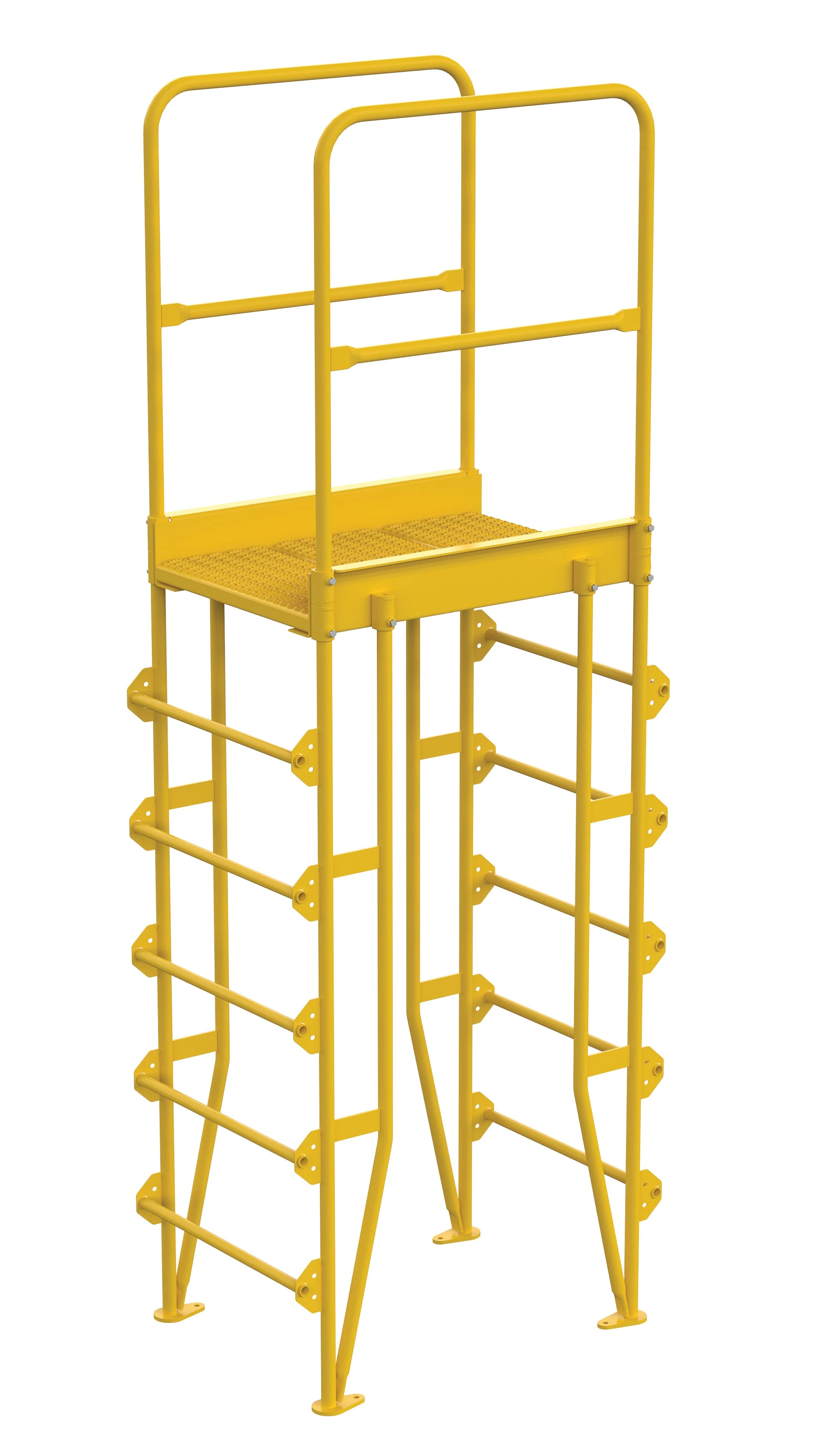

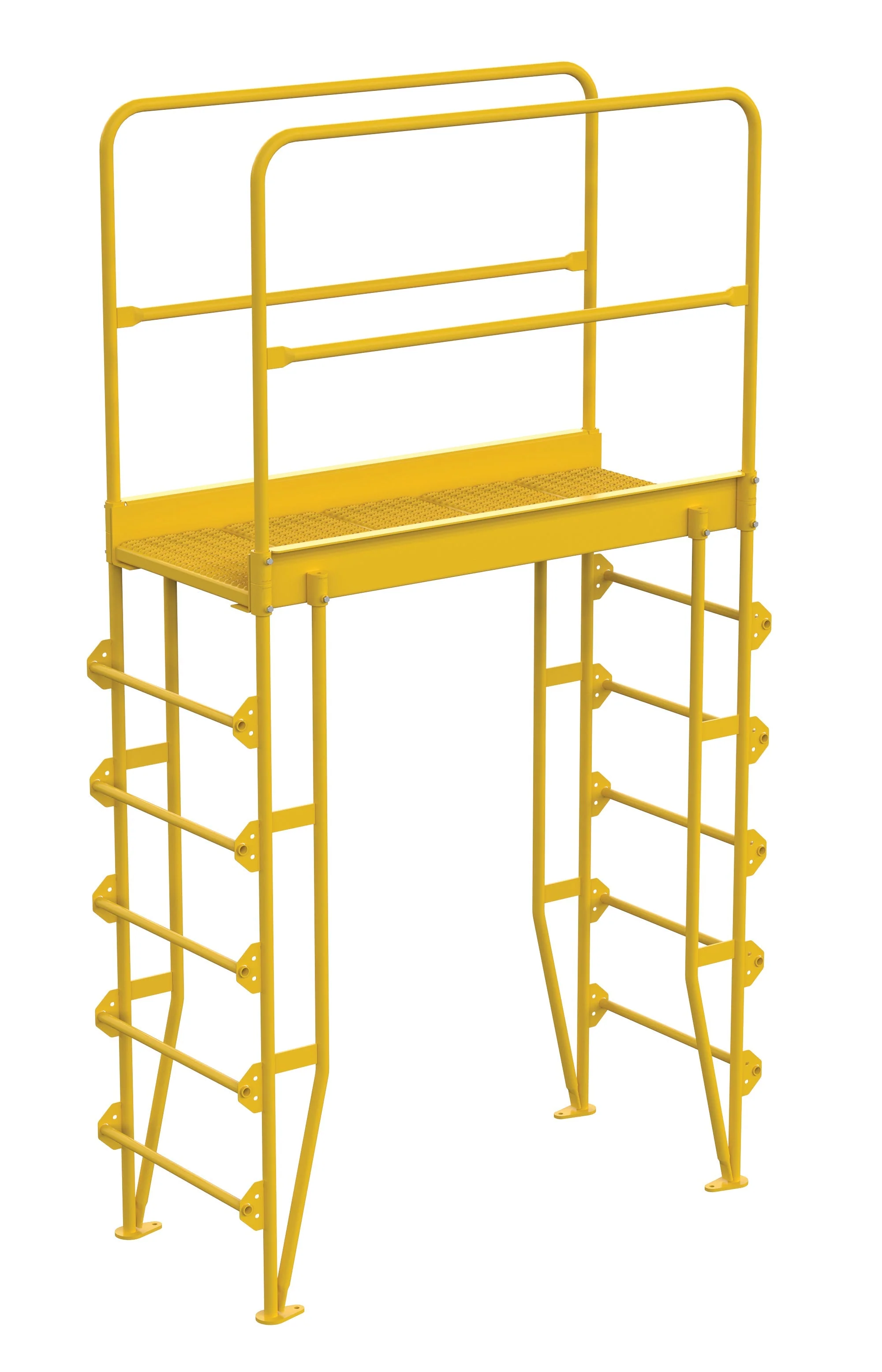

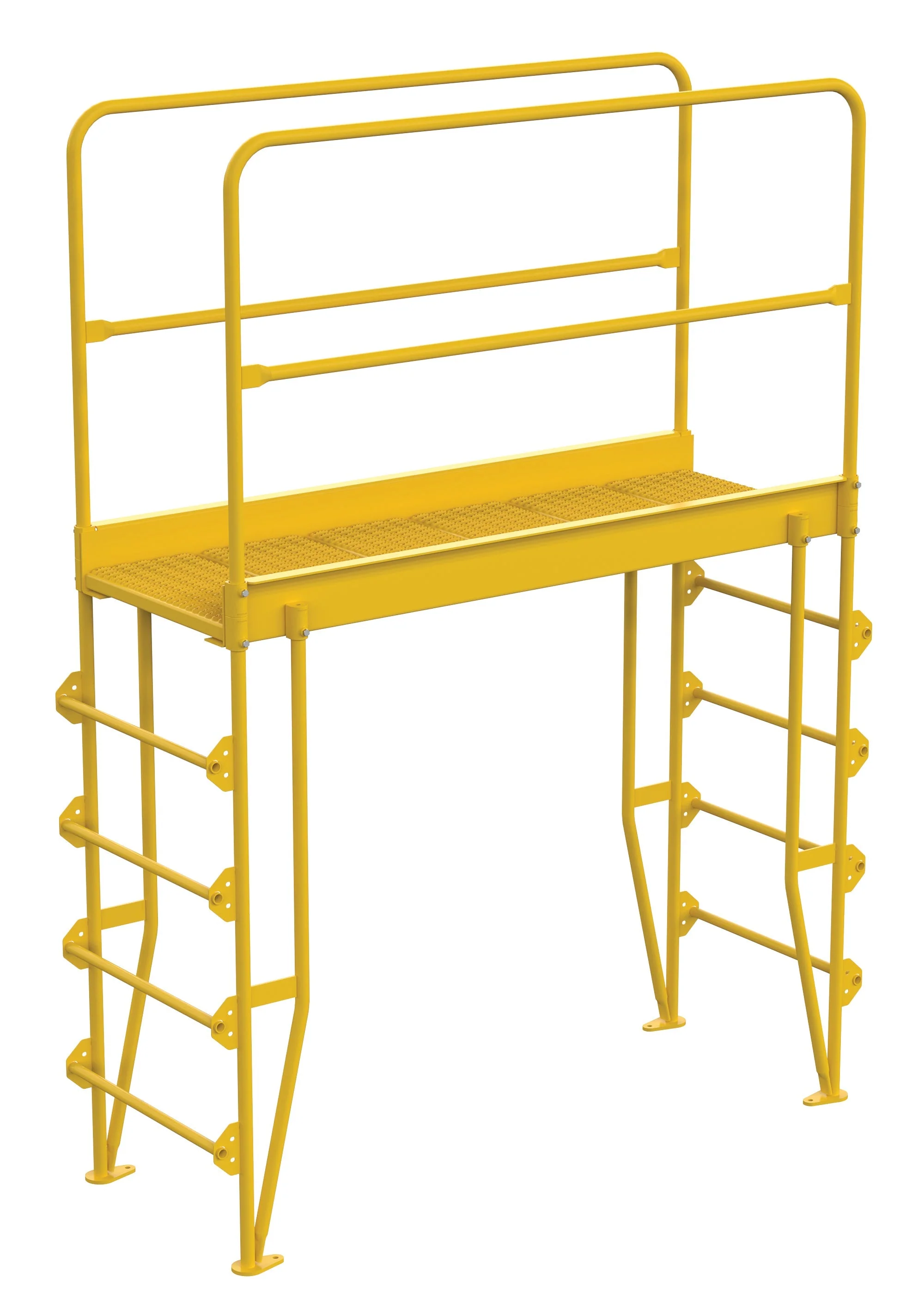

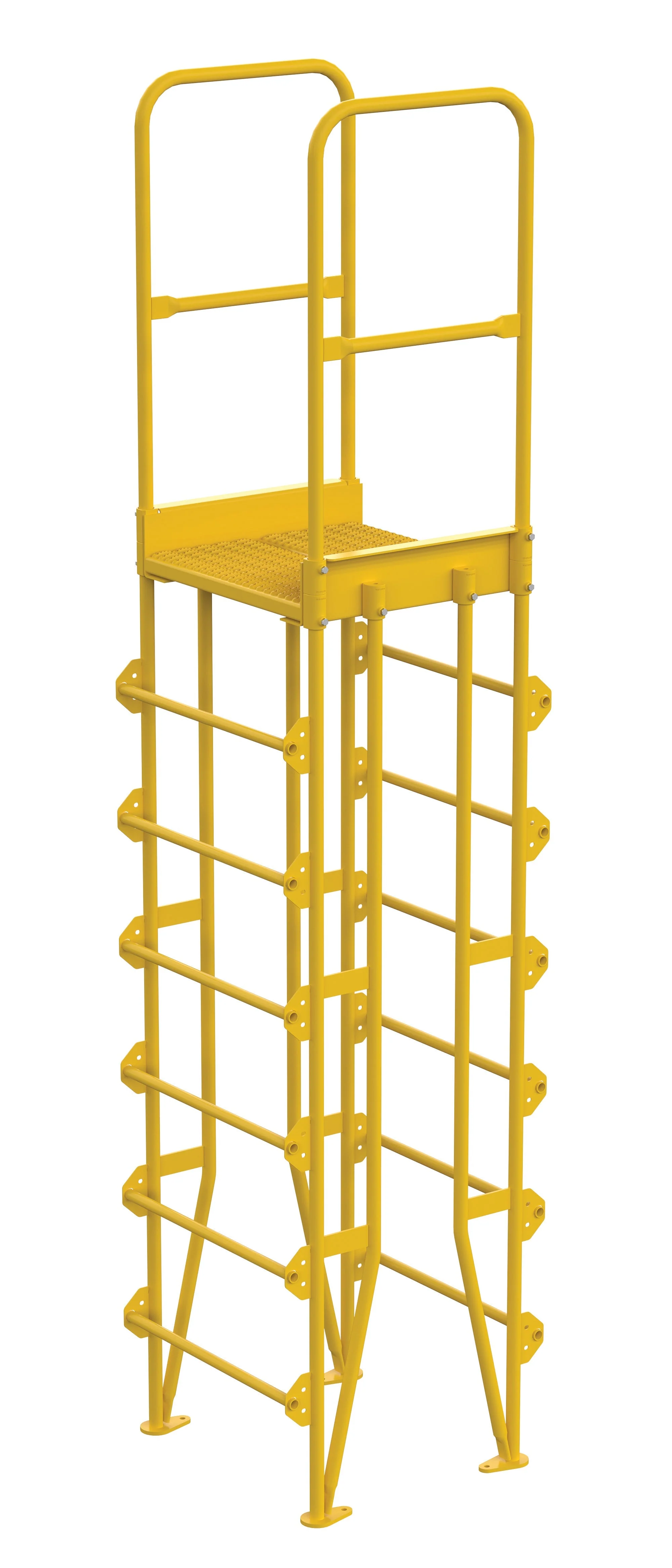

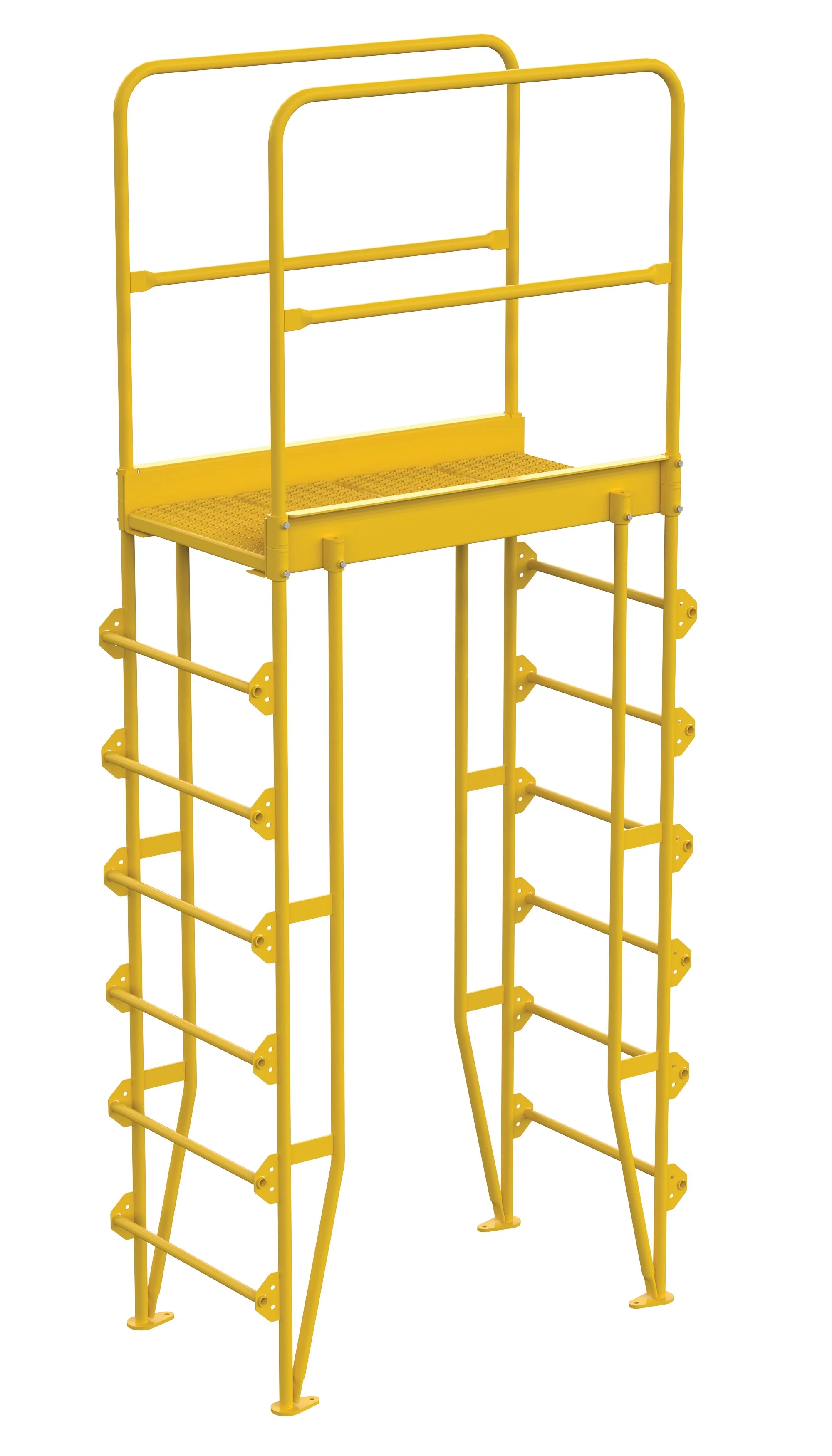

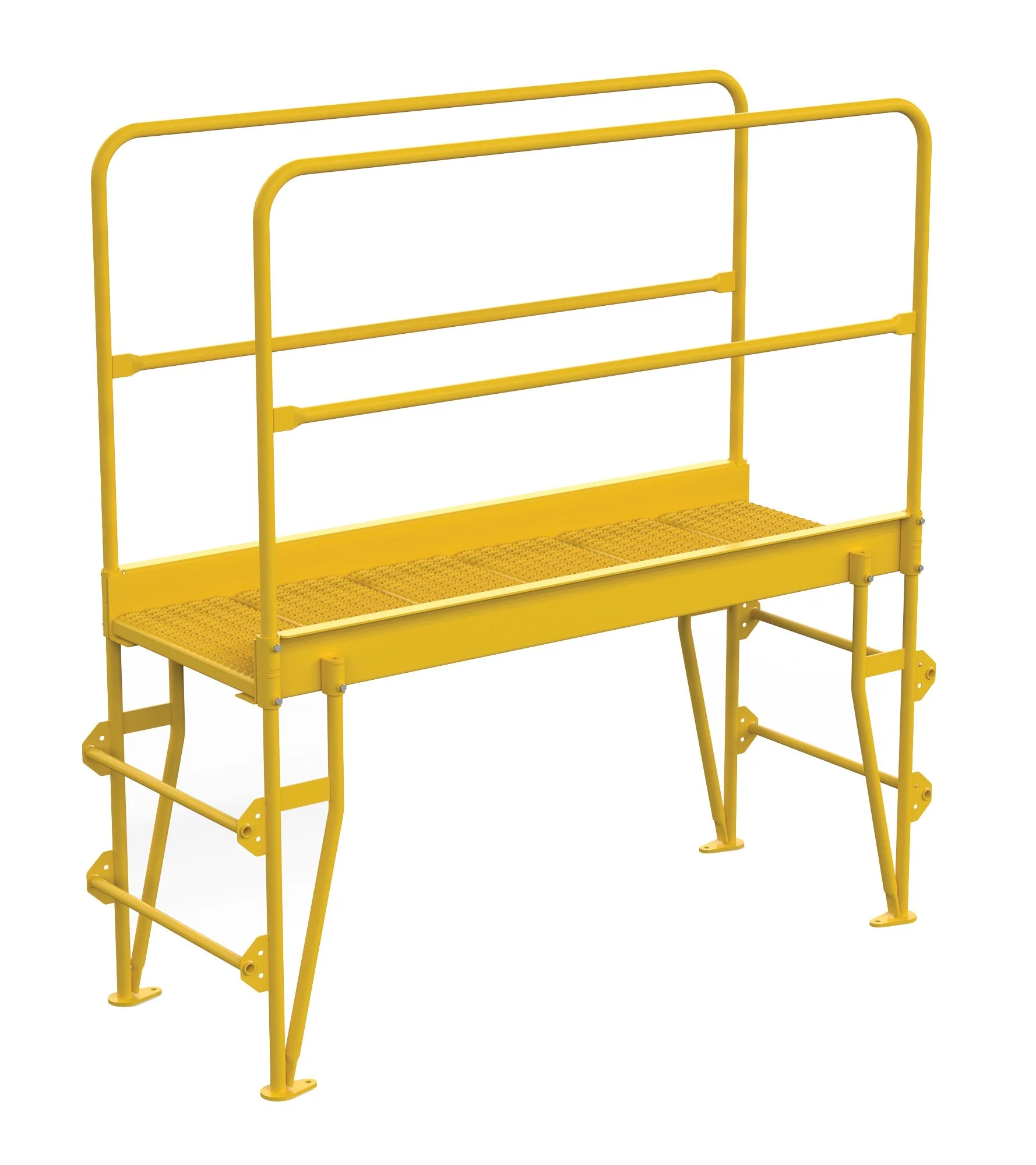

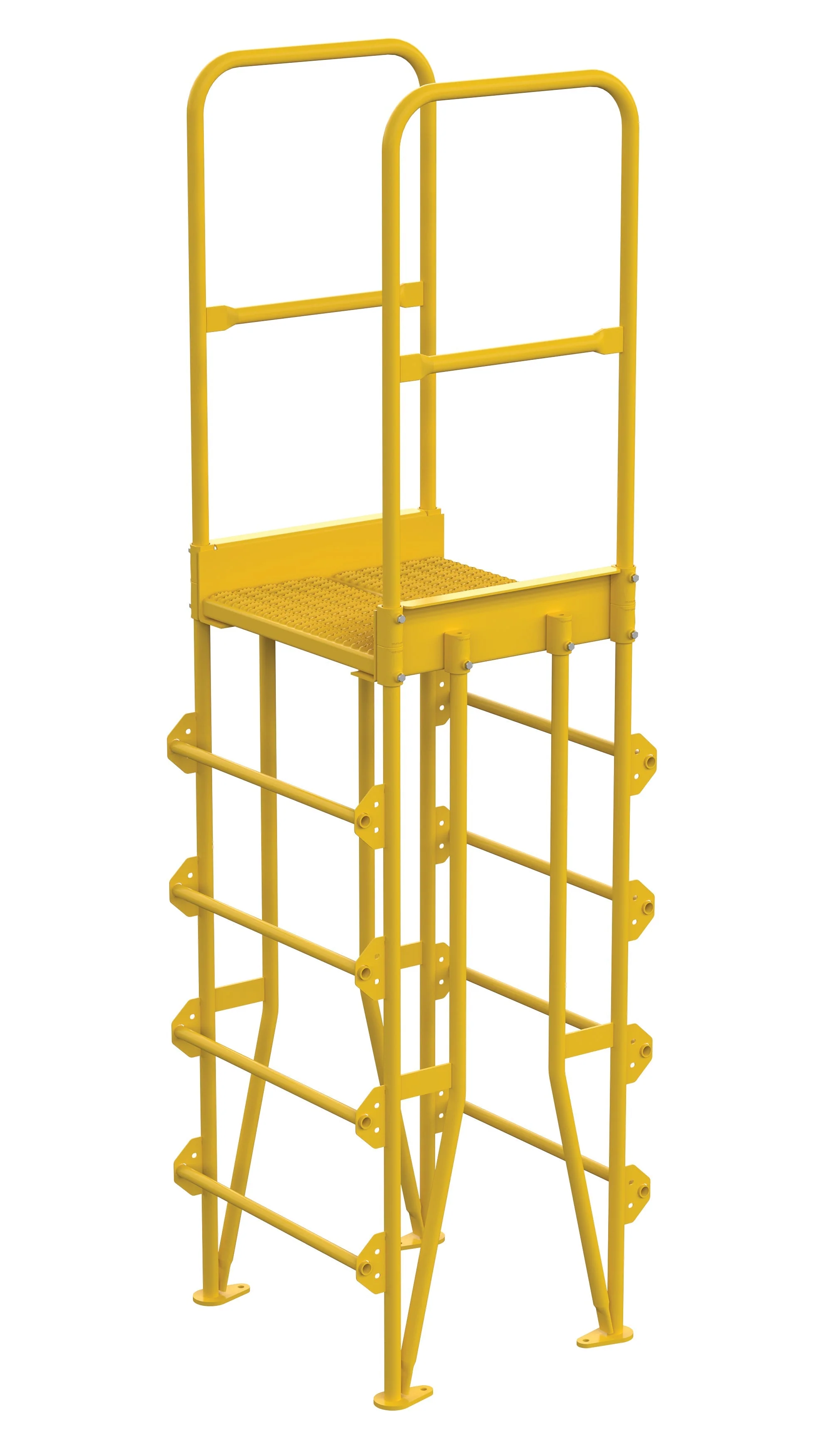

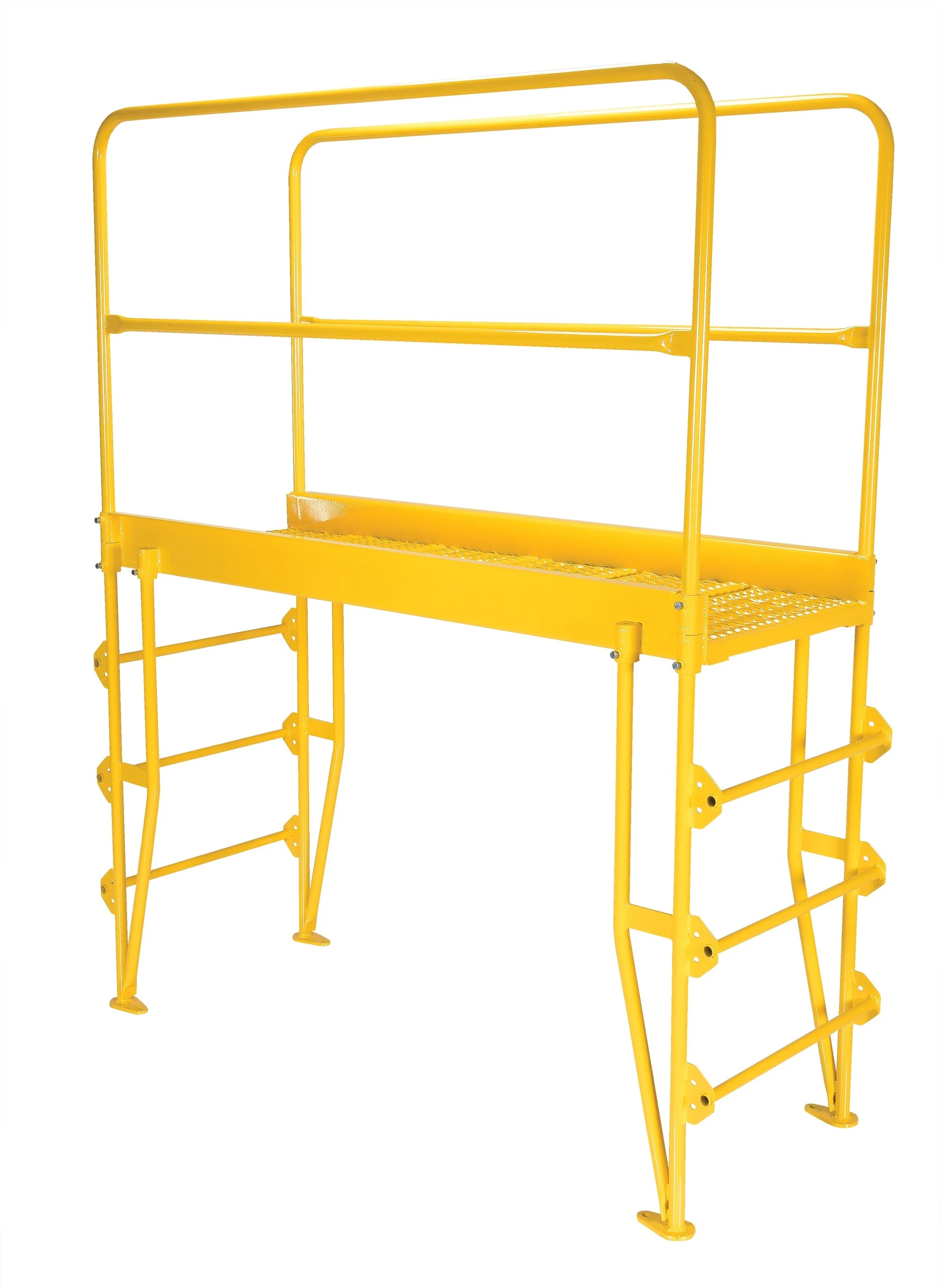

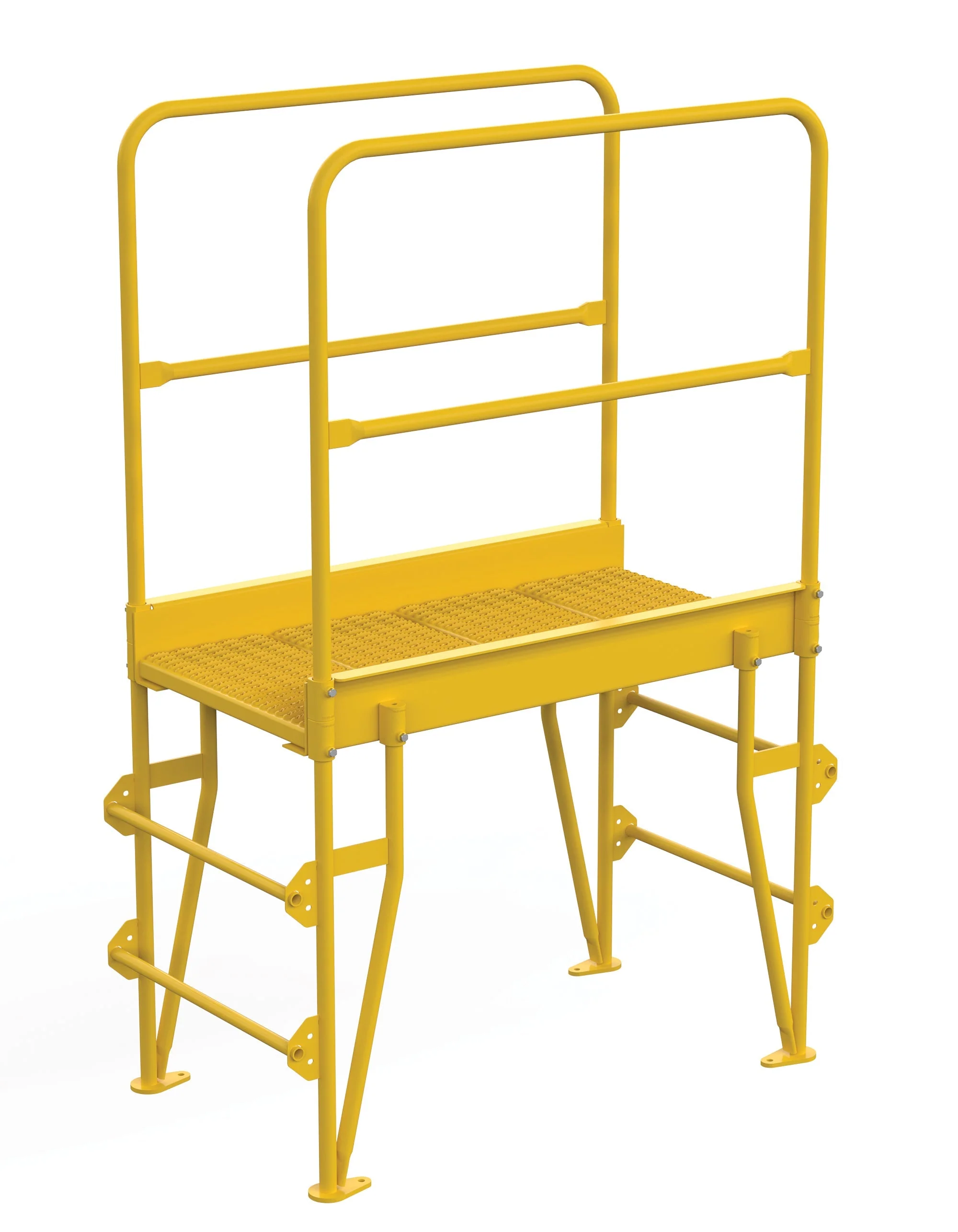

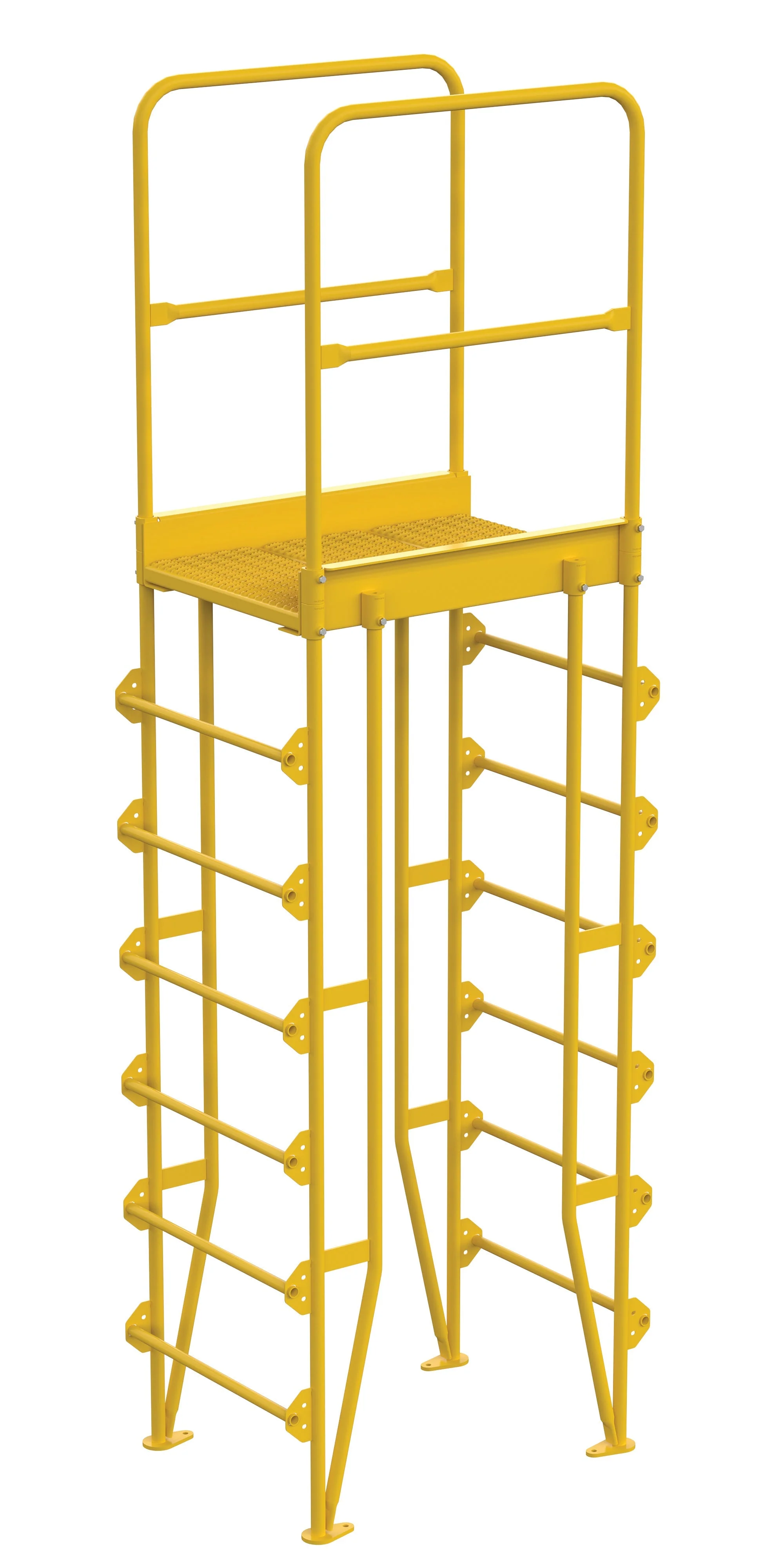

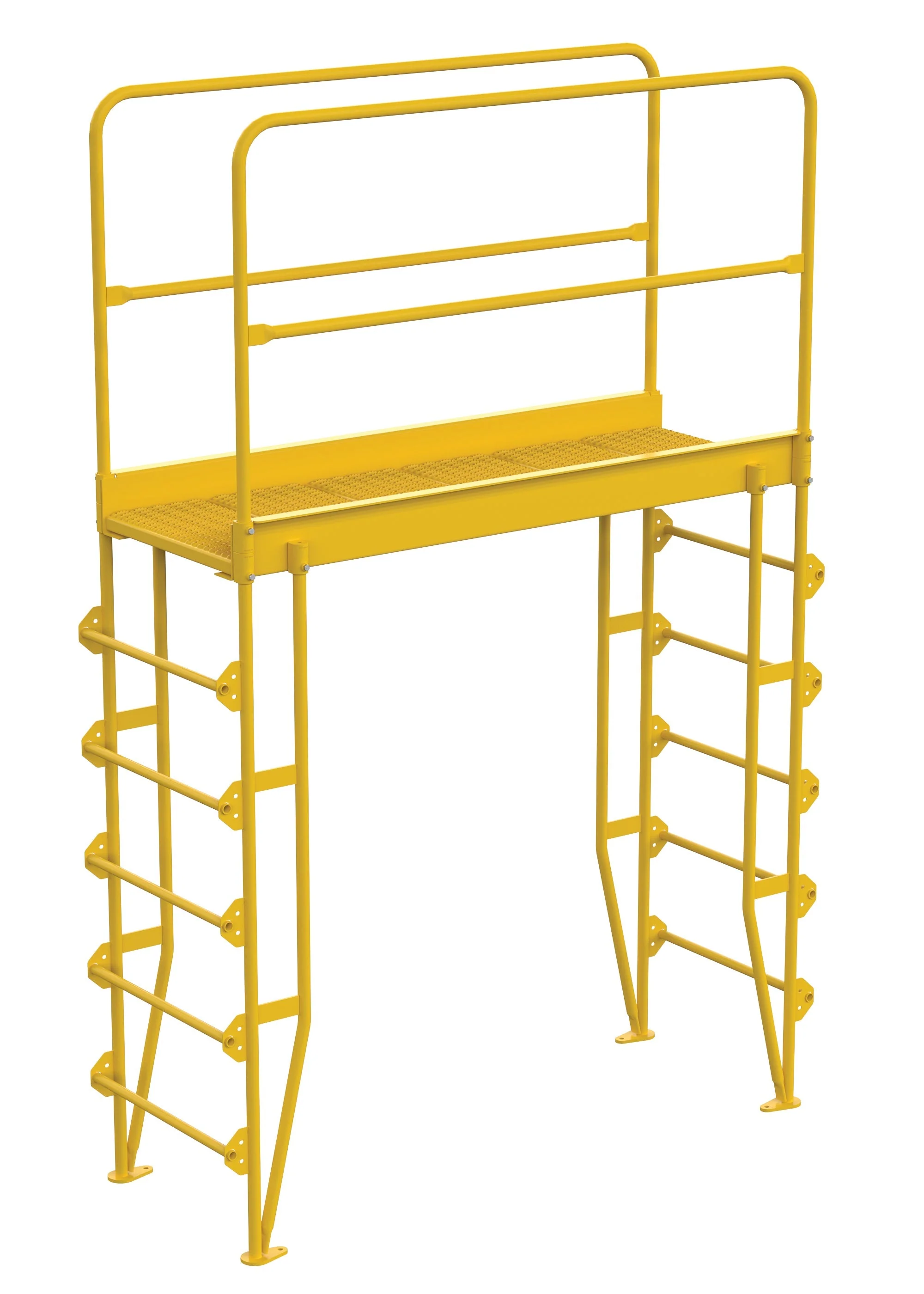

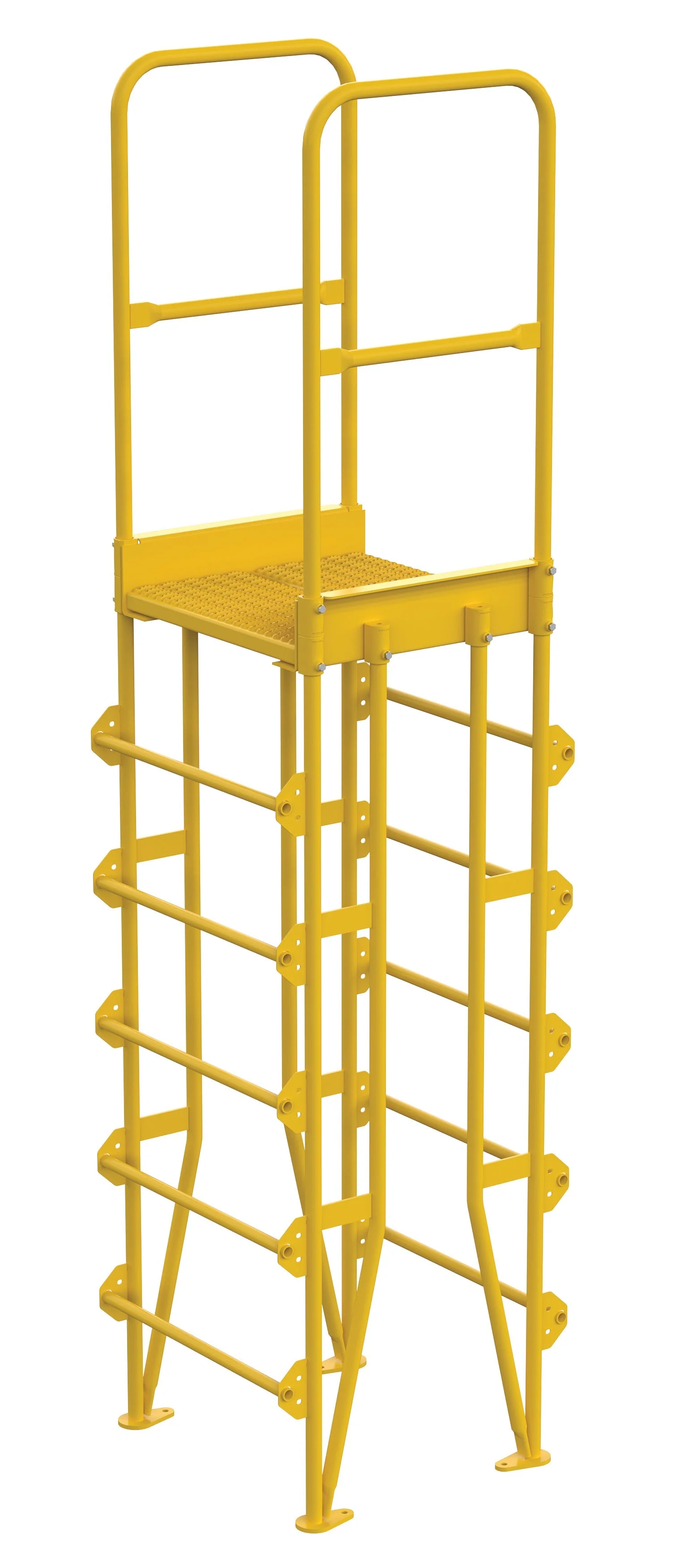

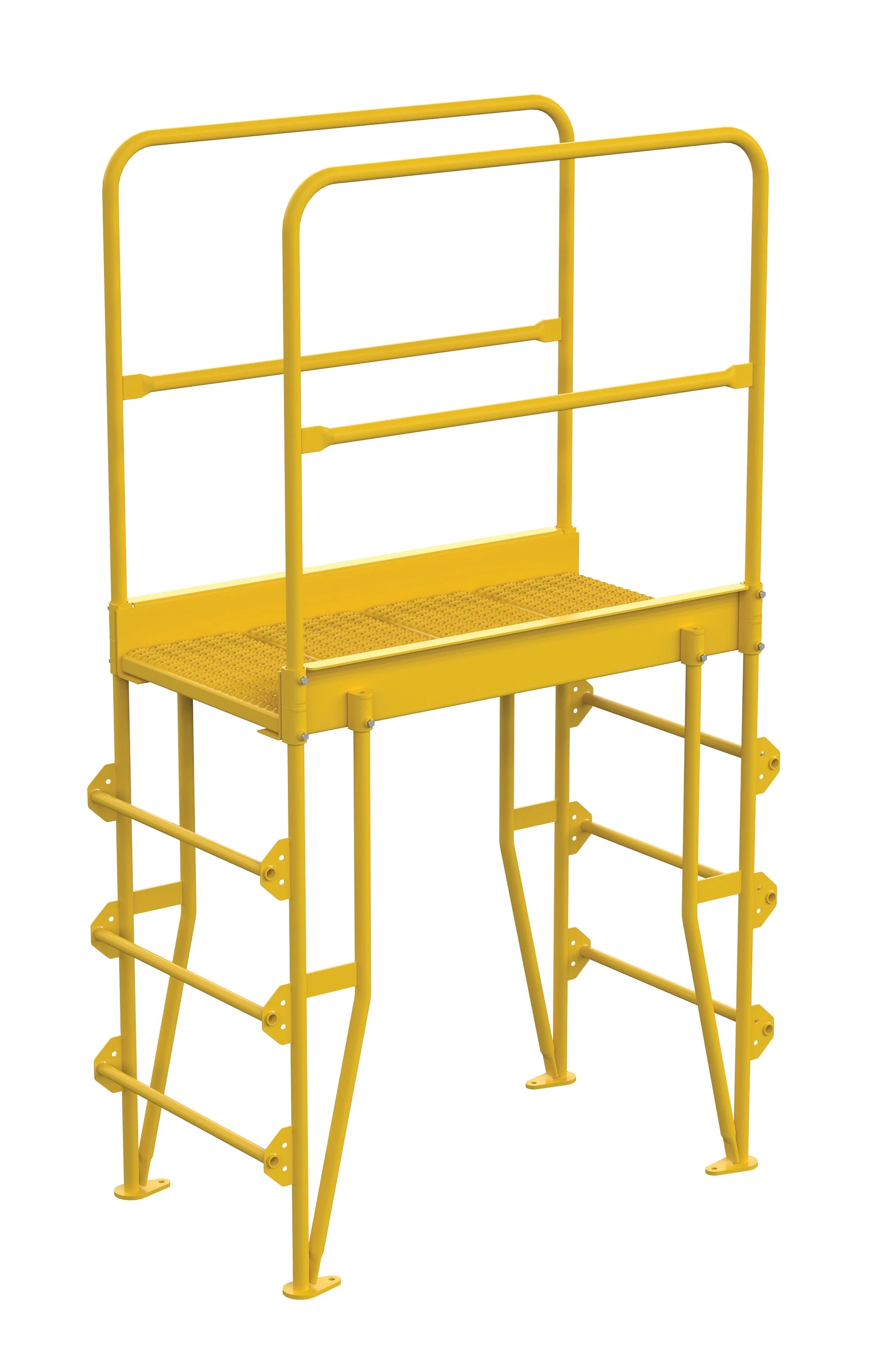

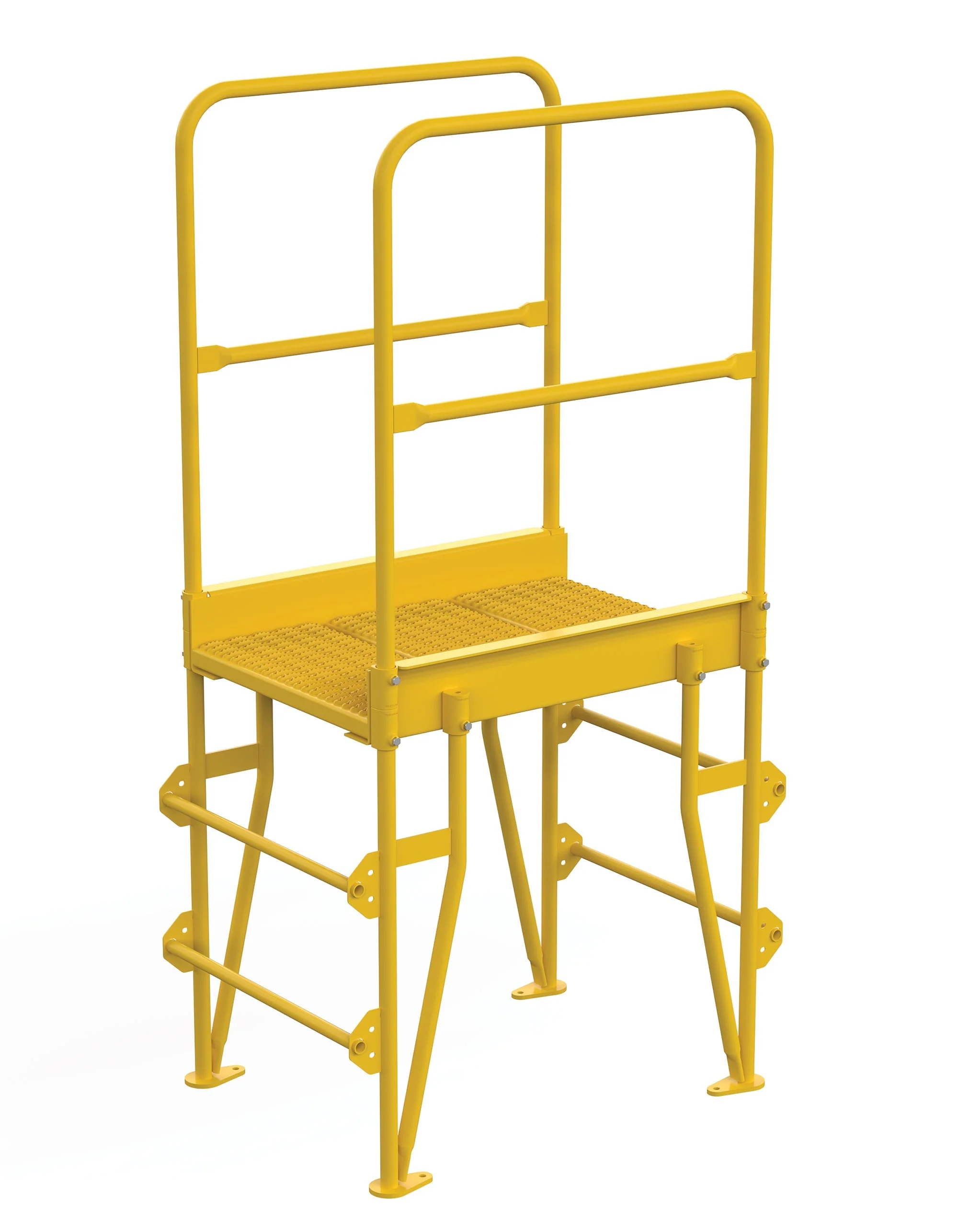

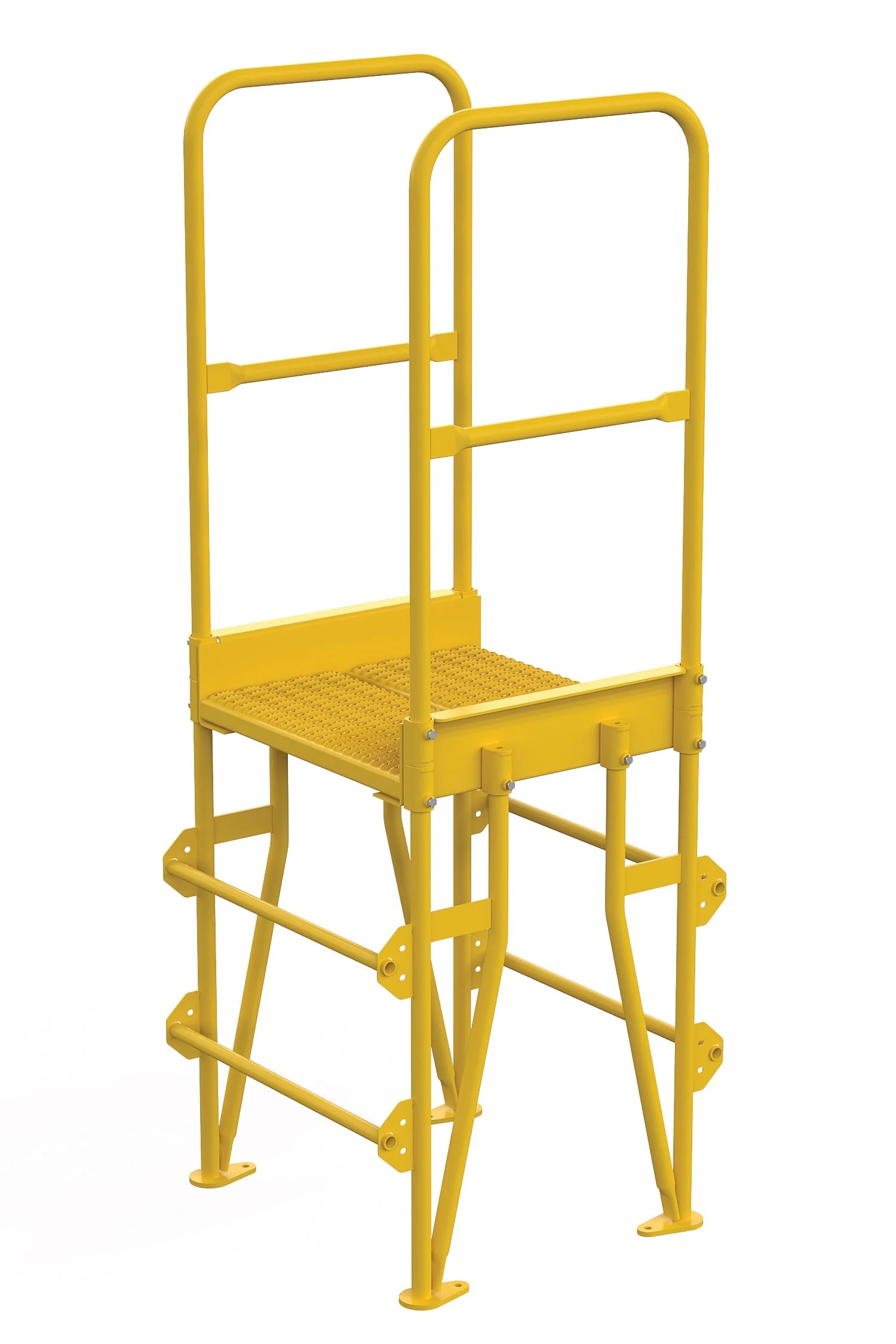

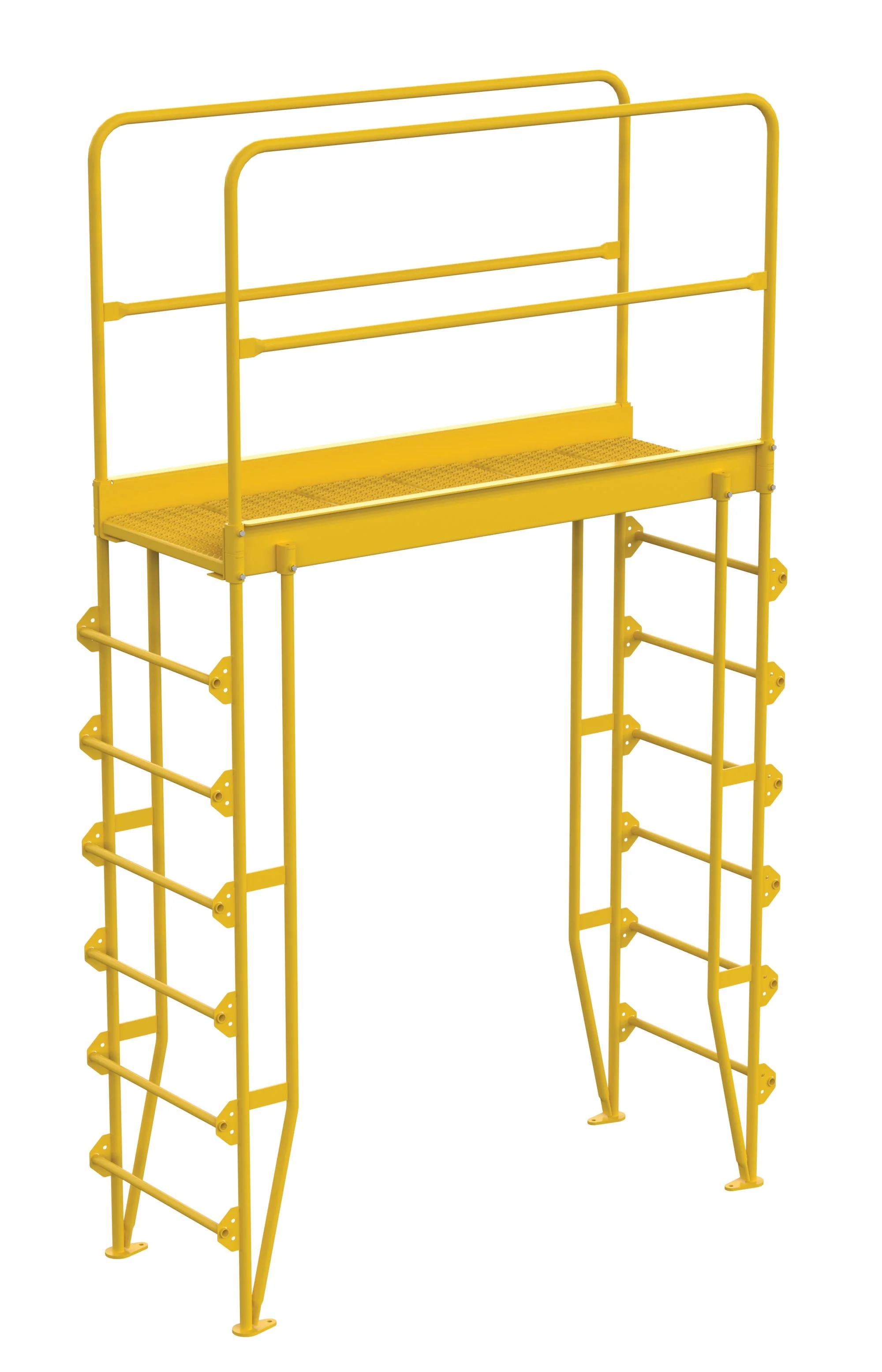

Vestil Vertical Leg Cross-Over Ladders
Mount where you need permanent access at crossover points. The upper platform features removable two sided 42-5/8" high handrail with 21" mid-rail and fixed 4" toeboards to prevent objects from rolling off. Serrated platform for extra grip is 23-9/16" wide. Top half of steps covered in grip material for safety are 23-9/16" wide with step spacing of 12". Ground legs include floor mounting pads. Units must be anchored to the floor. Units are all steel construction and can be knockdown for storage and shipping. Uniform capacity is 500 pounds. Meets OSHA 29 CFR 1910.27. Baked-in powder-coated toughness.
| Cross Over Vertical Ladders | ||||||||
|
Model |
Number |
A | B | C | D | E | F | Wt. (lbs.) |
| COLV-3-34-8 | 3 | 34-3/16" | 8" | 29" | 78-5/8" | 36" | 24" | 198 |
| COLV-3-34-20 | 3 | 34-3/16" | 20" | 41" | 78-5/8" | 36" | 36" | 232 |
| COLV-3-34-32 | 3 | 34-3/16" | 32" | 53" | 78-5/8" | 36" | 48" | 267 |
| COLV-3-34-44 | 3 | 34-3/16" | 44" | 65" | 78-5/8" | 36" | 60" | 274 |
| COLV-3-34-56 | 3 | 34-3/16" | 56" | 77" | 78-5/8" | 36" | 72" | 336 |
| COLV-4-46-8 | 4 | 46-3/16" | 8" | 29" | 90-5/8" | 48" | 24" | 183 |
| COLV-4-46-20 | 4 | 46-3/16" | 20" | 41" | 90-5/8" | 48" | 36" | 232 |
| COLV-4-46-32 | 4 | 46-3/16" | 32" | 53" | 90-5/8" | 48" | 48" | 244 |
| COLV-4-46-44 | 4 | 46-3/16" | 44" | 65" | 90-5/8" | 48" | 60" | 265 |
| COLV-4-46-56 | 4 | 46-3/16" | 56" | 77" | 90-5/8" | 48" | 72" | 304 |
| COLV-5-58-8 | 5 | 58-3/16" | 8" | 29" | 102-5/8" | 60" | 24" | 202 |
| COLV-5-58-20 | 5 | 58-3/16" | 20" | 41" | 102-5/8" | 60" | 36" | 242 |
| COLV-5-58-32 | 5 | 58-3/16" | 32" | 53" | 102-5/8" | 60" | 48" | 264 |
| COLV-5-58-44 | 5 | 58-3/16" | 44" | 65" | 102-5/8" | 60" | 60" | 310 |
| COLV-5-58-56 | 5 | 58-3/16" | 56" | 77" | 102-5/8" | 60" | 72" | 320 |
| COLV-6-70-8 | 6 | 70-3/16" | 8" | 29" | 114-5/8" | 72" | 24" | 266 |
| COLV-6-70-20 | 6 | 70-3/16" | 20" | 41" | 114-5/8" | 72" | 36" | 256 |
| COLV-6-70-32 | 6 | 70-3/16" | 32" | 53" | 114-5/8" | 72" | 48" | 294 |
| COLV-6-70-44 | 6 | 70-3/16" | 44" | 65" | 114-5/8" | 72" | 60" | 340 |
| COLV-6-70-56 | 6 | 70-3/16" | 56" | 77" | 114-5/8" | 72" | 72" | 350 |
| COLV-7-82-8 | 7 | 82-3/16" | 8" | 29" | 126-5/8" | 84" | 24" | 244 |
| COLV-7-82-20 | 7 | 82-3/16" | 20" | 41" | 126-5/8" | 84" | 36" | 279 |
| COLV-7-82-32 | 7 | 82-3/16" | 32" | 53" | 126-5/8" | 84" | 48" | 313 |
| COLV-7-82-44 | 7 | 82-3/16" | 44" | 65" | 126-5/8" | 84" | 60" | 348 |
| COLV-7-82-56 | 7 | 82-3/16" | 56" | 77" | 126-5/8" | 84" | 72" | 364 |
