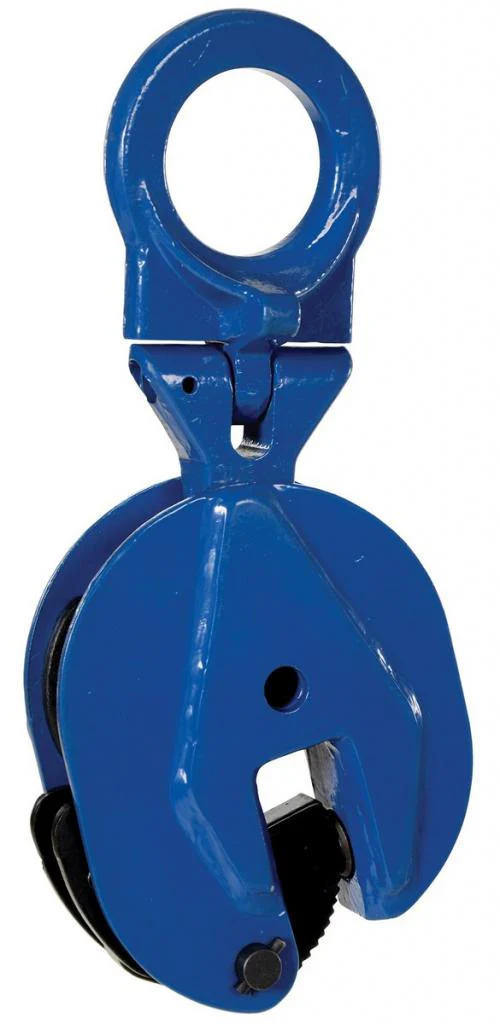

Vestil Vertical Plate Clamps

Vestil’c EPC vertical plate clamps are designed with a pivoting bail for easier, more versatile operation.

Meeting ASME B30.20 specification, the automatic serrated hardened steel cams and pads provide maximum durability, while the drop-forged steel case delivers optimal strength and durability.

*NOTE: Do not exceed working load limit. Do not lift loads less than 20% of rated capacity. Lift only one plate at a time. Plates must be clear of oil. Not designed to use on stainless steel or aluminium plates

• Lifting capacity 1000 – 6600lbs
• Drop-forged steel construction
• Pivoting bail
• Meets ASME B0.20

Model	Image	Description	Attributes	Net Wt. (lbs)

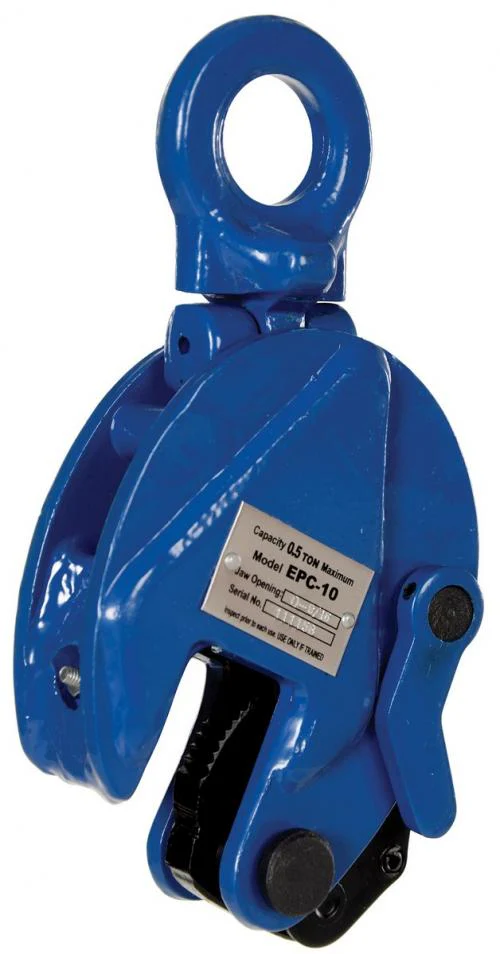

ECP-10		Vertical Plate Clamp 1000 Lb. Capacity Blue	Min Uniform Plate Weight (lb.): 200 Uniform Working Load Limit (lb.): 1,000	5
EPC-20		Vertical Plate Clamp 2000 Lb. Capacity Blue	Min Uniform Plate Weight (lb.): 400 Uniform Working Load Limit (lb.): 2,000	16
EPC-40		Vertical Plate Clamp 4000 Lb. Capacity Blue	Min Uniform Plate Weight (lb.): 800 Uniform Working Load Limit (lb.): 4,000	17
EPC-80		Vertical Plate Clamp 6600 Lb. Capacity Blue	Min Uniform Plate Weight (lb.): 1,320 Uniform Working Load Limit (lb.): 6,600	32
