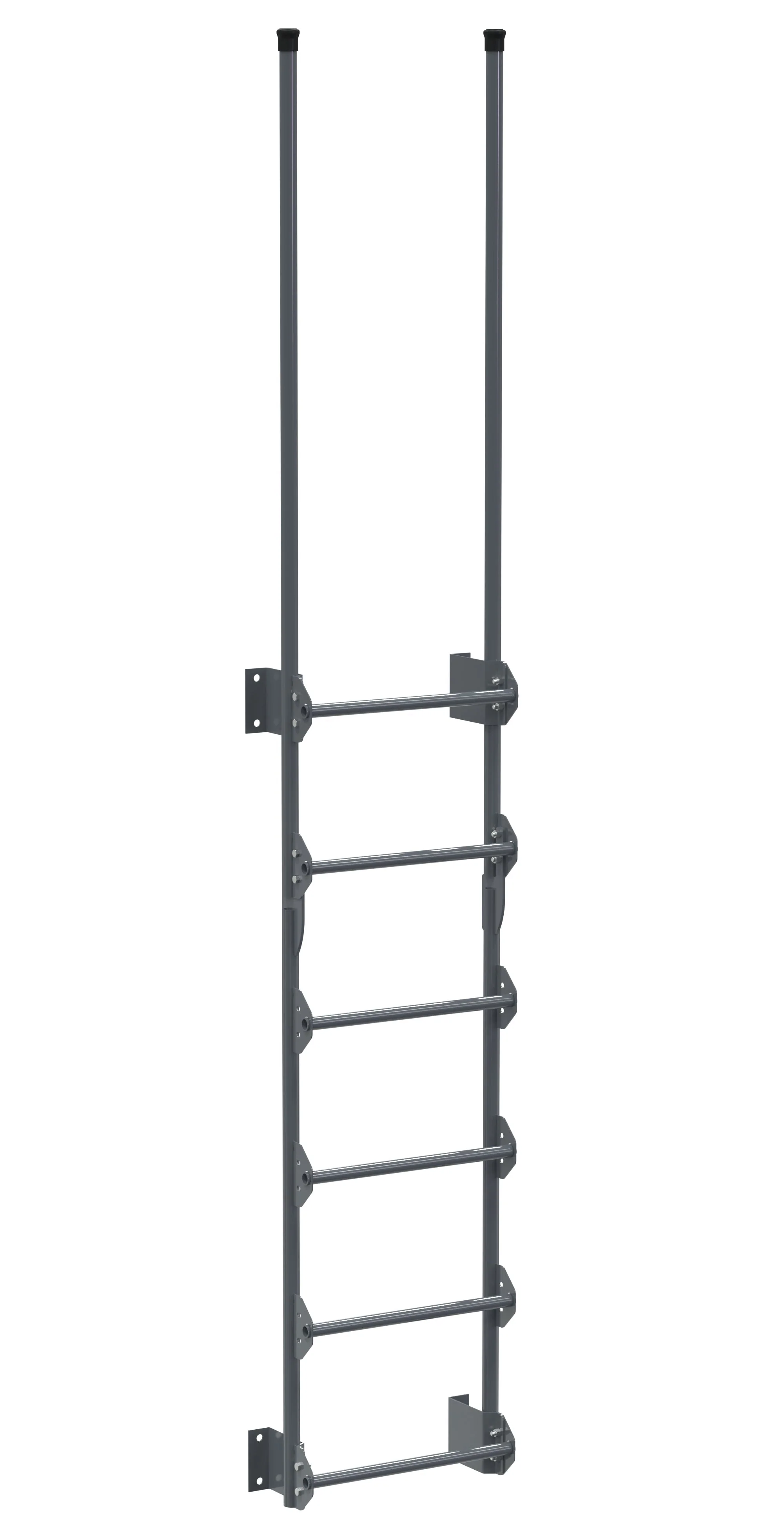

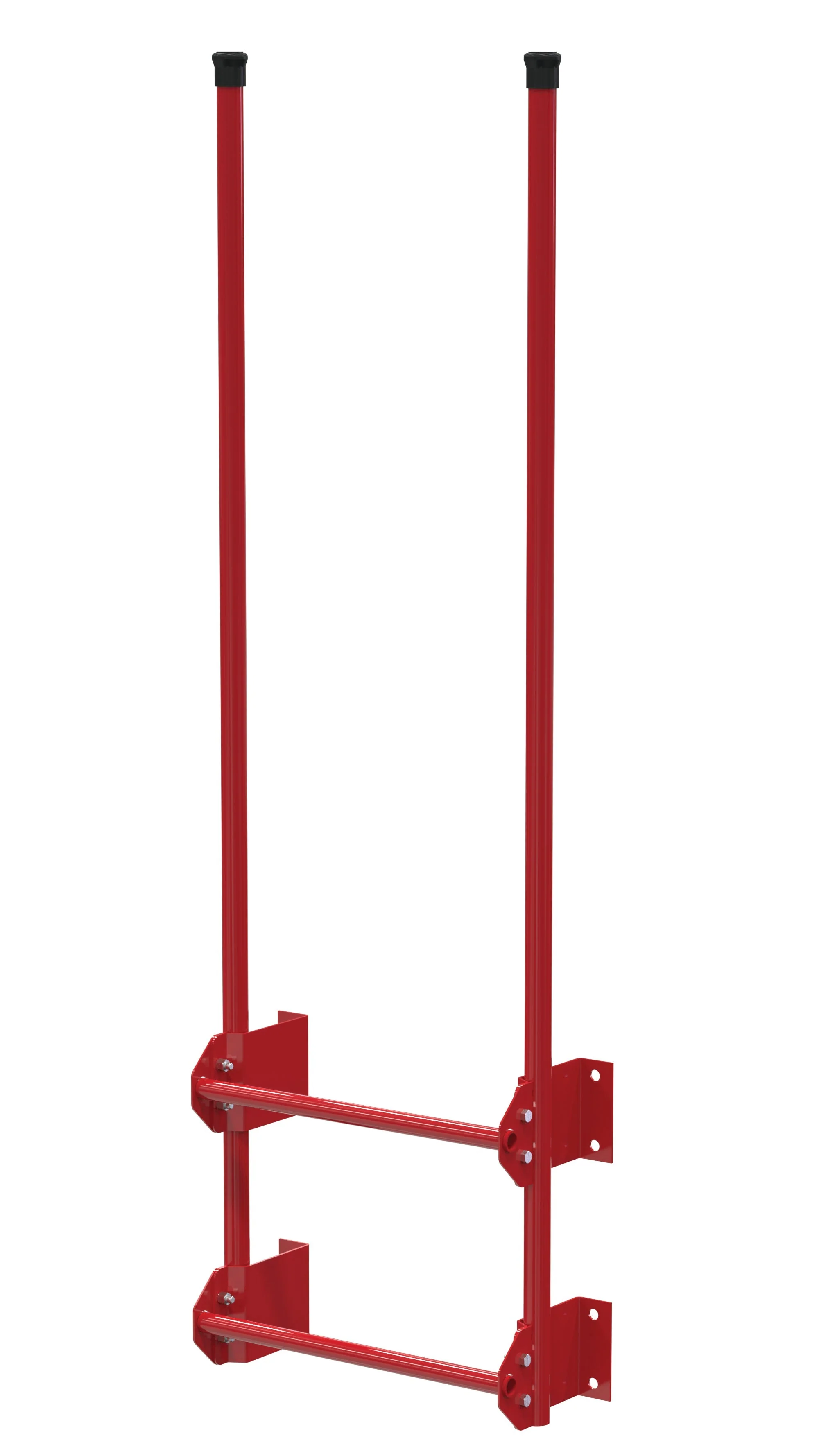

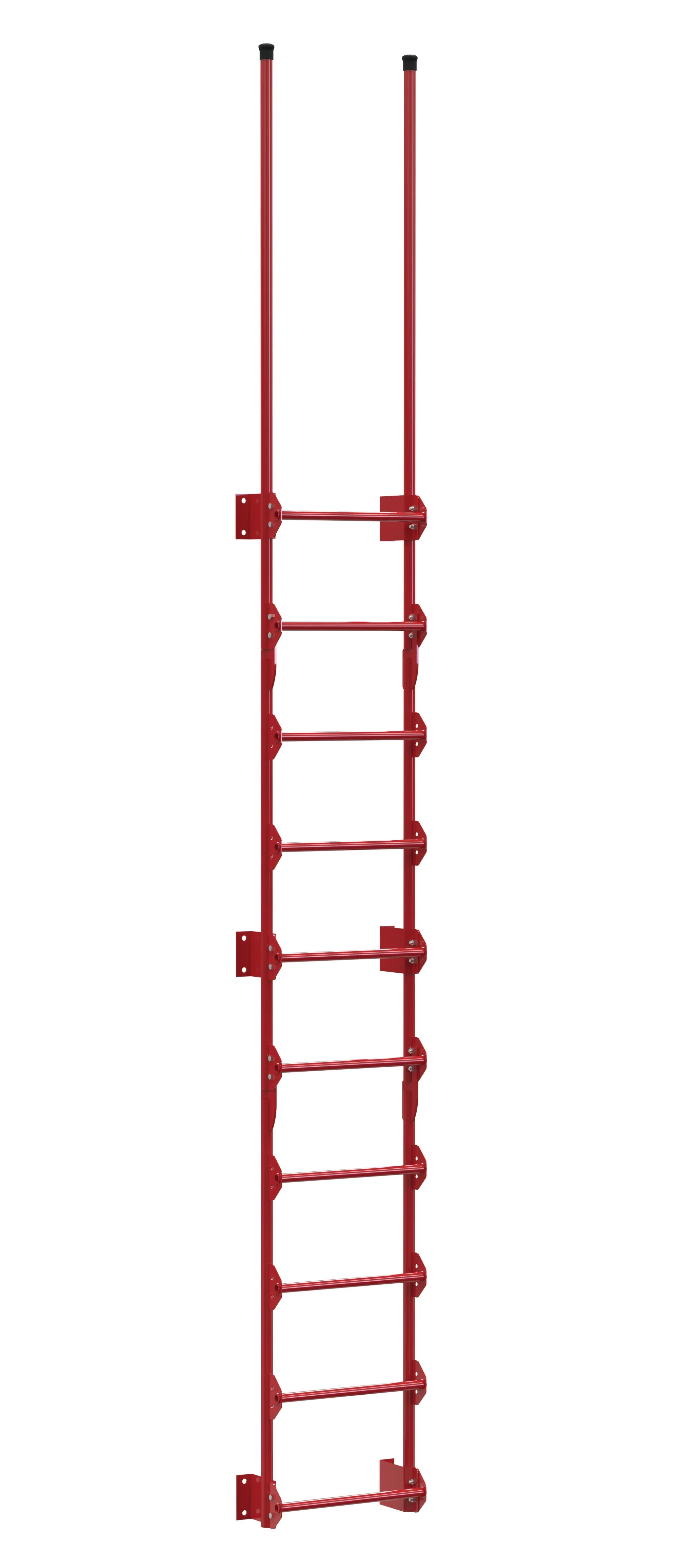

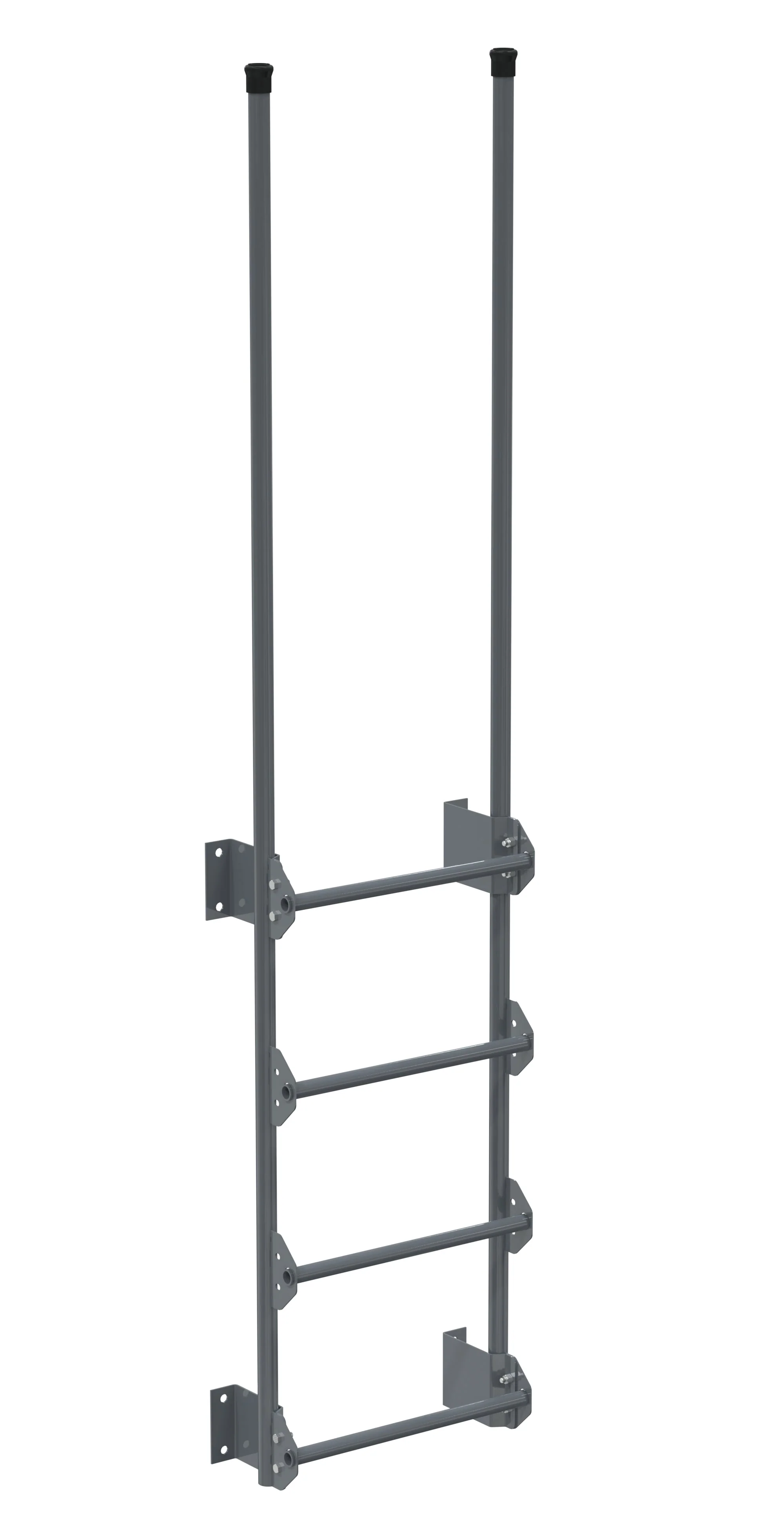

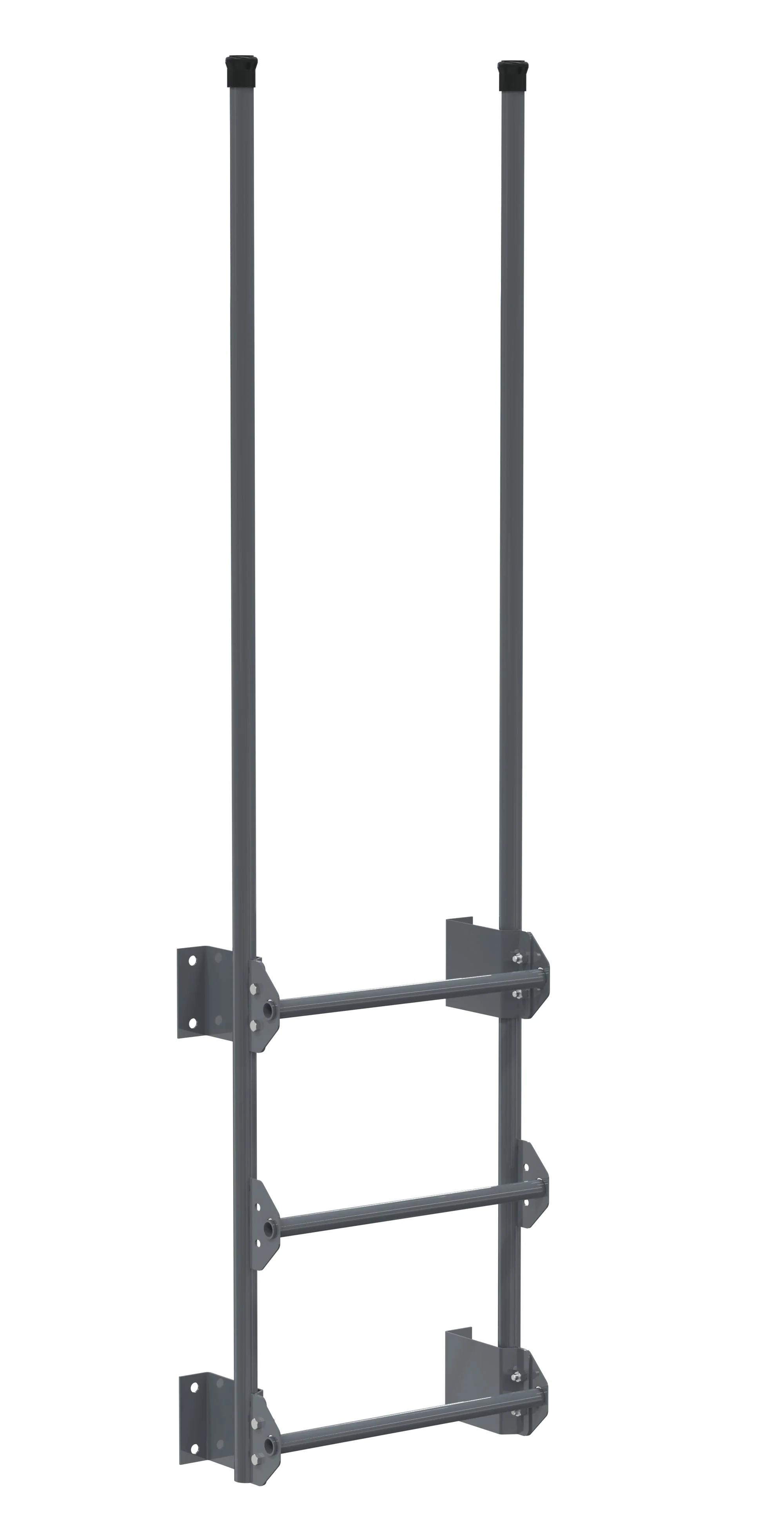

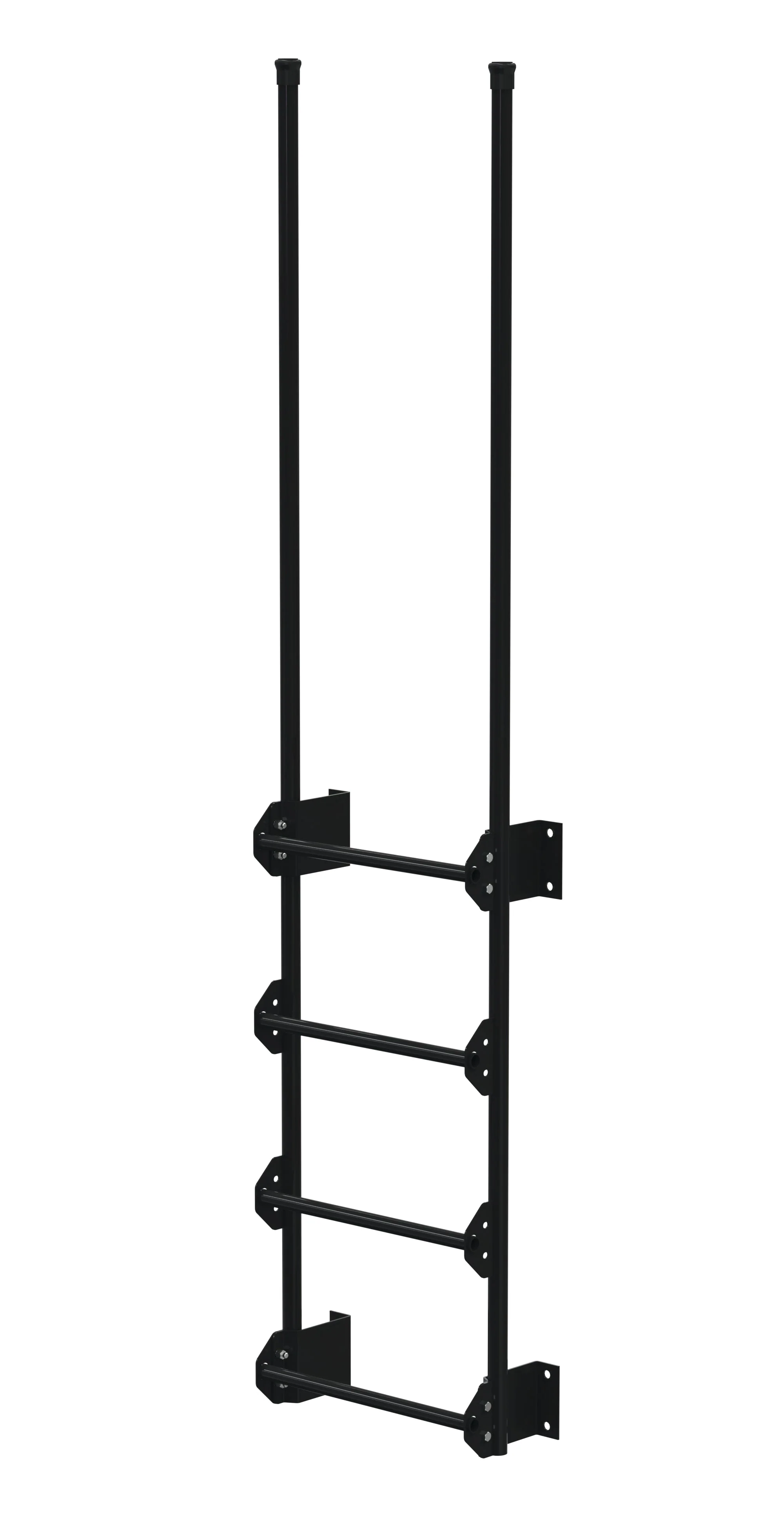

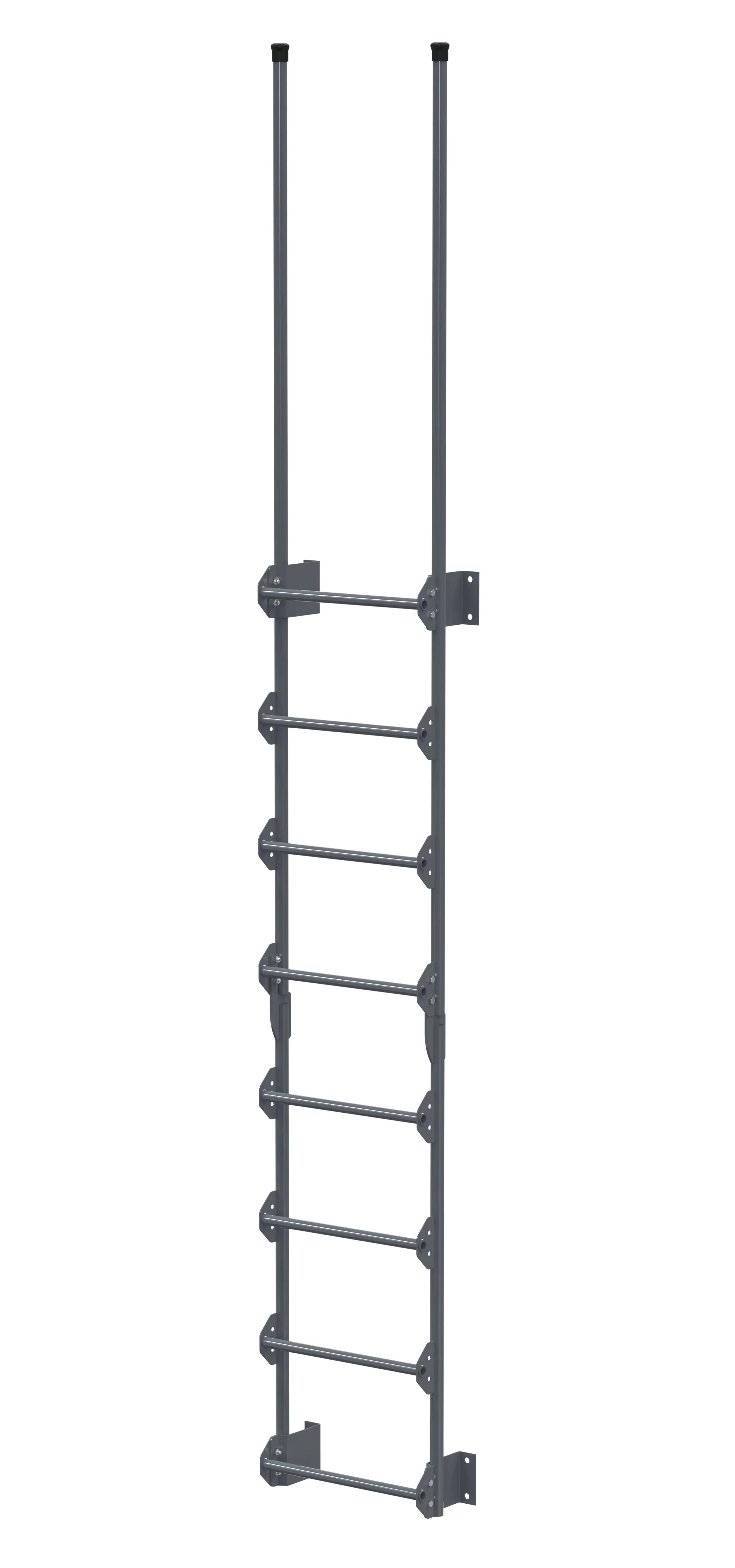

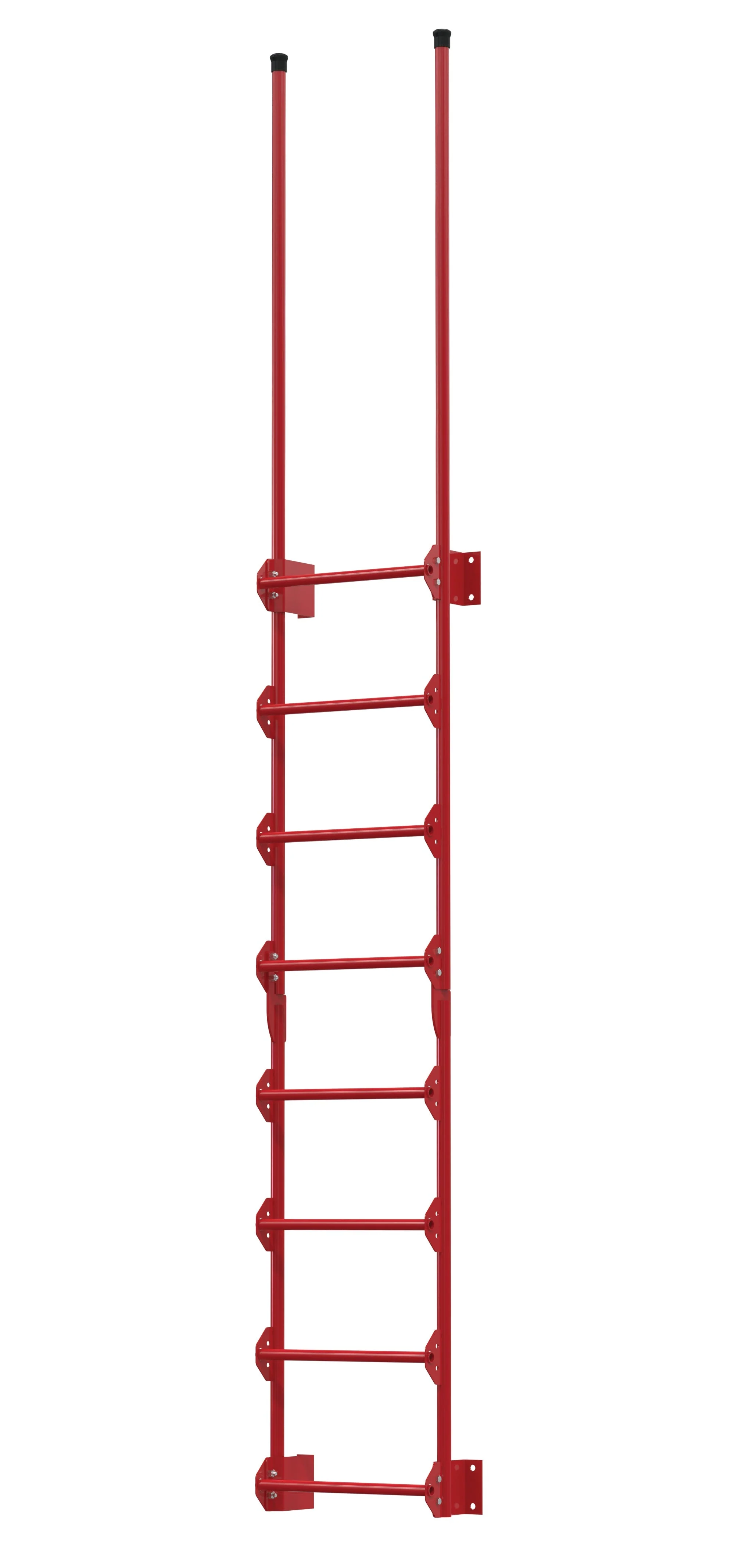

Vestil Walk-Thru Style Dock Ladders

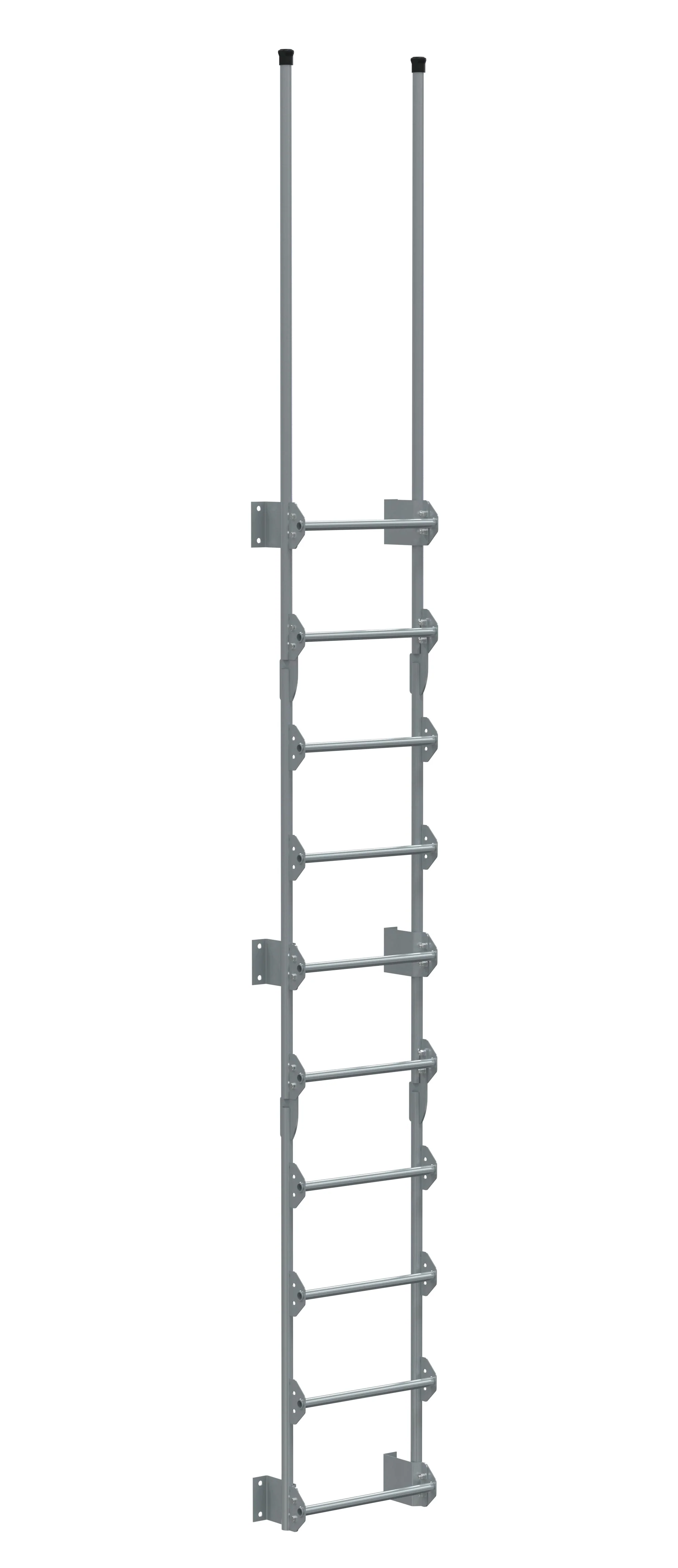

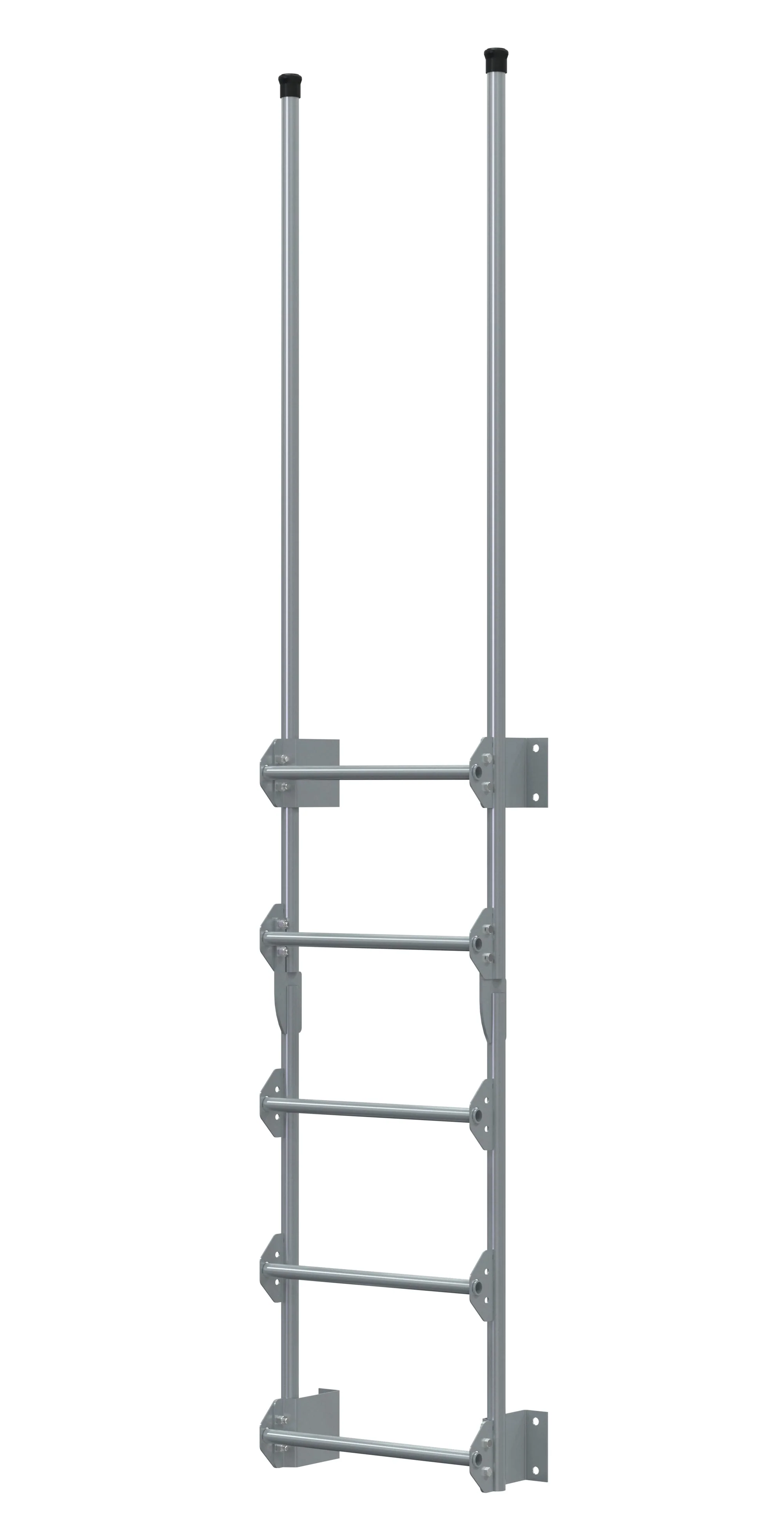

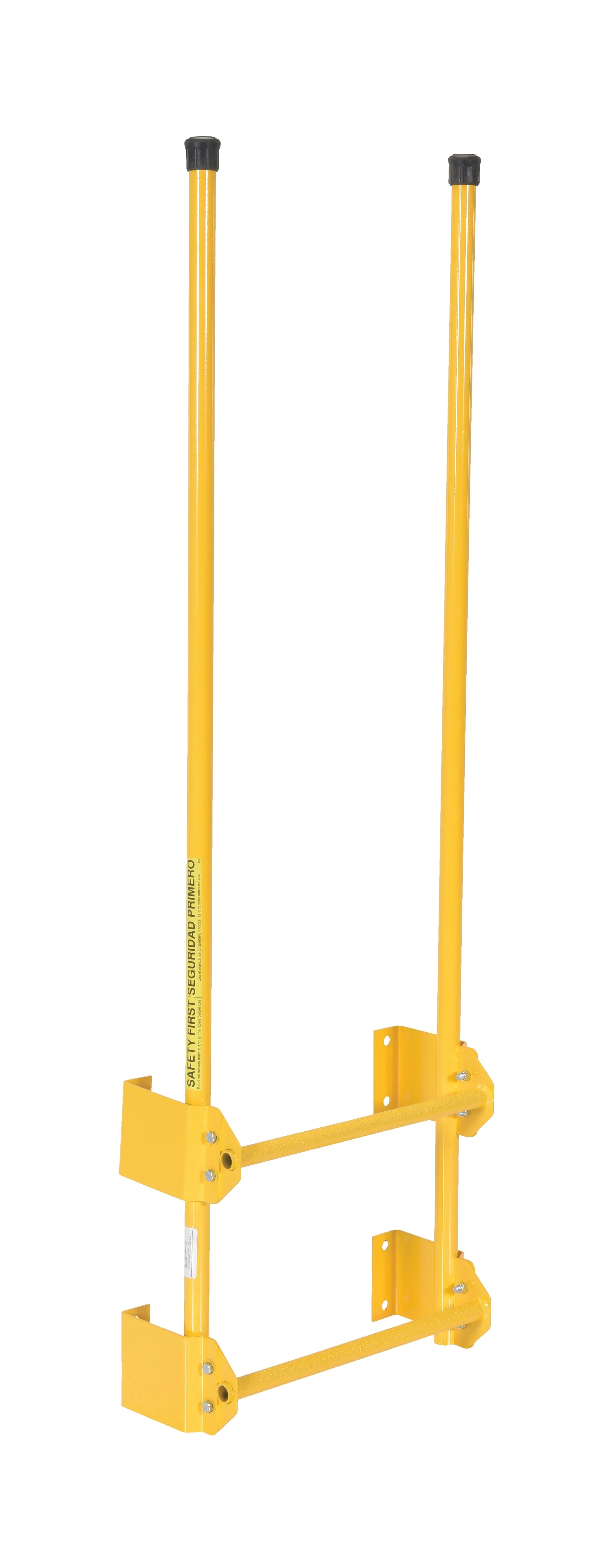

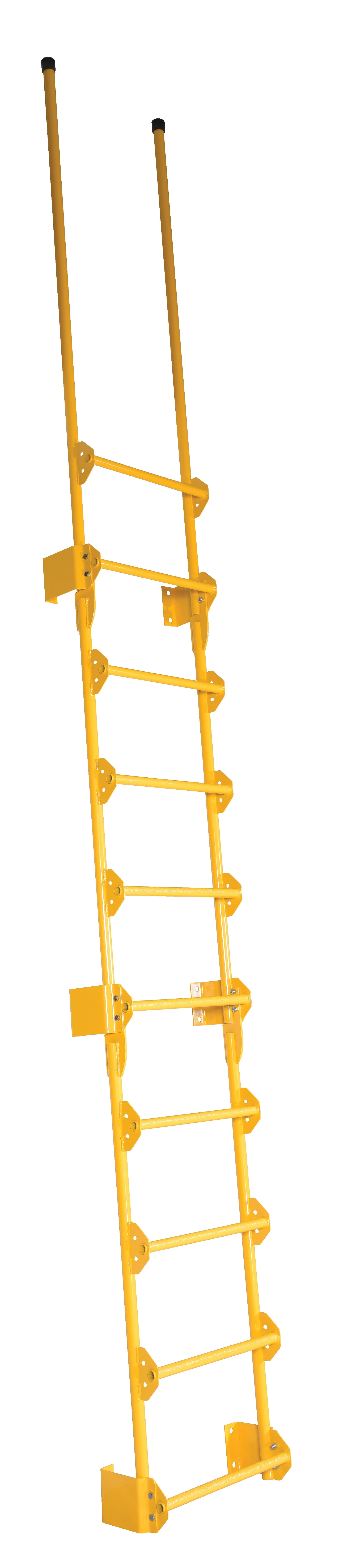

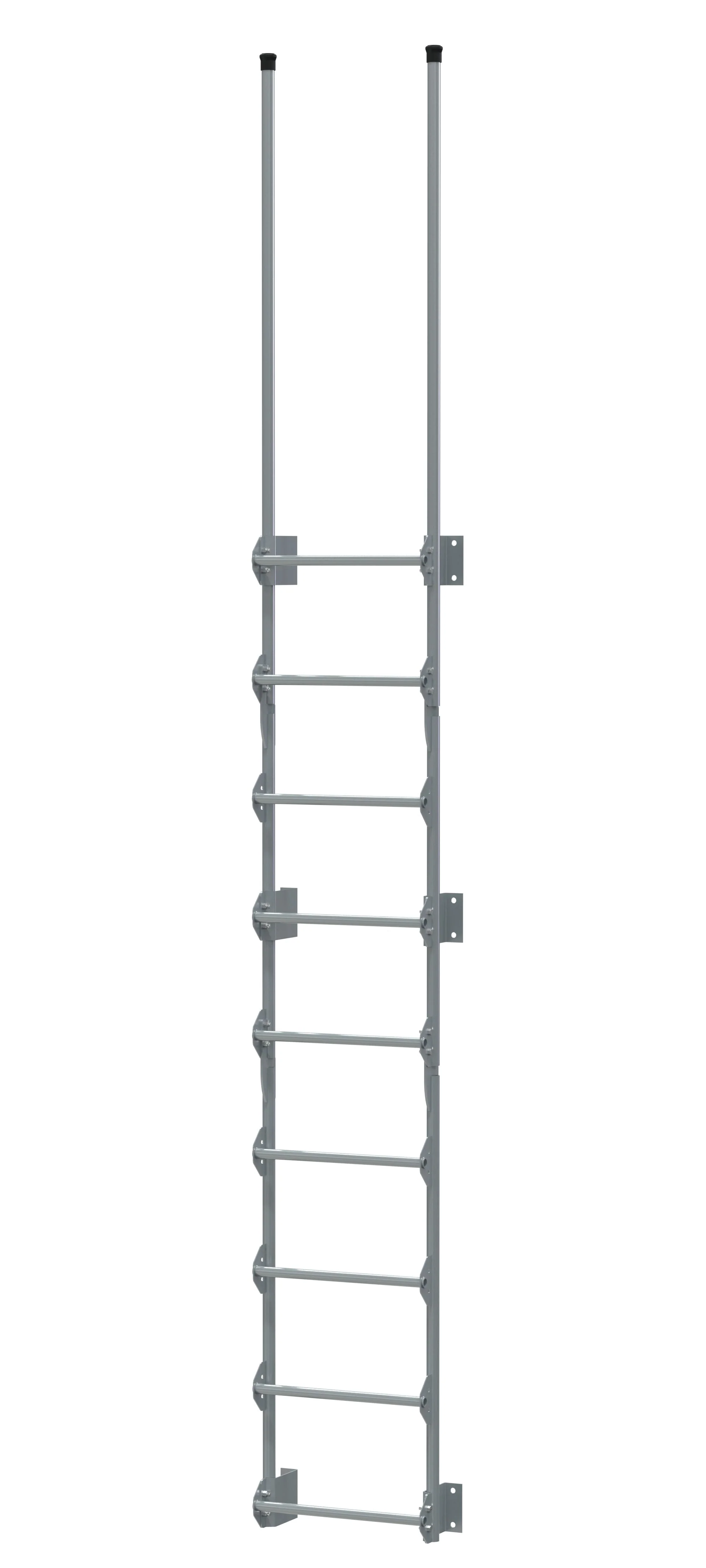

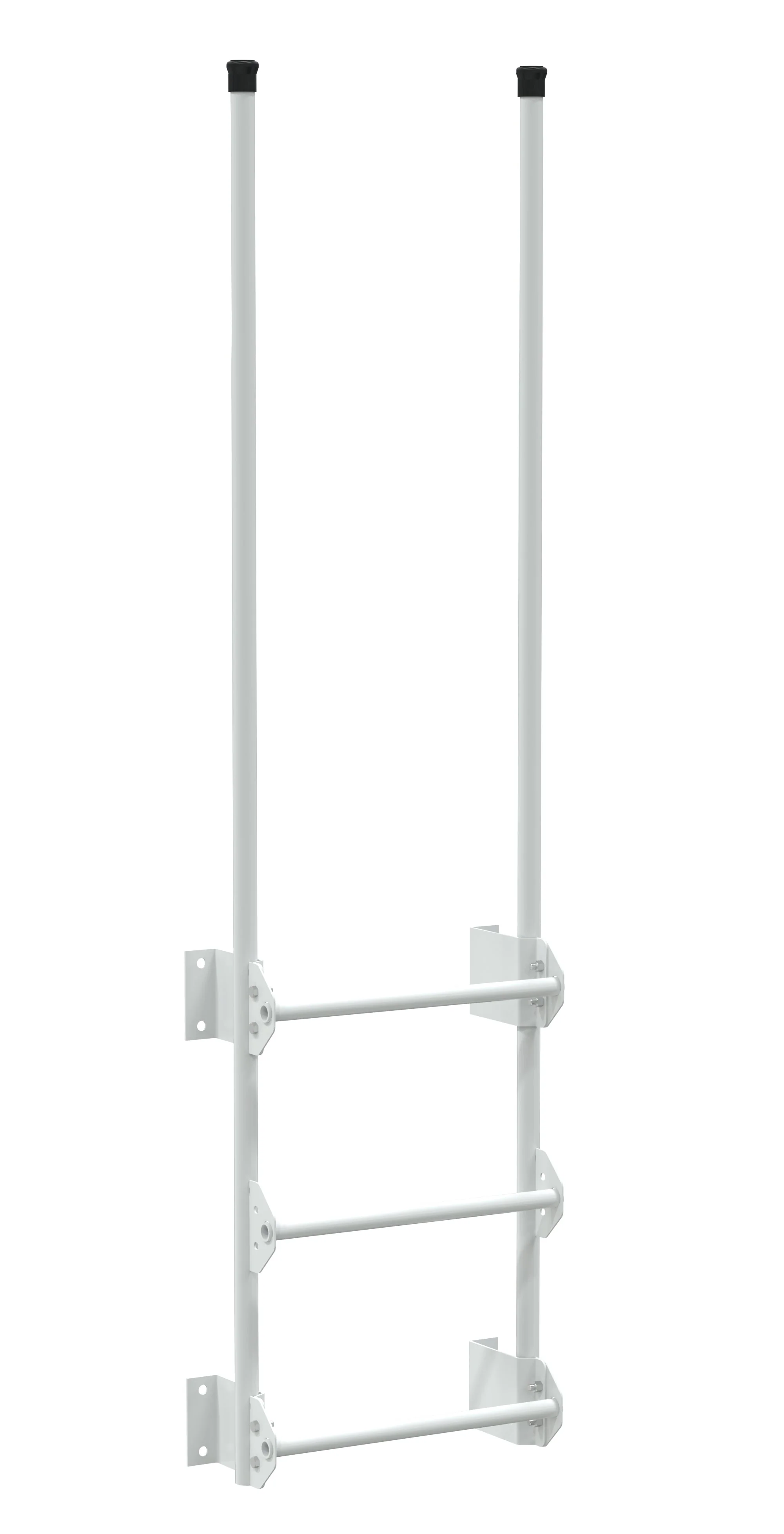

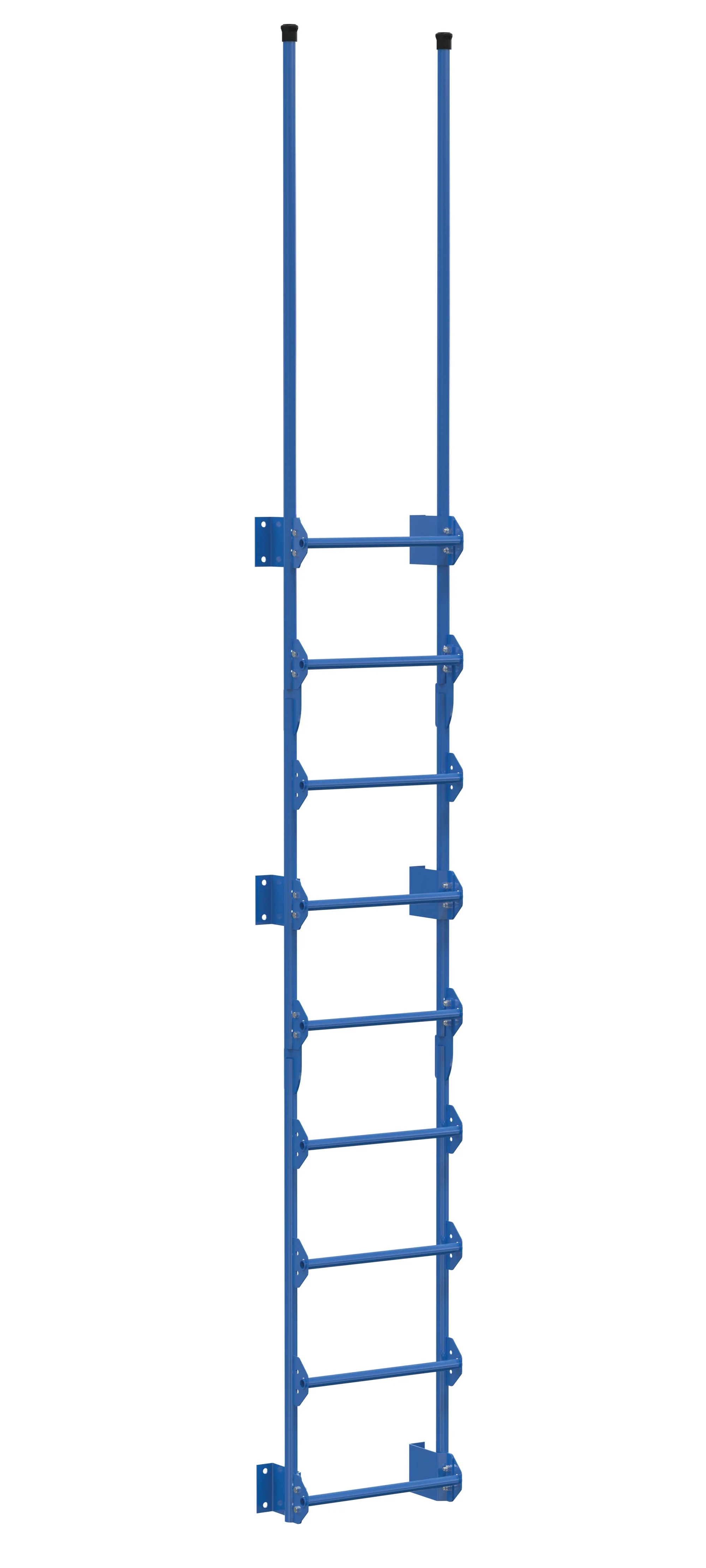

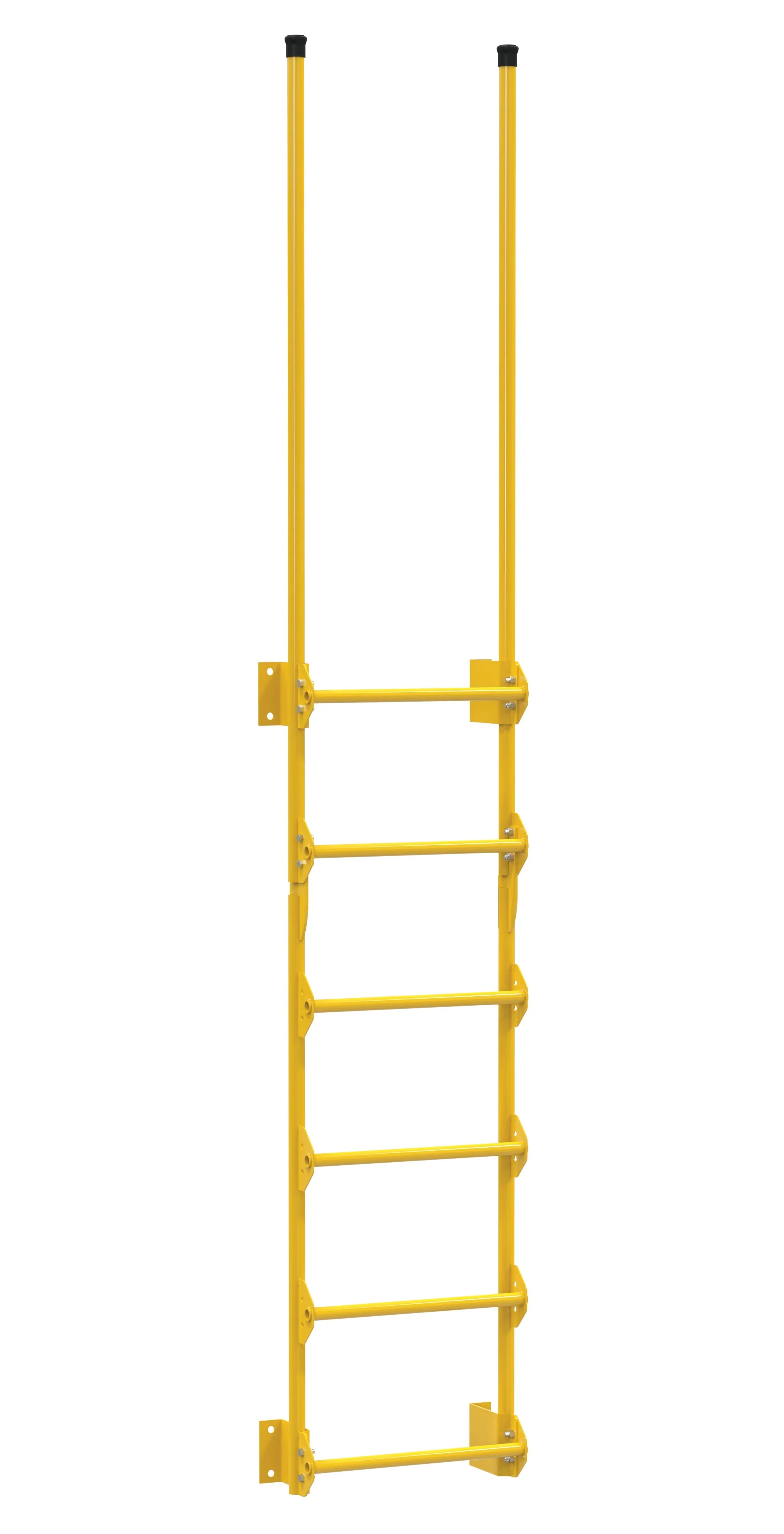

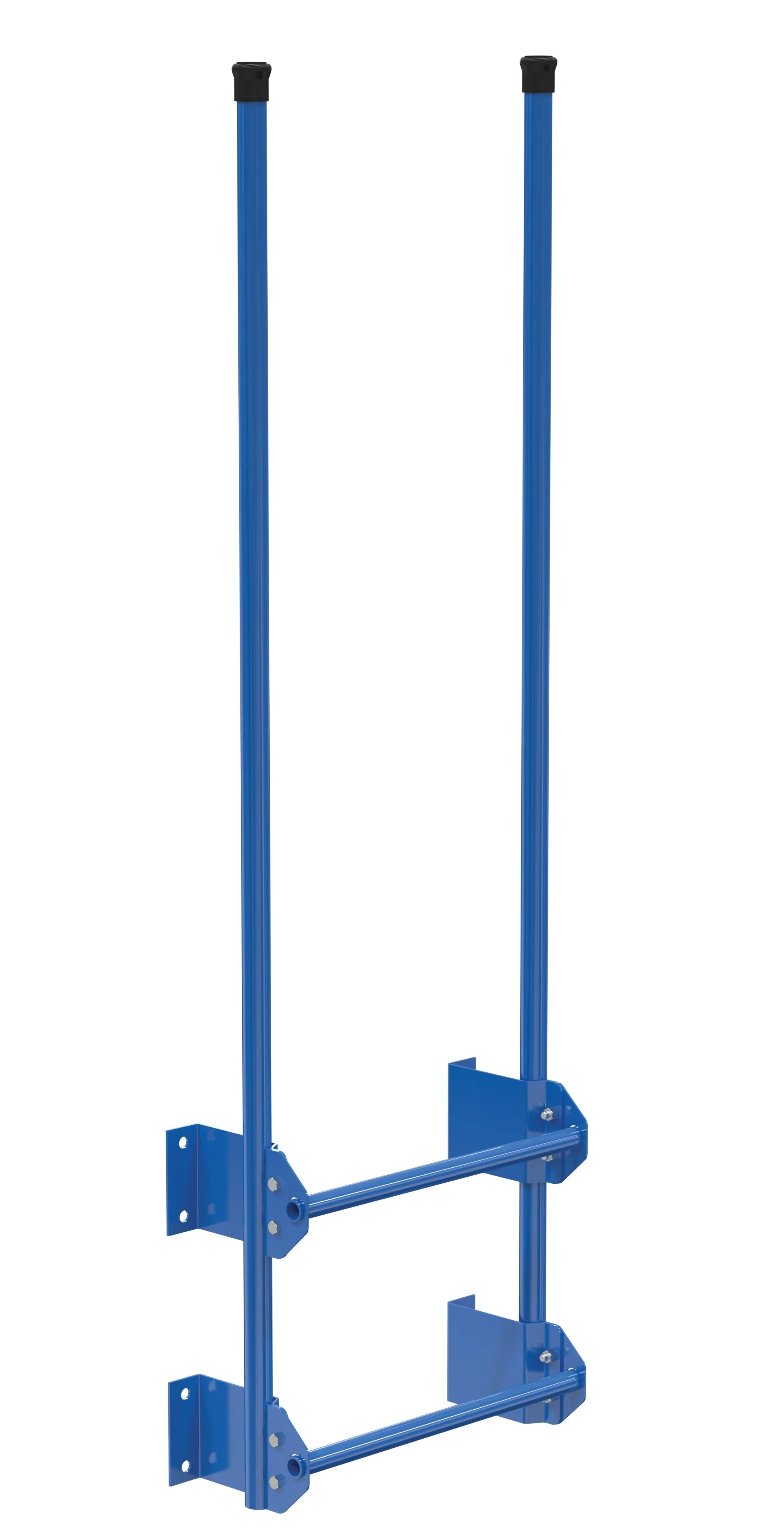

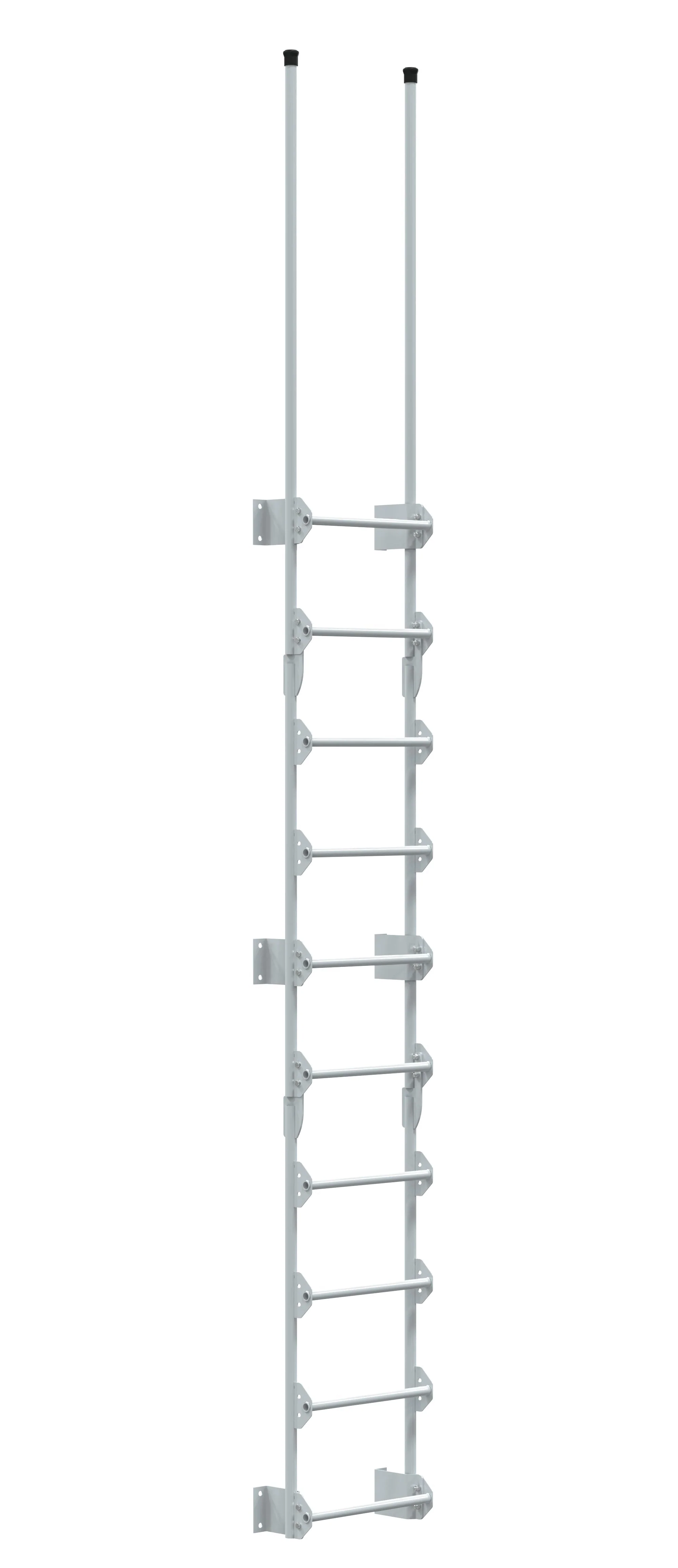

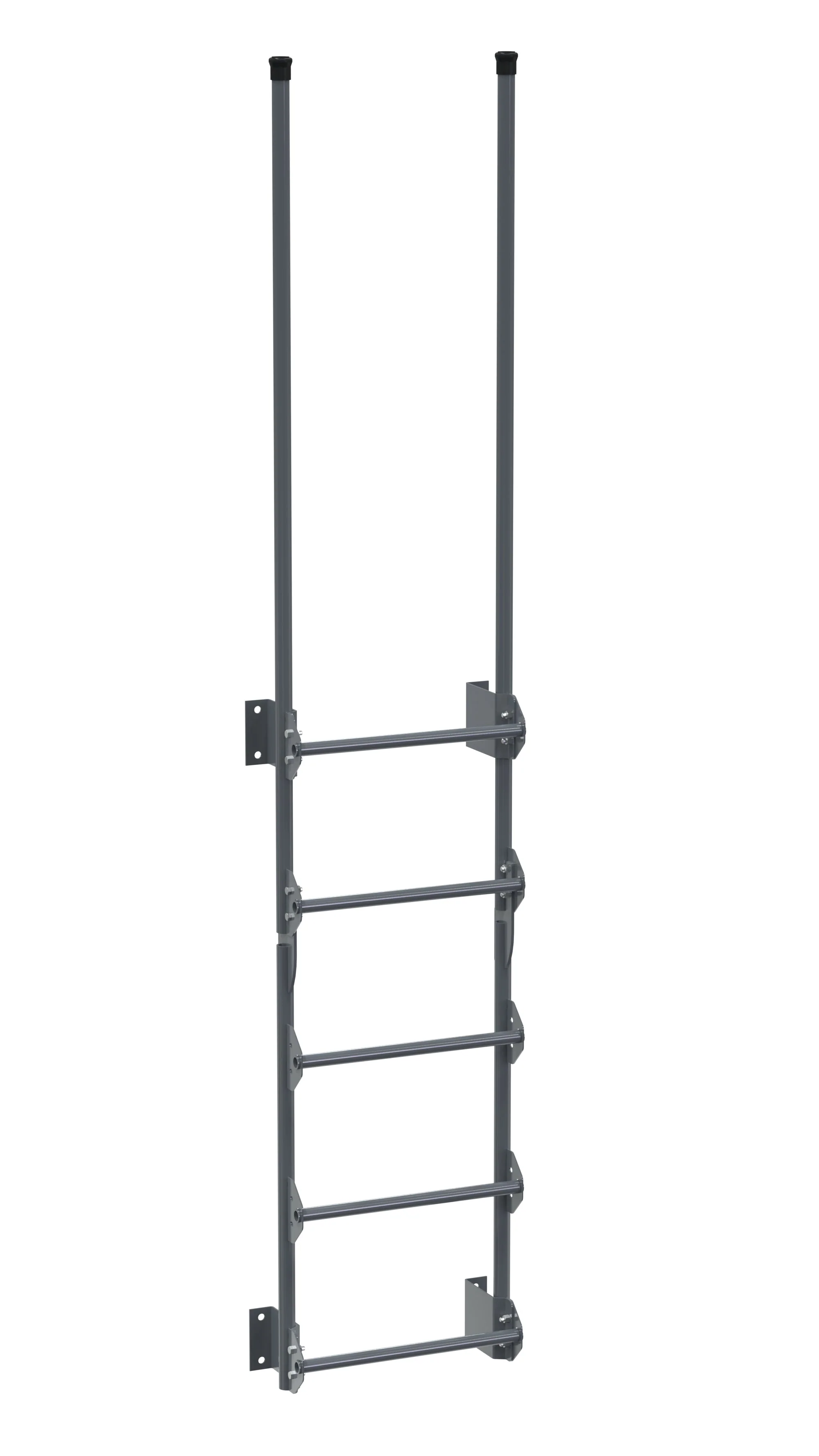

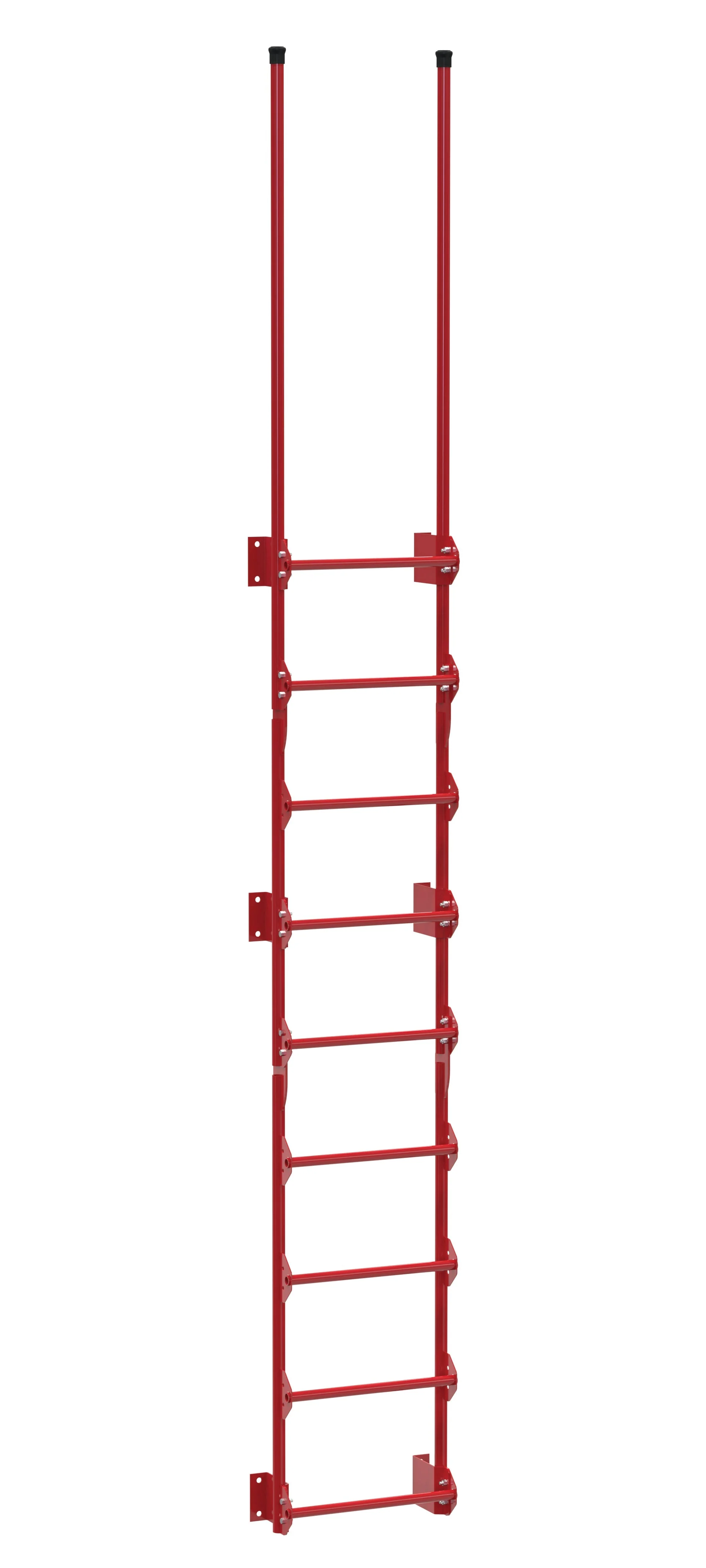

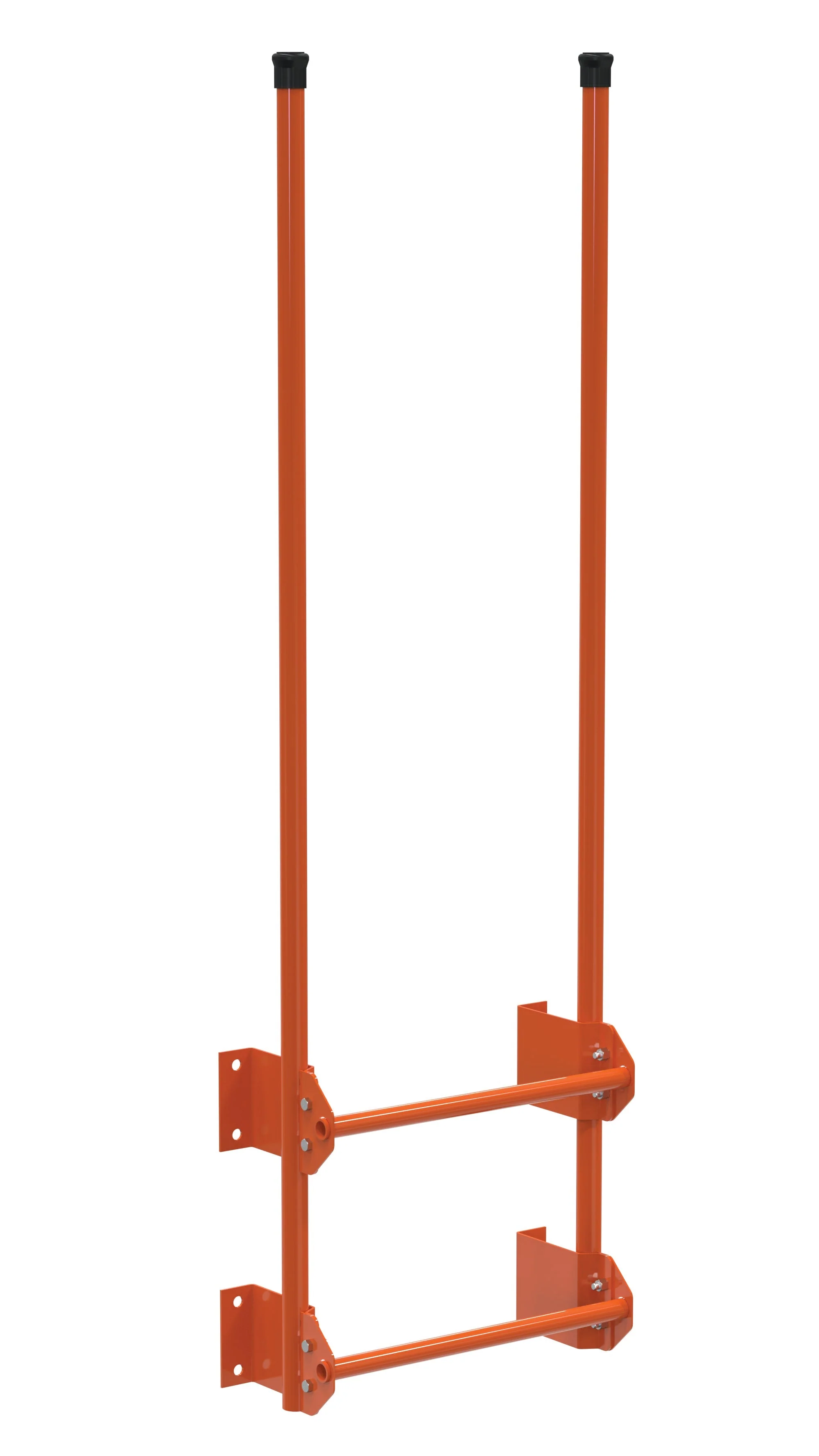

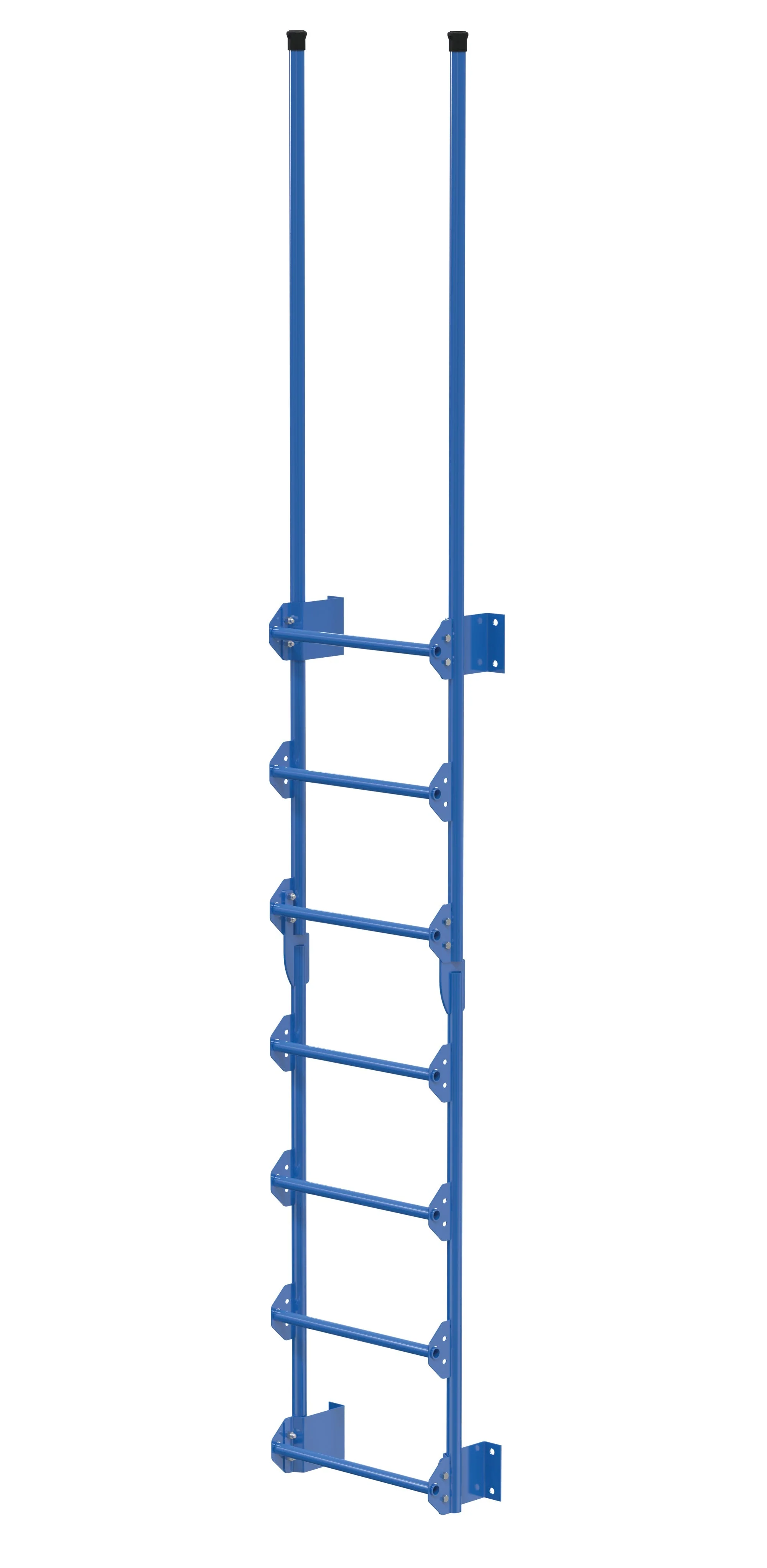

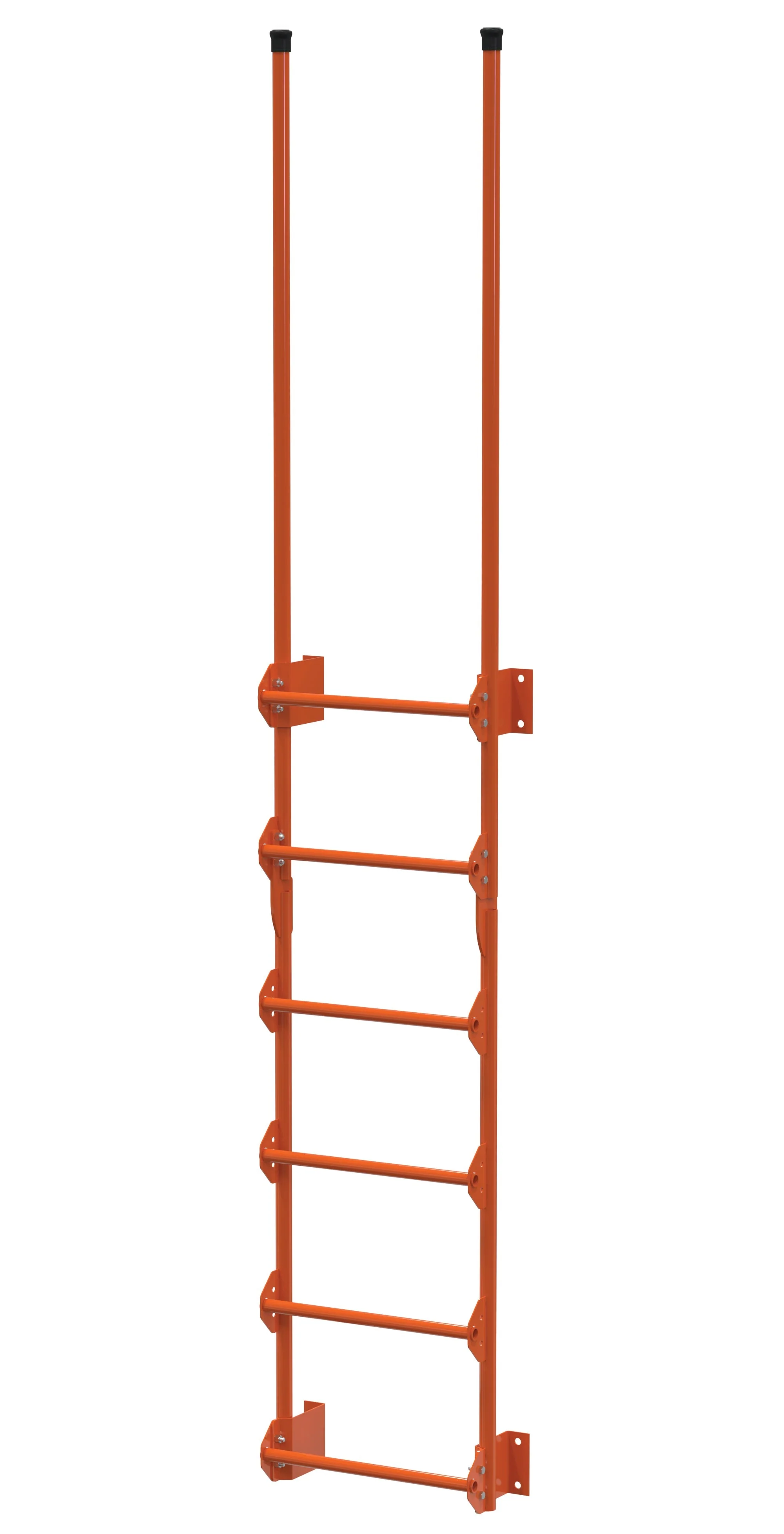

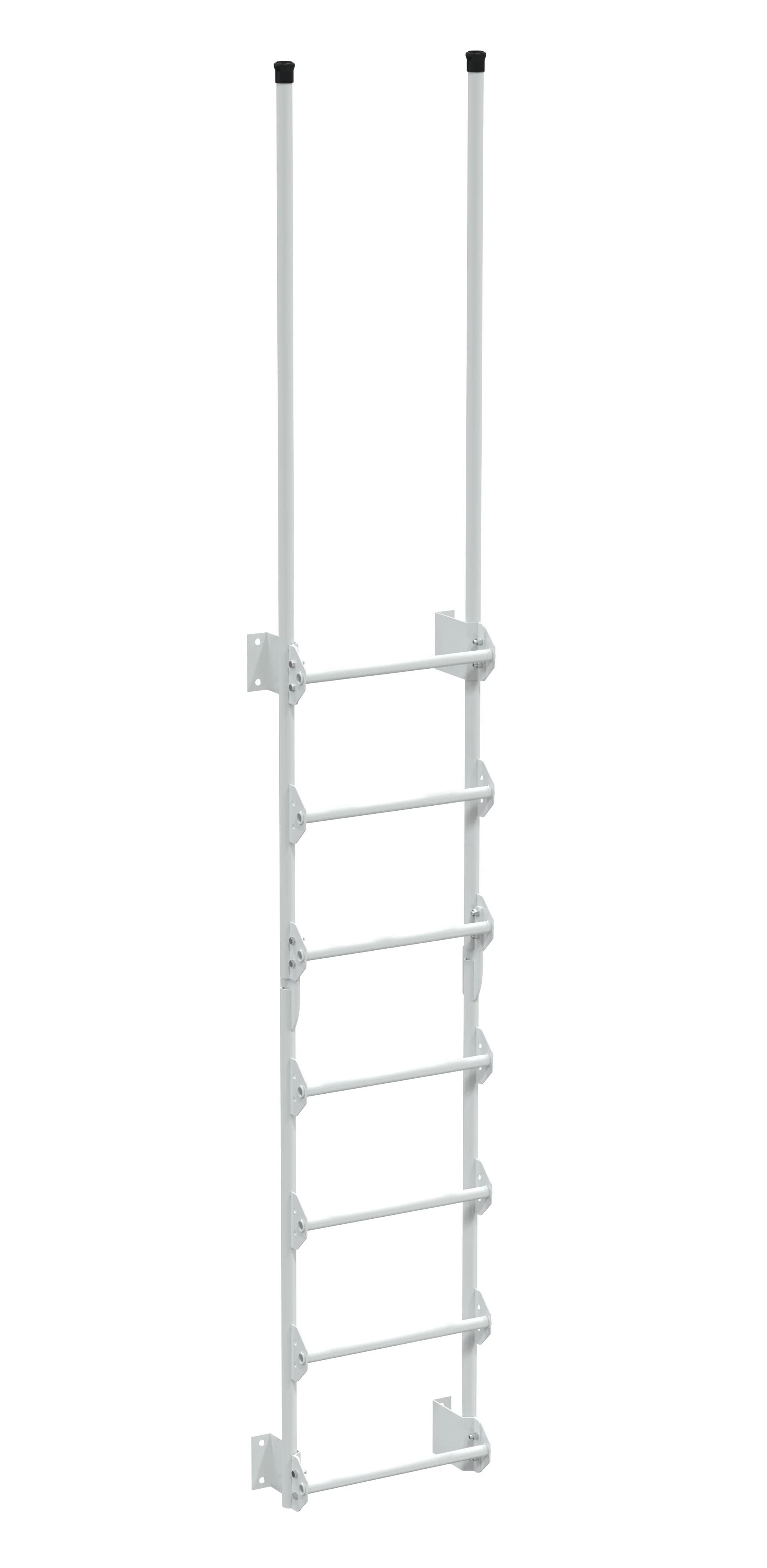

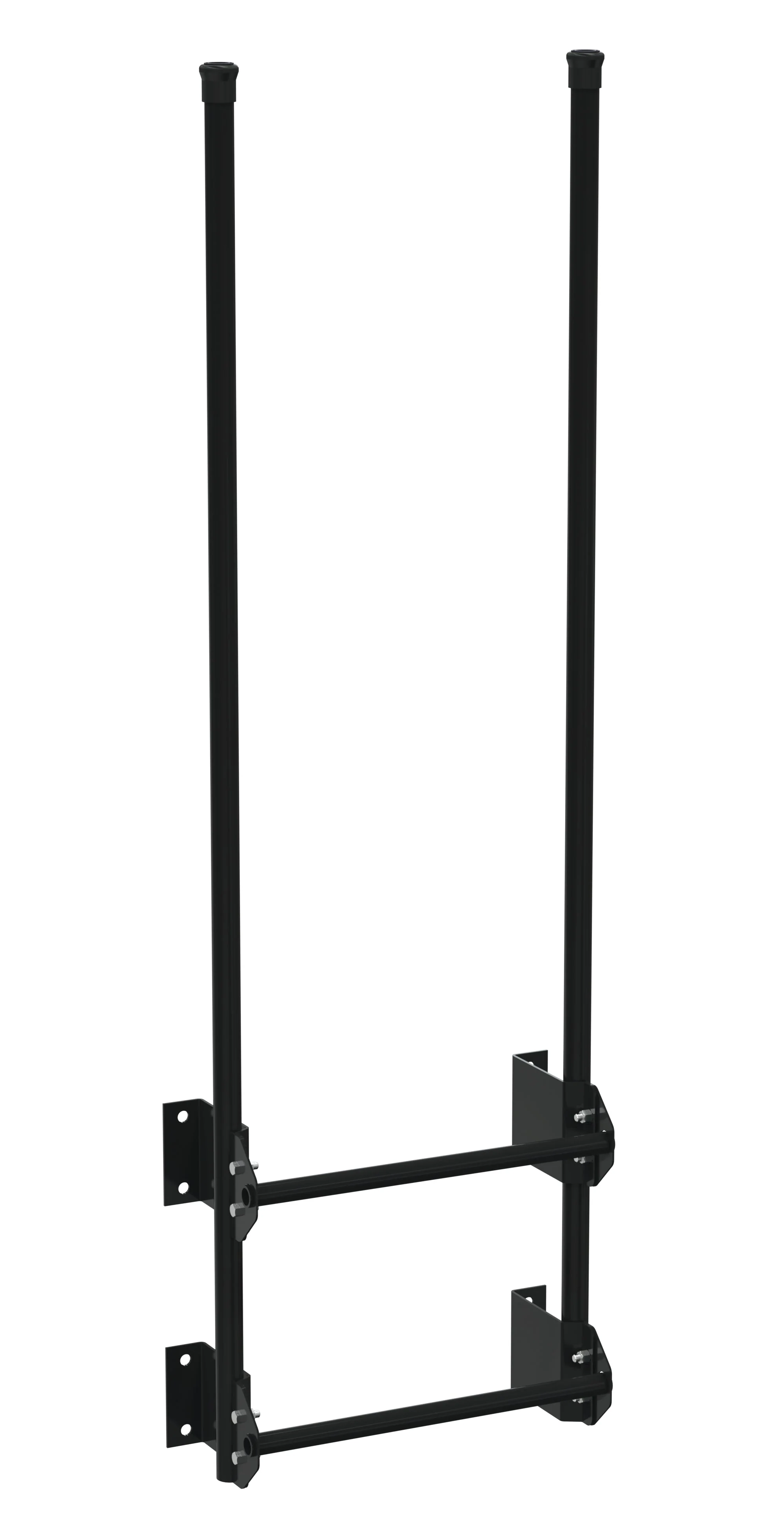

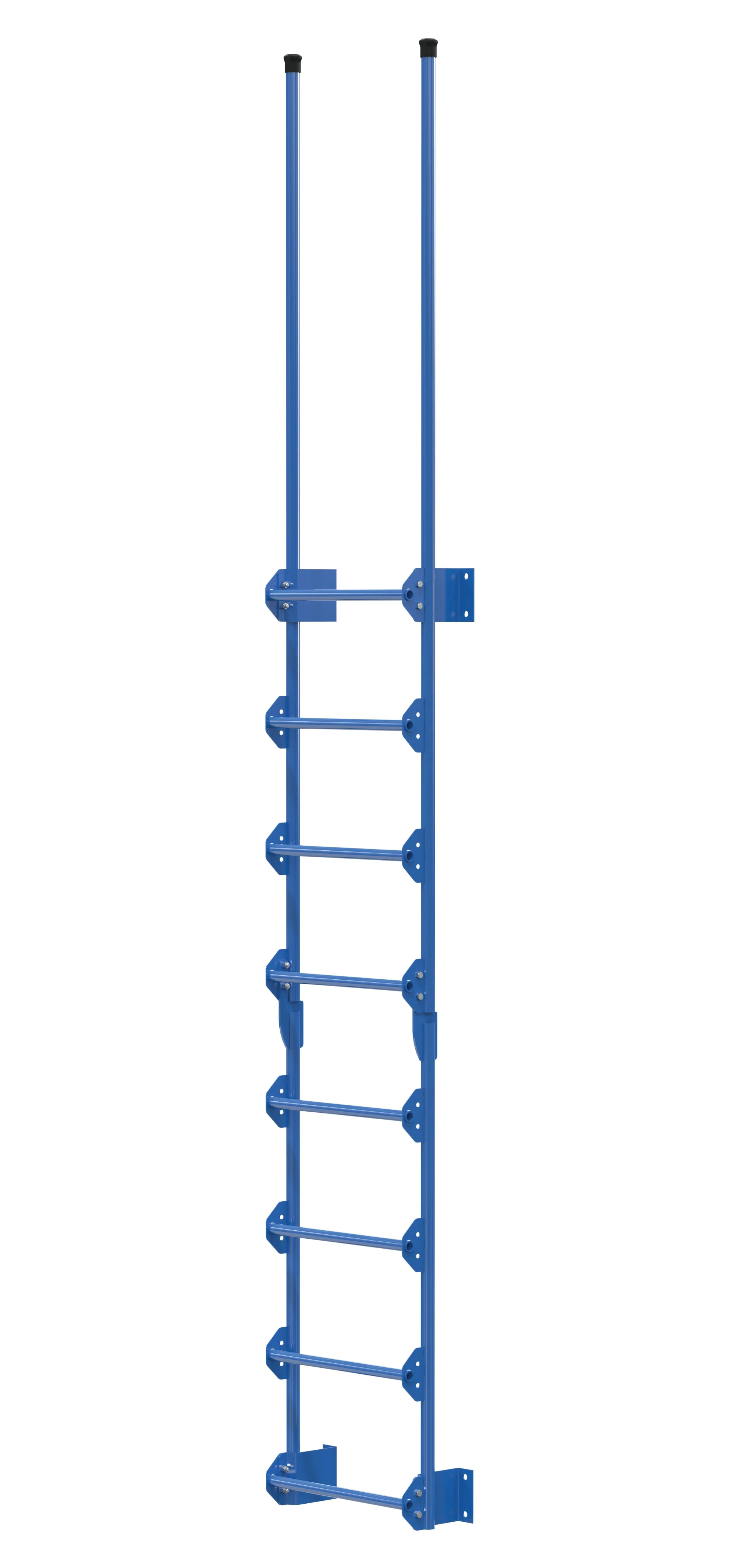

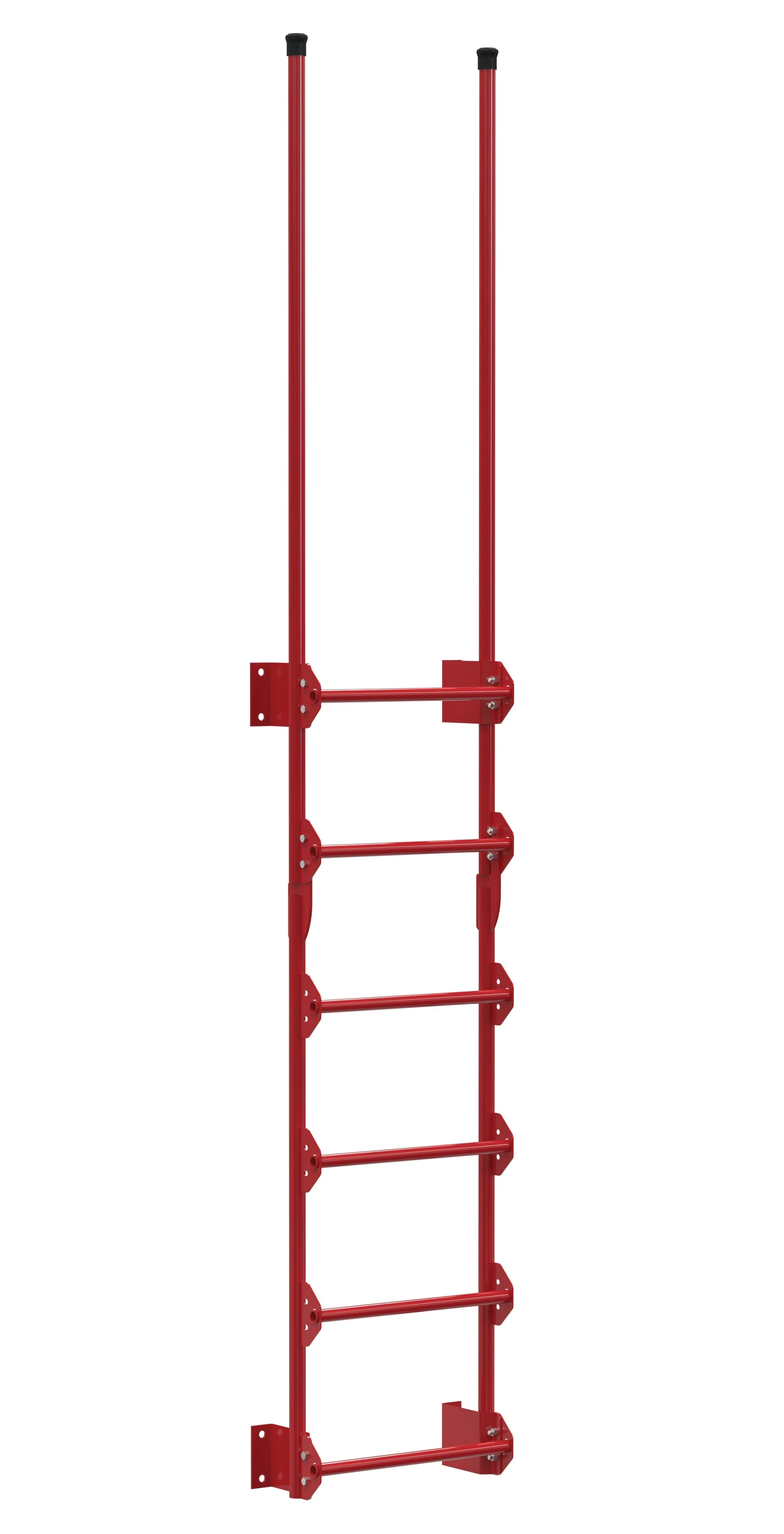

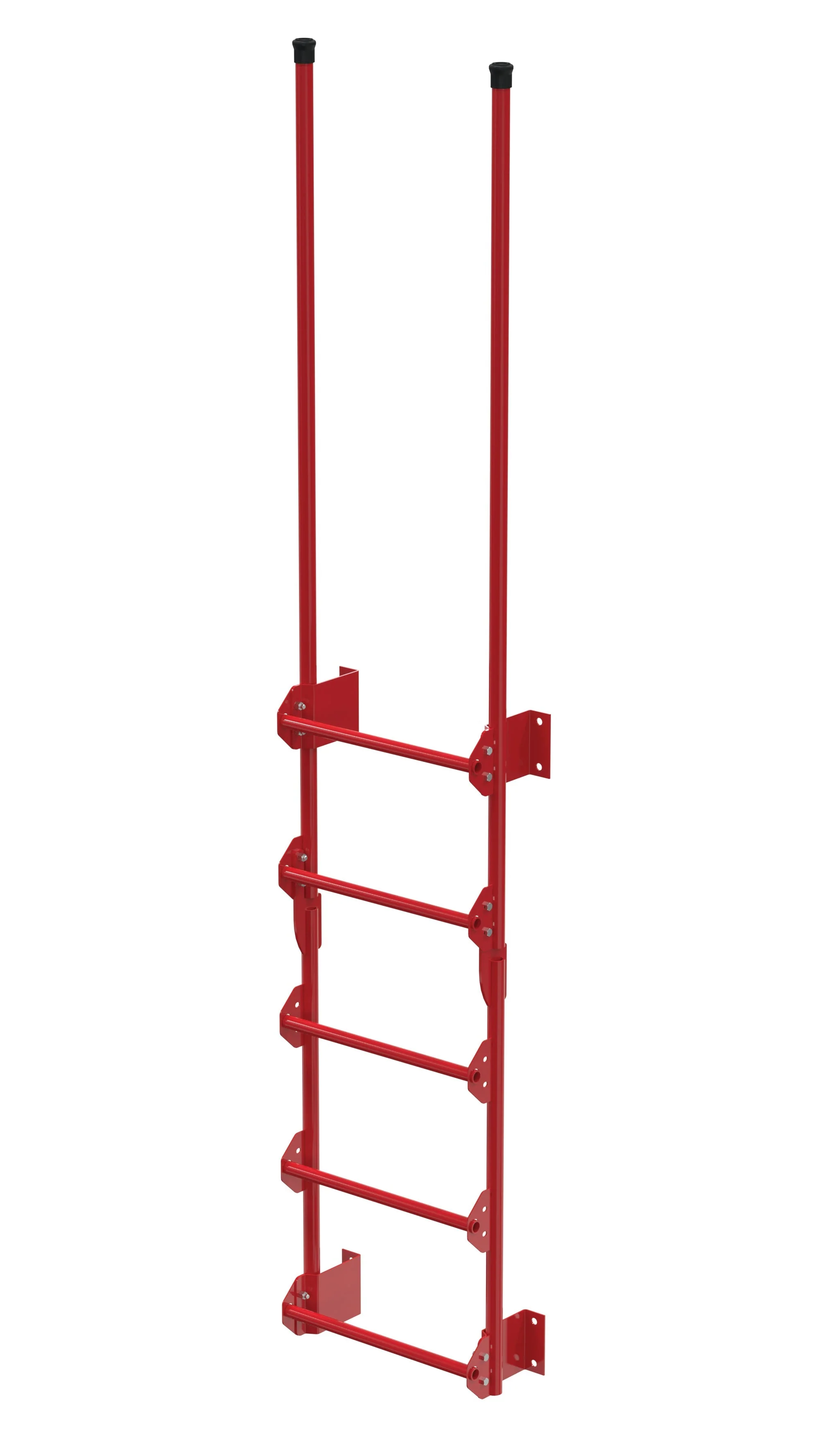

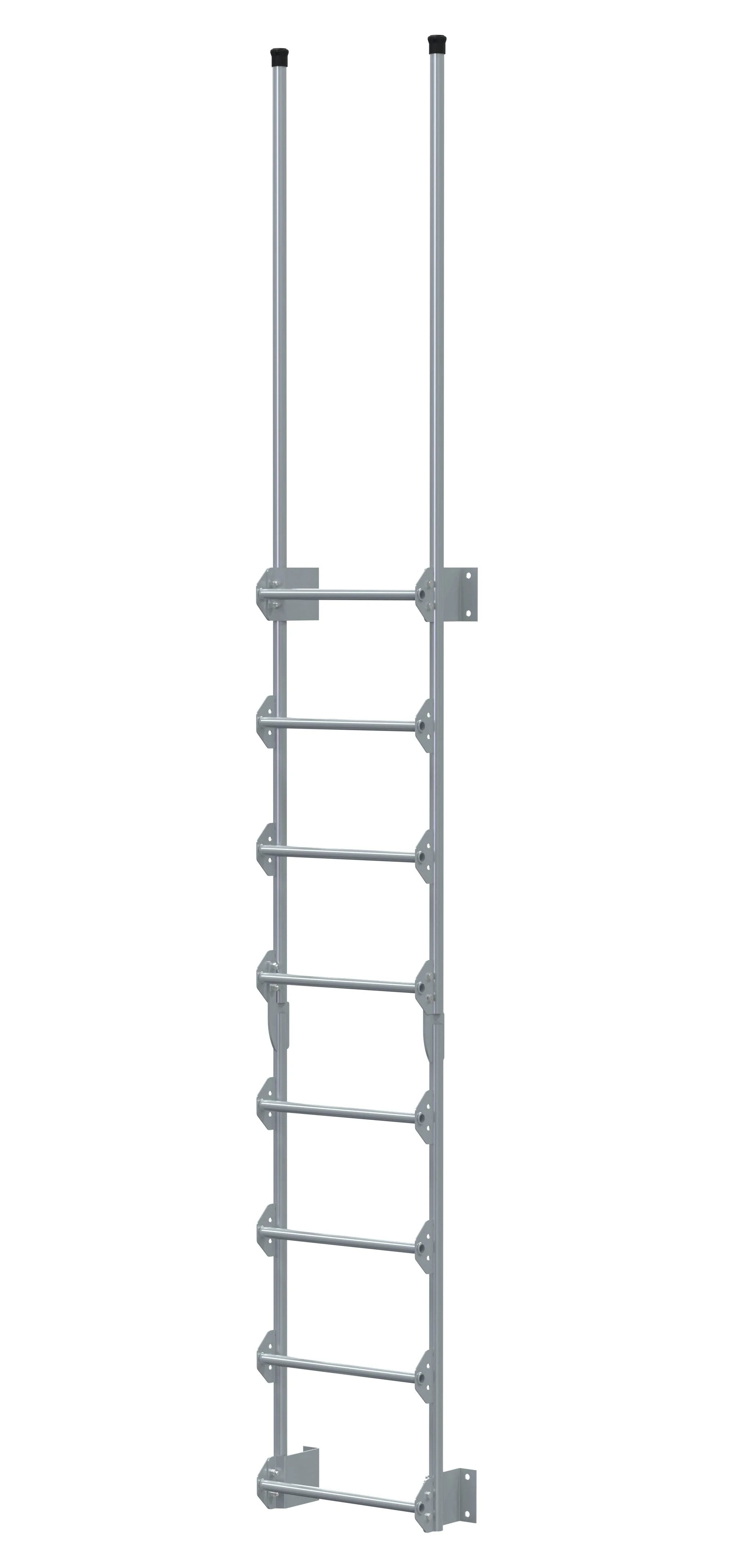

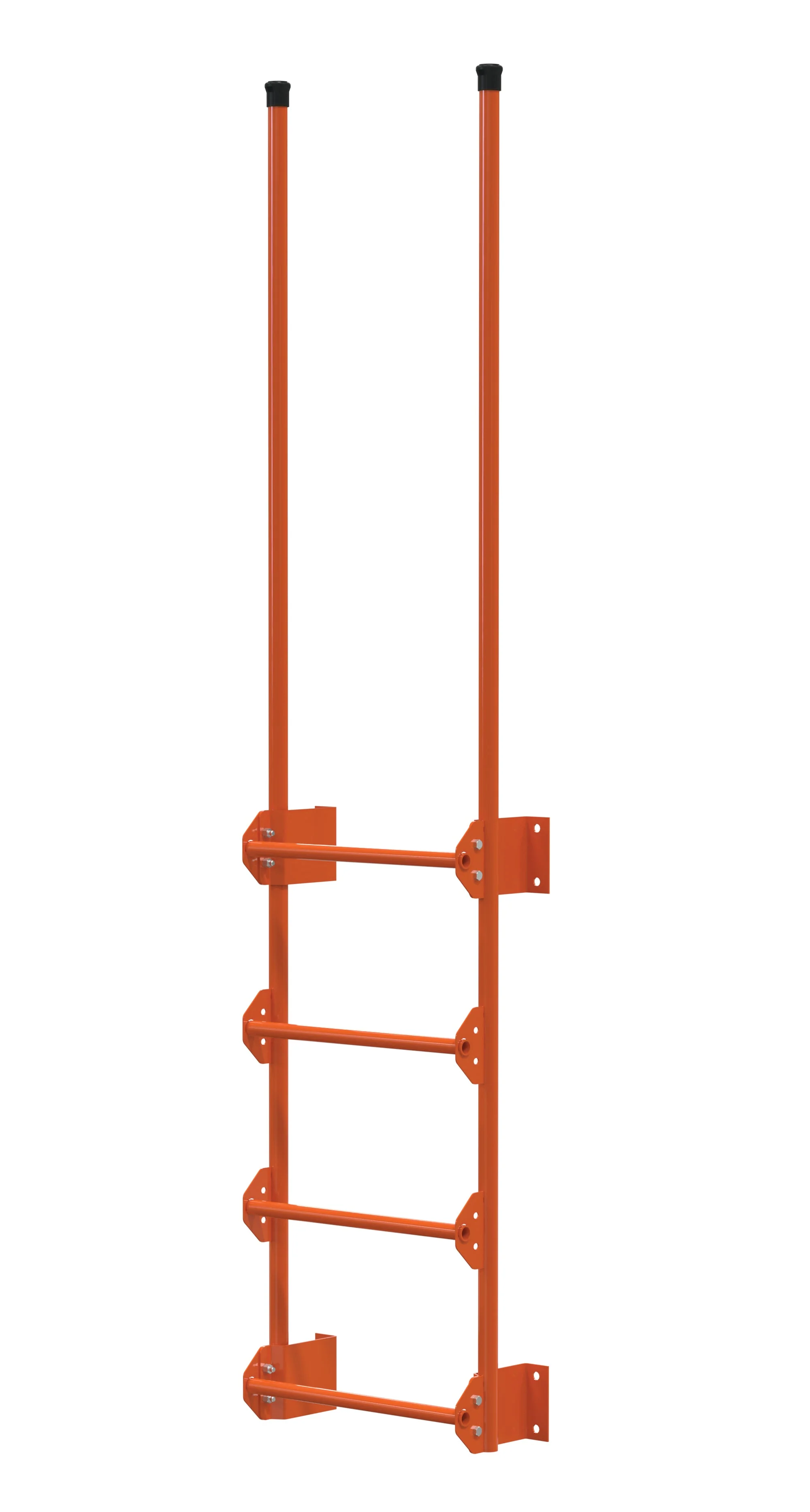

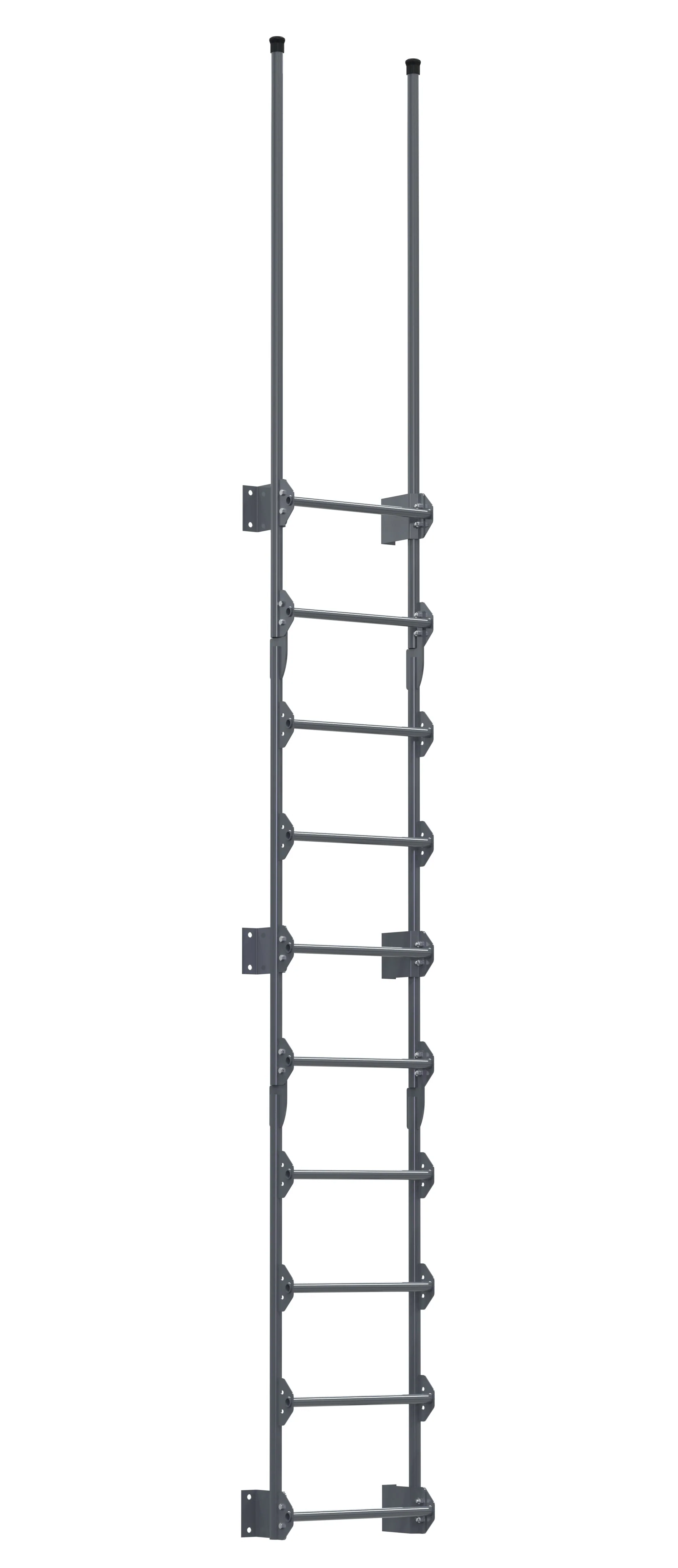

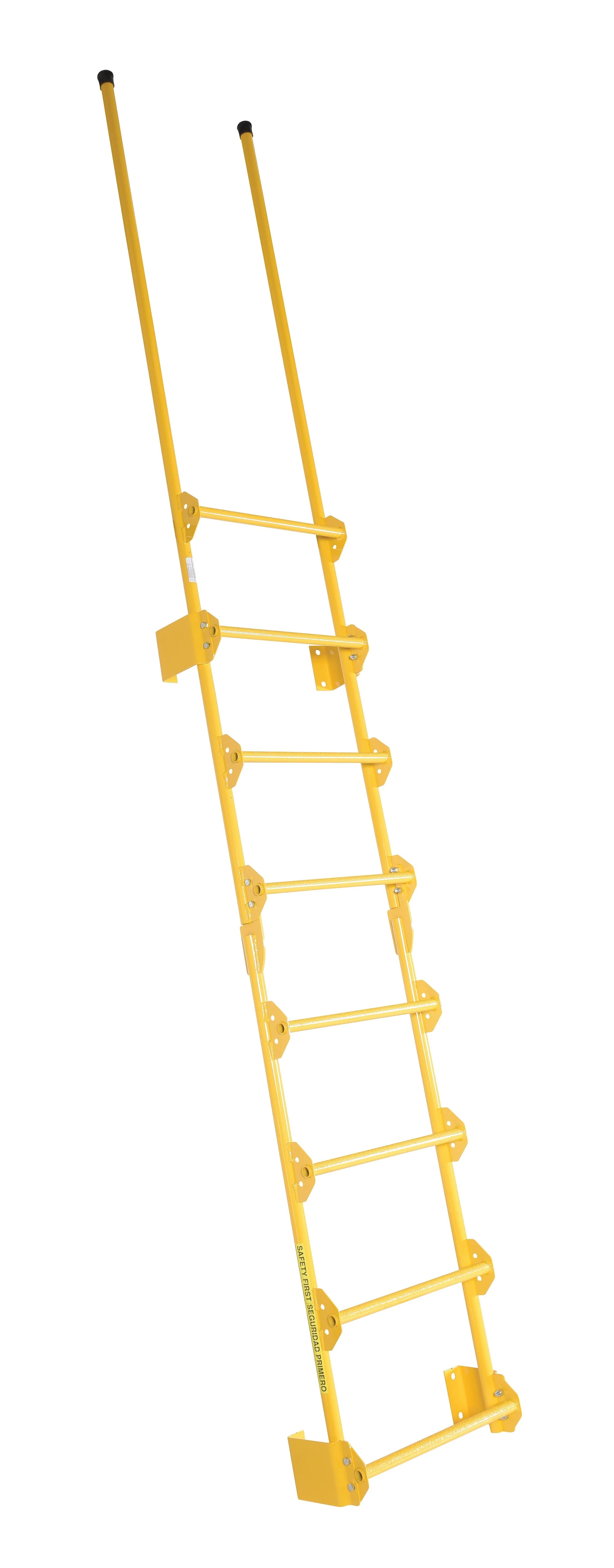

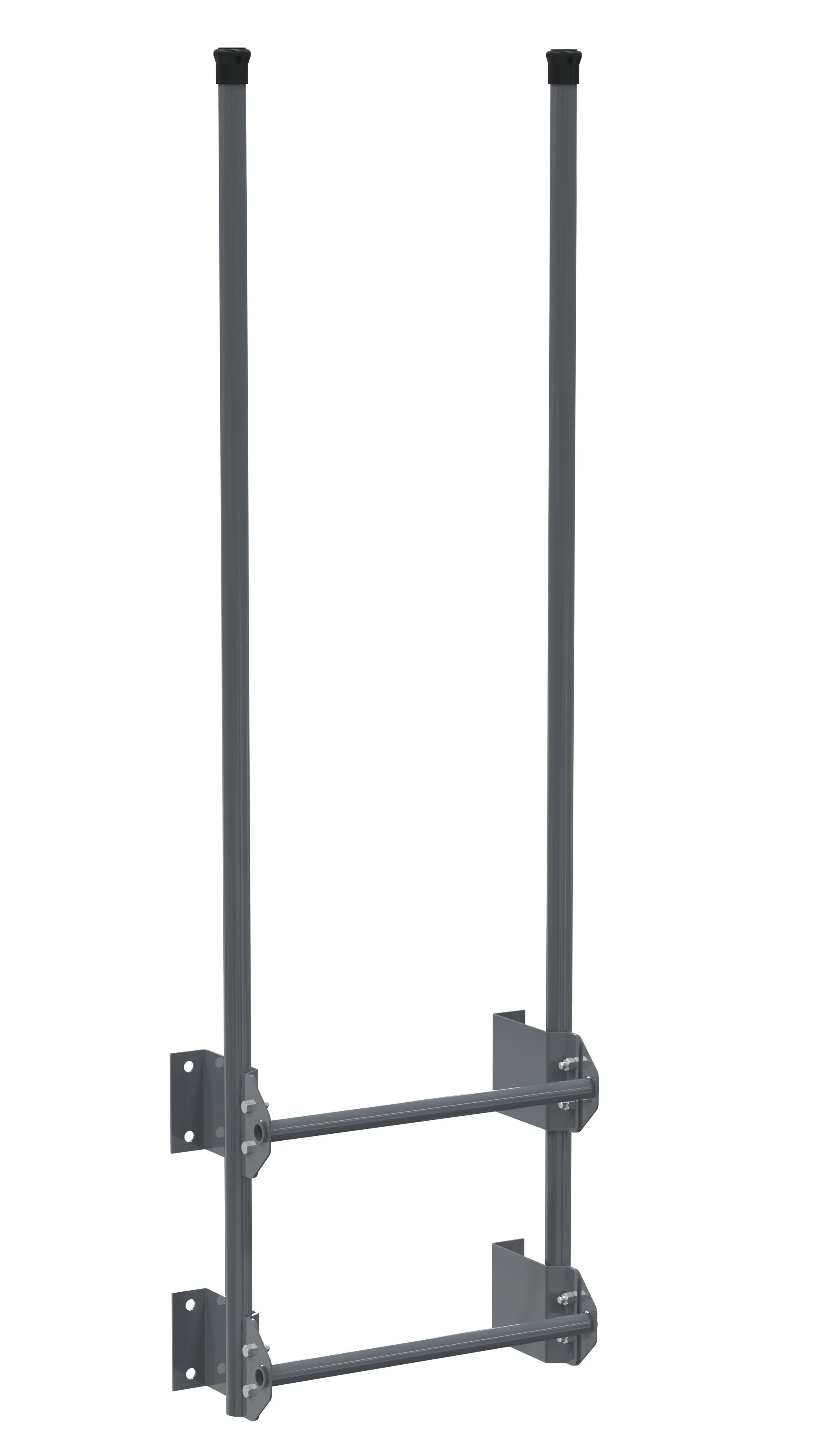

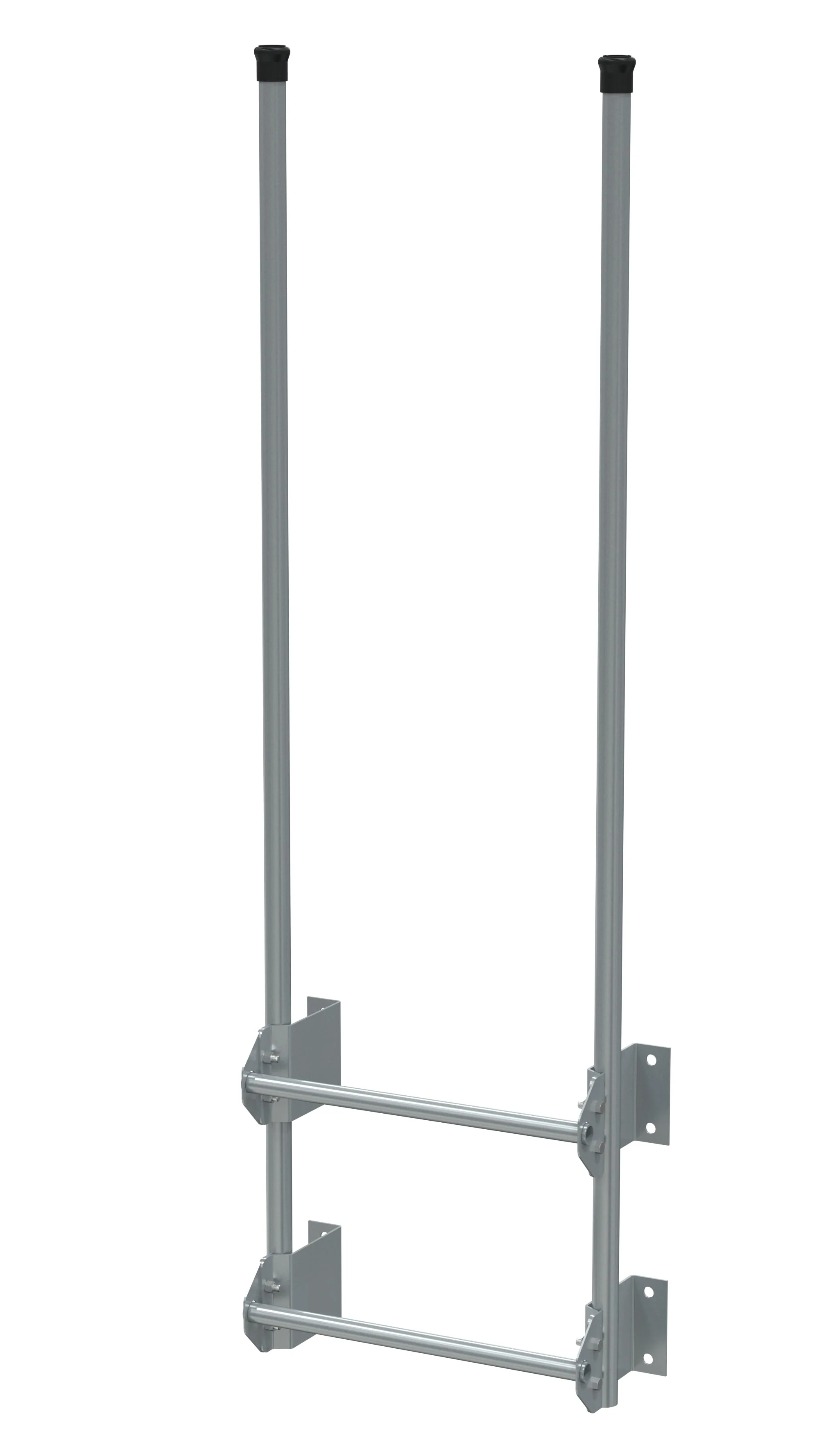

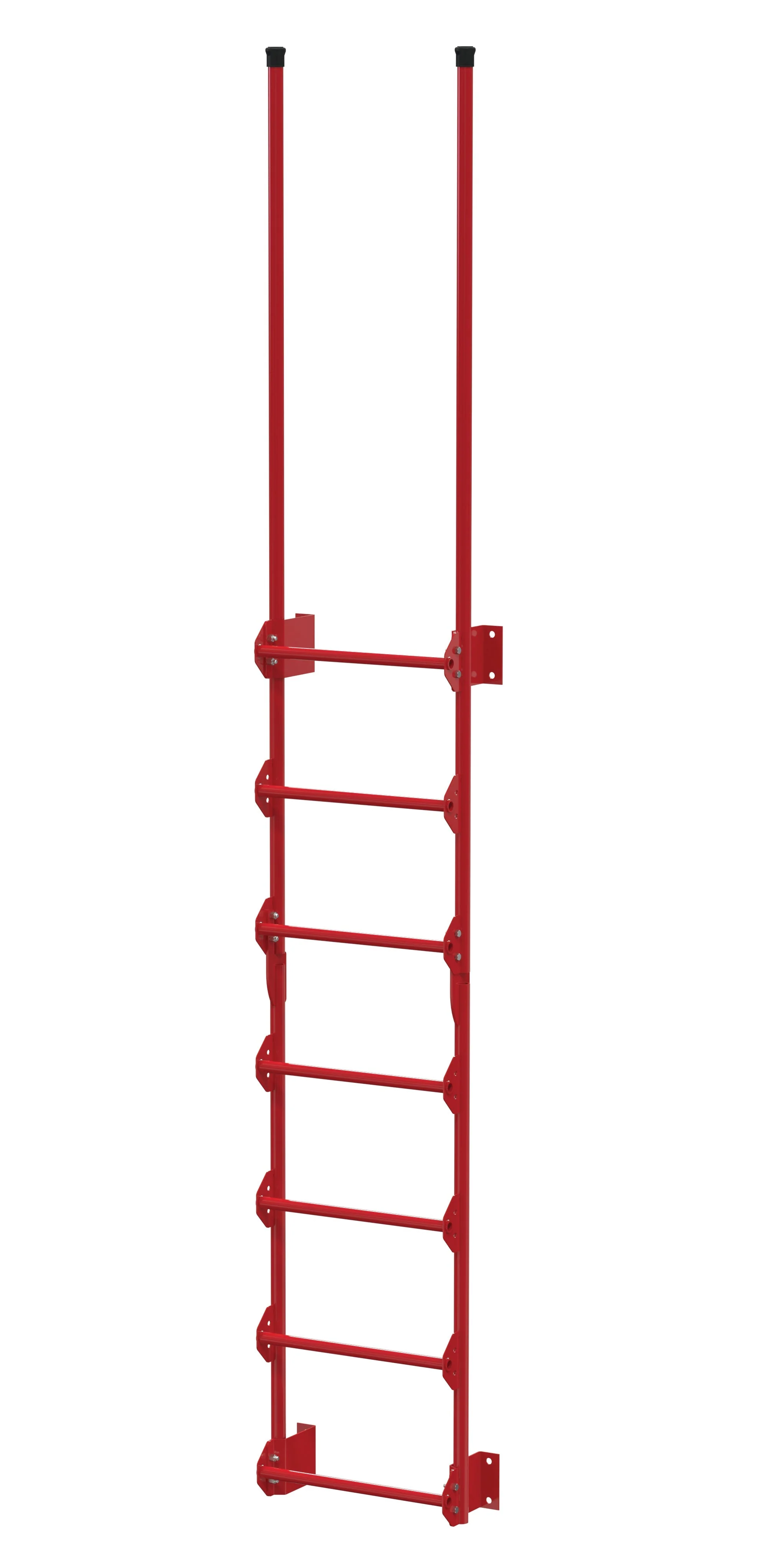

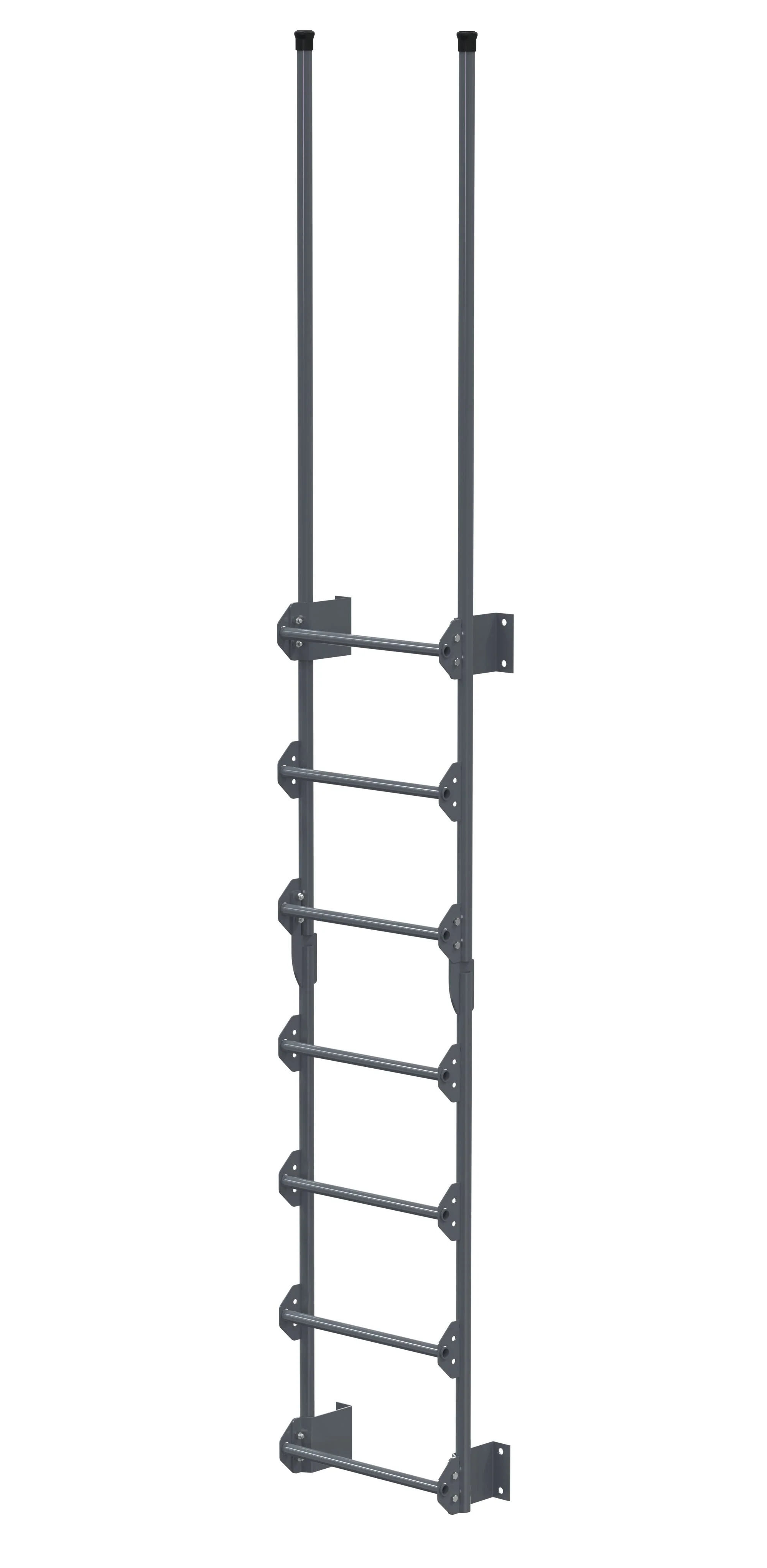

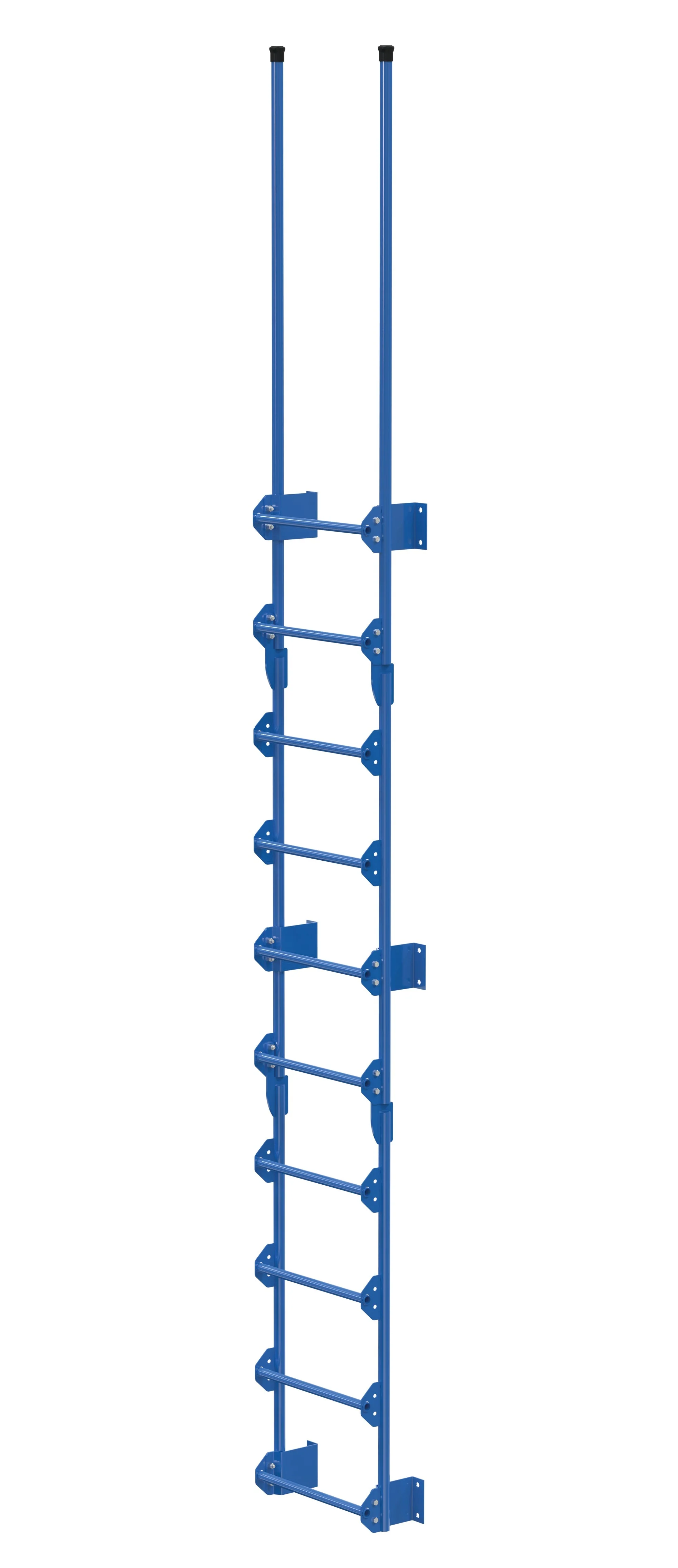

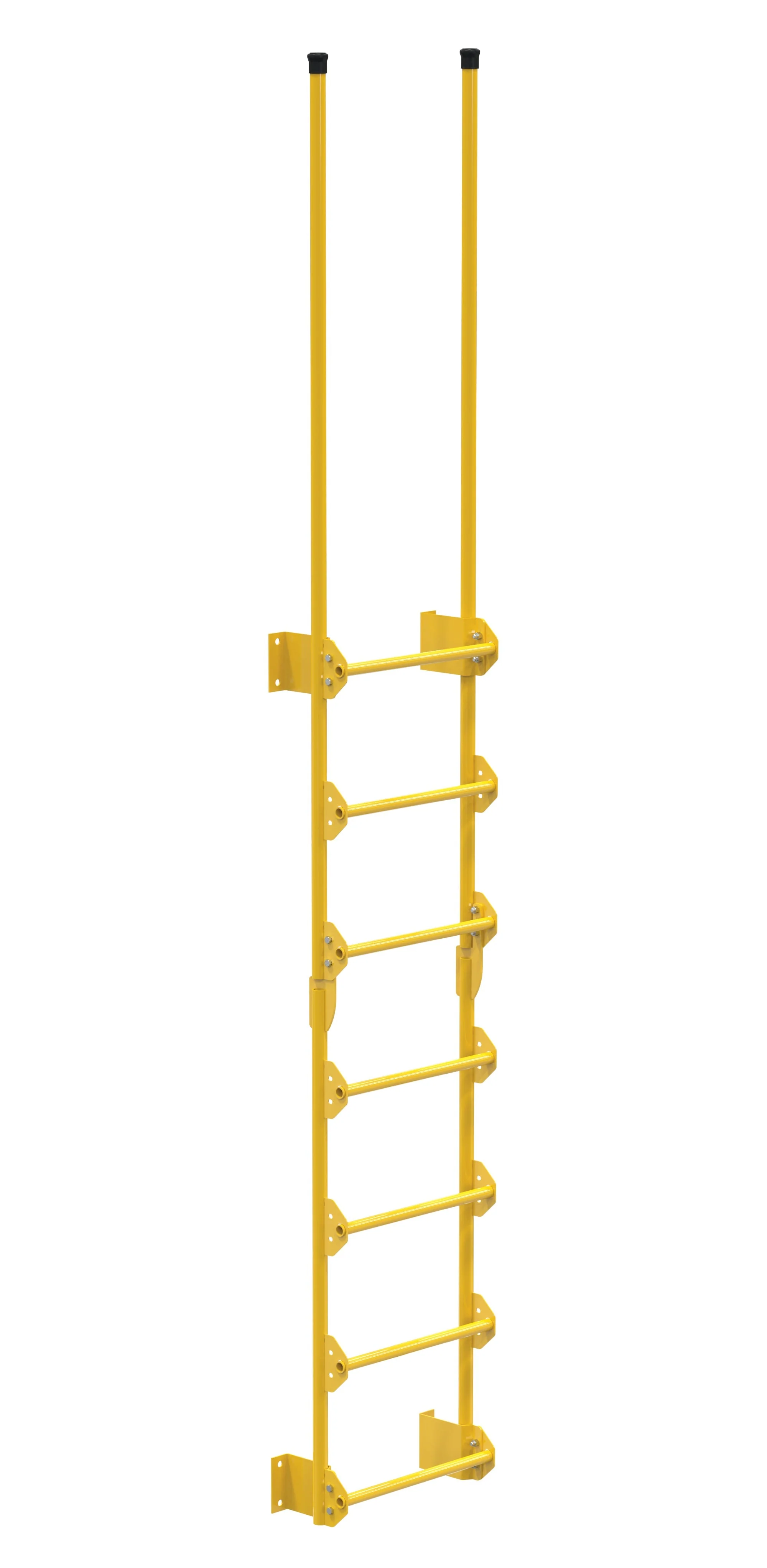

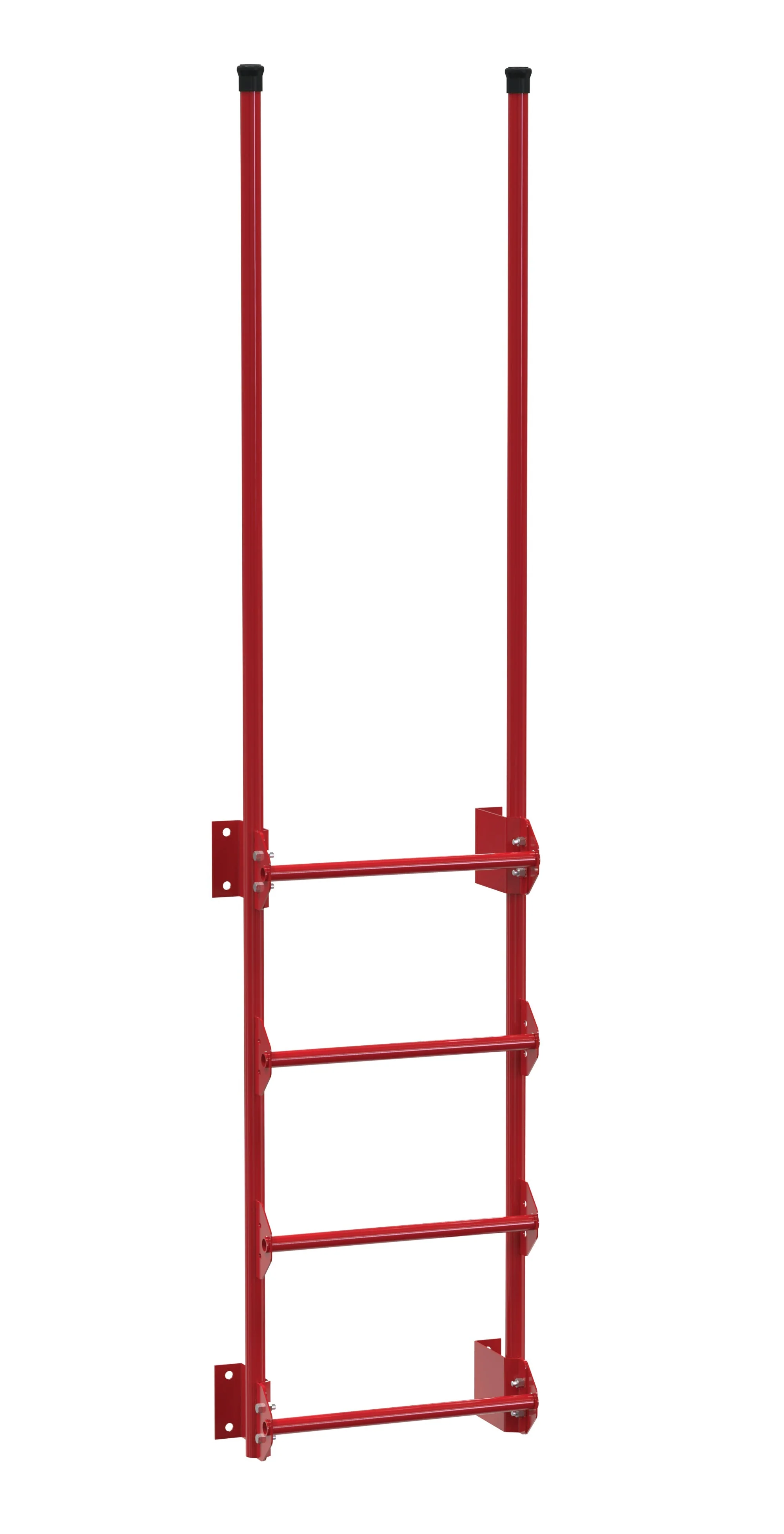

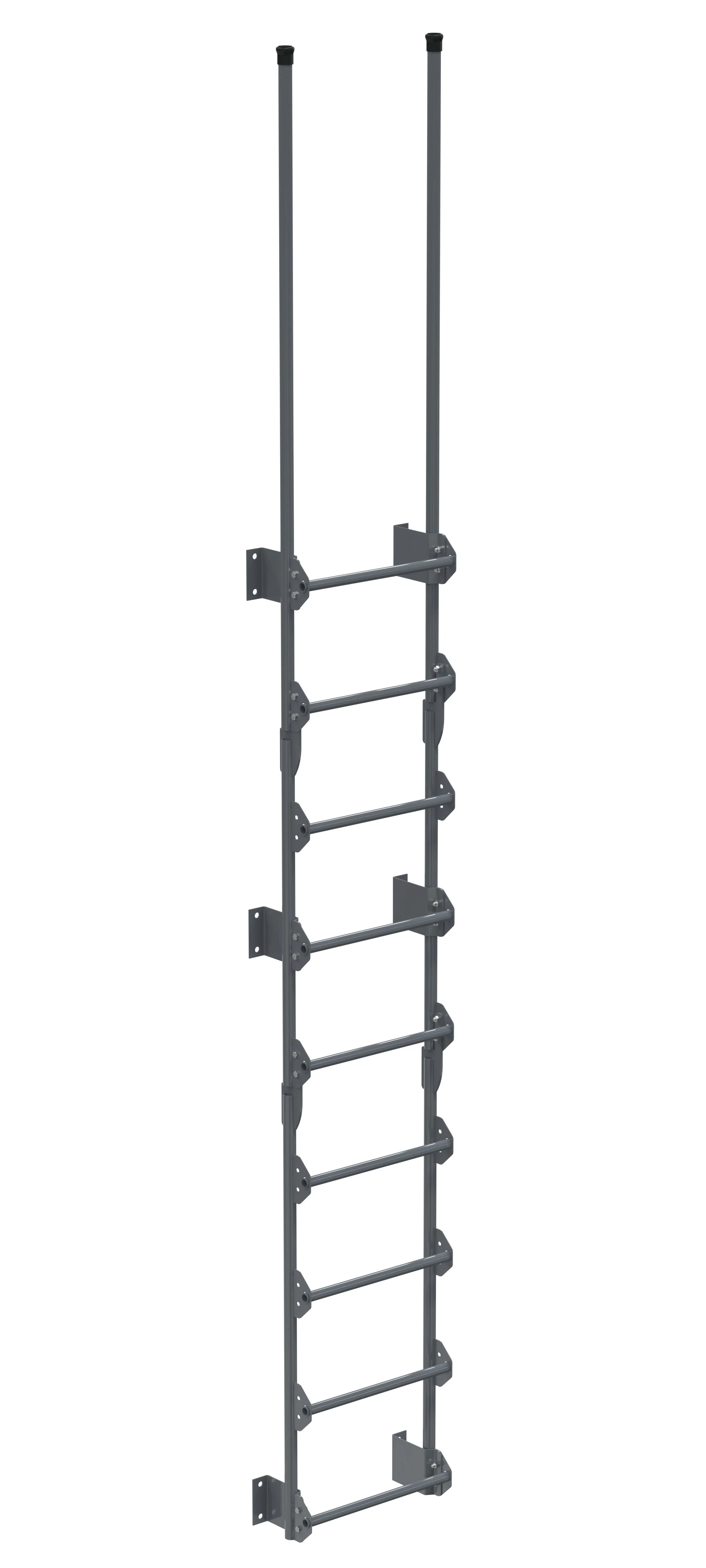

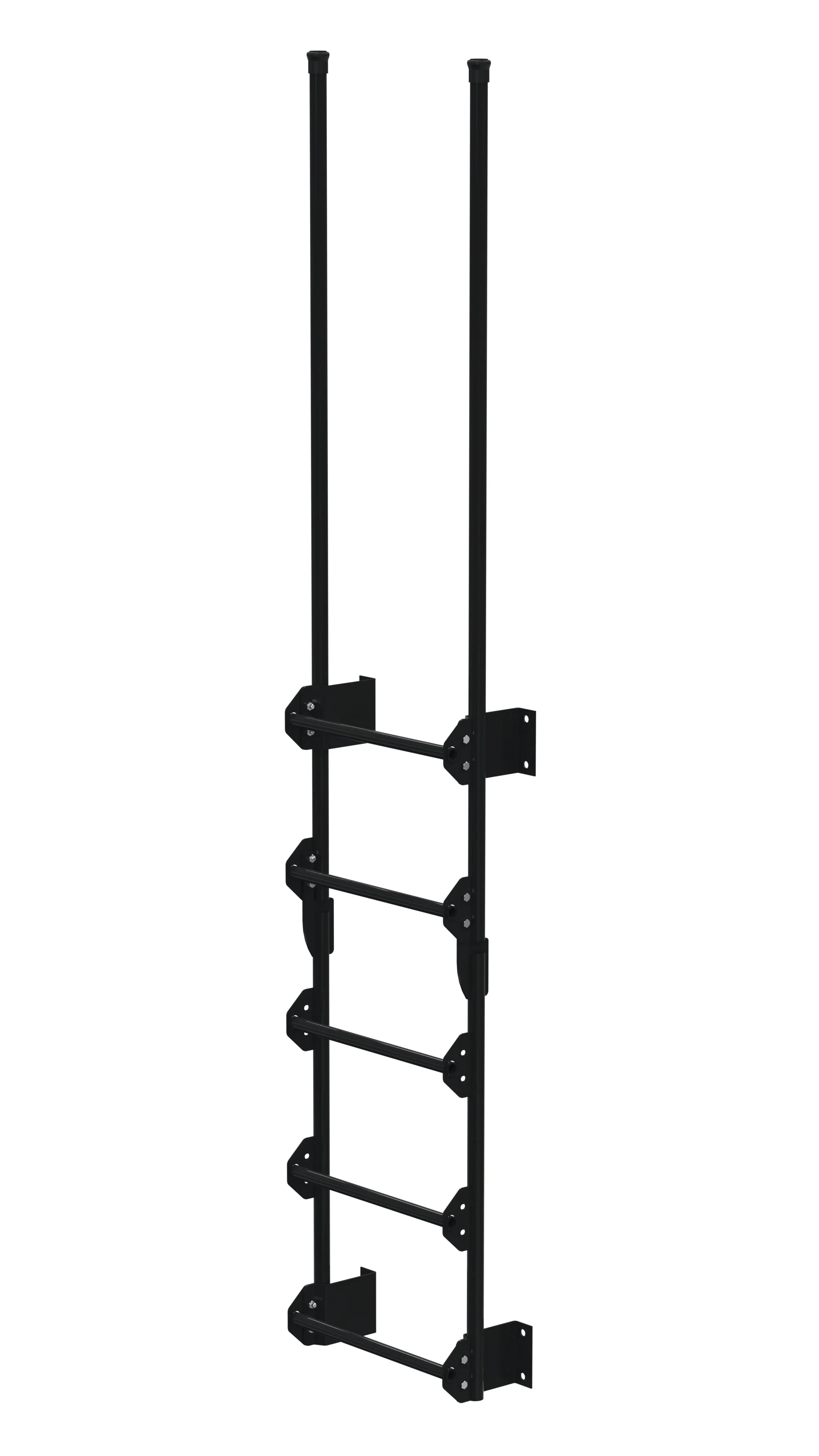

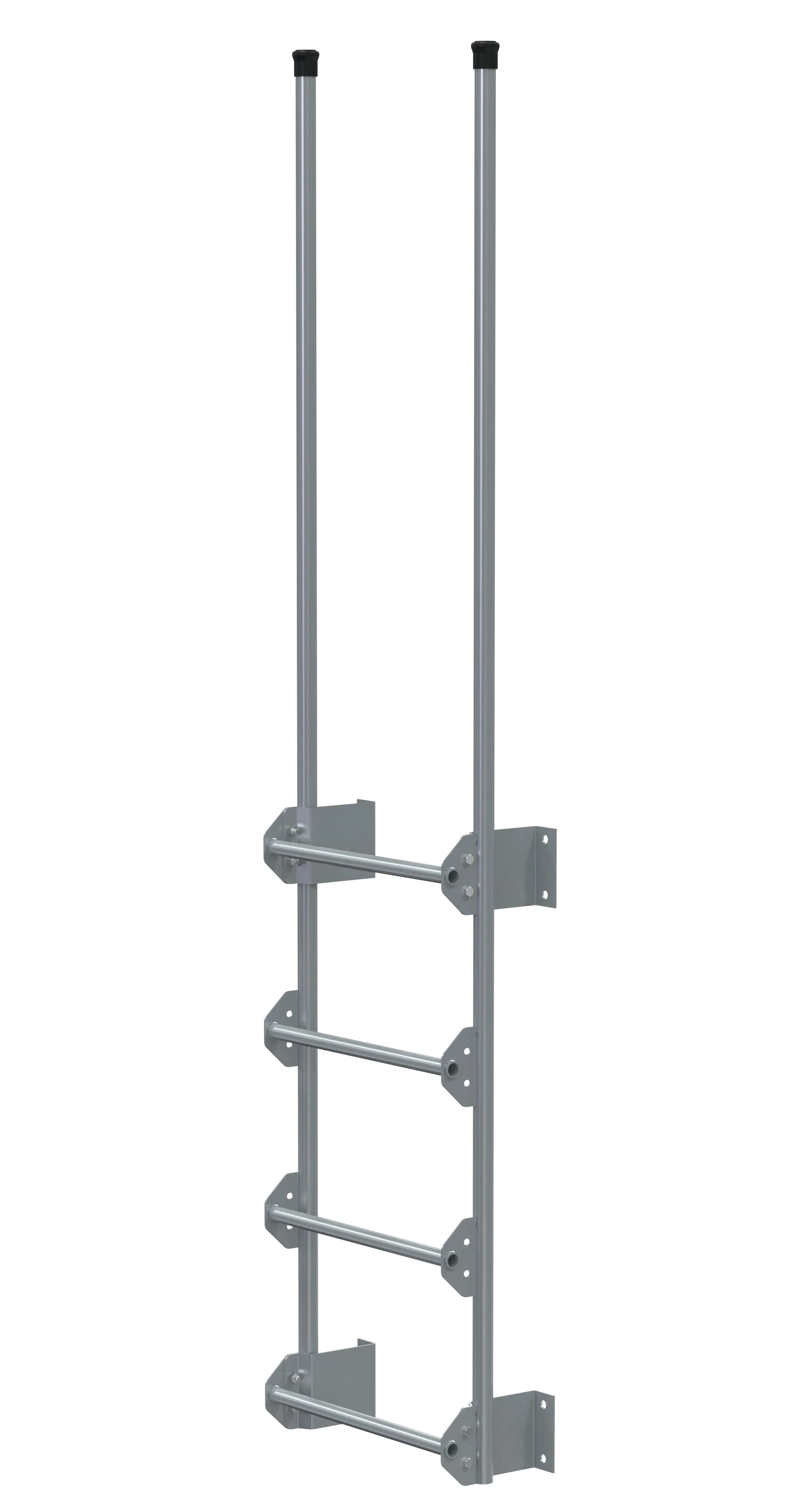

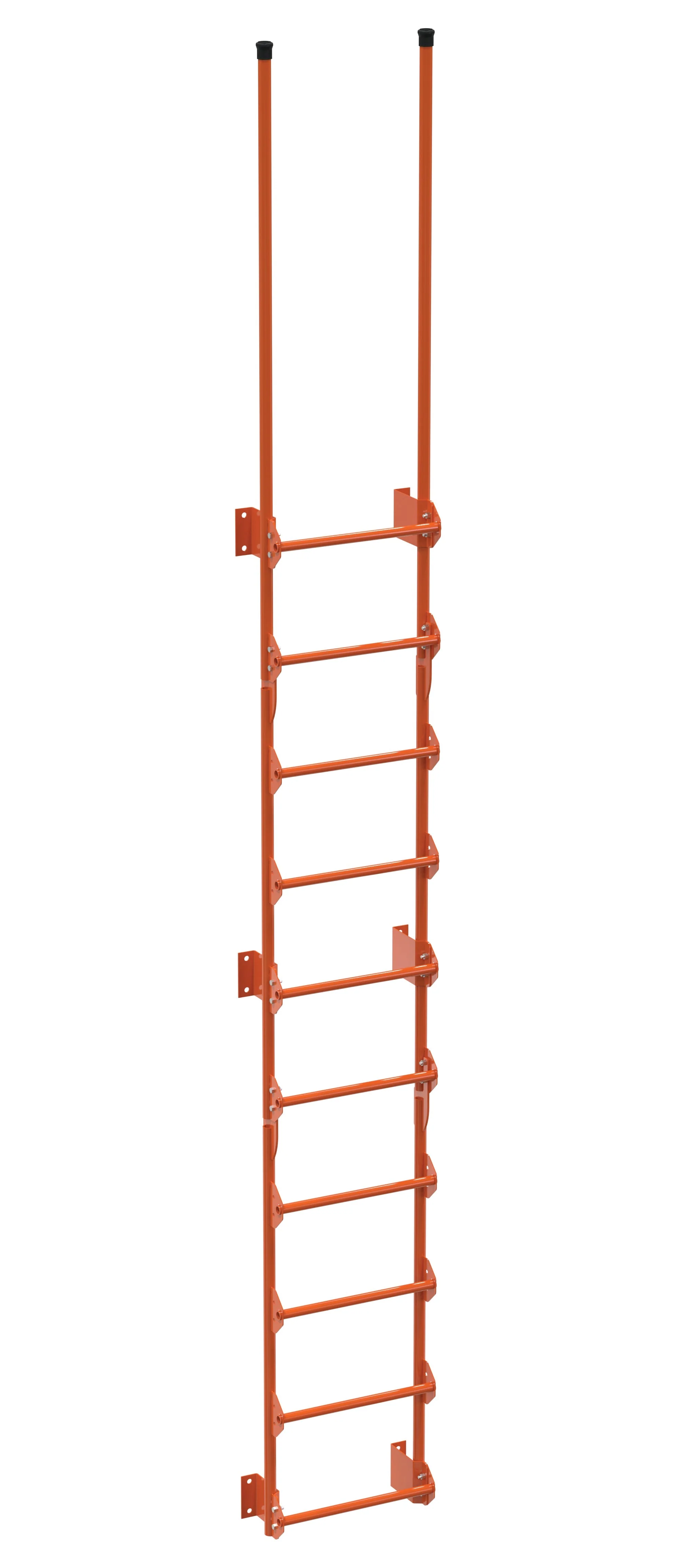

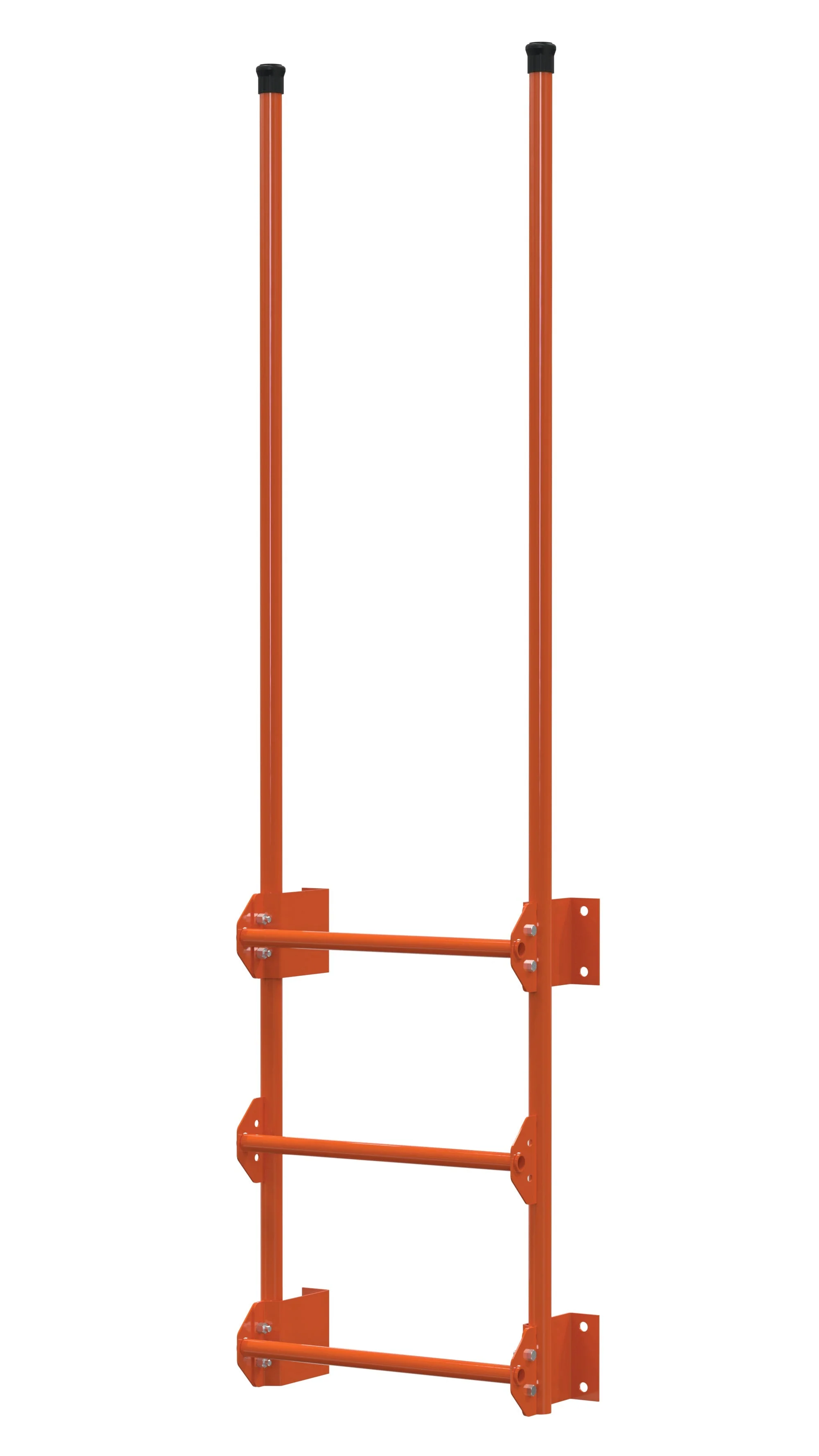

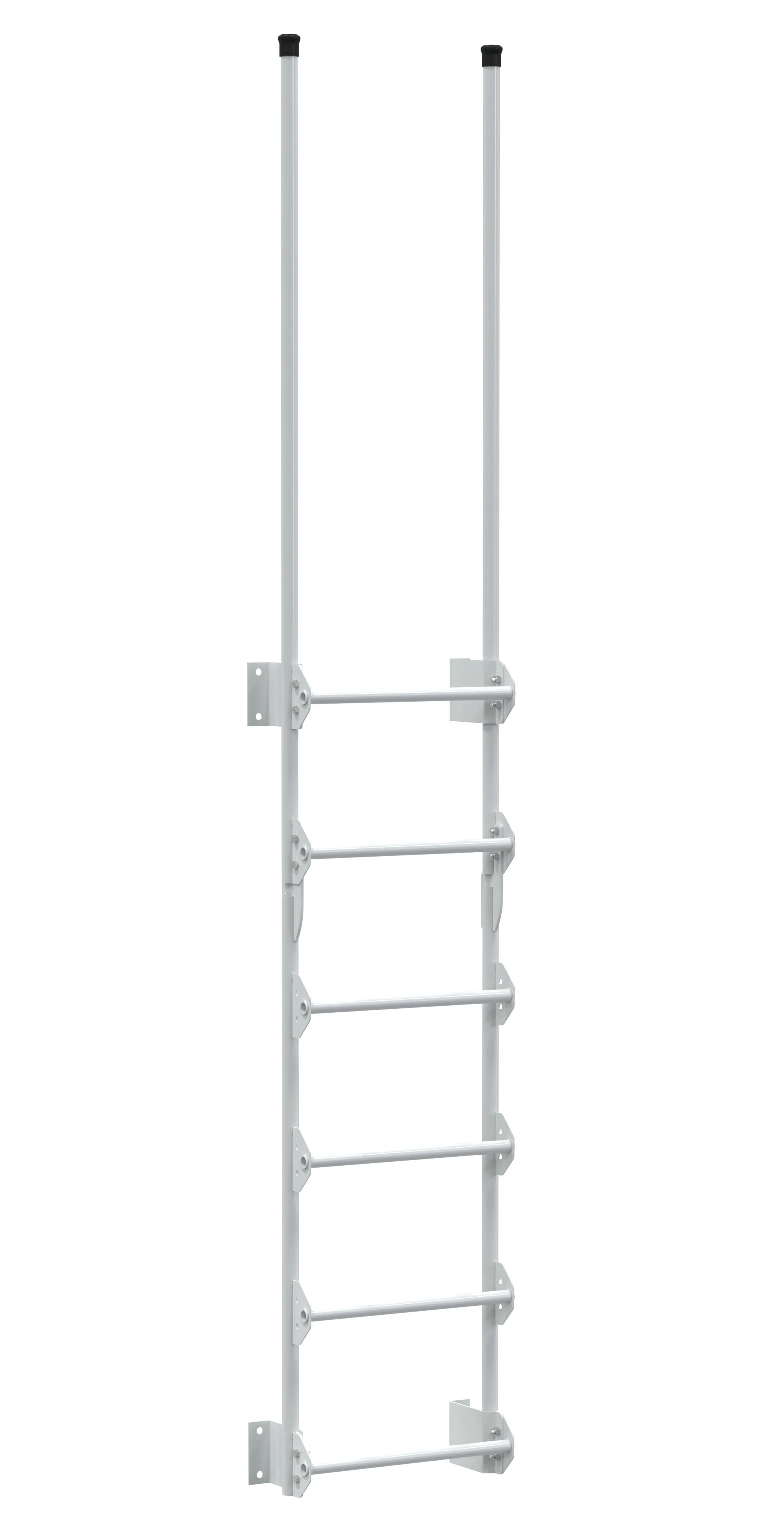

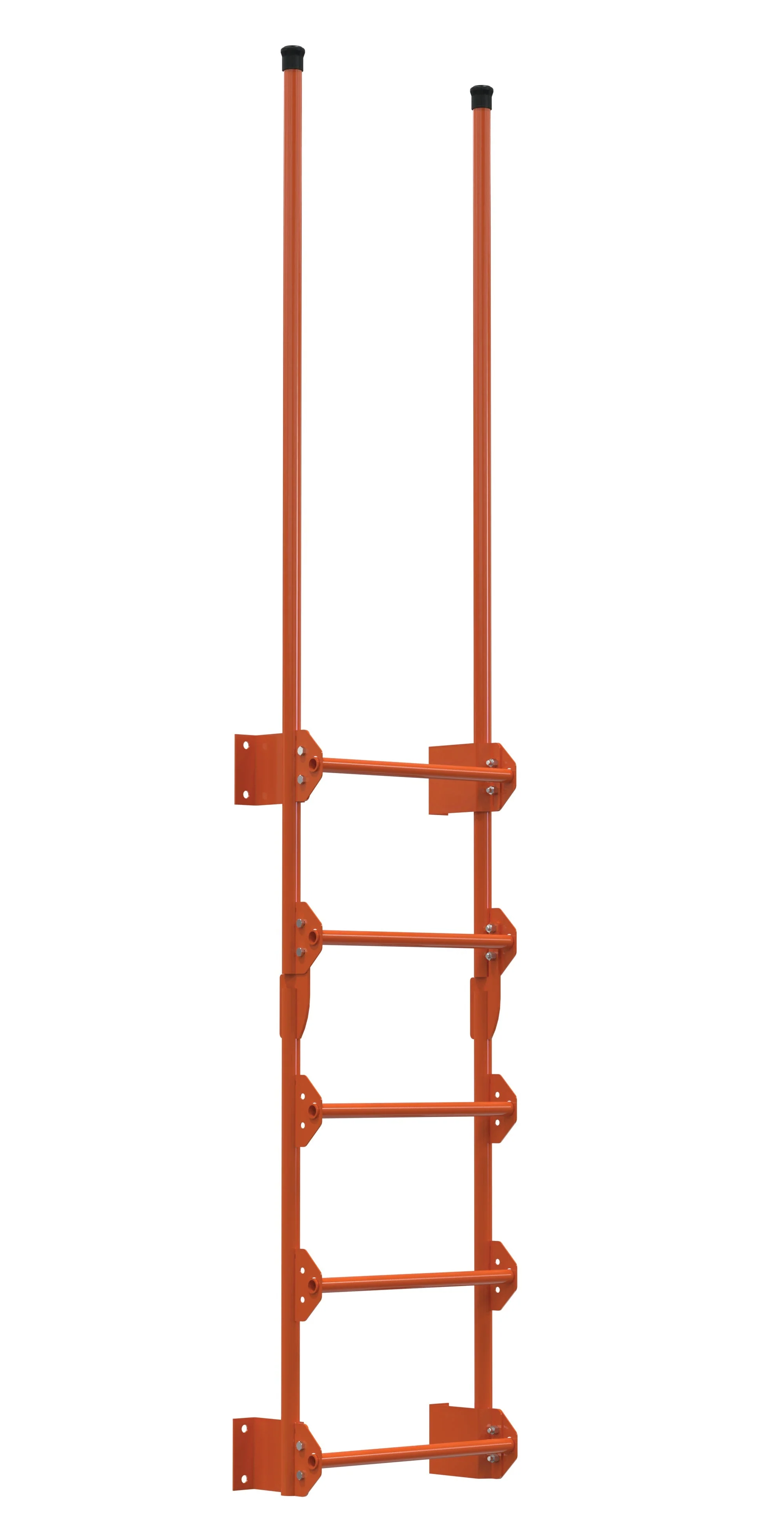

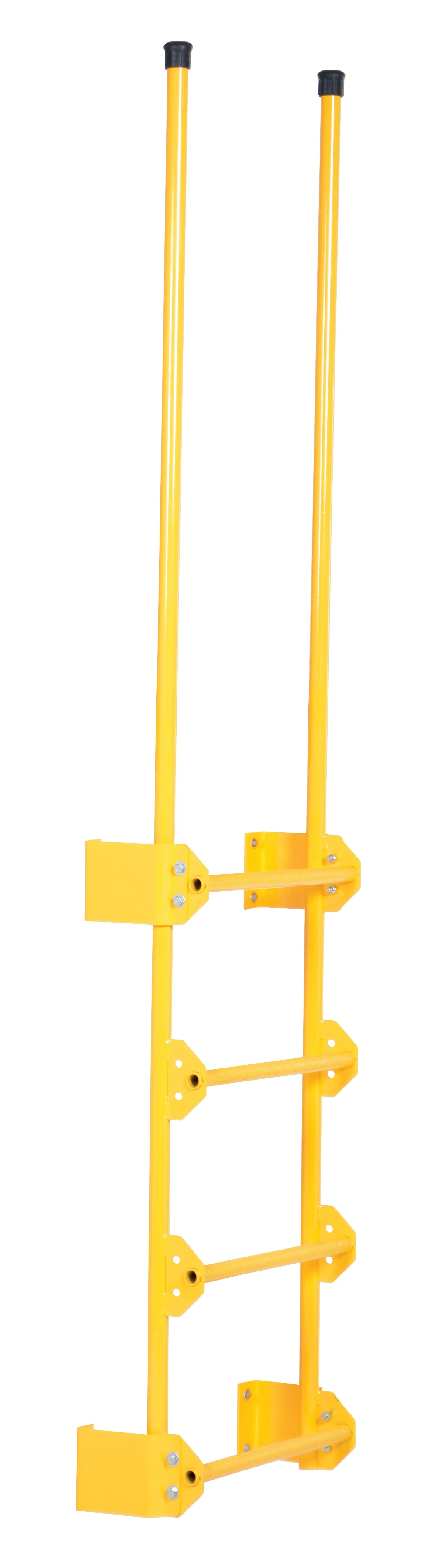

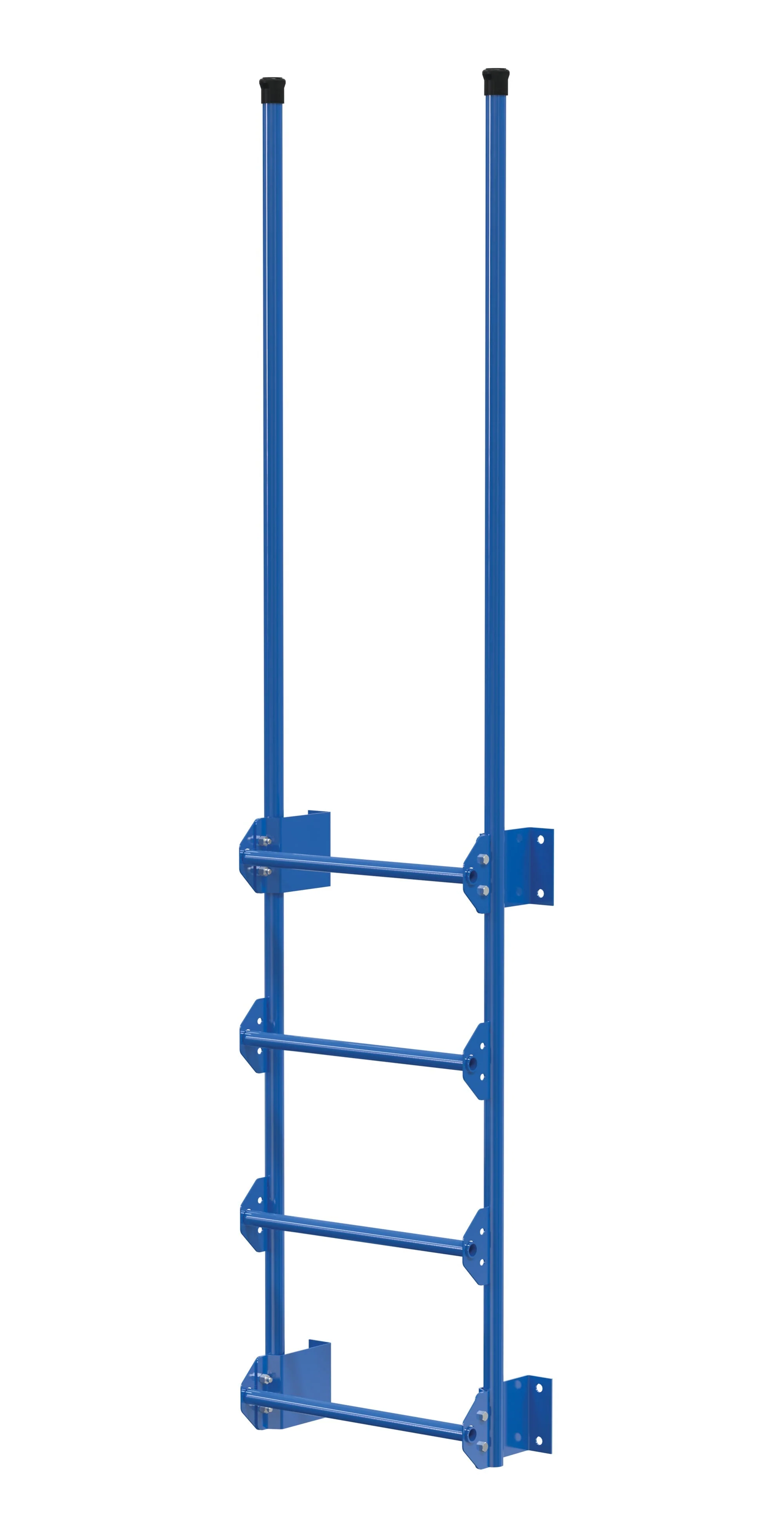

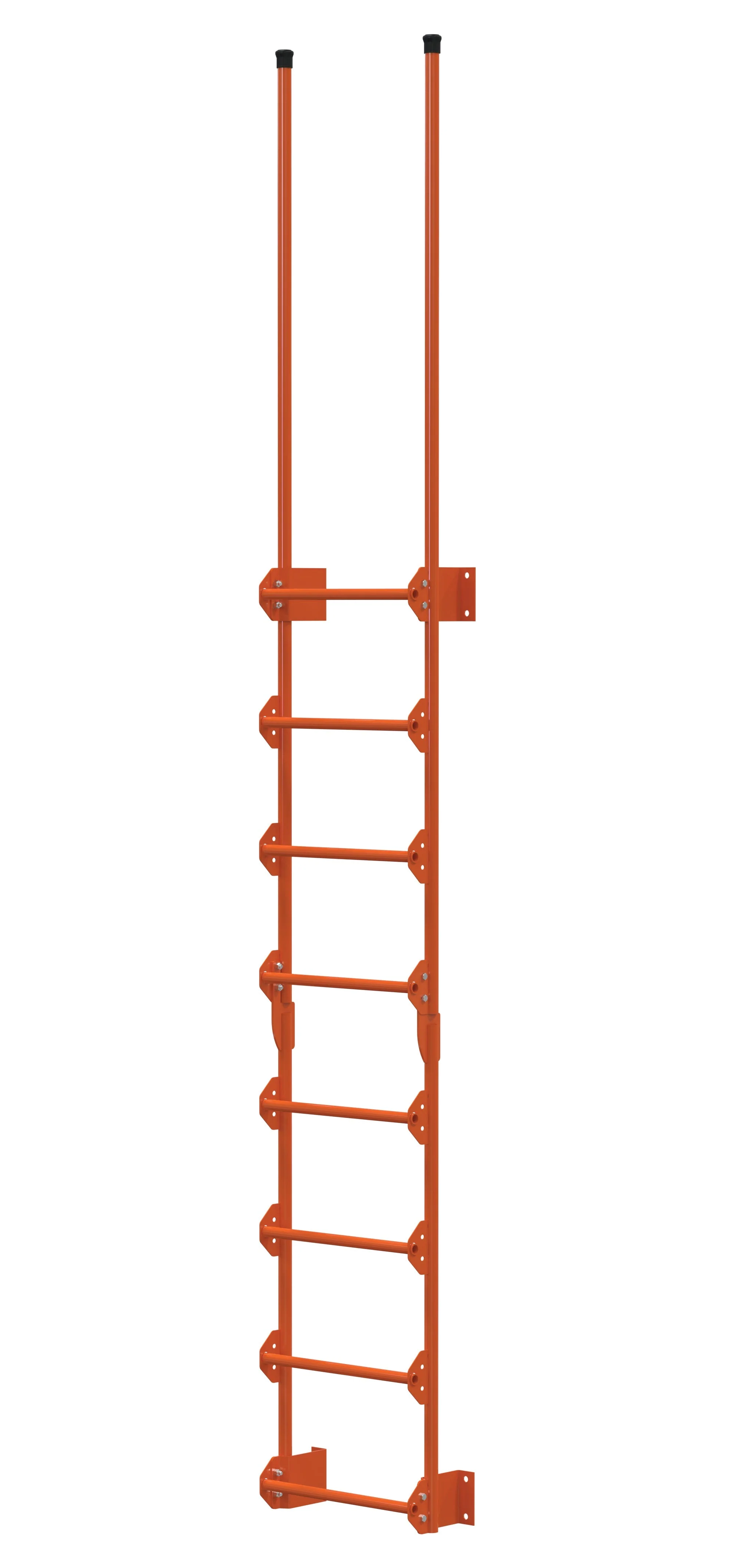

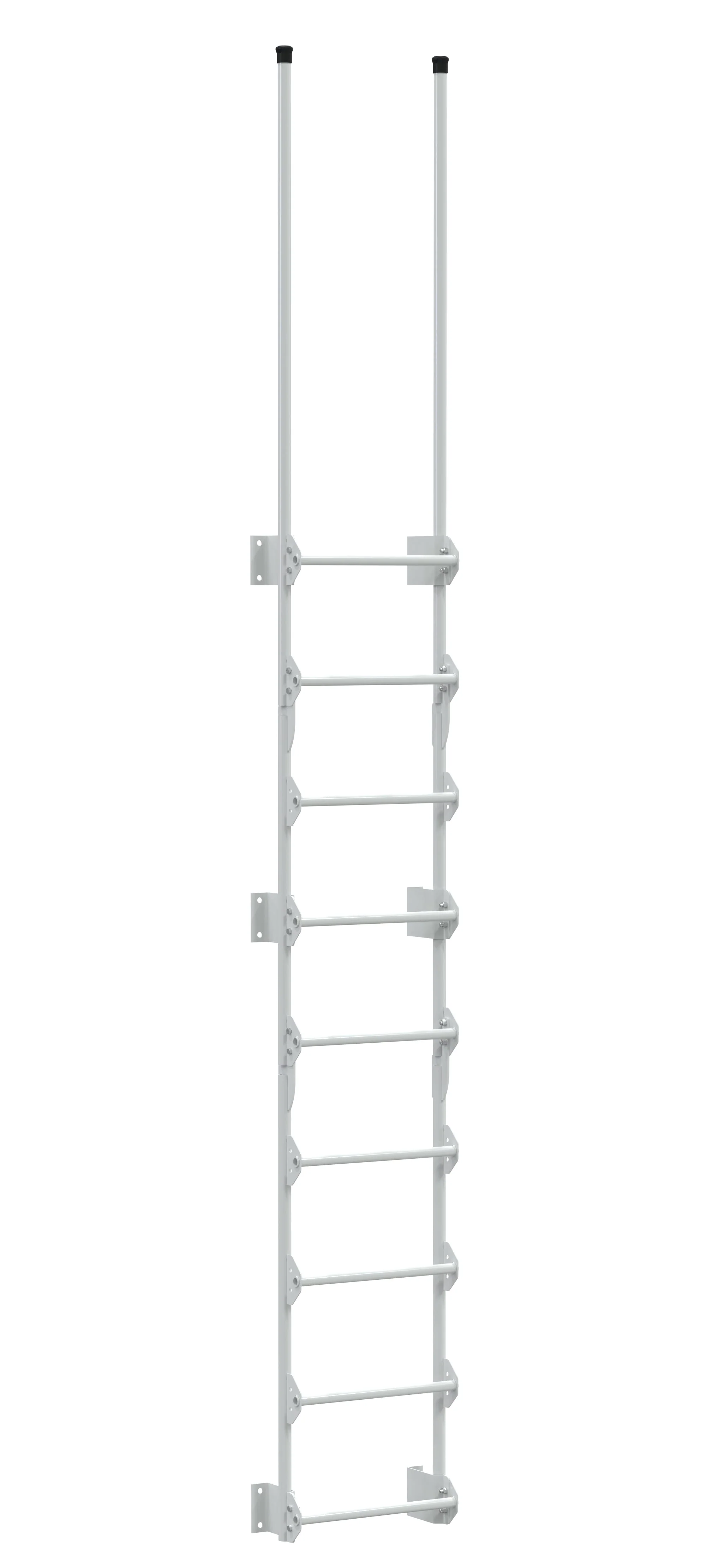

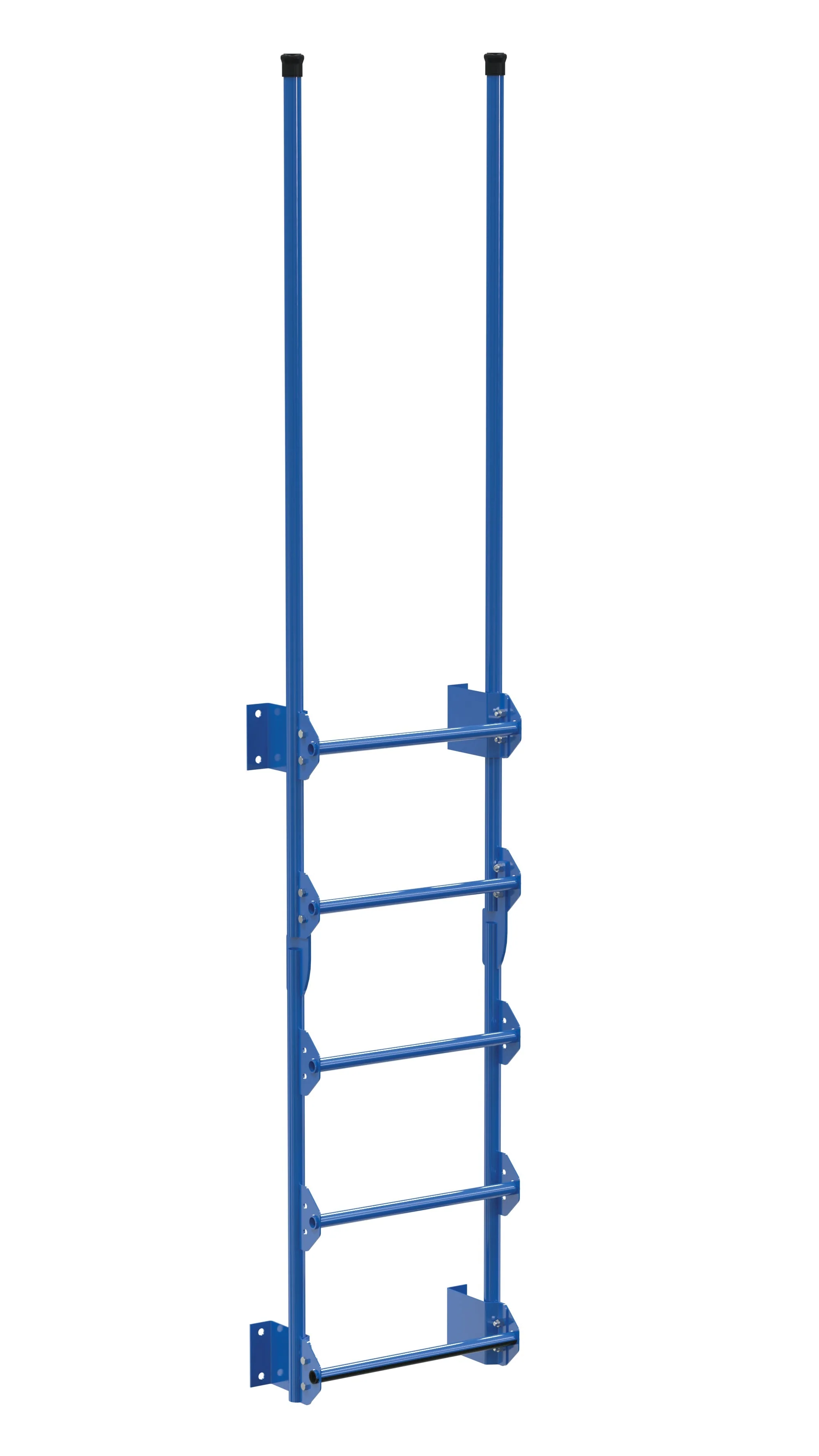

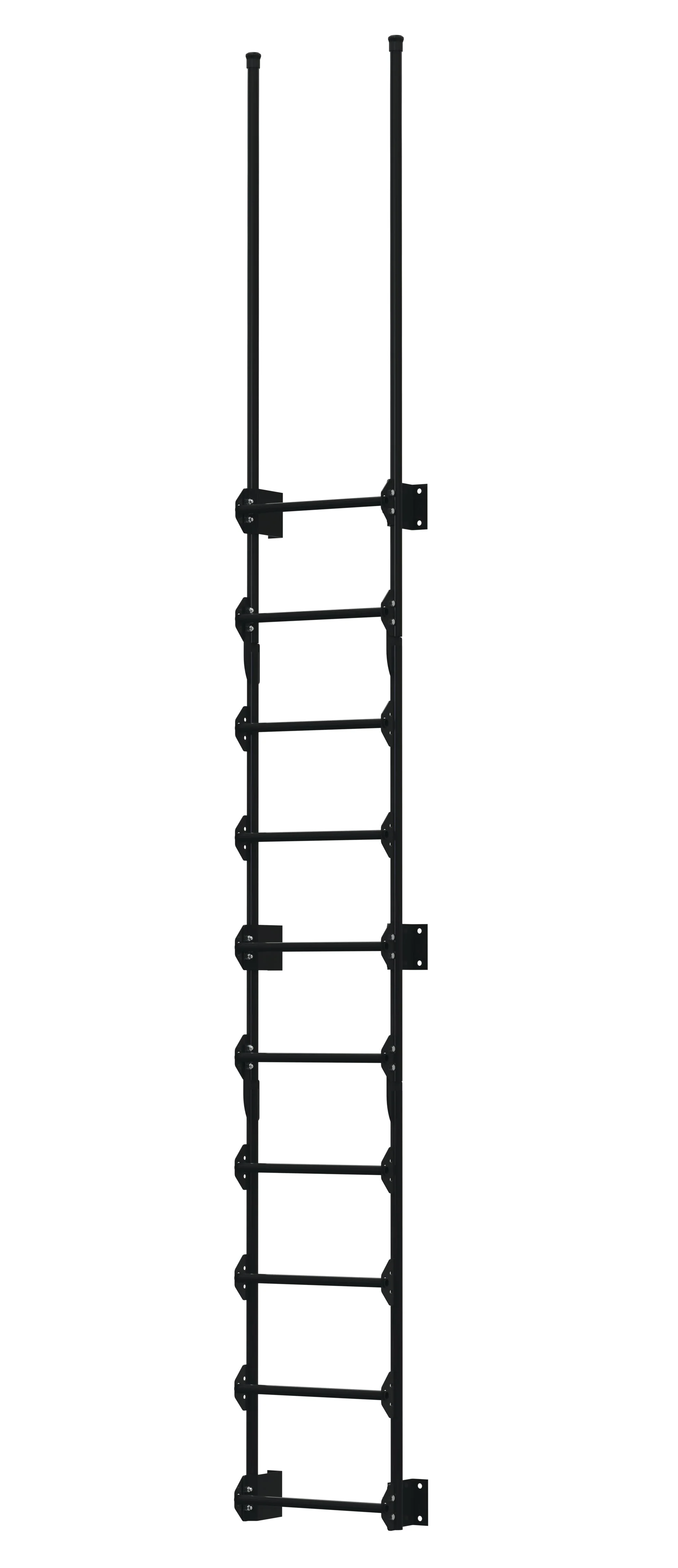

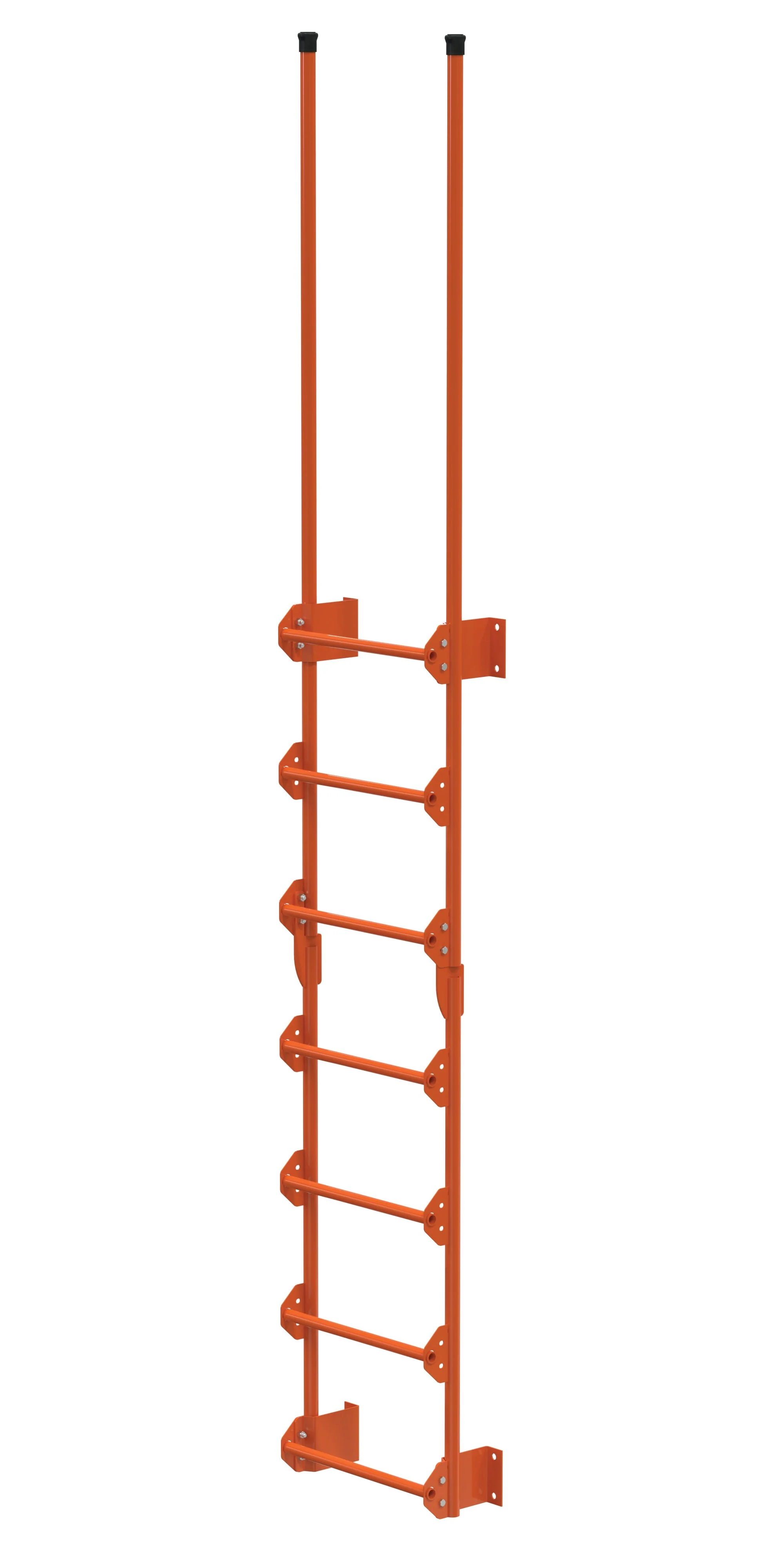

Prevent needless dock injuries with Walk-Thru Style Dock Ladders. Constructed of steel pipe. Mount ladder directly to the dock face by either welding or bolting on. The extra high handrail provides maximum assistance and safety. The top half of each step is covered with a slip resistant material for extra safety during climbing and descending of the ladder. All ladders project out 8-3/8" from face of dock. Uniform capacity is 300 pounds. DKL-5, -6, -7, & -8 consist of 2 ladder sections (i.e. upper and lower ladder portions). DKL-9 & -10 have 3 sections (i.e. upper, middle, and lower portions). Some assembly is required. Baked-in powder-coated toughness.
| Walk-Through Style Dock Ladders | |||||||

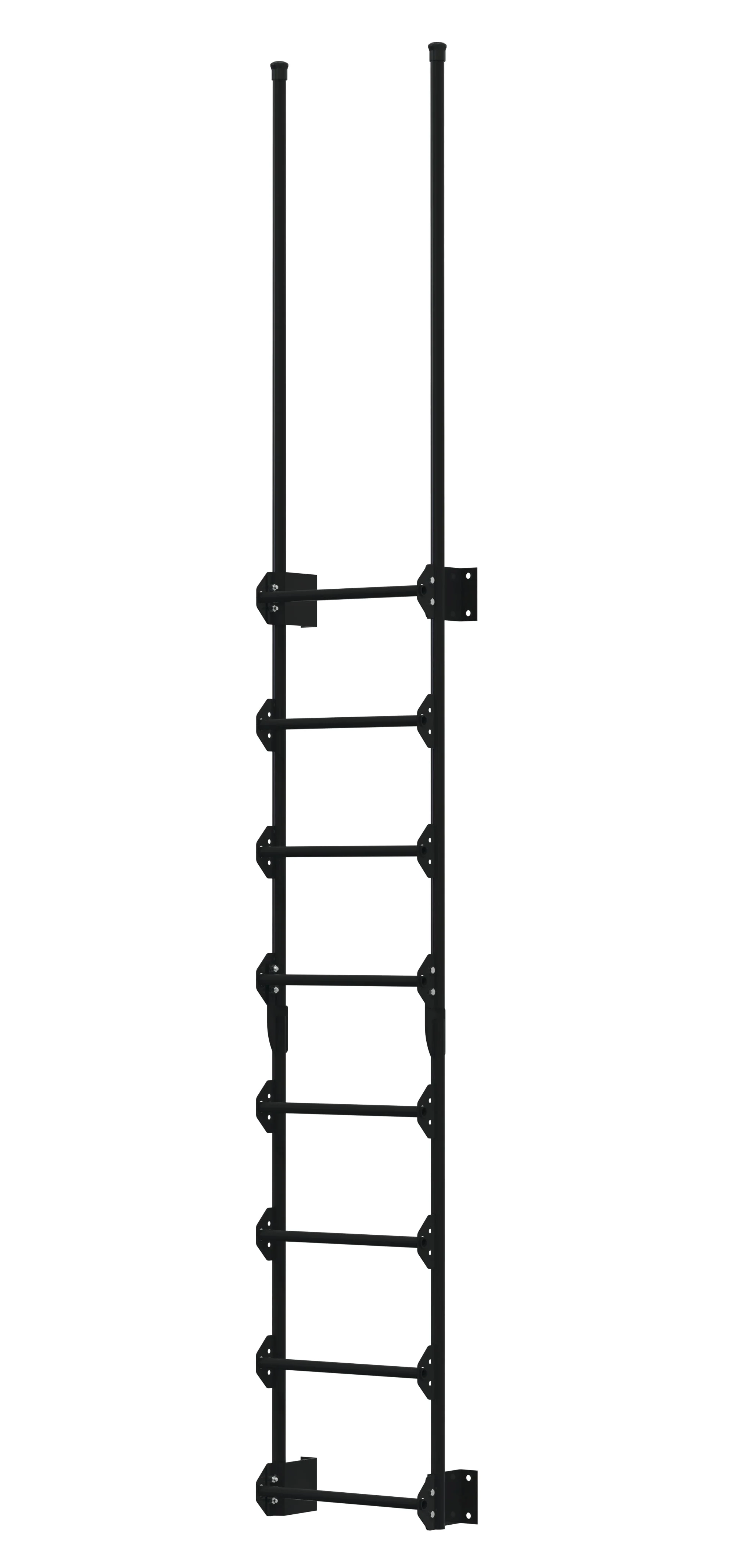

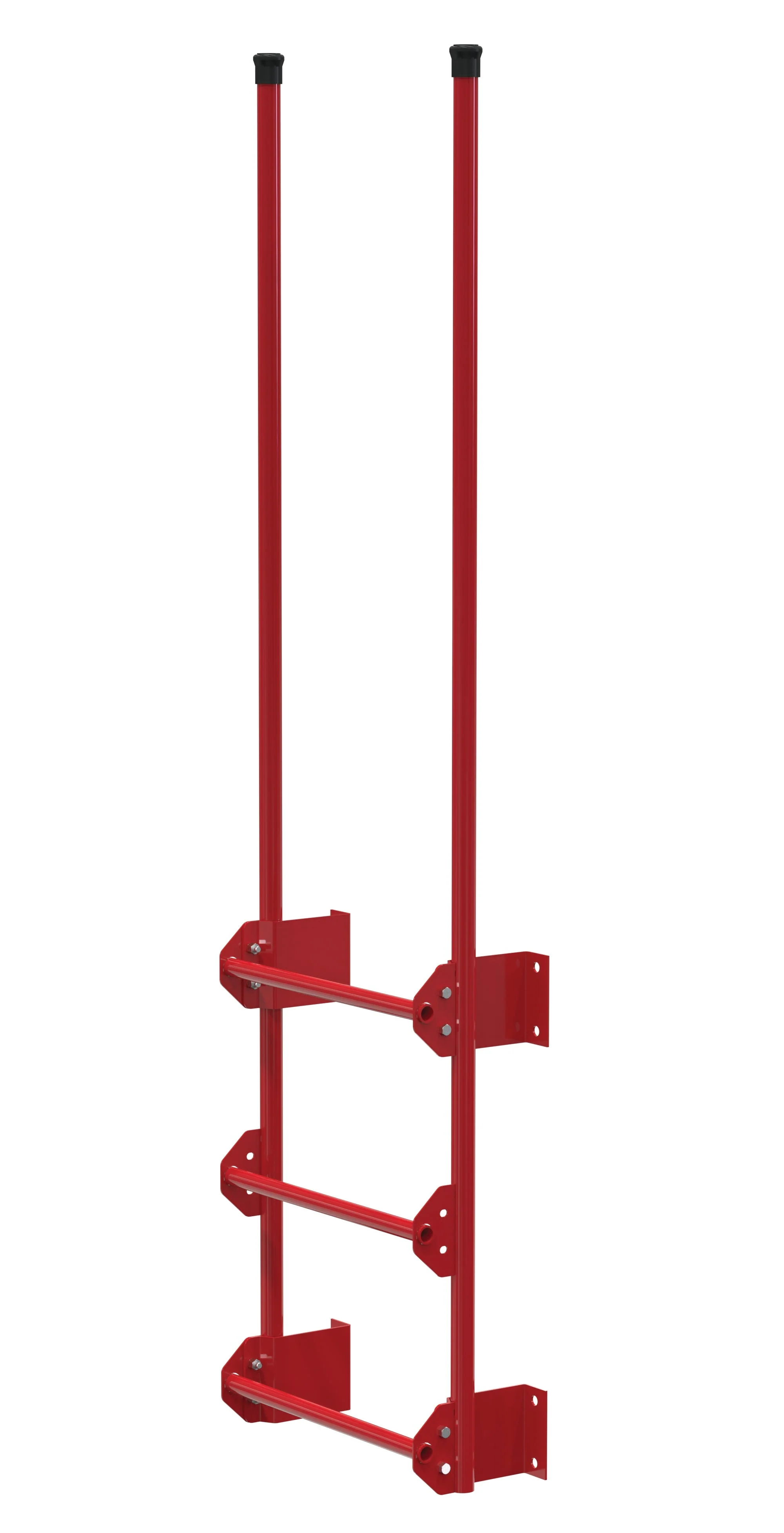

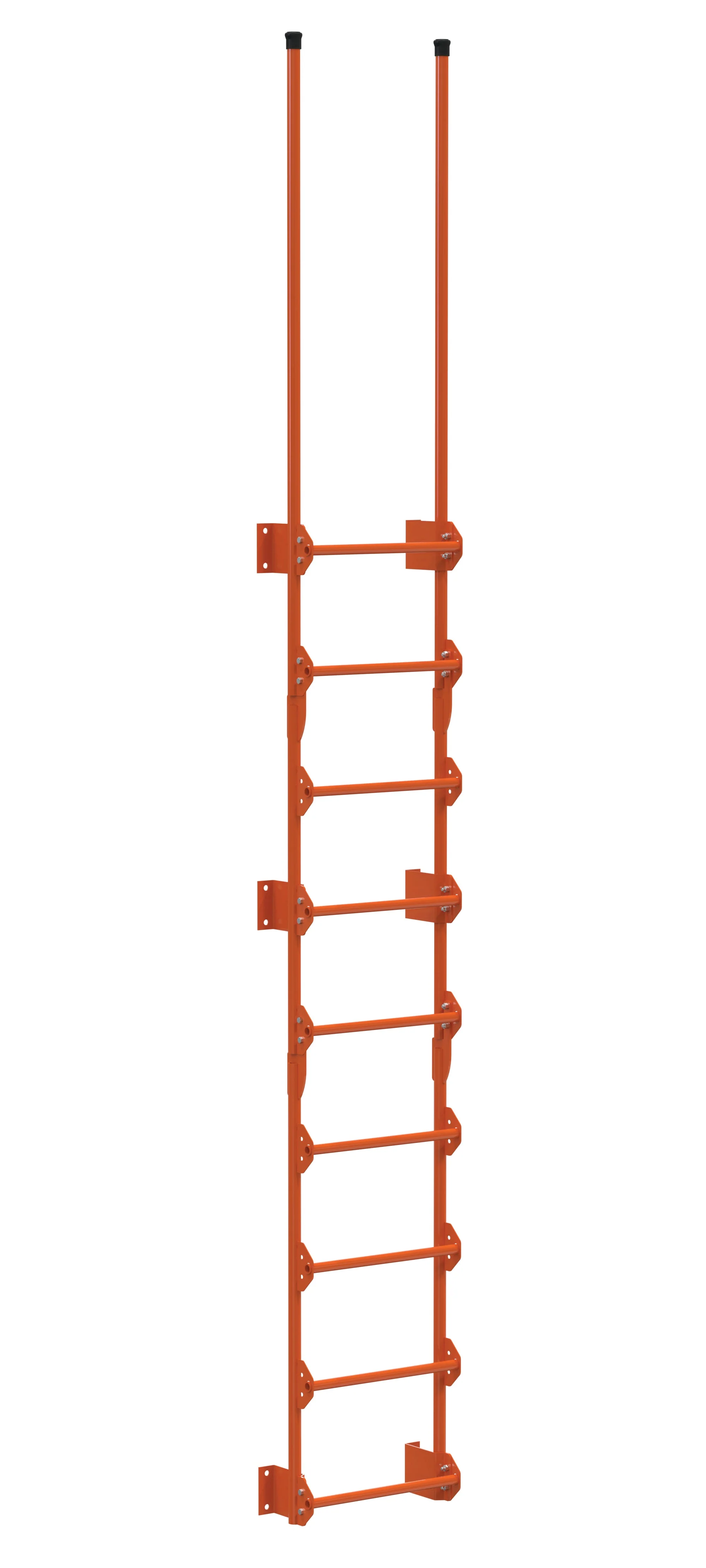

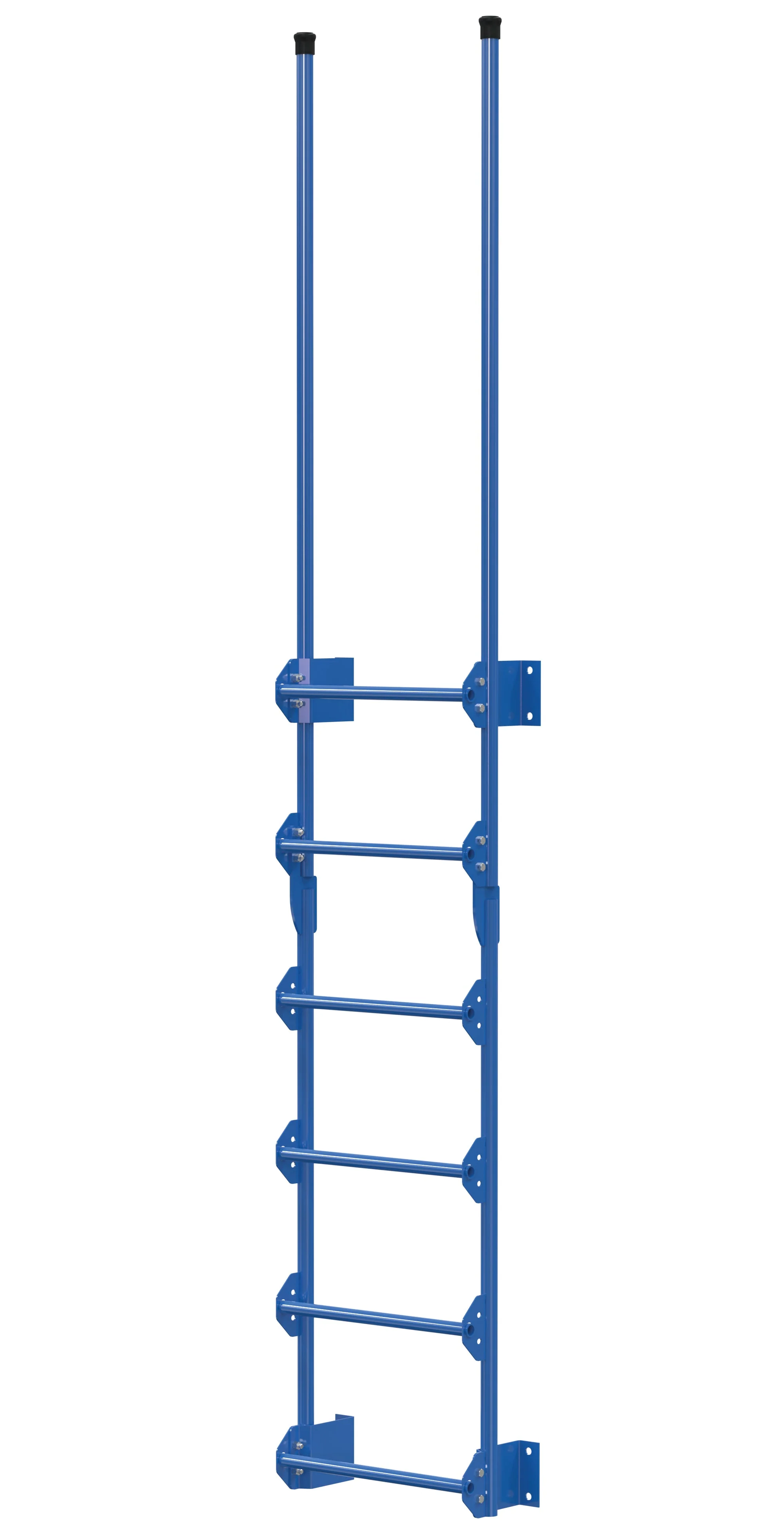

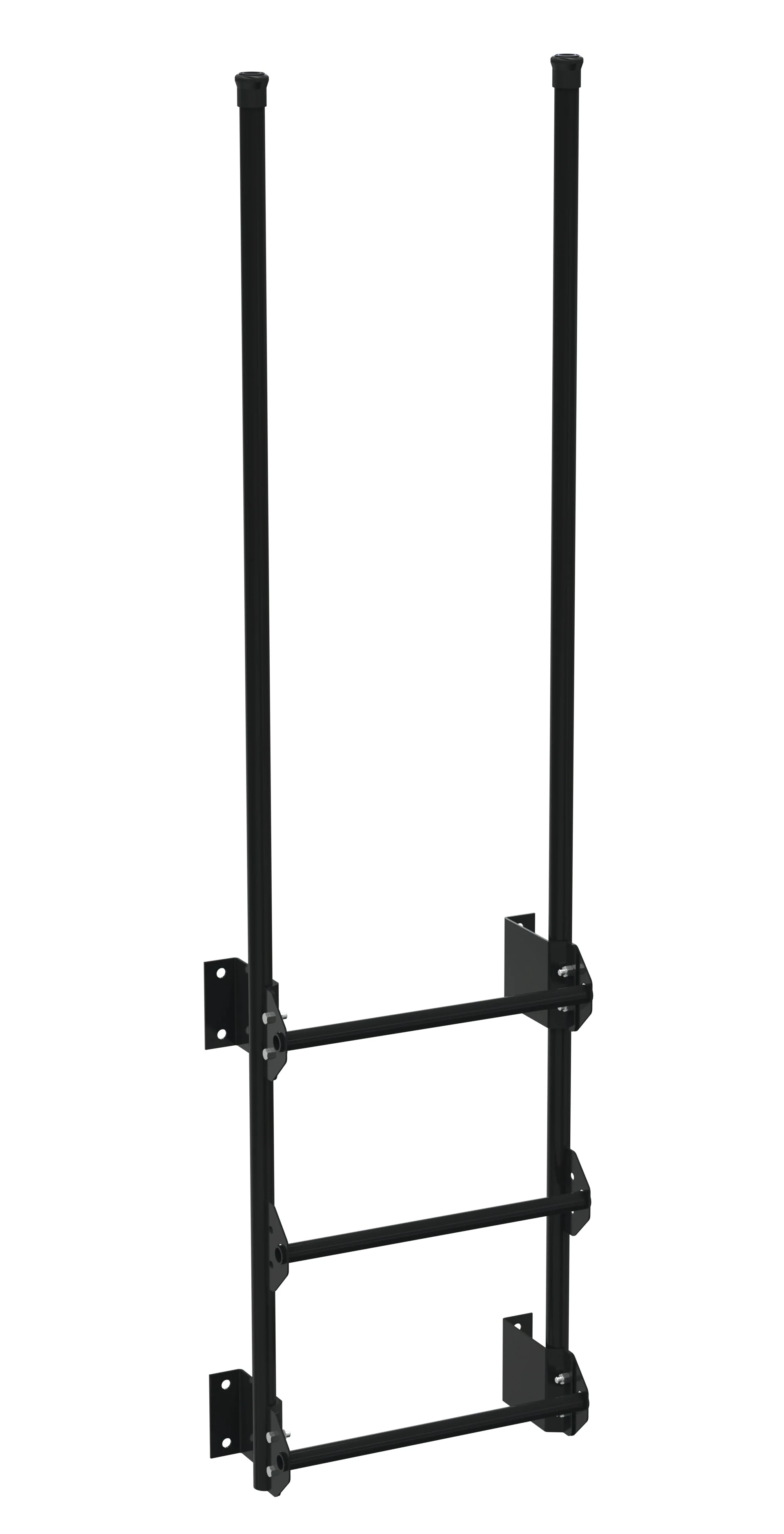

| Specialty Colors (add suffix): Blue -BL, Black -BK, Red -RD, White -WT, Gray -GYSG, Orange -OR, Silver -SL | |||||||
|
Model Number |
Step Width |
Overall Size (WxH) |
Number Of Rungs |
Top Step |
Distance |
# Sections For Assembly |
Wt. lbs. |
| DKL-2 | 18" | 20-7/16"x65-1/2" | 2 | 15" | 12" | 1 | 82 |
| DKL-3 | 18" | 20-7/16"x77-1/2" | 3 | 27" | 12" | 1 | 92 |
| DKL-4 | 18" | 20-7/16"x89-1/2" | 4 | 39" | 12" | 1 | 104 |
| DKL-5 | 18" | 20-7/16"x101-1/2" | 5 | 51" | 12" | 2 | 108 |
| DKL-6 | 18" | 20-7/16"x113-1/2" | 6 | 63" | 12" | 2 | 112 |
| DKL-7 | 18" | 20-7/16"x125-1/2" | 7 | 75" | 12" | 2 | 110 |
| DKL-8 | 18" | 20-7/16"x137-1/2" | 8 | 87" | 12" | 2 | 126 |
| DKL-9 | 18" | 20-7/16"x149-1/2" | 9 | 99" | 12" | 3 | 116 |
| DKL-10 | 18" | 20-7/16"x161-1/2" | 10 | 111" | 12" | 3 | 118 |
Original: $244.15
-65%$244.15
$85.45
Description
Prevent needless dock injuries with Walk-Thru Style Dock Ladders. Constructed of steel pipe. Mount ladder directly to the dock face by either welding or bolting on. The extra high handrail provides maximum assistance and safety. The top half of each step is covered with a slip resistant material for extra safety during climbing and descending of the ladder. All ladders project out 8-3/8" from face of dock. Uniform capacity is 300 pounds. DKL-5, -6, -7, & -8 consist of 2 ladder sections (i.e. upper and lower ladder portions). DKL-9 & -10 have 3 sections (i.e. upper, middle, and lower portions). Some assembly is required. Baked-in powder-coated toughness.
