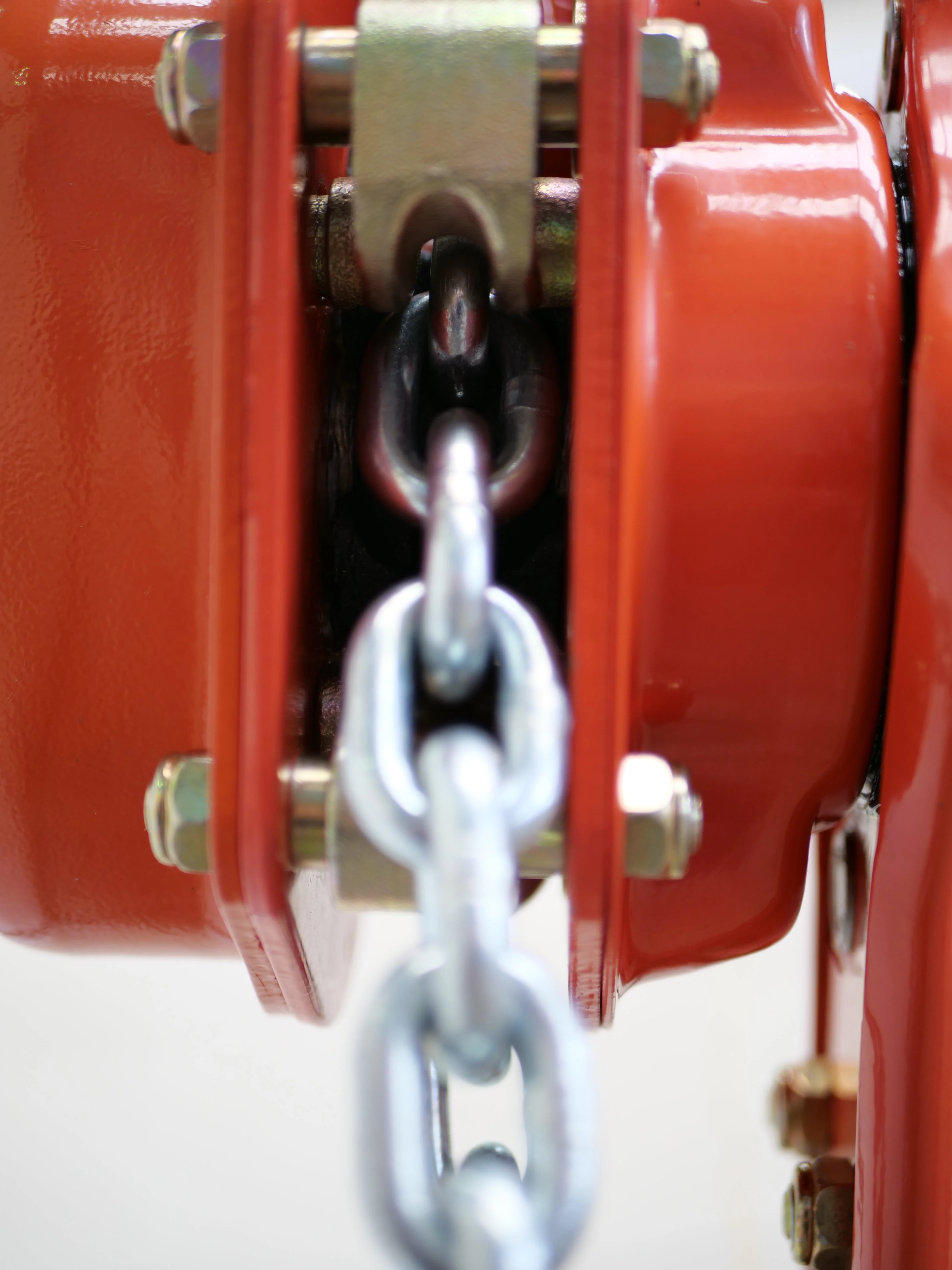

William Hackett WH-C4 Chain Hoist
LIMITED OFFER: WHEN THEY'RE GONE, THEY'RE GONE!

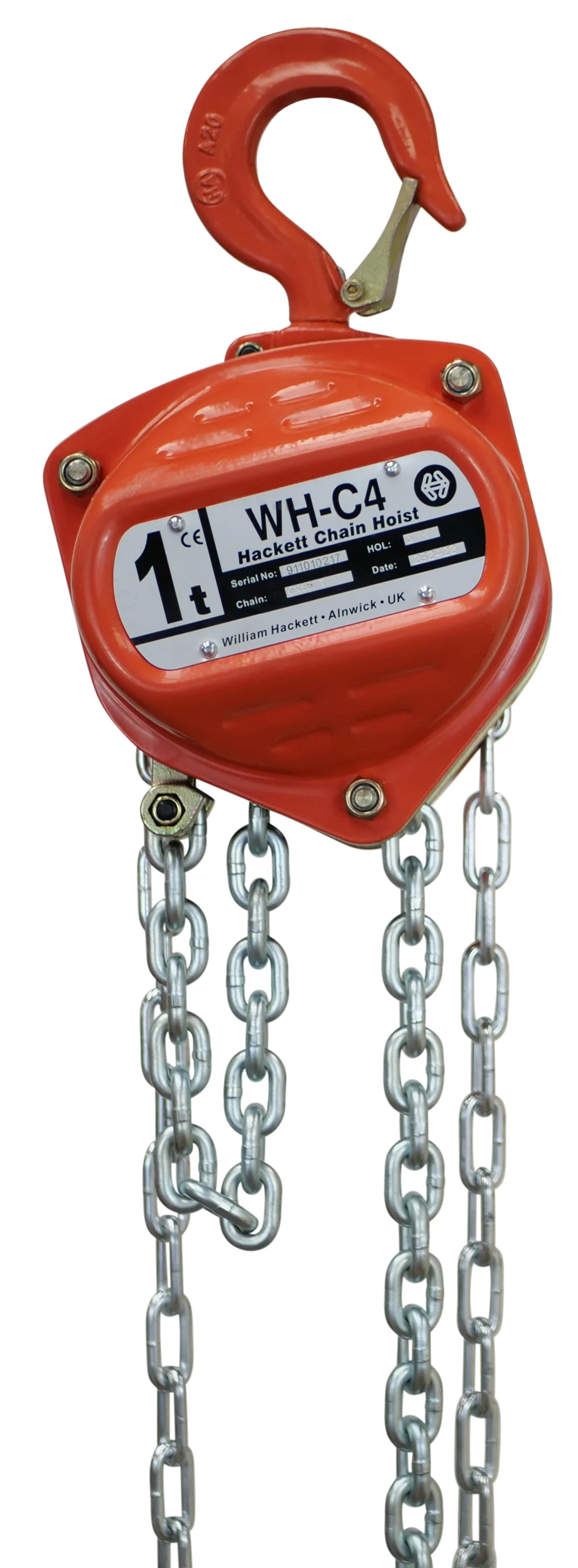

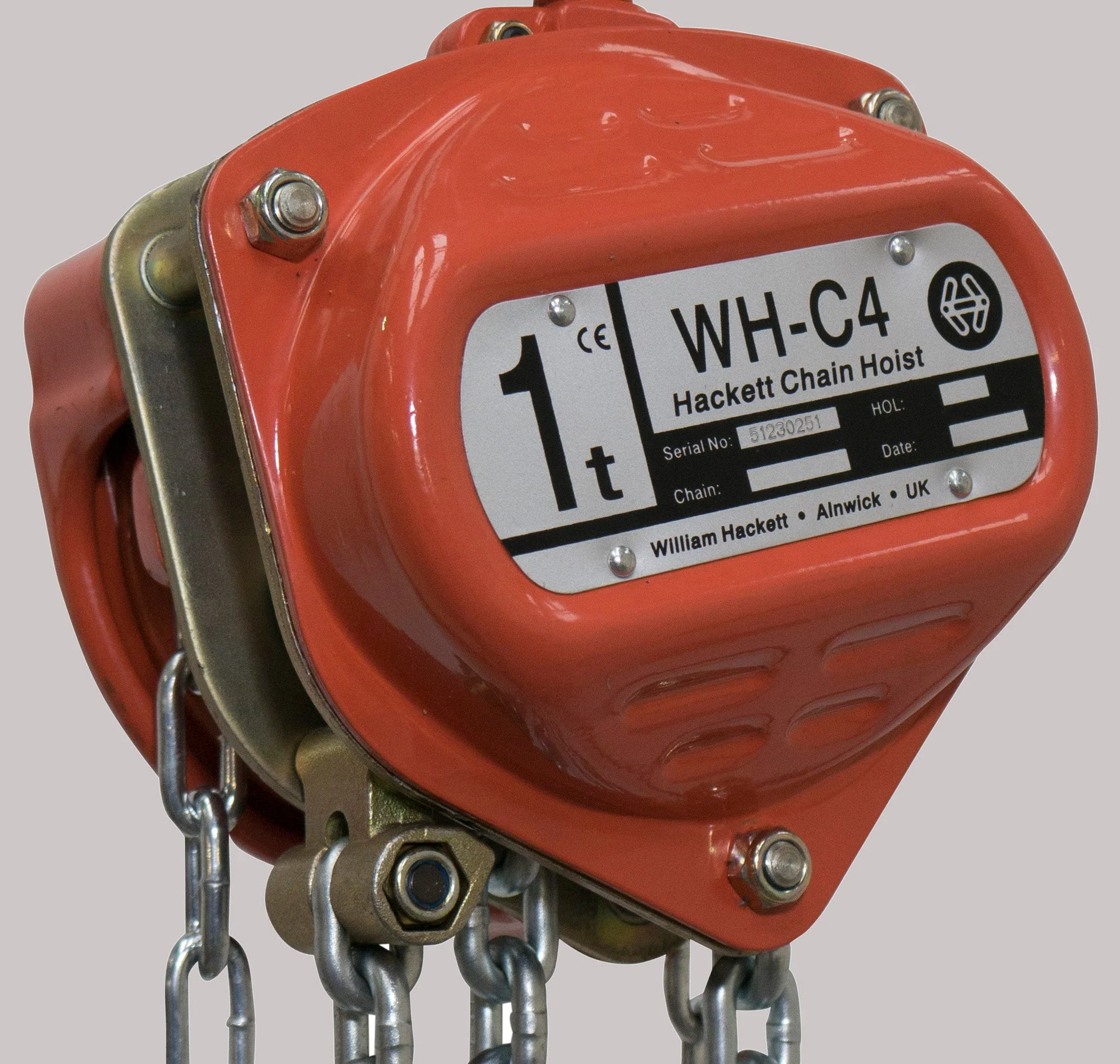

The William Hackett WH-C4 Manual Chain Hoist is one of the most effective and economical models on the market.
Boasting 20ft of super-strong and durable chain, we're pleased to offer models with 0.5t and 1t safe working load capacities.
Fitted with a Twin Pawl as standard, the C4 Chain Hoist has a safety factor of 4:1, and has light load capability that has been tested and certified at 2% of its rated capacity,

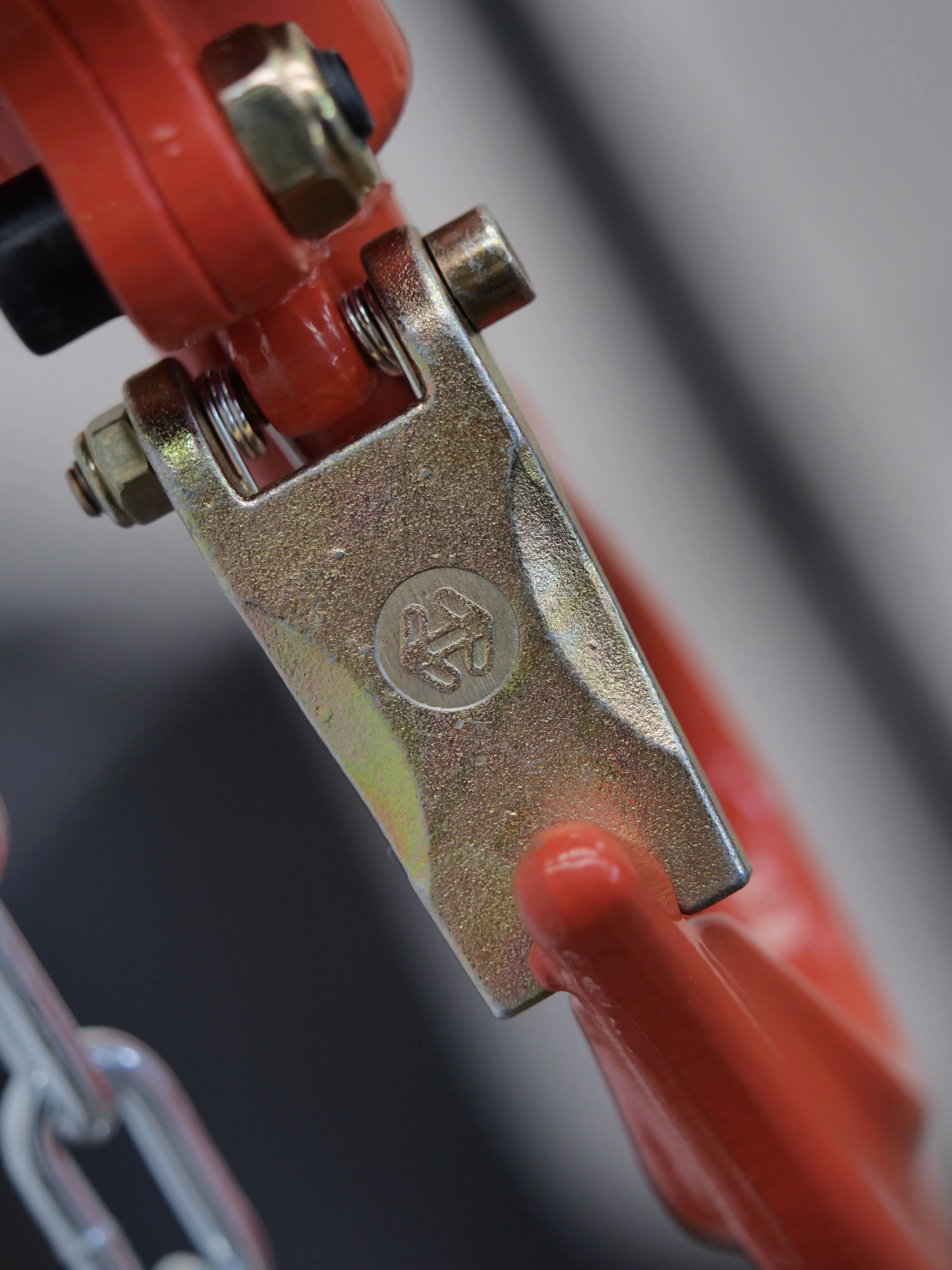

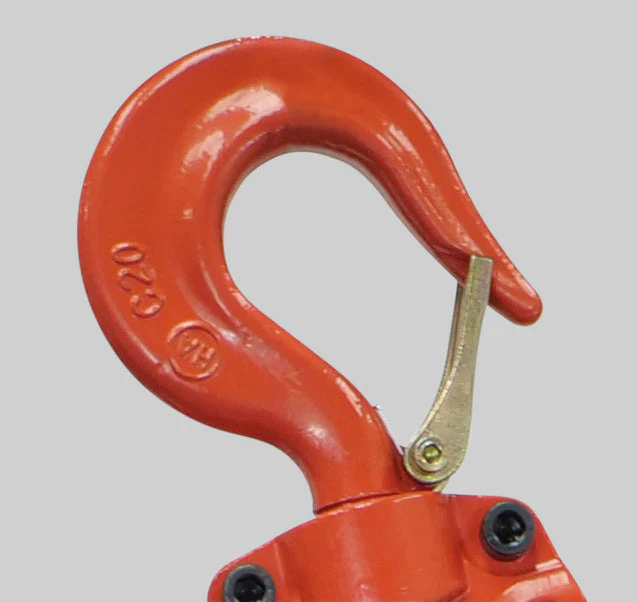

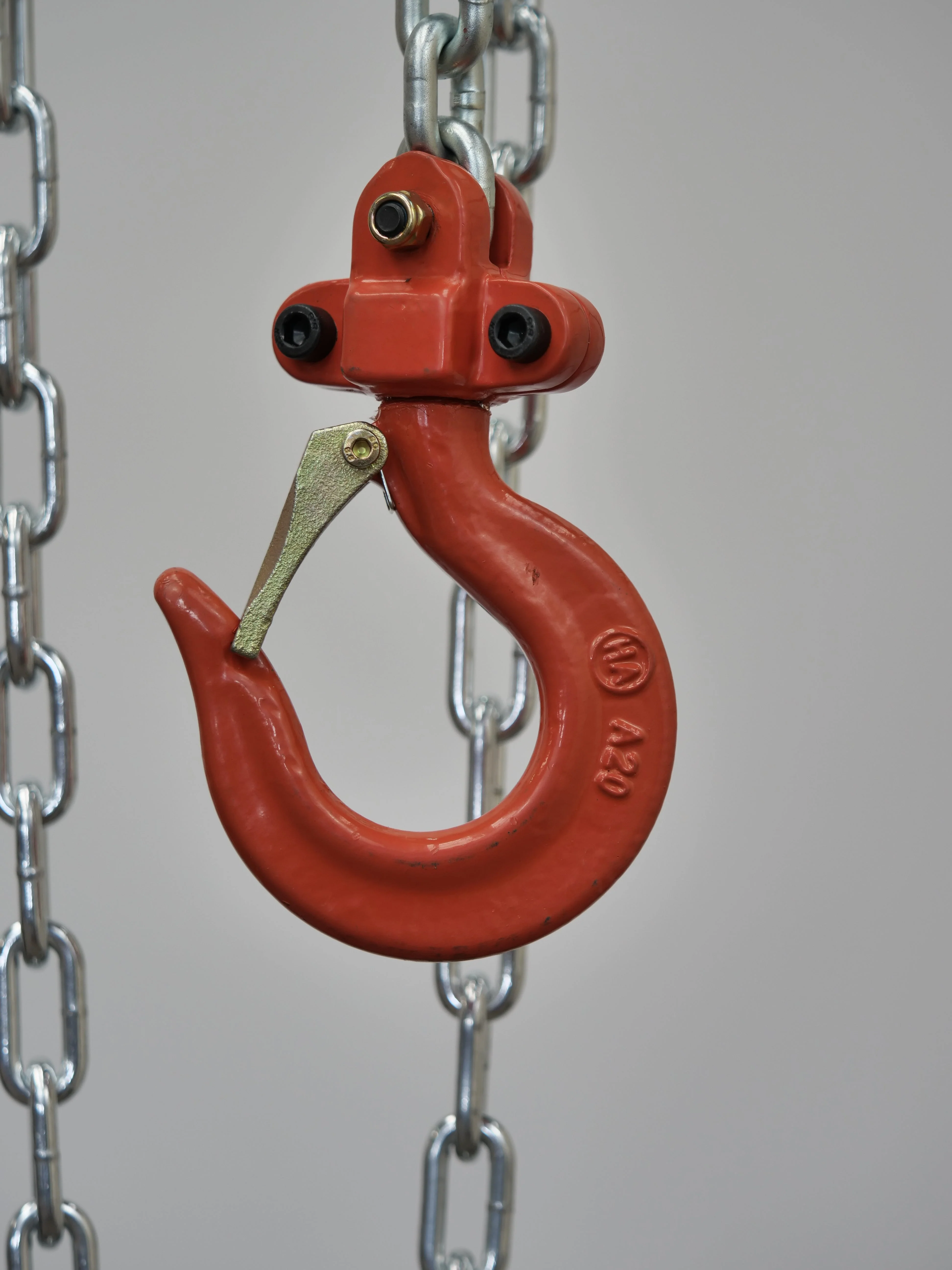

Capable of operating in temperatures of -20°C to +120°C, making it suitable for a wide range of environments, the WH-C4 features sturdy hooks that are fitted with heavy-duty cast steel latches, which are further integrated to create a strong and robust closure.
All WH-C4 Chain Hoist models are designed to meet/exceed the requirements of worldwide standards:
- ASME B30.16-2014 (American)
- BS EN13157:2004 + AI:2009 (British)
- AS1418.2-1997 (Australian)
- SANS 1594:2007 (South African)
- NORSOK R-002:2017
| Part Code | WLL (lbs) | No. of Falls | Load Chain (in.) | Hand Chain (in.) | Std Lift (in.) | a (in.) | b (in.) | e (in.) | f (in.) | g (in.) | h (in.) | Mass (in.) 10ft Lift | Extra Weight per 3.2ft (lbs) |
| 022.053 | 1102 | 1 | 0.20-0.59 | 0.20-0.59 | 118 | 4.92 | 5.12 | 0.81 | 1.57 | 1.67 | 12.01 | 17.19 | 3.17 |
| 022.103 | 2204 | 1 | 0.24-0.71 | 0.20-0.98 | 118 | 5.28 | 6.10 | 1.00 | 1.57 | 1.93 | 13.78 | 24.47 | 3.77 |
Â
Original: $110.66
-65%$110.66
$38.73
Description
LIMITED OFFER: WHEN THEY'RE GONE, THEY'RE GONE!
The William Hackett WH-C4 Manual Chain Hoist is one of the most effective and economical models on the market.
Boasting 20ft of super-strong and durable chain, we're pleased to offer models with 0.5t and 1t safe working load capacities.
Fitted with a Twin Pawl as standard, the C4 Chain Hoist has a safety factor of 4:1, and has light load capability that has been tested and certified at 2% of its rated capacity,
Capable of operating in temperatures of -20°C to +120°C, making it suitable for a wide range of environments, the WH-C4 features sturdy hooks that are fitted with heavy-duty cast steel latches, which are further integrated to create a strong and robust closure.
All WH-C4 Chain Hoist models are designed to meet/exceed the requirements of worldwide standards:
- ASME B30.16-2014 (American)
- BS EN13157:2004 + AI:2009 (British)
- AS1418.2-1997 (Australian)
- SANS 1594:2007 (South African)
- NORSOK R-002:2017
| Part Code | WLL (lbs) | No. of Falls | Load Chain (in.) | Hand Chain (in.) | Std Lift (in.) | a (in.) | b (in.) | e (in.) | f (in.) | g (in.) | h (in.) | Mass (in.) 10ft Lift | Extra Weight per 3.2ft (lbs) |
| 022.053 | 1102 | 1 | 0.20-0.59 | 0.20-0.59 | 118 | 4.92 | 5.12 | 0.81 | 1.57 | 1.67 | 12.01 | 17.19 | 3.17 |
| 022.103 | 2204 | 1 | 0.24-0.71 | 0.20-0.98 | 118 | 5.28 | 6.10 | 1.00 | 1.57 | 1.93 | 13.78 | 24.47 | 3.77 |
