William Hackett WH-AT Adjustable Trolley
LIMITED OFFER: WHEN THEY'RE GONE, THEY'RE GONE!

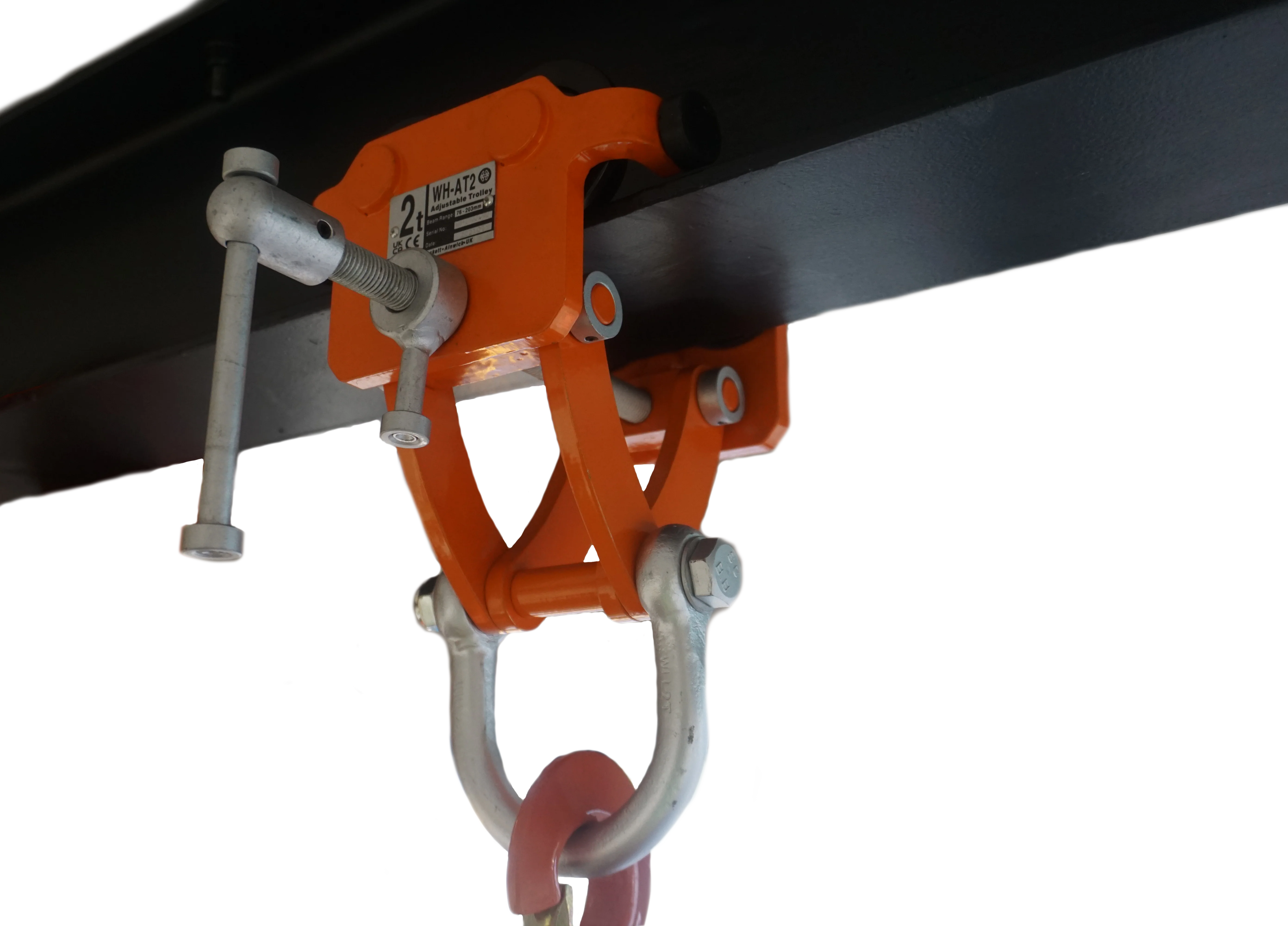

Featuring a lightweight and robust construction, William Hacketts WH-AT Adjustable Trolley allows for quick and easy installation onto a range of beams and girders.
Coming in at working load limits of 2tonnes and 3.2tonnes, the adjustable trolley is fitted with wheel guard anti-drop plates and precision ball bearing wheels allowing for smooth traverse across your beam.
The WH-AT adapts to the beam width by turning the adjustable bar and is fitted with a locking mechanism for ensuring secure connection to the beam.
| Part Code | WLL (lbs) | Min. Radius of Curve (in.) | A (in.) | B (in.) | C (in.) | D (in.) | E (in.) | F (in.) | G (in.) | Beam Width (in.) | Mass (lbs) |
| 014.200 | 4409 | 27.5 | 8.03 | 10.86-12.67 | 3.94 | 0.79 | 0.83 | 0.09 | 12.59 | 2.99-7.99 | 17.86 |
| 014.320 | 7054 | 43.3 | 9.68 | 13.15-14.72 | 4.37 | 0.79 | 0.98 | 0.09 | 12.99 | 2.99-7.99 | 31.41 |
Original: $156.61
-65%$156.61
$54.81
Description
LIMITED OFFER: WHEN THEY'RE GONE, THEY'RE GONE!
Featuring a lightweight and robust construction, William Hacketts WH-AT Adjustable Trolley allows for quick and easy installation onto a range of beams and girders.
Coming in at working load limits of 2tonnes and 3.2tonnes, the adjustable trolley is fitted with wheel guard anti-drop plates and precision ball bearing wheels allowing for smooth traverse across your beam.
The WH-AT adapts to the beam width by turning the adjustable bar and is fitted with a locking mechanism for ensuring secure connection to the beam.
| Part Code | WLL (lbs) | Min. Radius of Curve (in.) | A (in.) | B (in.) | C (in.) | D (in.) | E (in.) | F (in.) | G (in.) | Beam Width (in.) | Mass (lbs) |
| 014.200 | 4409 | 27.5 | 8.03 | 10.86-12.67 | 3.94 | 0.79 | 0.83 | 0.09 | 12.59 | 2.99-7.99 | 17.86 |
| 014.320 | 7054 | 43.3 | 9.68 | 13.15-14.72 | 4.37 | 0.79 | 0.98 | 0.09 | 12.99 | 2.99-7.99 | 31.41 |
