Designed specifically for the easy movement of ISO containers, the HTS ECO-Skate ISOCON Container Moving Systems are available in safe working loads up to 140,800lbs (64 Tonnes).

Equipped with exceptionally high quality non-marking polyurethane wheels/rollers, models with wheels sizes of Ø 85mm have container cones to prevent slipping, while systems with wheels sizes of Ø 140mm, slipping is prevented via an innovative Twist-Lock system.

Made in Germany, these user-friendly and robust skate systems are virtually maintenance free.

NOTE: We supply the HTS ECO-Skate ISOCON Container Skates as a complete system, but if you only require a side model, please call our sales team and quote the individual part number you require.

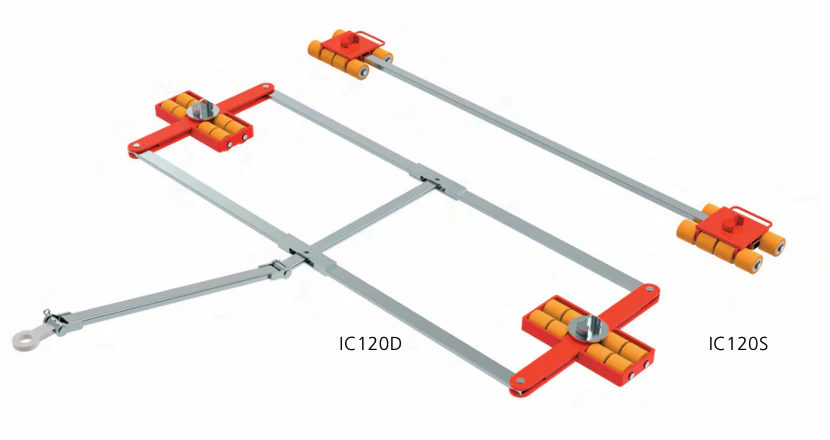

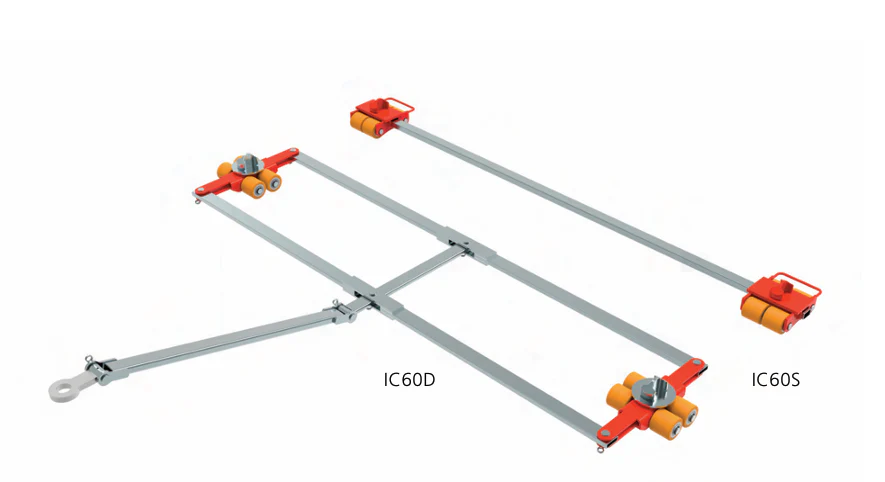

Model	IC60D	IC60S	IC120D	IC120S	ICX16D	ICX16S	ICX32D	ICX32S
Part Code	10.030.00.35	10.060.00.25	10.120.00.35	10.120.00.25	10.160.02.35	10.160.02.25	10.320.02.35	10.320.02.25
Capacity (lbs)	2 x 6600	2 x 6600	2 x 13225	2 x 13225	2 x 17630	2 x 17630	2 x 35200	2 x 35200
Capacity as Set (lbs)	26400		52900		70500		140800
Wheel Size (in)	3.3 x 3.4	3.3 x 3.4	3.3 x 3.4	3.3 x 3.4	Ø 5.5 x 3.3	Ø 5.5 x 3.3	Ø 5.5 x 3.3	Ø 5.5 x 3.3
Number of Wheels	2 x 4	2 x 4	2 x 8	2 x 8	2 x 4	2 x 4	2 x 8	2 x 8
Load Area (in)	Ø 5.9 + cone	4.7 x 8.7 + cone	Ø 5.9 + cone	4.7 x 8.7 + cone	Ø 6.7 + TLS*	12.5 x 7.7 + TLS*	Ø 8.7 + TLS*	12.5 x 15 + TLS*
Dimensions (in)	28.2 x 100 x 4/6.4	11.5 x 98.4 x 4/6.4	37.9 x 107.9 x 4/6.4	11.5 x 104 x 4/6.4	50.2 x 103.8 x 9.4/11.7	18 x 97.4 x 9.4/11.7	57 x 117.4 x 9.4/11.7	18 x 105.1 x 9.4/11.7
Handle Length (in)	49.2	-	49.2	-	63.8	-	63.8	-
Distance Cone Center (in)	88.9	88.9	88.9	88.9	88.9	88.9	88.9	88.9
Weight (lbs)	132	77	194	110	473	229	913	374
