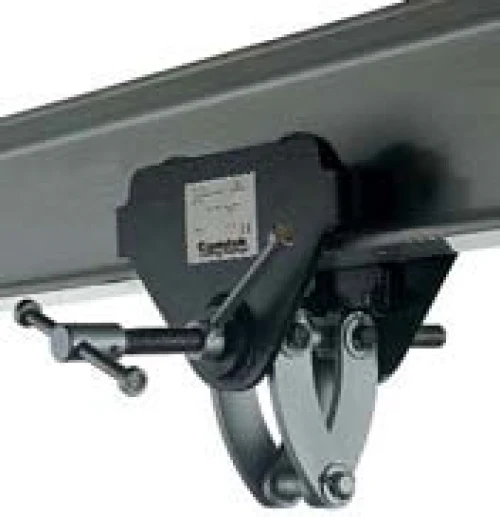

CM Adjustable Trolley Clamp
CM's CTP Adjustable Trolley Clamp requires no tools for installation and is an ultimate hybrid between a manual push/pull trolley and a static beam clamp. Incorporating the horizontal traverse function with the ability to hook large hoists in the opposite orientation, the CM Adjustable Trolley Clamp is perfect for rental fleets since they install and remove extremely fast.
Security isn't an issue since the locking nut with handy handle ensures the spindle remains tight and secure. Capacities up to 6600Lbs (3Tons) suffice most on site requirements whilst the zinc plated spindle adds a layer of protection to the great outdoors.
- Corrosion Resistant zinc-plated spindle
- Metric rated
- Fast installation
- Easy to use
- Safe and secure
| Product Code | Model | Capacity | I-Beam Width | Minimum Radius Curve | Wheel Diameter |
|---|---|---|---|---|---|
| 0500024 | CTP/A 1T | 2200Lbs (1Ton) | 2-1/4" to 6" | 24" | 2.36" |
| 0500025 | CTP/A 2T | 4400Lbs (2Ton) | 3" to 7-7/8" | 35" | 3.27" |
| 0500026 | CTP/B 2T | 4400Lbs (2Ton) | 7-7/8" to 11-7/8" | 35" | 3.27" |
| 0500027 | CTP/A 3T | 6600Lbs (3Ton) | 3" to 7-7/8" | 45" | 4.37" |
| 0500028 | CTP/B 3T | 6600Lbs (3Ton) | 7-7/8" to 12-1/2" | 45" | 4.37" |
Original: $474.00
-65%$474.00
$165.90
Description
CM's CTP Adjustable Trolley Clamp requires no tools for installation and is an ultimate hybrid between a manual push/pull trolley and a static beam clamp. Incorporating the horizontal traverse function with the ability to hook large hoists in the opposite orientation, the CM Adjustable Trolley Clamp is perfect for rental fleets since they install and remove extremely fast.
Security isn't an issue since the locking nut with handy handle ensures the spindle remains tight and secure. Capacities up to 6600Lbs (3Tons) suffice most on site requirements whilst the zinc plated spindle adds a layer of protection to the great outdoors.
- Corrosion Resistant zinc-plated spindle
- Metric rated
- Fast installation
- Easy to use
- Safe and secure
| Product Code | Model | Capacity | I-Beam Width | Minimum Radius Curve | Wheel Diameter |
|---|---|---|---|---|---|
| 0500024 | CTP/A 1T | 2200Lbs (1Ton) | 2-1/4" to 6" | 24" | 2.36" |
| 0500025 | CTP/A 2T | 4400Lbs (2Ton) | 3" to 7-7/8" | 35" | 3.27" |
| 0500026 | CTP/B 2T | 4400Lbs (2Ton) | 7-7/8" to 11-7/8" | 35" | 3.27" |
| 0500027 | CTP/A 3T | 6600Lbs (3Ton) | 3" to 7-7/8" | 45" | 4.37" |
| 0500028 | CTP/B 3T | 6600Lbs (3Ton) | 7-7/8" to 12-1/2" | 45" | 4.37" |
