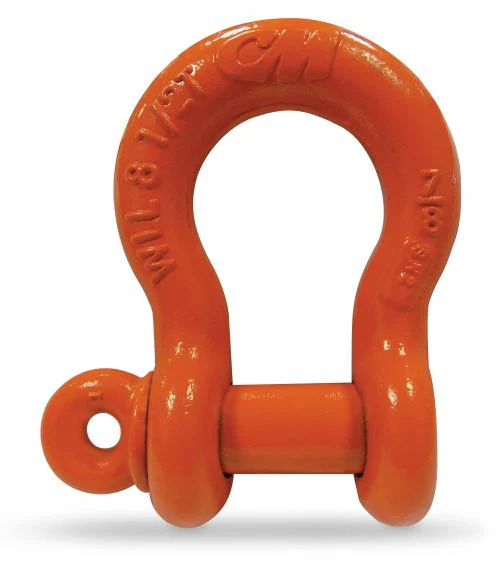

CM Carbon Anchor Shackles Orange Powder Coated Screw Pin
Designed for optimum strength, the CM Carbon Anchor Shackles Orange Powder Coated Screw Pin Lifting Shackles boast an impressive strength approximately 50% higher than a comparable sized carbon shackle and 25% stronger than super strong shackles.
A unique feature of anchor shackles is that they can be side loaded or used for multiple connections.
Featuring a rounded screw head for easier handling and to be kinder to riggers fingers, the CM Screw Pin Alloy Anchor Shackle is otherwise known as a Bow Shackle and is available in a number of different capacities up to 58,000Lbs.
- Available in Round Pin and Bolt, Nut & Cotter Pin designs
- Distinctly visible orange powder coating
- Curved pin head for better ergonomics
- Manufactured in the United States of America
| PRODUCT NUMBER | WORKING LOAD LIMIT (LBS) | SIZE (IN) | PIN TYPE |
|---|---|---|---|
| CM650A | 6,600 | 1/2 | SCREW PIN |
| CM652AG | 14,000 | 3/4 | SCREW PIN |
| CM648A | 4,000 | 3/8 | SCREW PIN |
| CM648AG | 4,000 | 3/8 | SCREW PIN |
| CM648AP | 4,000 | 3/8 | SCREW PIN |
| CM649A | 5,200 | 7/16 | SCREW PIN |
| CM649AG | 5,200 | 7/16 | SCREW PIN |
| CM649AP | 5,200 | 7/16 | SCREW PIN |
| CM650AG | 6,600 | 1/2 | SCREW PIN |
| CM650AP | 6,600 | 1/2 | SCREW PIN |
| CM651A | 10,000 | 5/8 | SCREW PIN |
| CM651AG | 10,000 | 5/8 | SCREW PIN |
| CM651AP | 10,000 | 5/8 | SCREW PIN |
| CM652A | 14,000 | 3/4 | SCREW PIN |
| CM652AP | 14,000 | 3/4 | SCREW PIN |
| CM653A | 19,000 | 7/8 | SCREW PIN |
| CM653AG | 19,000 | 7/8 | SCREW PIN |
| CM653AP | 19,000 | 7/8 | SCREW PIN |
| CM654A | 25,000 | 1 | SCREW PIN |
| CM654AG | 25,000 | 1 | SCREW PIN |
| CM654AP | 25,000 | 1 | SCREW PIN |
| CM655A | 30,000 | 1-1/8 | SCREW PIN |
| CM655AG | 30,000 | 1-1/8 | SCREW PIN |
| CM655AP | 30,000 | 1-1/8 | SCREW PIN |
| CM656A | 36,000 | 1-1/4 | SCREW PIN |
| CM656AG | 36,000 | 1-1/4 | SCREW PIN |
| CM656AP | 36,000 | 1-1/4 | SCREW PIN |
| CM657A | 50,000 | 1-1/2 | SCREW PIN |
| CM657AG | 50,000 | 1-1/2 | SCREW PIN |
| CM657AP | 50,000 | 1-1/2 | SCREW PIN |
| CM658A | 86,000 | 2 | SCREW PIN |
| CM658AG | 86,000 | 2 | SCREW PIN |
| CM658AP | 86,000 | 2 | SCREW PIN |
| CM666A | 42,000 | 1-3/8 | SCREW PIN |
| CM666AG | 42,000 | 1-3/8 | SCREW PIN |
| CM666AP | 42,000 | 1-3/8 | SCREW PIN |
| CM677A | 68,000 | 1-3/4 | SCREW PIN |
| CM677AG | 68,000 | 1-3/4 | SCREW PIN |
| CM677AP | 68,000 | 1-3/4 | SCREW PIN |
| CM685A | 58,000 | 1-5/8 | SCREW PIN |
| CM685AG | 58,000 | 1-5/8 | SCREW PIN |
| CM685AP | 58,000 | 1-5/8 | SCREW PIN |
Original: $21.84
-65%$21.84
$7.64
Description
Designed for optimum strength, the CM Carbon Anchor Shackles Orange Powder Coated Screw Pin Lifting Shackles boast an impressive strength approximately 50% higher than a comparable sized carbon shackle and 25% stronger than super strong shackles.
A unique feature of anchor shackles is that they can be side loaded or used for multiple connections.
Featuring a rounded screw head for easier handling and to be kinder to riggers fingers, the CM Screw Pin Alloy Anchor Shackle is otherwise known as a Bow Shackle and is available in a number of different capacities up to 58,000Lbs.
- Available in Round Pin and Bolt, Nut & Cotter Pin designs
- Distinctly visible orange powder coating
- Curved pin head for better ergonomics
- Manufactured in the United States of America
