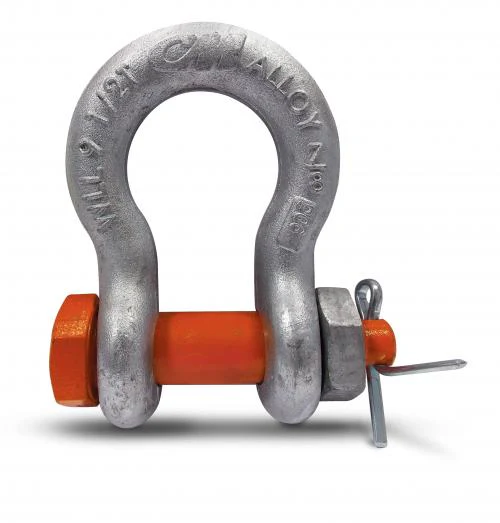

CM Galvanized Alloy Anchor Shackles With Bolt, Nut & Cotter Pin

Boasting capacities up to 120T, a 5:1 design factor and the fact they're made from domestic Special Bar Quality (SBQ) steel with fine grain, reduced sulfur and phosphorous is what really makes these CM shackles stand apart from the rest. CM Galvanized Alloy Anchor Shackles With Bolt, Nut & Cotter Pin feature alloy quenched and tempered pins that offer optimum hardness for strength and ductility. Full traceability is achieved through permanent markings on the body of the shackle.

The galvanized finish offers resistance against the elements without being brittle whilst the steel alloy enables the material to show major deformation prior to failure.

• Permanent Working Load Limit (WLL) and traceability codes
• Standard industry tolerances apply
• Meets the dimensional, marking and performance requirements of RR-C-271
• 5:1 design factor
• Shackles display major deformation prior to failure

PRODUCT NUMBER	WORKING LOAD LIMIT (Ton)	SIZE (IN)	PIN TYPE
M848AG	2	3/8	Bolt, Nut & Cotter Pin
M849AG	2.6	7/16	Bolt, Nut & Cotter Pin
M850AG	3.3	1/2	Bolt, Nut & Cotter Pin
M851AG	5	5/8	Bolt, Nut & Cotter Pin
M852AG	7	3/4	Bolt, Nut & Cotter Pin
M853AG	9.5	7/8	Bolt, Nut & Cotter Pin
M854AG	12.5	1	Bolt, Nut & Cotter Pin
M855AG	15	1-1/8	Bolt, Nut & Cotter Pin
M856AG	18	1-1/4	Bolt, Nut & Cotter Pin
M866AG	21	1-3/8	Bolt, Nut & Cotter Pin
M857AG	30	1-1/2	Bolt, Nut & Cotter Pin
M885AG	35	1-5/8	Bolt, Nut & Cotter Pin
M877AG	34	1-3/4	Bolt, Nut & Cotter Pin
M858AG	50	2	Bolt, Nut & Cotter Pin
MC860AG	85	2-1/2	Bolt, Nut & Cotter Pin
MC862AG	120	3	Bolt, Nut & Cotter Pin
