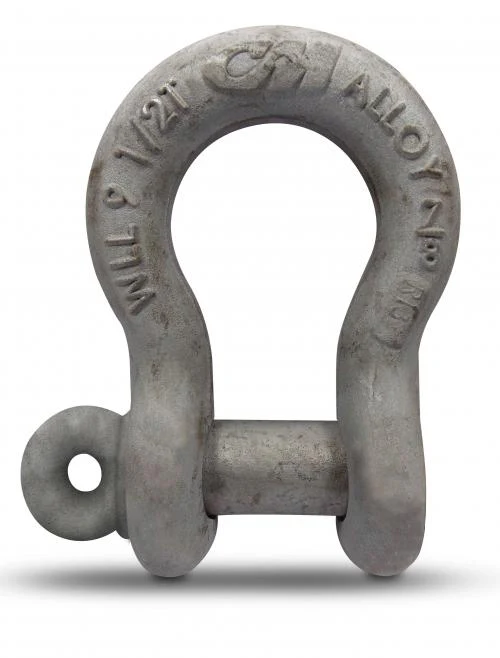

CM Galvanized Screw Pin Alloy Anchor Shackles
Boasting capacities up to 43T, a 5:1 design factor and the fact they're made from domestic Special Bar Quality (SBQ) steel with fine grain, reduced sulfur and phosphorous is what really makes these CM shackles stand apart from the rest. CM Galvanized Screw Pin Alloy Anchor Shackles with alloy quenched and tempered pins offer optimum hardness for strength and ductility. Full traceability is achieved through permanent markings on the body of the shackle.
The galvanized finish offers resistance against the elements without being brittle whilst the steel alloy enables the material to show major deformation prior to failure.
- Permanent Working Load Limit (WLL) and traceability codes
- Standard industry tolerances apply
- Meets the dimensional, marking and performance requirements of RR-C-271
- 5:1 design factor
- Shackles display major deformation prior to failure
| PRODUCT NUMBER | WORKING LOAD LIMIT (Ton) | SIZE (IN) | PIN TYPE |
|---|---|---|---|
| M648AG | 2 | 3/8 | SCREW PIN |
| M649AG | 2.6 | 7/16 | SCREW PIN |
| M650AG | 3.3 | 1/2 | SCREW PIN |
| M651AG | 5 | 5/8 | SCREW PIN |
| M652AG | 7 | 3/4 | SCREW PIN |
| M653AG | 9.5 | 7/8 | SCREW PIN |
| M654AG | 12.5 | 1 | SCREW PIN |
| M655AG | 15 | 1-1/8 | SCREW PIN |
| M656AG | 18 | 1-1/4 | SCREW PIN |
| M666AG | 21 | 1-3/8 | SCREW PIN |
| M657AG | 25 | 1-1/2 | SCREW PIN |
| M685AG | 29 | 1-5/8 | SCREW PIN |
| M677AG | 34 | 1-3/4 | SCREW PIN |
| M658AG | 43 | 2 | SCREW PIN |
Original: $21.56
-65%$21.56
$7.55
Description
Boasting capacities up to 43T, a 5:1 design factor and the fact they're made from domestic Special Bar Quality (SBQ) steel with fine grain, reduced sulfur and phosphorous is what really makes these CM shackles stand apart from the rest. CM Galvanized Screw Pin Alloy Anchor Shackles with alloy quenched and tempered pins offer optimum hardness for strength and ductility. Full traceability is achieved through permanent markings on the body of the shackle.
The galvanized finish offers resistance against the elements without being brittle whilst the steel alloy enables the material to show major deformation prior to failure.
- Permanent Working Load Limit (WLL) and traceability codes
- Standard industry tolerances apply
- Meets the dimensional, marking and performance requirements of RR-C-271
- 5:1 design factor
- Shackles display major deformation prior to failure
| PRODUCT NUMBER | WORKING LOAD LIMIT (Ton) | SIZE (IN) | PIN TYPE |
|---|---|---|---|
| M648AG | 2 | 3/8 | SCREW PIN |
| M649AG | 2.6 | 7/16 | SCREW PIN |
| M650AG | 3.3 | 1/2 | SCREW PIN |
| M651AG | 5 | 5/8 | SCREW PIN |
| M652AG | 7 | 3/4 | SCREW PIN |
| M653AG | 9.5 | 7/8 | SCREW PIN |
| M654AG | 12.5 | 1 | SCREW PIN |
| M655AG | 15 | 1-1/8 | SCREW PIN |
| M656AG | 18 | 1-1/4 | SCREW PIN |
| M666AG | 21 | 1-3/8 | SCREW PIN |
| M657AG | 25 | 1-1/2 | SCREW PIN |
| M685AG | 29 | 1-5/8 | SCREW PIN |
| M677AG | 34 | 1-3/4 | SCREW PIN |
| M658AG | 43 | 2 | SCREW PIN |
