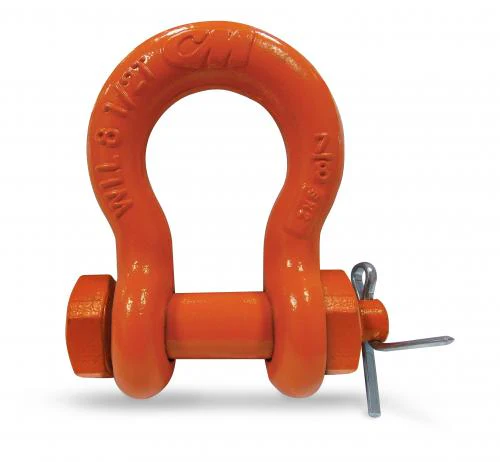

CM Super Strong Anchor Shackles Orange Powder Coated Bolt, Nut & Cotter
Designed for optimum strength, the CM Super Strong Anchor Shackles Orange Powder Coated Bolt, Nut & Cotter Lifting Shackles boast an impressive strength approximately 17-50% higher than a comparable sized carbon shackle.
A unique feature of anchor shackles is that they can be side loaded or used for multiple connections.
Sizes: 1/4" to 2-1/2"
- Available in Screw Pin and Round Pin designs
- Distinctly visible orange powder coating
- Once the cotter pin is fitted there is no way the pin can come lose
- Easy to fasten bolt
- Manufactured in the United States of America
| PRODUCT NUMBER | WORKING LOAD LIMIT (LBS) | SIZE (IN) | PIN TYPE |
|---|---|---|---|
| CM846P | 1,500 | 1/4 | BOLT, NUT & COTTER |
| CM847P | 2,000 | 5/16 | BOLT, NUT & COTTER |
| CM848P | 3,000 | 3/8 | BOLT, NUT & COTTER |
| CM849P | 4,000 | 7/16 | BOLT, NUT & COTTER |
| CM850P | 6,000 | 1/2 | BOLT, NUT & COTTER |
| CM851P | 9,000 | 5/8 | BOLT, NUT & COTTER |
| CM852P | 13,000 | 3/4 | BOLT, NUT & COTTER |
| CM853P | 17,000 | 7/8 | BOLT, NUT & COTTER |
| CM854P | 20,000 | 1 | BOLT, NUT & COTTER |
| CM855P | 24,000 | 1-1/8 | BOLT, NUT & COTTER |
| CM856P | 28,000 | 1-1/4 | BOLT, NUT & COTTER |
| CM857P | 40,000 | 1-1/2 | BOLT, NUT & COTTER |
| CM858P | 70,000 | 2 | BOLT, NUT & COTTER |
| CM866P | 34,000 | 1-3/8 | BOLT, NUT & COTTER |
| CM877P | 60,000 | 1-3/4 | BOLT, NUT & COTTER |
| CM885P | 48,000 | 1-5/8 | BOLT, NUT & COTTER |
Original: $17.88
-65%$17.88
$6.26
Description
Designed for optimum strength, the CM Super Strong Anchor Shackles Orange Powder Coated Bolt, Nut & Cotter Lifting Shackles boast an impressive strength approximately 17-50% higher than a comparable sized carbon shackle.
A unique feature of anchor shackles is that they can be side loaded or used for multiple connections.
Sizes: 1/4" to 2-1/2"
- Available in Screw Pin and Round Pin designs
- Distinctly visible orange powder coating
- Once the cotter pin is fitted there is no way the pin can come lose
- Easy to fasten bolt
- Manufactured in the United States of America
| PRODUCT NUMBER | WORKING LOAD LIMIT (LBS) | SIZE (IN) | PIN TYPE |
|---|---|---|---|
| CM846P | 1,500 | 1/4 | BOLT, NUT & COTTER |
| CM847P | 2,000 | 5/16 | BOLT, NUT & COTTER |
| CM848P | 3,000 | 3/8 | BOLT, NUT & COTTER |
| CM849P | 4,000 | 7/16 | BOLT, NUT & COTTER |
| CM850P | 6,000 | 1/2 | BOLT, NUT & COTTER |
| CM851P | 9,000 | 5/8 | BOLT, NUT & COTTER |
| CM852P | 13,000 | 3/4 | BOLT, NUT & COTTER |
| CM853P | 17,000 | 7/8 | BOLT, NUT & COTTER |
| CM854P | 20,000 | 1 | BOLT, NUT & COTTER |
| CM855P | 24,000 | 1-1/8 | BOLT, NUT & COTTER |
| CM856P | 28,000 | 1-1/4 | BOLT, NUT & COTTER |
| CM857P | 40,000 | 1-1/2 | BOLT, NUT & COTTER |
| CM858P | 70,000 | 2 | BOLT, NUT & COTTER |
| CM866P | 34,000 | 1-3/8 | BOLT, NUT & COTTER |
| CM877P | 60,000 | 1-3/4 | BOLT, NUT & COTTER |
| CM885P | 48,000 | 1-5/8 | BOLT, NUT & COTTER |
