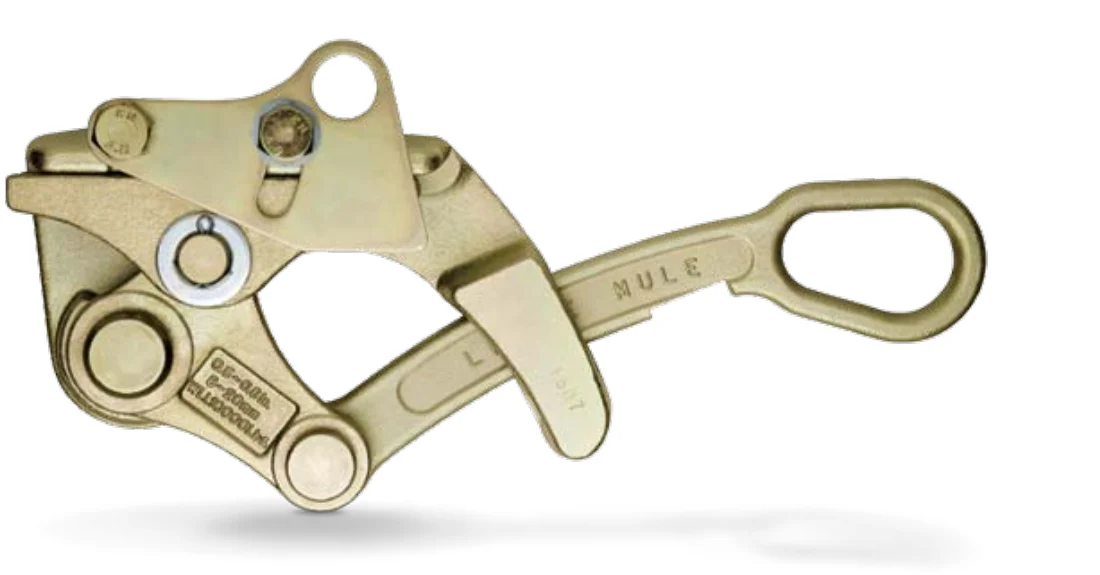

Little Mule 12,000lbs Hotline Parallel Jaw Wire Grip w/ Aggressive Teeth & Spring Loaded

Don’t get caught short on your next utilities job, and stay safe with a Wire Grip from Little Mule.

With an exceptional load capacity of 12,000lbs, this Hot Line model of Wire Grip features a parallel jaw type and is finished with an aggressive tooth profile. Additionally, it comes with a spring-loaded gate and notched handle.

Spring-loaded gates allow a lineman to use a holding stick to open the gate and place the grip on the wire. When released, the gate closes over the wire and prevents the grip from falling off the wire.

Applicable cable types for this model are EHSC* and Messenger Guy Wire**, and it boasts a wire size range of 17.77mm (397MCM Gauge) up to 32mm (1130MCM Gauge).

*EHSC (Extra-High-Strength Cable) – This wire is tensioned to ‘guy’ or support poles and is the connecting wire that reinforces a side strain or dead end. It is the wire that is used at the top of the pole to an anchor at ground at an angle for support. The EHSC is much harder than standard guy strand wire and requires a more aggressive grip.

**Messenger Guy Wire – This is a wire that is used to support other cable or conductors and is usually made of steel. The messenger guy wire provides strength so the other cables don’t have to be as strong.



Code	Min. Wire Size (Gauge)	Max. Wire Size (Gauge)	Model	Gate	Handle	Jaw	Teeth
04450W	17.77 (397MCM)	32mm (1130MCM)	Hot Line	Spring Loaded	Notched	Parallel	Aggressive
