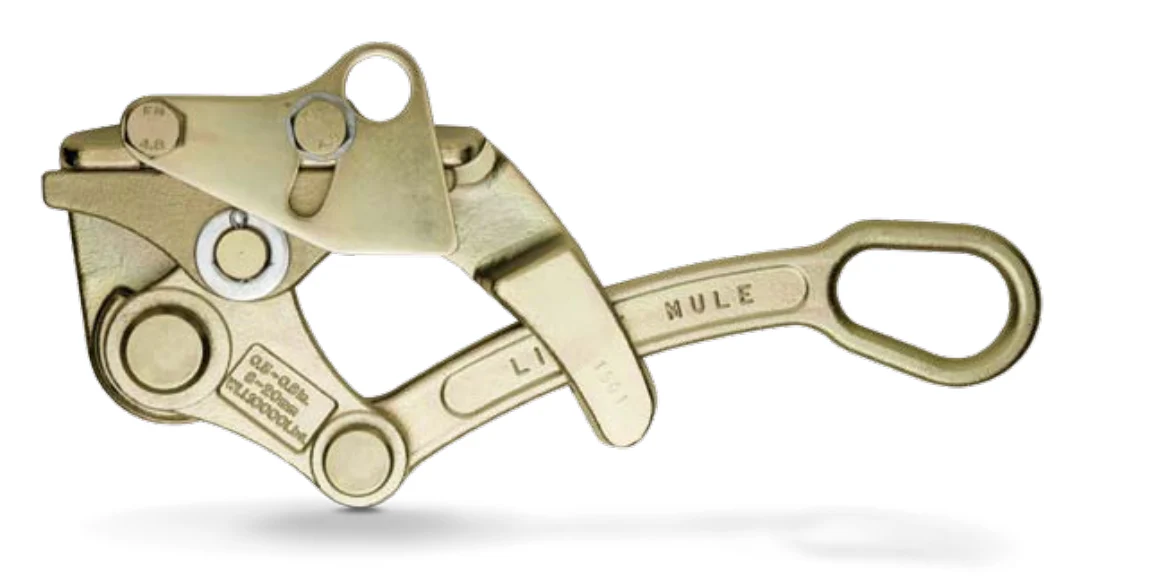

Little Mule 20,000lbs Hotline Parallel Jaw Wire Grip w/ Fine Teeth
Don’t get caught short on your next utilities job, and stay safe with a Wire Grip from Little Mule.
With a mega load capacity of 20,000lbs, this Hot Line Model of Wire Grip features a parallel jaw type and is finished with a fine tooth profile. Additionally, it comes with a non-spring-loaded gate and un-notched handle.
Applicable cable types for this model are stranded copper* and ACSR**, and it boasts a wire size range of 17.77mm (397MCM Gauge) up to 32mm (1130MCM Gauge).
*Stranded Copper - This type of wire, used for carrying voltage, has been used less frequently over the last few years and has been replaced by ACSR. However, it is still occasionally used as an overhead conductor and also in substations.
** ACSR - Reinforced Cable (ACSR) High-strength, high-capacity conductor. Providing optimal strength, the concentric-lay-stranded conductor is made from high-purity round aluminum (1350-H19) wrapped around an inner core of galvanized steel wires. This wire is an overhead conductor for carrying voltage and is used in both distribution and transmission applications.
| Code | Min. Wire Size (Gauge) | Max. Wire Size (Gauge) | Model | Gate | Handle | Jaw | Teeth |
| 04467W | 17.77mm (397MCM) | 32mm (1130MCM) | Hot Line | Non-Spring Loaded | Un-Notched | Parallel | Fine |
ENTIRE LITTLE MULE WIRE GRIP RANGE
Original: $1,714.00
-65%$1,714.00
$599.90
Description
Don’t get caught short on your next utilities job, and stay safe with a Wire Grip from Little Mule.
With a mega load capacity of 20,000lbs, this Hot Line Model of Wire Grip features a parallel jaw type and is finished with a fine tooth profile. Additionally, it comes with a non-spring-loaded gate and un-notched handle.
Applicable cable types for this model are stranded copper* and ACSR**, and it boasts a wire size range of 17.77mm (397MCM Gauge) up to 32mm (1130MCM Gauge).
*Stranded Copper - This type of wire, used for carrying voltage, has been used less frequently over the last few years and has been replaced by ACSR. However, it is still occasionally used as an overhead conductor and also in substations.
** ACSR - Reinforced Cable (ACSR) High-strength, high-capacity conductor. Providing optimal strength, the concentric-lay-stranded conductor is made from high-purity round aluminum (1350-H19) wrapped around an inner core of galvanized steel wires. This wire is an overhead conductor for carrying voltage and is used in both distribution and transmission applications.
| Code | Min. Wire Size (Gauge) | Max. Wire Size (Gauge) | Model | Gate | Handle | Jaw | Teeth |
| 04467W | 17.77mm (397MCM) | 32mm (1130MCM) | Hot Line | Non-Spring Loaded | Un-Notched | Parallel | Fine |
ENTIRE LITTLE MULE WIRE GRIP RANGE
