Tandemloc Spreader Beam End Caps

Tandemloc Spreader End Caps enable you to build your own custom spreader beams and modular spreader bars without the custom costs and heavy lead times associated with such builds. High capacities from 14,000Lb to 1,544,000Lb per end cap, enabling a complete Spreader Bar assembly capacity up to 3,088,000Lb provide even the most demanding loads a quick and cost-effective solution.

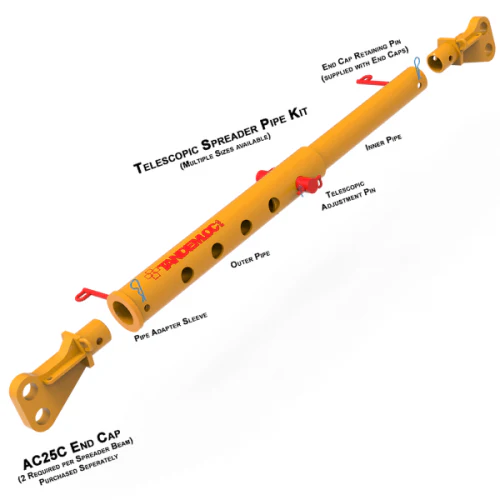

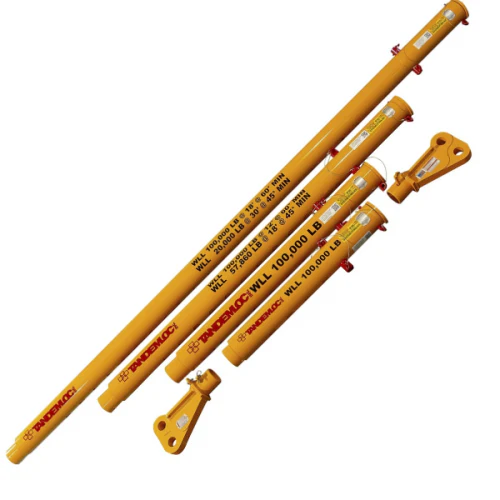

BEST USED IN COMBINATION WITH TANDEMLOC ADJUSTABLE SPREADER BAR KITS Purchase your end caps and the required size spreader beam kit for the ultimate fast field-adjustable solution.



Pipe Diameters: 3"-32"

We recommend that prior to purchasing Tandemloc Steel End Caps that you run your requirements through the Tandemloc End Cap App.



What You Get

• 1 x Tandemloc AC25C Series Steel End Cap (you'll need 2 so ensure you add 2pcs to your basket)



What You Will Need To Know

• The span of your spread
• Weight of the load
• Weight of the assembled lifter

You should also consider any height restrictions that will dictate the lifting sling height above the load.



What You Will Need To Add

• Appropriate sized pipe as per the below table 3"-8" End caps require schedule 80 pipe, whilst 10" End Caps and larger require schedule 60 pipe
• Shackles and slings as per your requirements



Based On Primary Sling Angle For Maximum Spread 45 Degrees

End Cap Model	Maximum Capacity (Per Cap)	Maximum Capacity (Pair)	Maximum Spread	Capacity (per pair) @ Max. Spread	Spread @ Max. Capacity
AC25C-007030EH 3" Pipe	14,000Lbs	28,000Lbs	19ft	4tons	11ft
AC25C-013030EH 3" Pipe	26,000Lbs	52,000Lbs	19ft	4tons	8ft
AC25C-013040EH 4" Pipe	26,000Lbs	52,000Lbs	24ft	7tons	12ft
AC25C-013050EH 5" Pipe	26,000Lbs	52,000Lbs	30ft	10tons	18ft
AC25C-013060EH 6" Pipe	26,000Lbs	52,000Lbs	36ft	13tons	26ft
AC25C-025040EH 4" Pipe	50,000Lbs	100,000Lbs	24ft	7tons	9ft
AC25C-025050EH 5" Pipe	50,000Lbs	100,000Lbs	30ft	10tons	13ft
AC25C-025060EH 6" Pipe	50,000Lbs	100,000Lbs	36ft	13tons	19ft
AC25C-025080EH 8" Pipe	50,000Lbs	100,000Lbs	48ft	19tons	30ft
AC25C-045060EH 6" Pipe	85,000Lbs	170,000Lbs	36ft	13tons	14ft
AC25C-045080EH 8" Pipe	85,000Lbs	170,000Lbs	48ft	19tons	23ft
AC25C-045100EH 10" Pipe	85,000Lbs	170,000Lbs	60ft	25tons	19ft
AC25C-065100EH 10" Pipe	130,000Lbs	260,000Lbs	60ft	24tons	27ft
AC25C-065120EH 12" Pipe	130,000Lbs	260,000Lbs	72ft	29tons	35ft
AC25C-085140EH 14" Pipe	170,000Lbs	340,000Lbs	79ft	58tons	47ft
AC25C-250260EH 26" Pipe	500,000Lbs	1,000,000Lbs	100ft	249tons	71ft
AC25C-552320EH 32" Pipe	1,104,000Lbs	2,208,000Lbs	100ft	758tons	83ft

• Painted with abrasion resistant, high gloss, two part epoxy finish in Safety Yellow
• Assemblies can be proof tested and certified for the loads shown in the chart
• Use two end caps- one on each end of a compatible pipe (see below for pipe specs)
• All sizes over 8" feature one or two D-rings for easy handling of the end cap alone
• Does not include central pipe section- can be supplied on request
• Proof tested to 125% of the Working Load Limit
• 3"-8" End caps require schedule 80 pipe (found at almost all pipe dealers!), whilst 10" End Caps and larger require schedule 60 pipe

• 3-32" Pipe diameter
• Minimum spread: 3ft
• Maximum spread: 100ft
• 3"-8" End caps require schedule 80 pipe (found at almost all pipe dealers!), whilst 10" End Caps and larger require schedule 60 pipe
