Tandemloc 20901AA Series Container Lifting Lug
Tandemloc 20901AA ISO Container Lifting Lugs are the top choice for the highest quality US-made lugs. Featuring gravity plates which when the lug is inserted and rotated 90-degrees will fall into place automatically providing an extra level of security.
All lugs are designed for top lifting only with the exception of the 20901AA-4PA with flex link for angular lifting from the top ISO corner- this can only be used on empty containers and containers that have been specifically modified or manufactured to facilitate this. Standard loaded ISO shipping containers should always be lifted with a vertical 90-degree sling angle with these lugs.
| Model | WLL | Description |
|---|---|---|

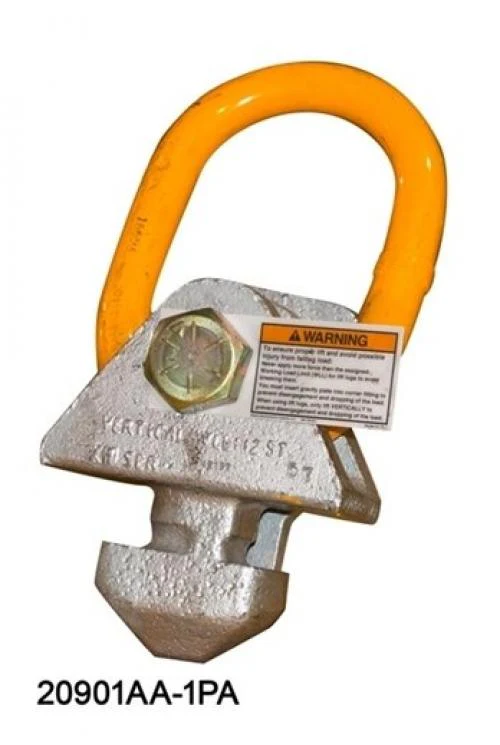

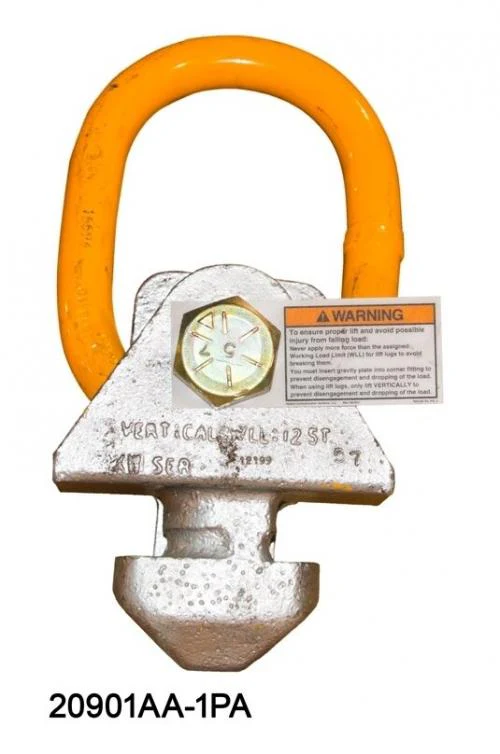

| 20901AA-1PA | 25,000 LBS | Lift Lug with Ring |

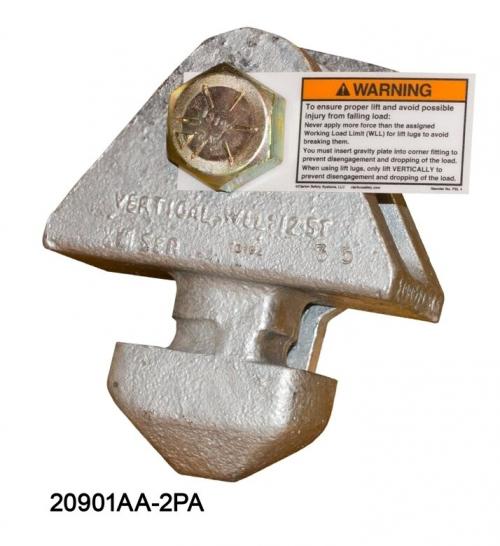

| 20901AA-2PA | 25,000 LBS | Lift Lug without Ring |
| 20901AA-3PA | 25,000 LBS | Double Gravity Lug without Ring (features two gravity drop plates for double security but no lifting ring) |

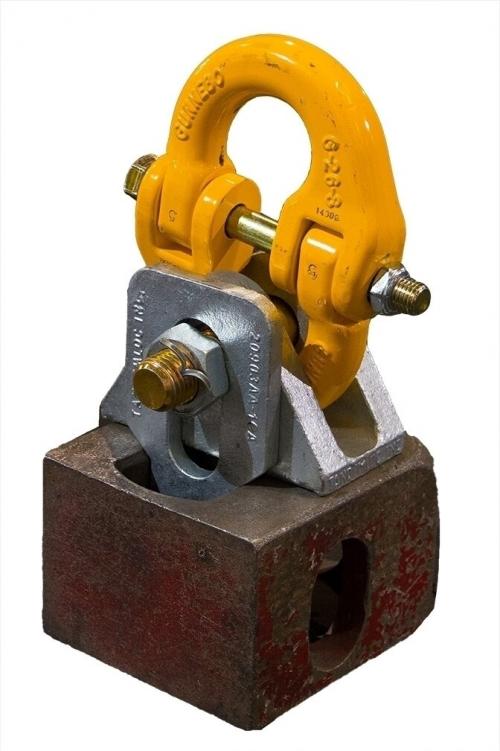

| 20901AA-4PA | 22,000 LBS | Lift Lug with Flex Link for Angular Lifting from Top ISO Corner |
SEE 'DOWNLOADS' AREA OF PDF DRAWING SHOWING EXACTLY WHAT THEY LOOK LIKE
SEE MATERIAL LIST IN 'SPECIFICATION' TAB ABOVE
| Description | Container Type A, B, C and D |
Container Type E at 40 ft. Position |
Container type E at 45 ft. Position |
|---|---|---|---|
| Top Lift Spreader |
 |
 |
 |
| Top Lift Sling |
 |
 |
 |
| Bottom Lift Sling |  |
 |
 |
| Side Lift: Method 1 |
 |
 |
 |
| Side Lift: Method 2 |
 |
 |
 |
| Side Lift: Method 3 |
 |
Not applicable to Type E (45 ft.) containers |
Not applicable to Type E (45 ft.) containers |
| End Lift: Method 1 |
 |
Not applicable to Type E (45 ft.) containers |
Not applicable to Type E (45 ft.) containers |
| End Lift: Method 2 |
 |
Not applicable to Type E (45 ft.) containers |
Not applicable to Type E (45 ft.) containers |
| Fork Lift |  |
Not applicable to Type E (45 ft.) containers |
Not applicable to Type E (45 ft.) containers |
Materials List
| PC. NO | -1PA | -2PA | -3PA | -4PA | PART NO. AND DESCRIPTION |
|---|---|---|---|---|---|
| 10 | 1 | 1 | 1 | 1 | Emergency Lift Lug |
| 20 | 1 | 1 | 2 | 1 | Gravity Lock |
| 30 | 1 | 1 | - | 1 | Bolt for ISO Lift Lug |
| 40 | 1 | 1 | - | 1 | Nut, Thin Jam, GR2 Zinc Pl. Yellow |
| 50 | 1 | 1 | 1 | 1 | 3/16 x 2 Cotter Pin |
| 60 | 1 | - | - | - | Master Link (on -1PA Ass'y Only) |
| 70 | - | - | 1 | - | 1.25-7 Castled Nut, Std. Ht. Zinc Pl. |
| 80 | - | - | 1 | - | Bolt for ISO Lift Lug (Dbl Grav.) |
| 90 | - | - | - | 1 | Forged Flexible Link |
