Tandemloc Autoloc Spreader Container Lifting Frame
Whilst no ground crew are required to lock/unlock the twist-locks, the Tandemloc Autoloc Container Lifting Frame ticks the box for a hands-off approach to container handling. With models suitable for 20ft, 40ft, and now 24ft (available by special request) you are sure to find the perfect frame right here.
There's always more with Tandemloc!
Innovation is a core element of Tandemloc's design- these container lifting frames can connect to specially adapted Tandemloc lifting beams (available on request)Ā to enable lifting of non-containerized loads. What's more, is that the N31000C models have all been subject to Tandemloc's special paint process (watch the last video below) that provides superior protection against the harsh realities of rigging.
Types:
- 20ft Container Lifting Frame
- 40ft Container Lifting Frame
| Model | Width | Length | WLL | Weight (lbs.) | Height Above Container |
|---|---|---|---|---|---|
| N31000C-1PA MOST POPULAR | 8 ft | 20 ft | 70,000 LBS | 3,730 | 11 ft 5 inch |
| N3100AA-2PA | 8 ft | 40 ft | 67,200 LBS | 4,975 | 21 ft 5 inch |
| N3100AB-2PA | 8 ft | 40 ft | 67,200 LBS | 5,500 | 12 ft |
- 4 Twist-lock bayonets are simultaneously locked/unlocked by the slackening of the 4-legged sling (included). The bayonets twist 90-degrees each time the top sling is fully slackened between locked and unlocked

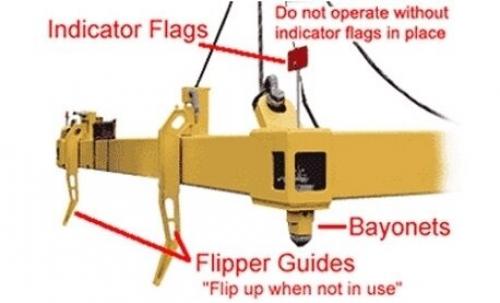

- Built-in indicator flags allow the crane operator to easily position the spreader on to the container
Operation:
1. Lift and Spot Spreader
2. Spreader has landed on the container. Bayonets are inserted into each of the four (4) corner fittings.
3. Slacken crane wire until red flags turn 90 degrees. When indicator flags turn, bayonets turn.
4. Hoist crane wire. Be sure all personnel is clear before lifting.
5. Lift container. To disengage AutolocĀ® simply repeat steps 3 & 4.
