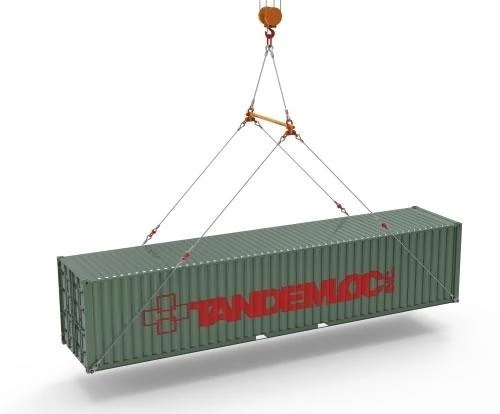

Tandemloc ISO Container Spreader Beam
Tandemloc ISO Container Spreader Beams are suitable for both 20ft and 40ft ISO Shipping Containers weighing up to 67,200Lbs (please select correct model). Each beam is individually proof load tested to 125% and complete with load test certificate.
Includes slings and rigging.
MATERIAL AND FINISH:
- PC1 - Steel, Painted
- PC2 - Steel, Bright
- PC3 - Steel, Painted
| Product Code | "L" Container Size | WLL | "S" Slack | Weight (lbs.) | "AA" Use Angle | "A" Use Angle | "D" Master Ring Diameter | "E" Master Ring Height | "F" Master Ring Width | "G" Master Ring to Container Bottom | PC1 - Lift Beam Part Number | PC2 - Wire Rope Legs & Shackle Part Numbers | PC3 - Lift Lug Part Numbers |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AK24A00-00A-PA | 20 ft | 52,900 LBS | 17 inches | 509 | 60 degrees | 45 degrees | 1.61 inches | 10.50 inches | 5.90 inches | 214 inches | AK24A01-00A-PA | AK24A03-00A | 416000C-LSTZ |
| AK25A00-00A-PA | 20 ft | 67,200 LBS | 17 inches | 667 | 60 degrees | 45 degrees | 1.75 inches | 12 inches | 6 inches | 216 inches | AK25A01-00A-PA | AK25A03-00A | 416000C-LSTZ |
| AK25A00-01A-PA | 40 ft / 20 ft | 67,200 LBS | 138 inches | 812 | 60 degrees | 45 degrees | 1.75 inches | 12 inches | 6 inches | 336 inches | AK25A01-00A-PA | AK25A03-00A/AK25A04-00A | 416000C-LSTZ |
Select Container Size Lifting Capacity | Product Code:
From $3,340.43
Original: $9,544.09
-65%Tandemloc ISO Container Spreader Beam—
$9,544.09
$3,340.43
Description
Tandemloc ISO Container Spreader Beams are suitable for both 20ft and 40ft ISO Shipping Containers weighing up to 67,200Lbs (please select correct model). Each beam is individually proof load tested to 125% and complete with load test certificate.
Includes slings and rigging.
MATERIAL AND FINISH:
- PC1 - Steel, Painted
- PC2 - Steel, Bright
- PC3 - Steel, Painted
| Product Code | "L" Container Size | WLL | "S" Slack | Weight (lbs.) | "AA" Use Angle | "A" Use Angle | "D" Master Ring Diameter | "E" Master Ring Height | "F" Master Ring Width | "G" Master Ring to Container Bottom | PC1 - Lift Beam Part Number | PC2 - Wire Rope Legs & Shackle Part Numbers | PC3 - Lift Lug Part Numbers |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AK24A00-00A-PA | 20 ft | 52,900 LBS | 17 inches | 509 | 60 degrees | 45 degrees | 1.61 inches | 10.50 inches | 5.90 inches | 214 inches | AK24A01-00A-PA | AK24A03-00A | 416000C-LSTZ |
| AK25A00-00A-PA | 20 ft | 67,200 LBS | 17 inches | 667 | 60 degrees | 45 degrees | 1.75 inches | 12 inches | 6 inches | 216 inches | AK25A01-00A-PA | AK25A03-00A | 416000C-LSTZ |
| AK25A00-01A-PA | 40 ft / 20 ft | 67,200 LBS | 138 inches | 812 | 60 degrees | 45 degrees | 1.75 inches | 12 inches | 6 inches | 336 inches | AK25A01-00A-PA | AK25A03-00A/AK25A04-00A | 416000C-LSTZ |
