Vestil Heavy-Duty King Pin Carousels

The Heavy Duty King Pin Carousel has all the ergonomic benefits of the standard carousel with a top plate and stabilizing center pin. Unit will handle a wider variety of loads. Features include 1/4" tread plate top on 4,000 lbs. and 3/8" tread plate top on 6,000 lbs. models. Also includes a heavy-duty maintenance free bearing. The king pin design allows off set loading up to 50% of the capacity on at least 50% of the deck.

Heavy-Duty King Pin Carousel
Model	Size (WxL)	Height	Capacity (lbs)	Wt. (lbs.)

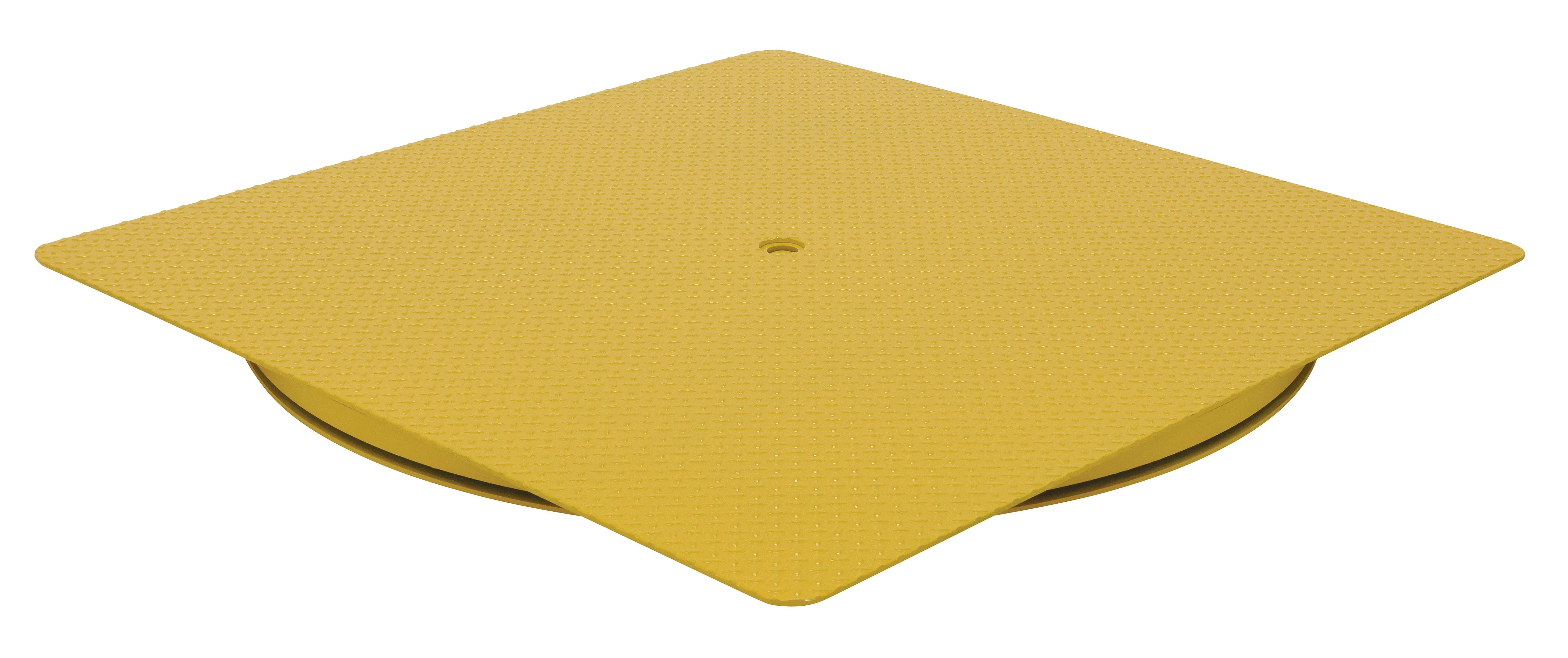

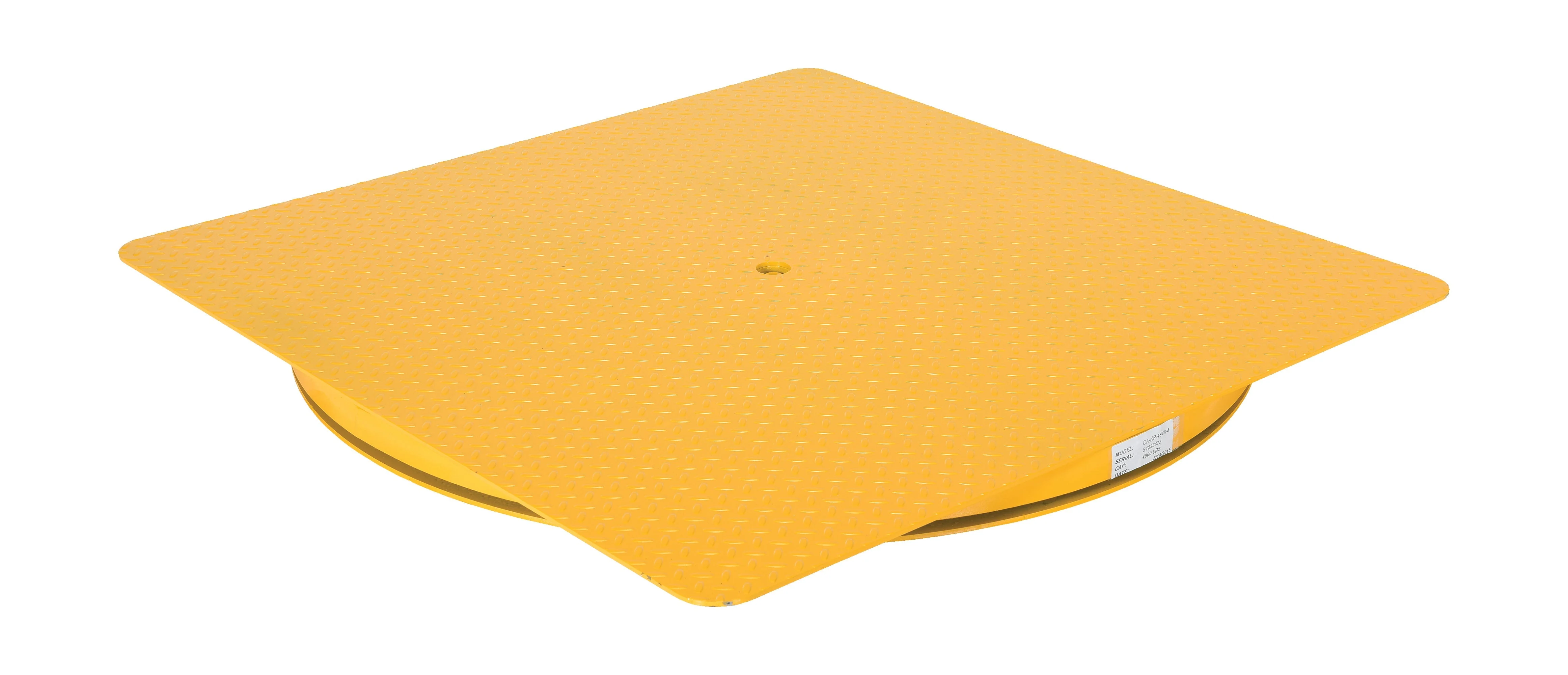

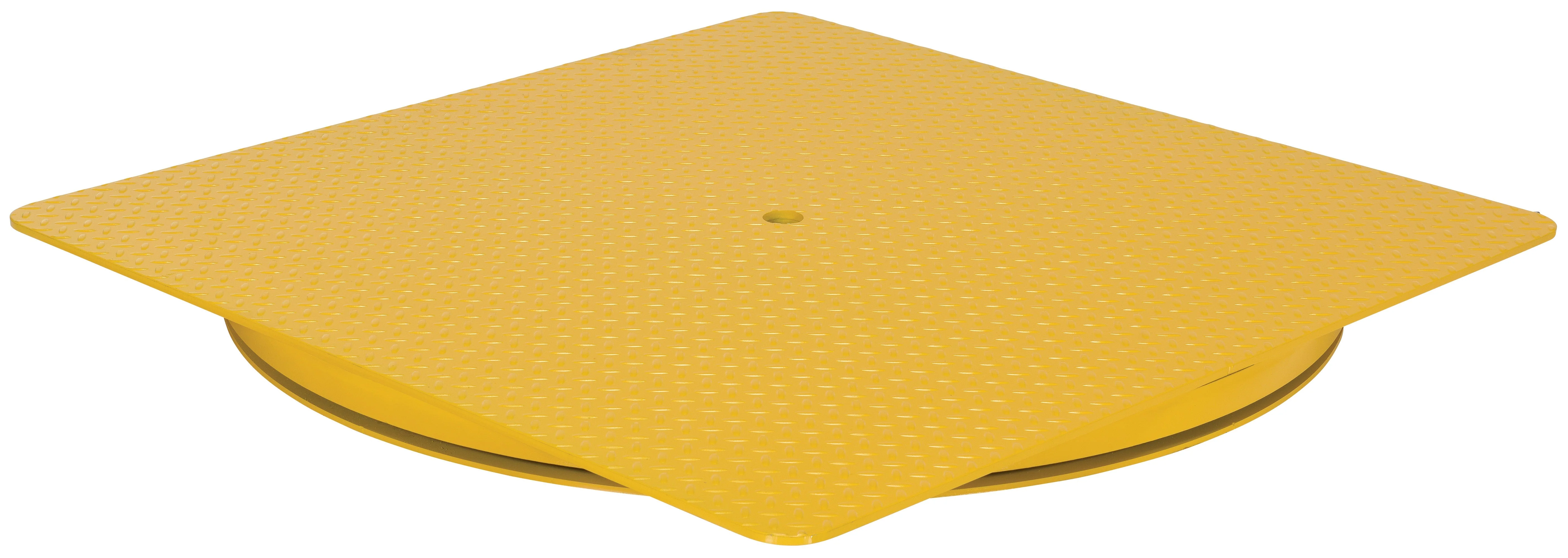

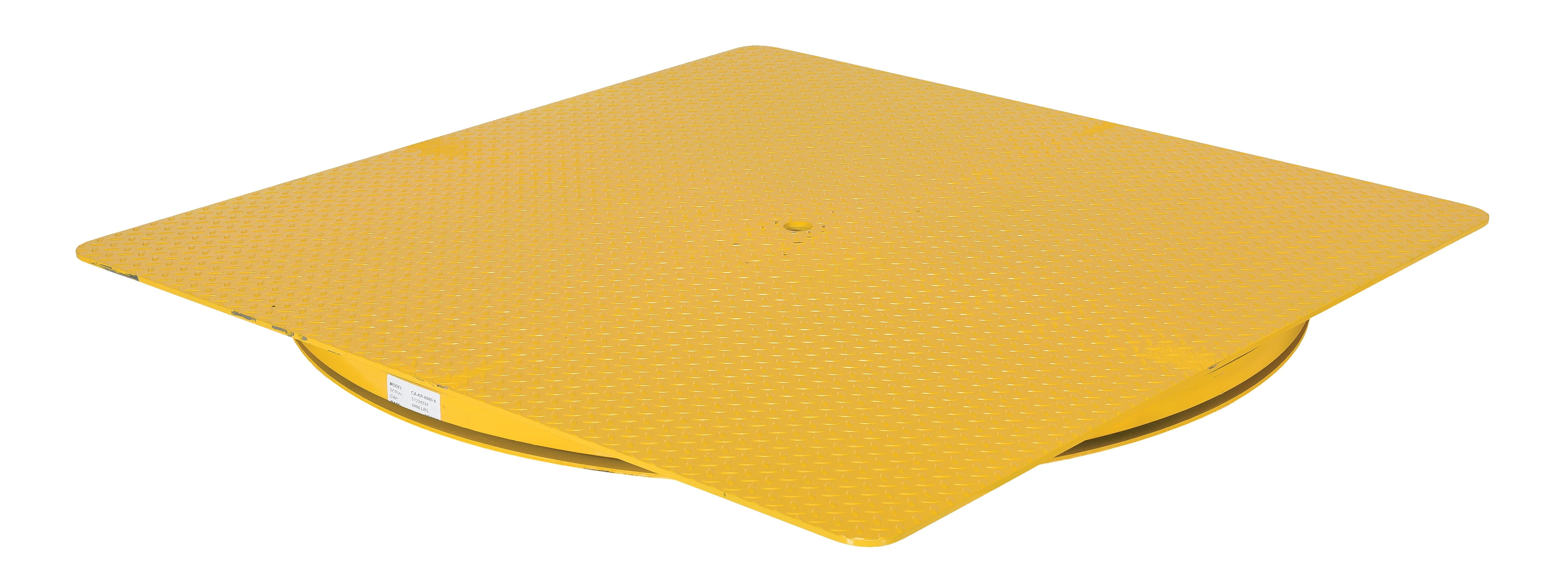

Square Carousels
CA-KP-3636-4	36"x36"	2-11/16"	4,000	269
CA-KP-3636-6	36"x36"	2-13/16"	6,000	306
CA-KP-4848-4	48"x48"	2-11/16"	4,000	422
CA-KP-4848-6	48"x48"	2-13/16"	6,000	506
CA-KP-6060-4	60"x60"	2-11/16"	4,000	641
CA-KP-6060-6	60"x60"	2-13/16"	6,000	749
Model	Size (WxL)	Height	Capacity (lbs)	Wt. (lbs.)

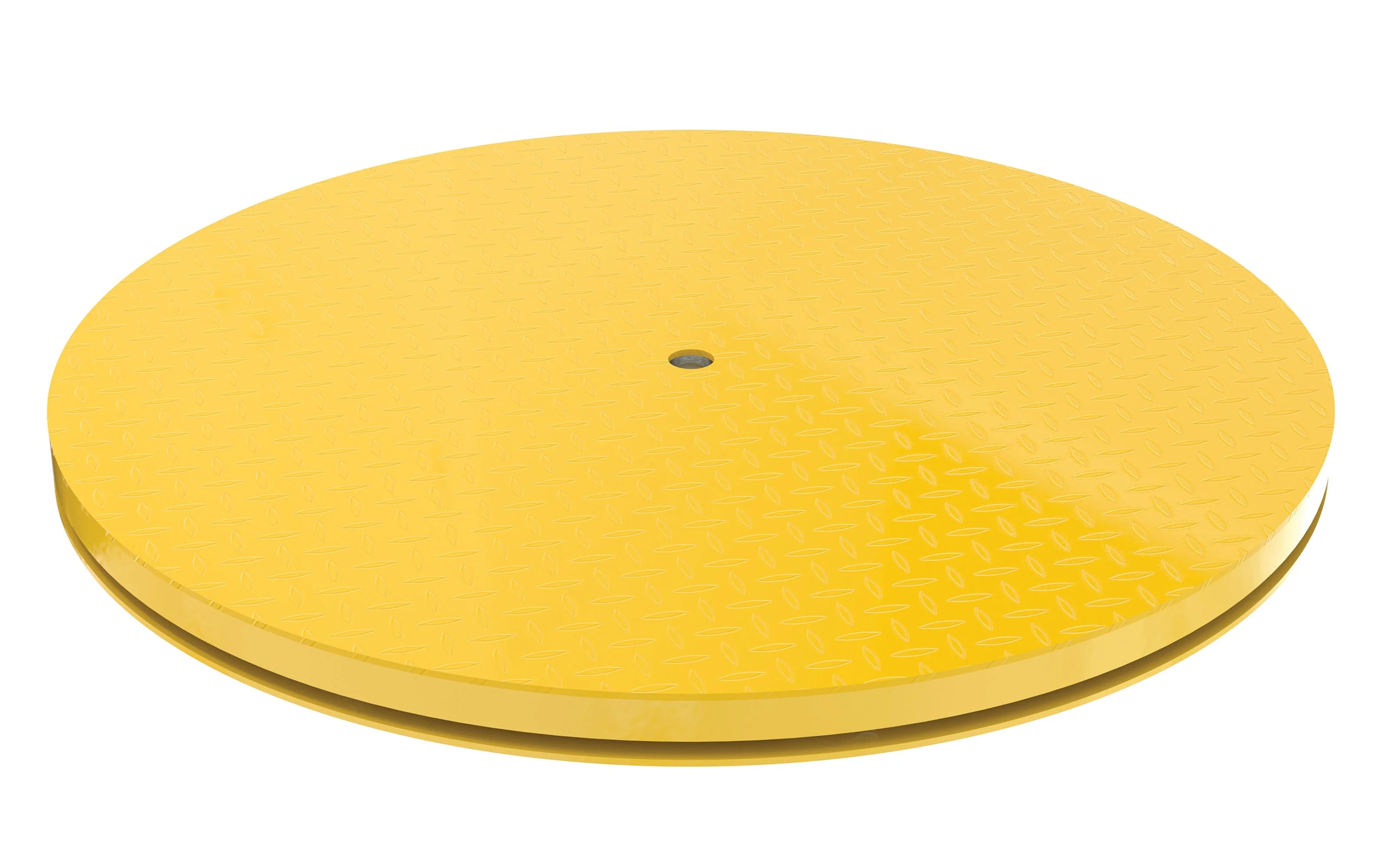

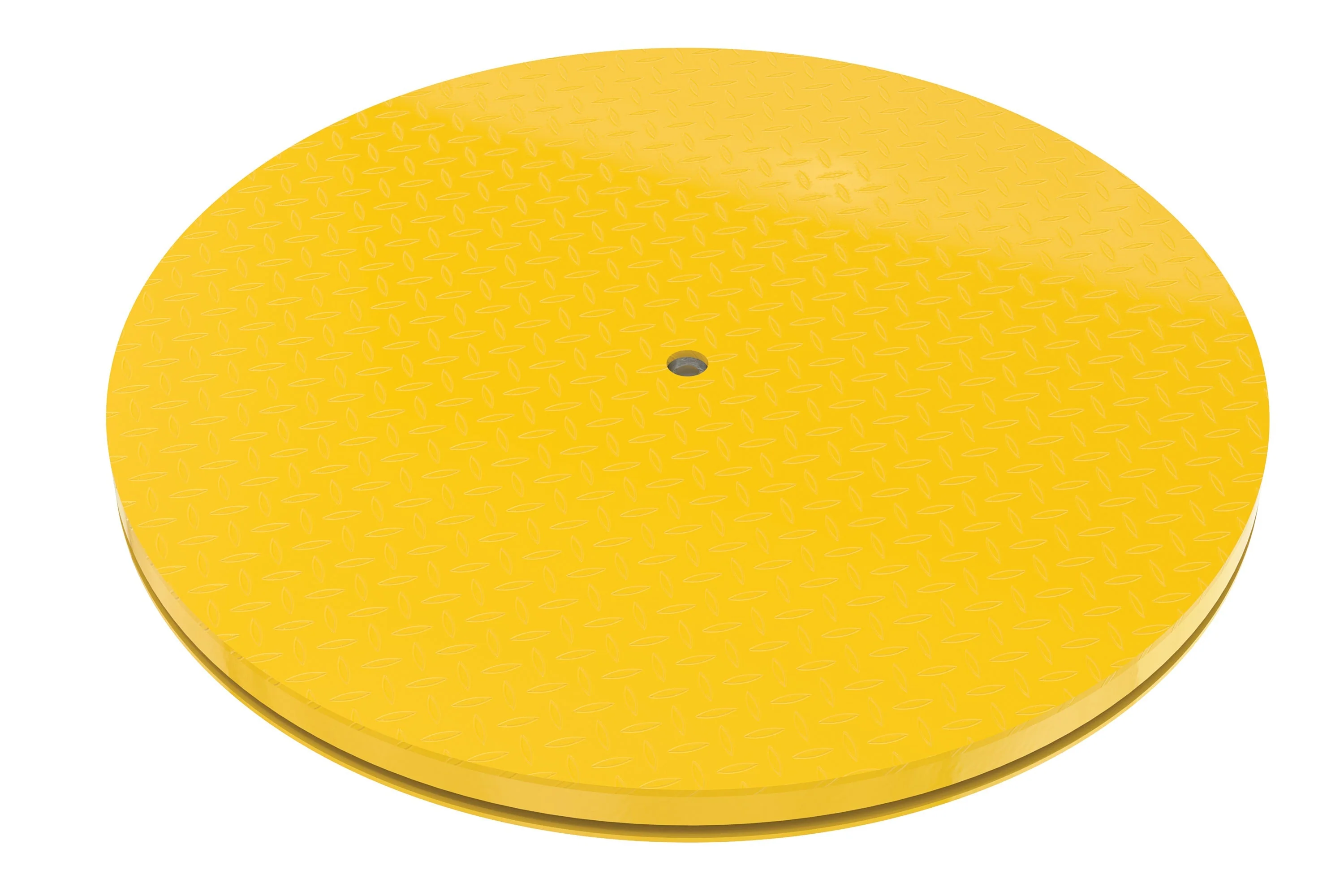

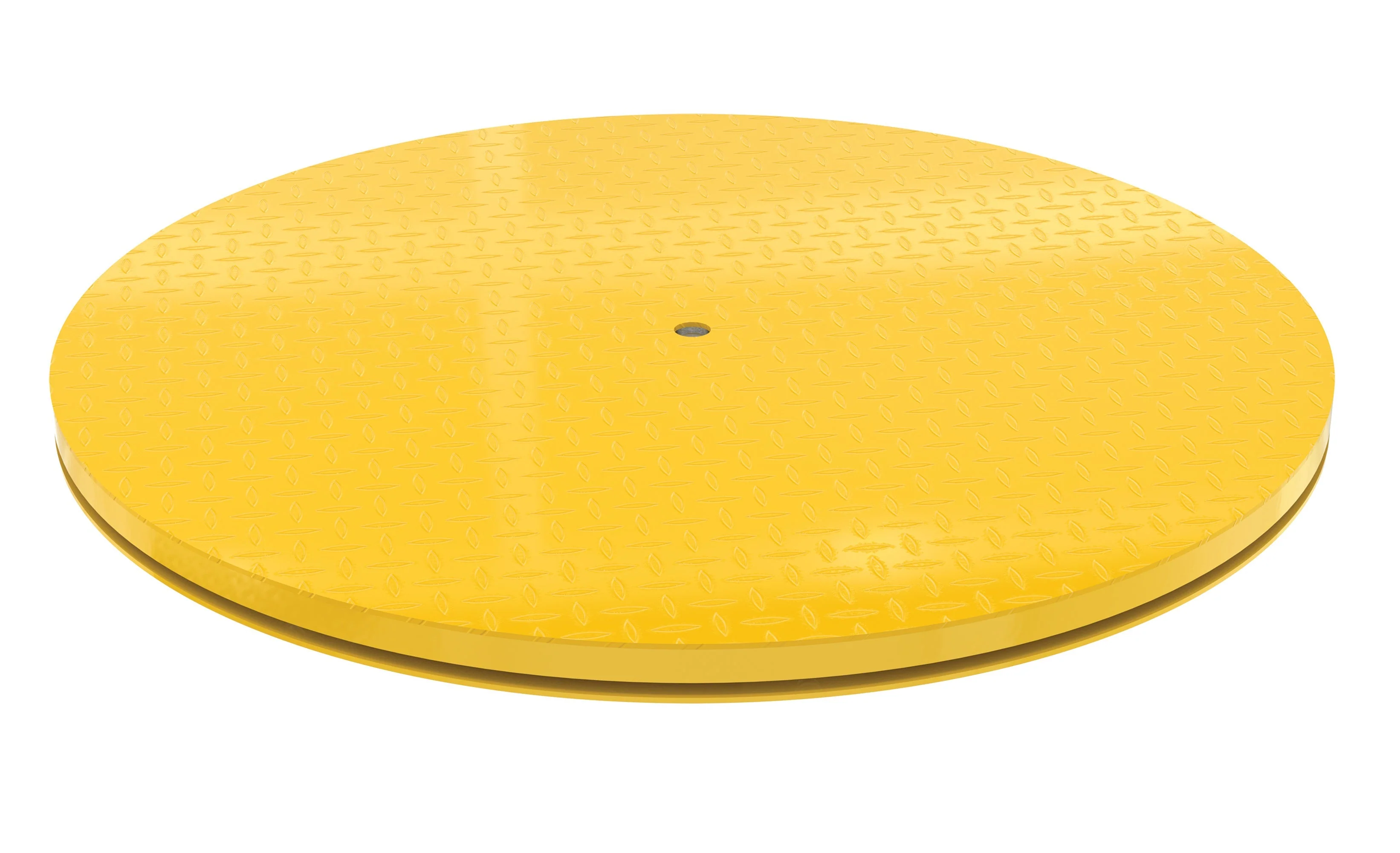

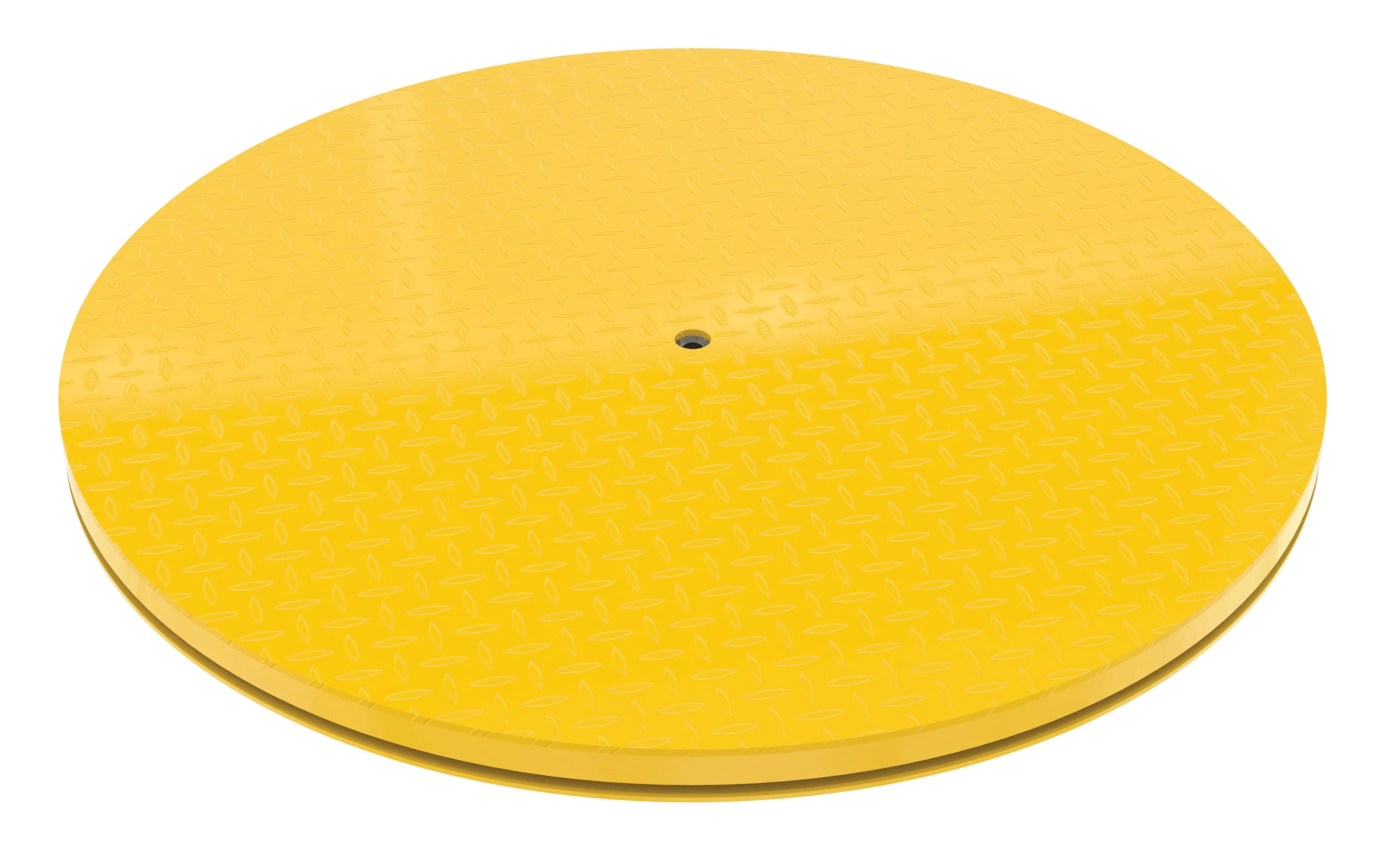

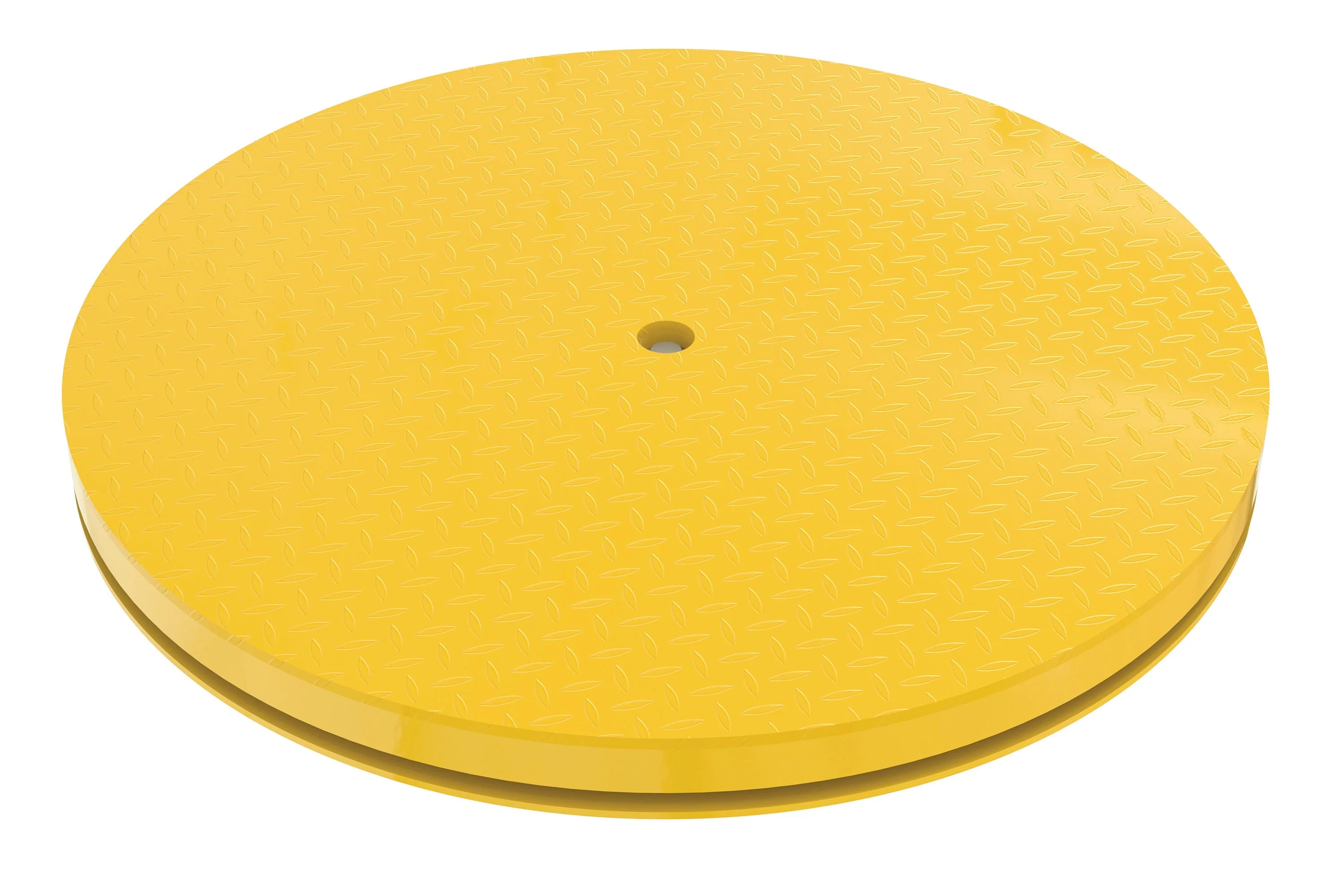

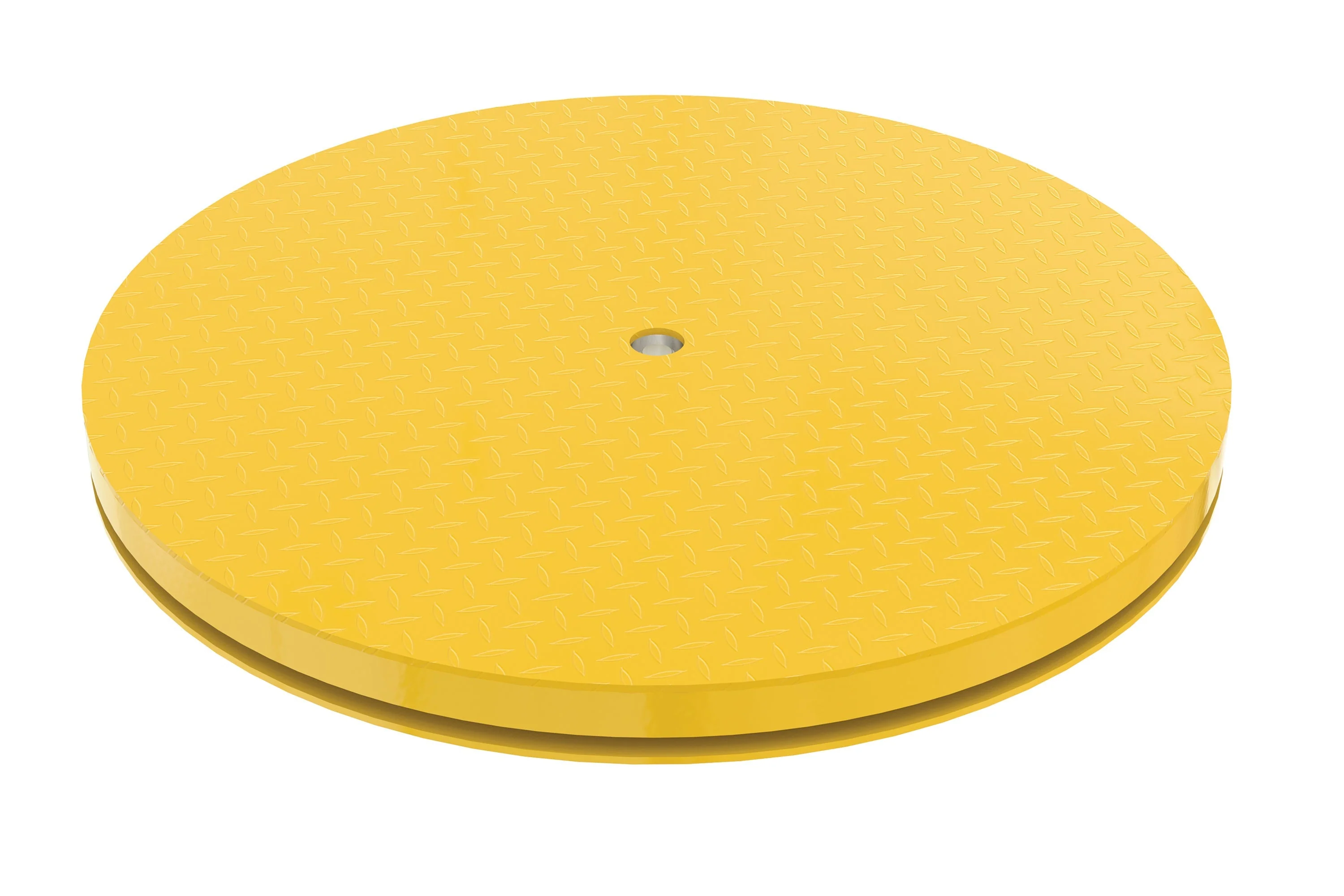

Round Carousels
CA-KP-36R-4	36" Diameter	2-11/16"	4,000	224
CA-KP-36R-6	36" Diameter	2-13/16"	6,000	267
CA-KP-48R-4	48" Diameter	2-11/16"	4,000	400
CA-KP-48R-6	48" Diameter	2-13/16"	6,000	478
CA-KP-60R-4	60" Diameter	2-11/16"	4,000	568
CA-KP-60R-6	60" Diameter	2-13/16"	6,000	694
