Vestil Steel Manual Carousels

Vestil Steel Manual Carousels

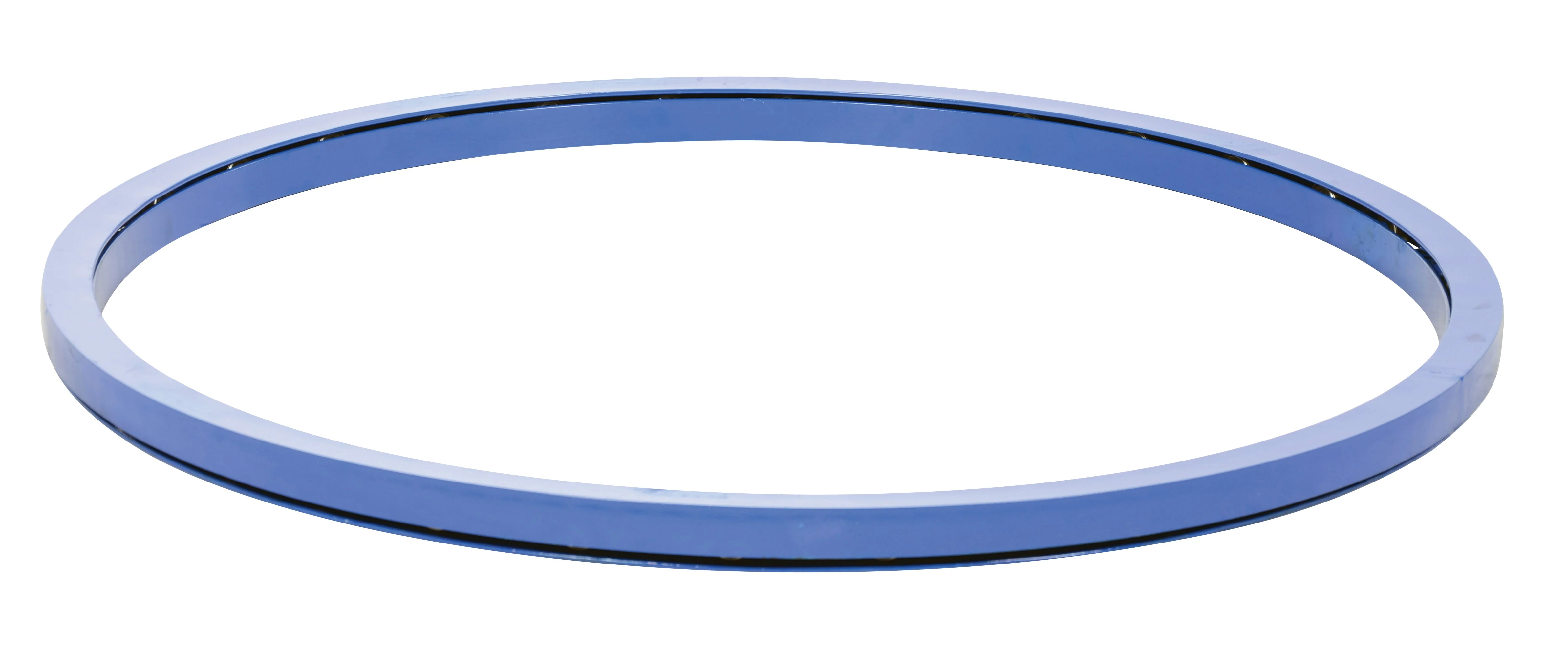

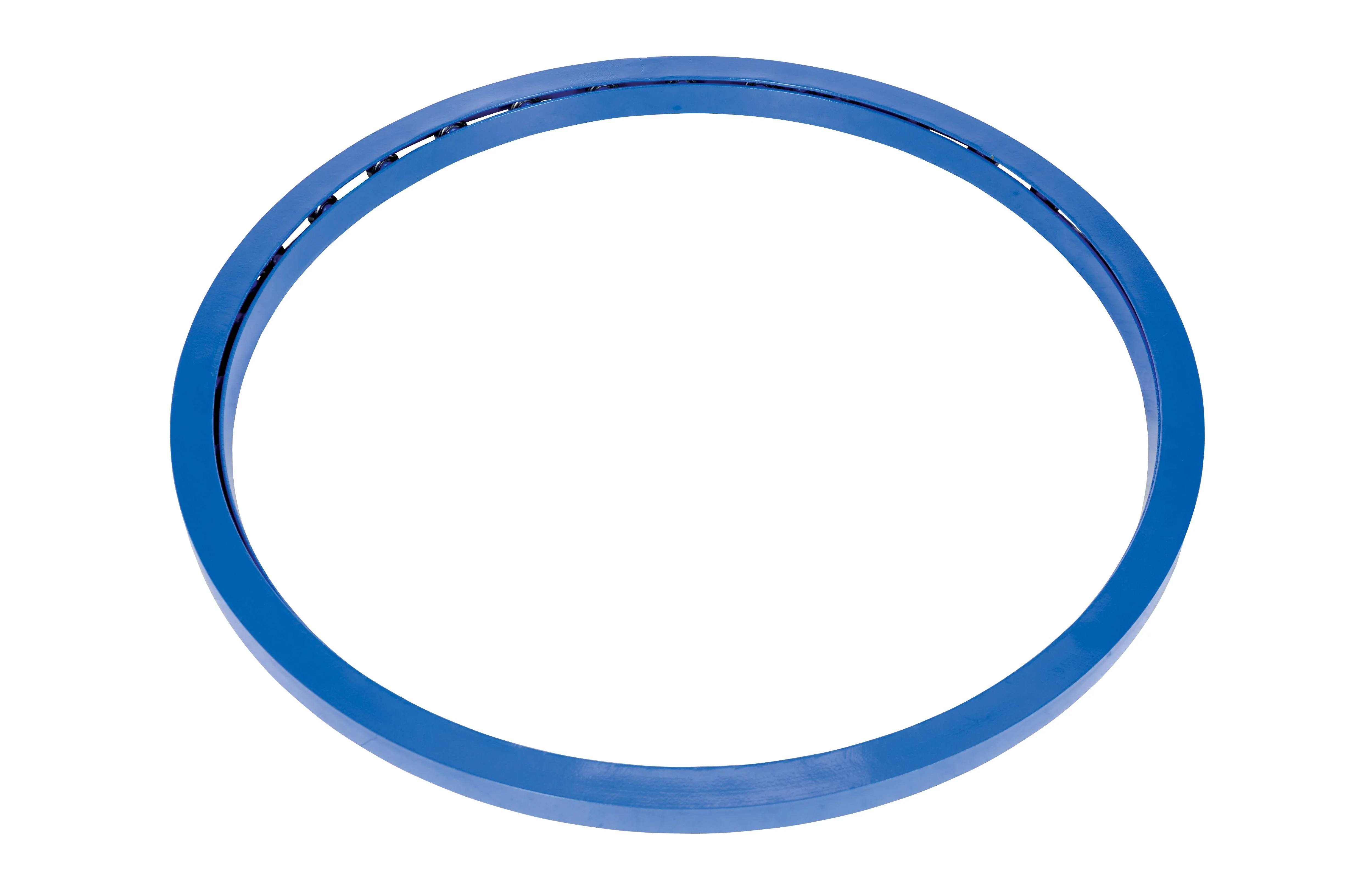

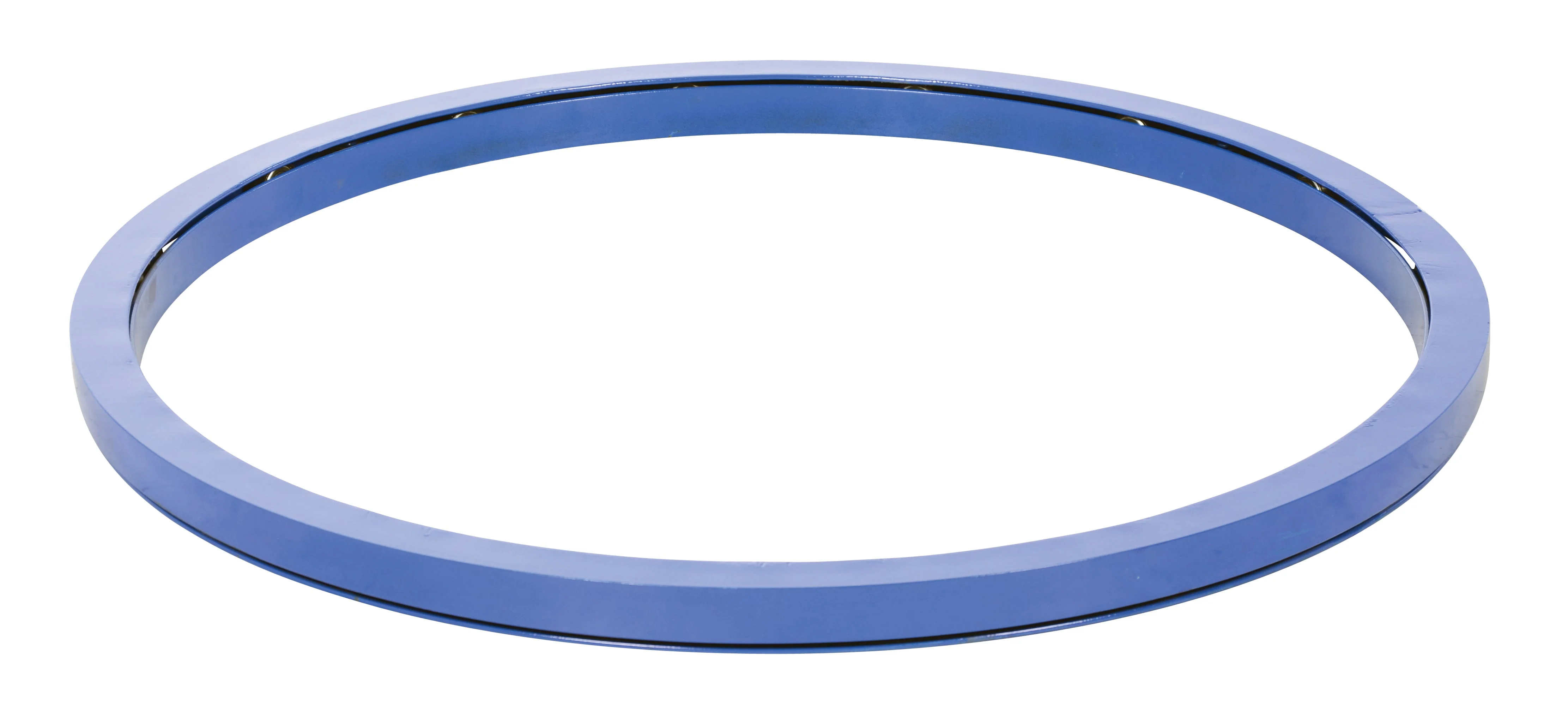

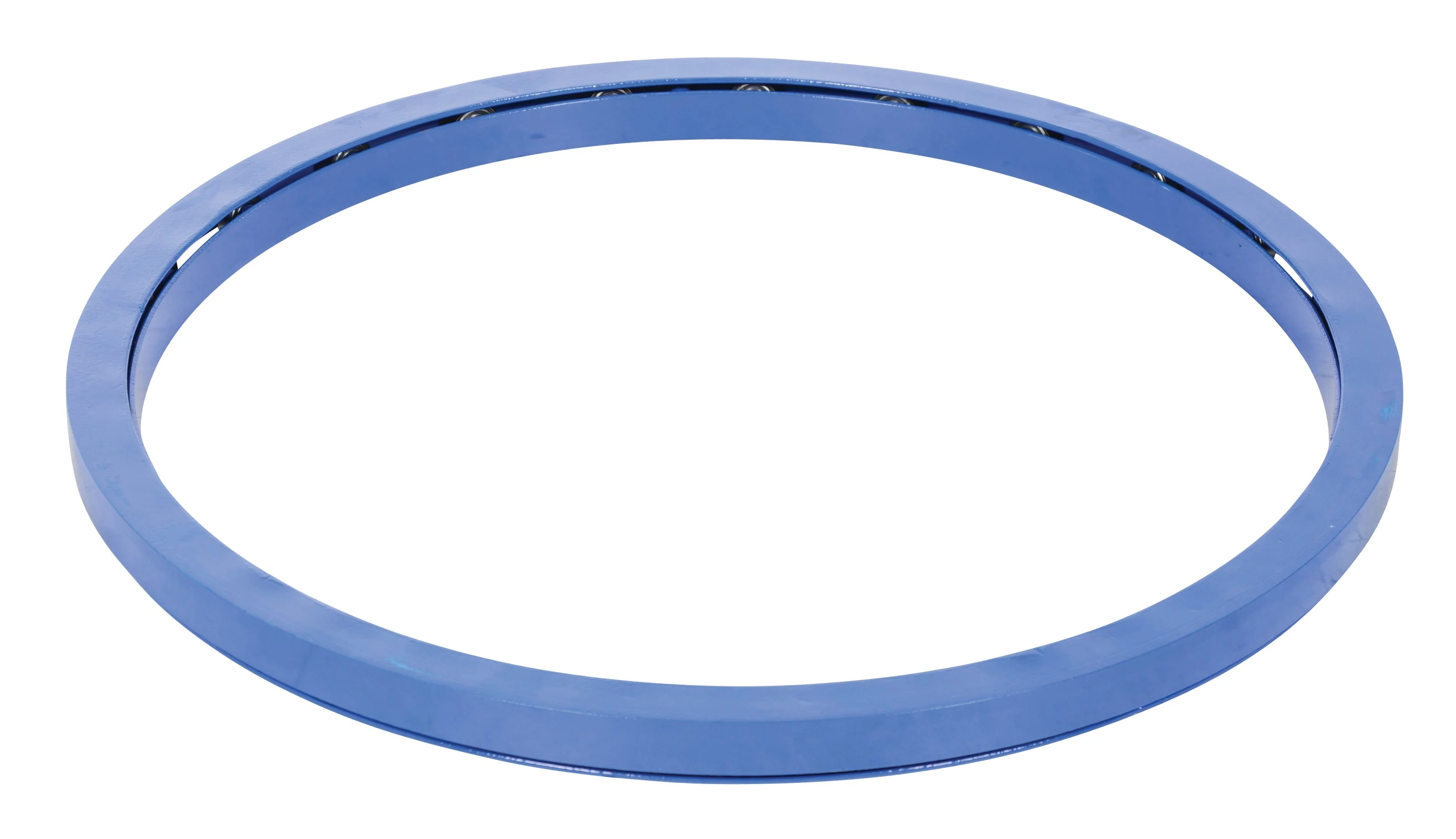

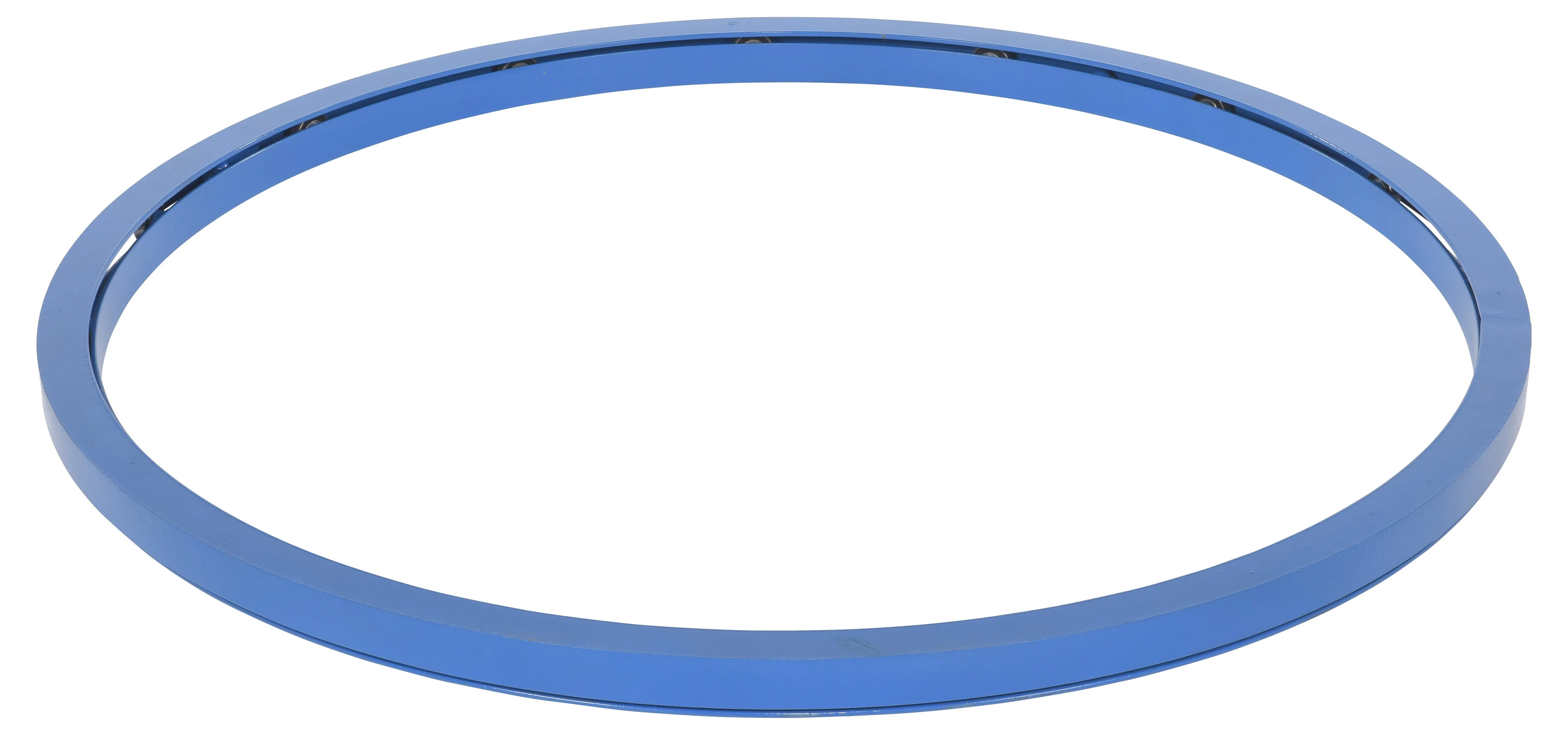

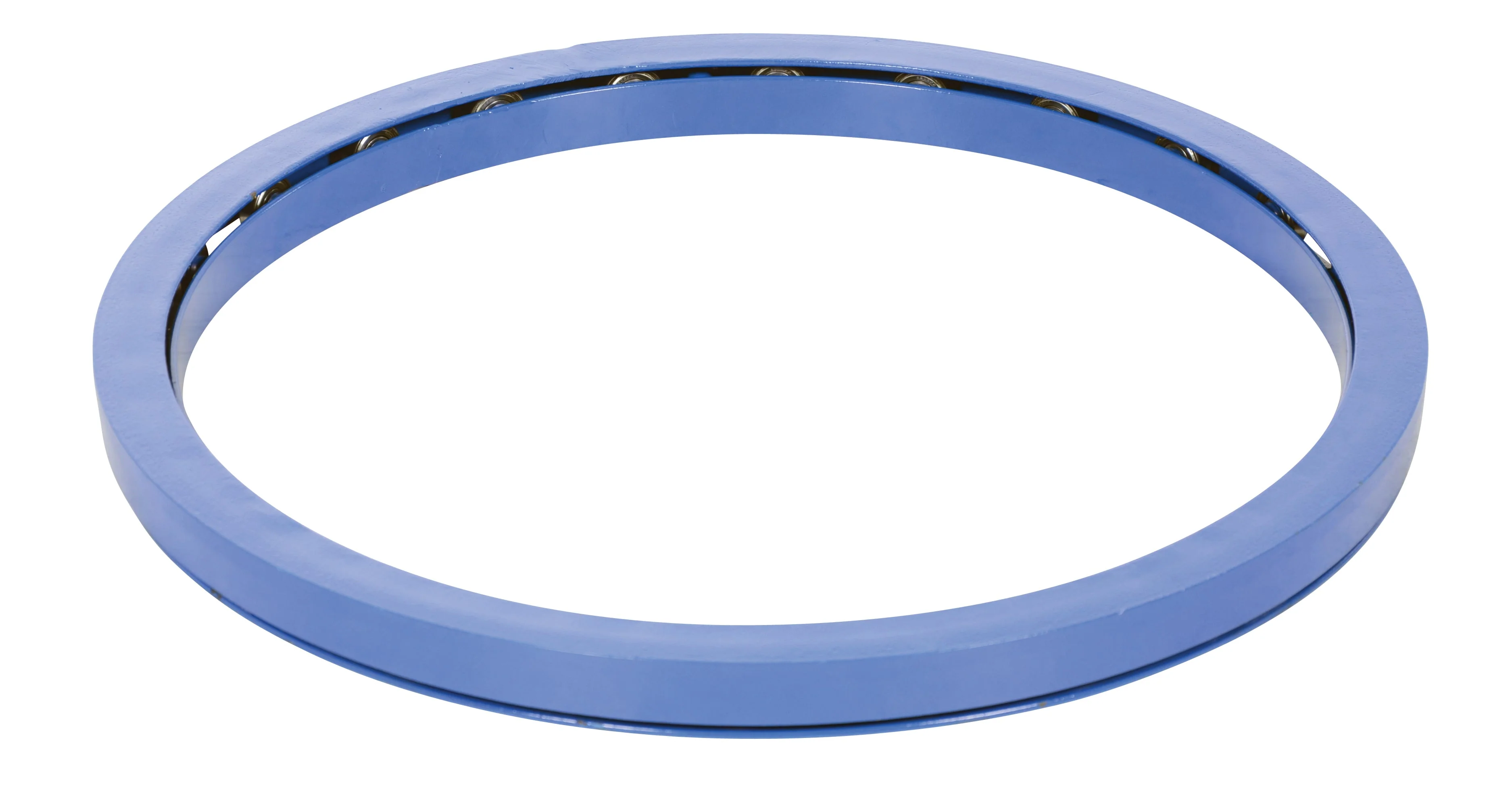

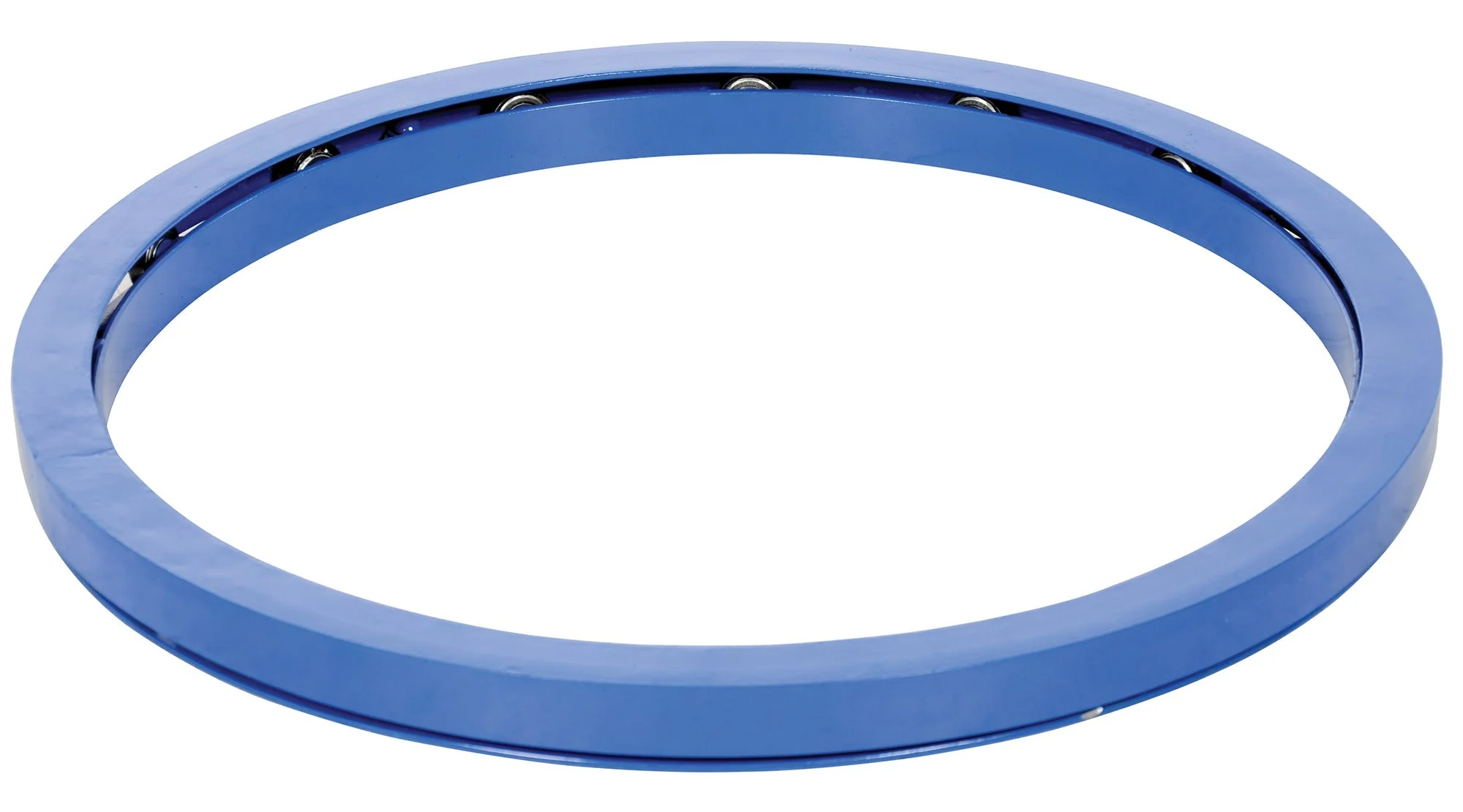

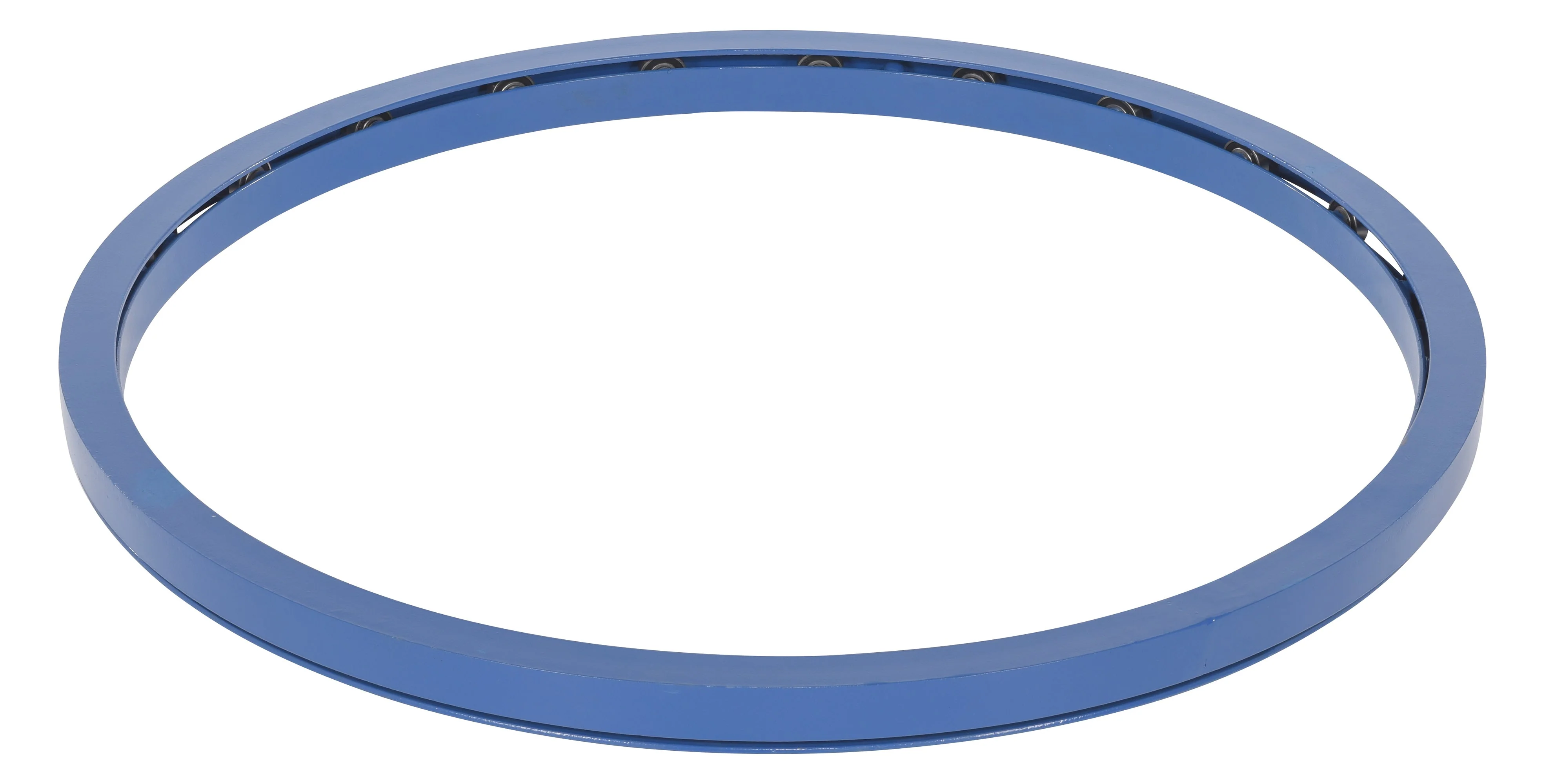

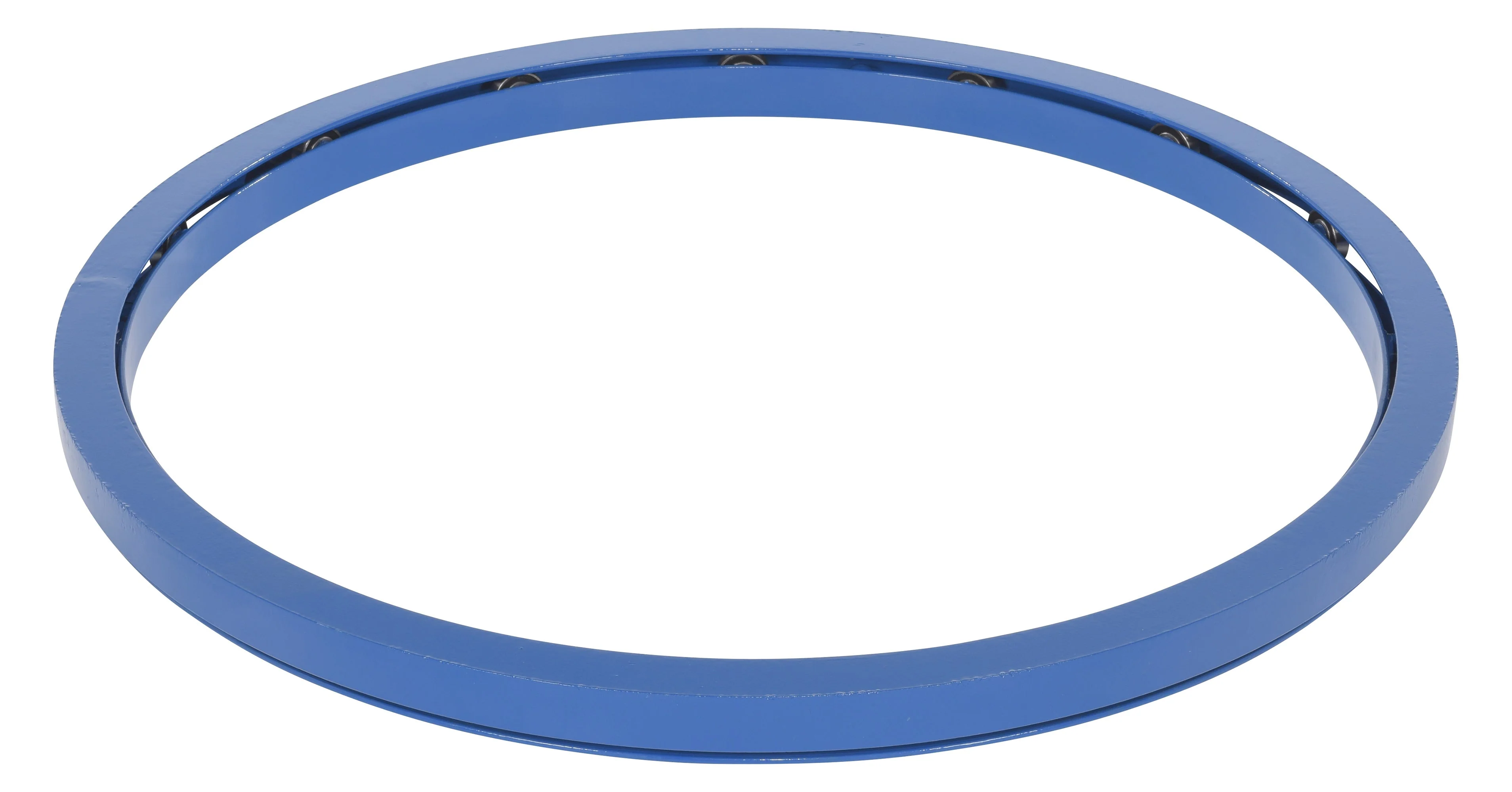

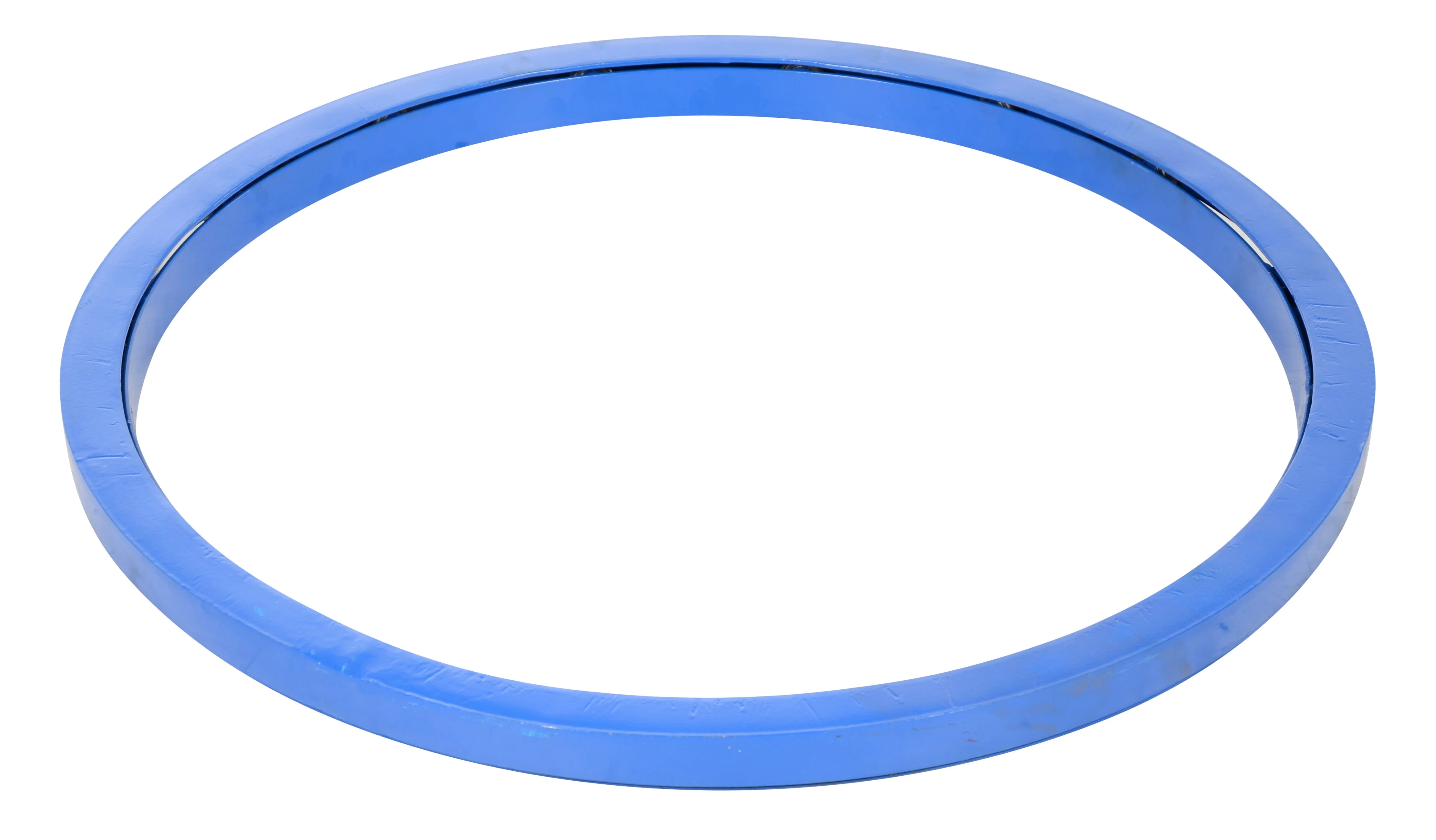

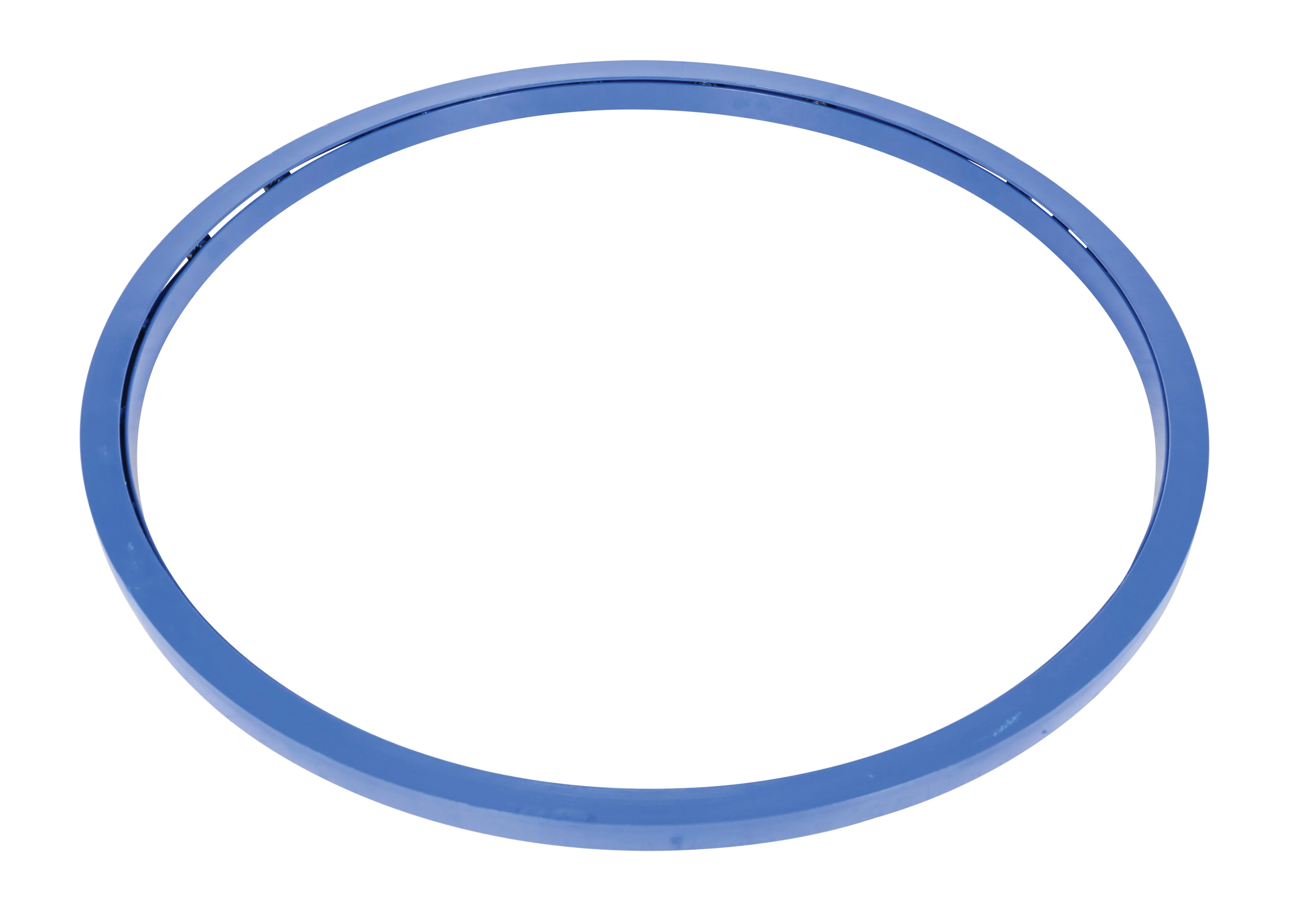

The Manual Carousels rotate materials with the assistance of an operator. Now loading and unloading operations can be done more efficiently; minimizing fatigue and risk of back injury. The carousel may be added to an existing work bench, scissor table, or simply placed on the floor. Constructed of two pieces of rolled structural angle. A series of standard sealed ball bearings transfer the load smoothly and evenly to the supporting surface. Four guide rollers keep the rings aligned.

Carousels
Model Outer
Diameter		 Height Capacity
(lbs)		 Wt.
(lbs)
CA-18-2 18" 2" 2,000 21
CA-24-2 24" 2" 2,000 28
CA-24-4 24" 2" 4,000 30
CA-30-2 30" 2" 2,000 34
CA-30-4 30" 2" 4,000 36
CA-36-2 36" 2" 2,000 41
CA-36-4 36" 2" 4,000 45
CA-40-2 40" 2" 2,000 47
CA-40-4 40" 2" 4,000 49
CA-40-6 40" 2" 6,000 51
CA-48-2 48" 2" 2,000 71
CA-48-4 48" 2" 4,000 86
CA-48-6 48" 2" 6,000 97
CA-60-2 60" 2" 2,000 110
CA-60-4 60" 2" 4,000 116
CA-60-6 60" 2" 6,000 128
CA-72-2 72" 2" 2,000 163
CA-72-4 72" 2" 4,000 163
CA-72-6 72" 2" 6,000 134

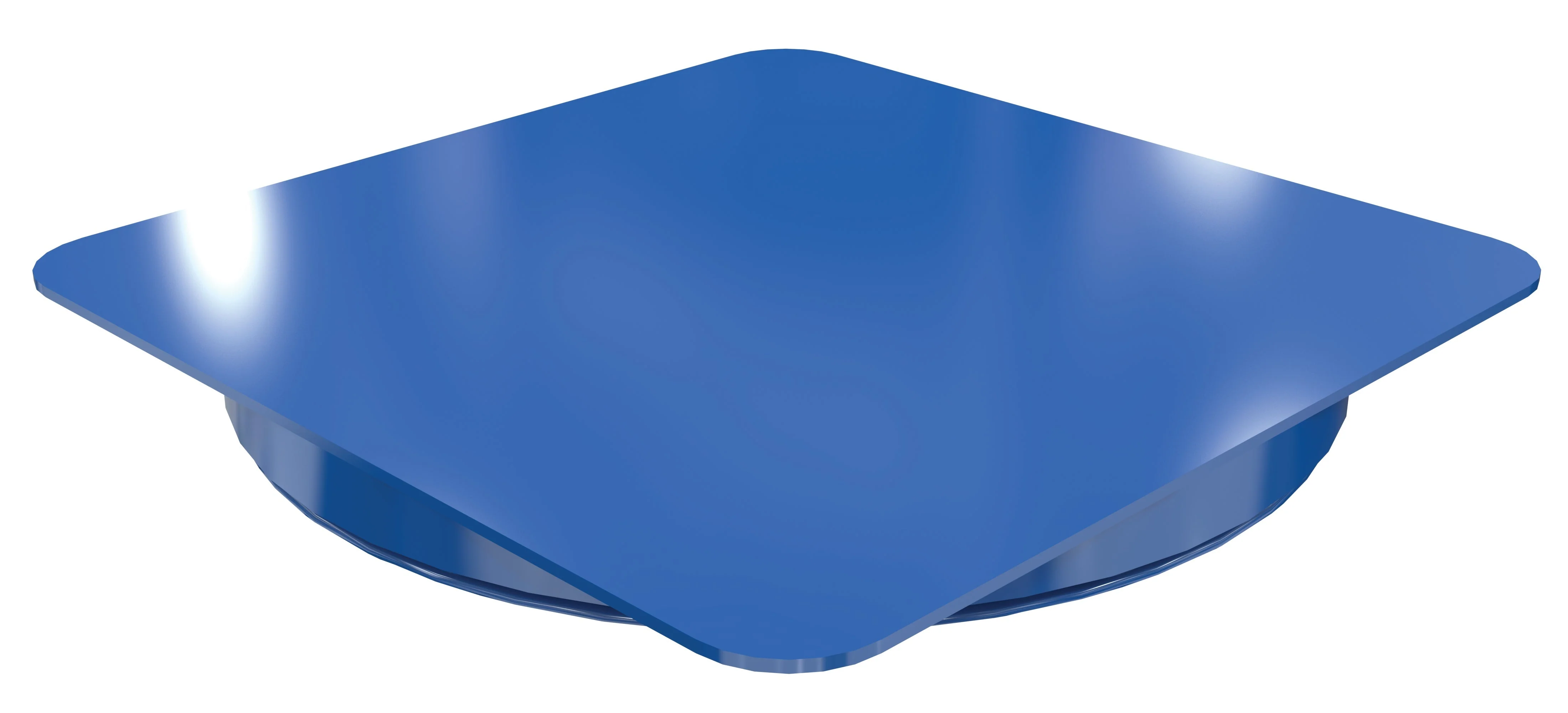

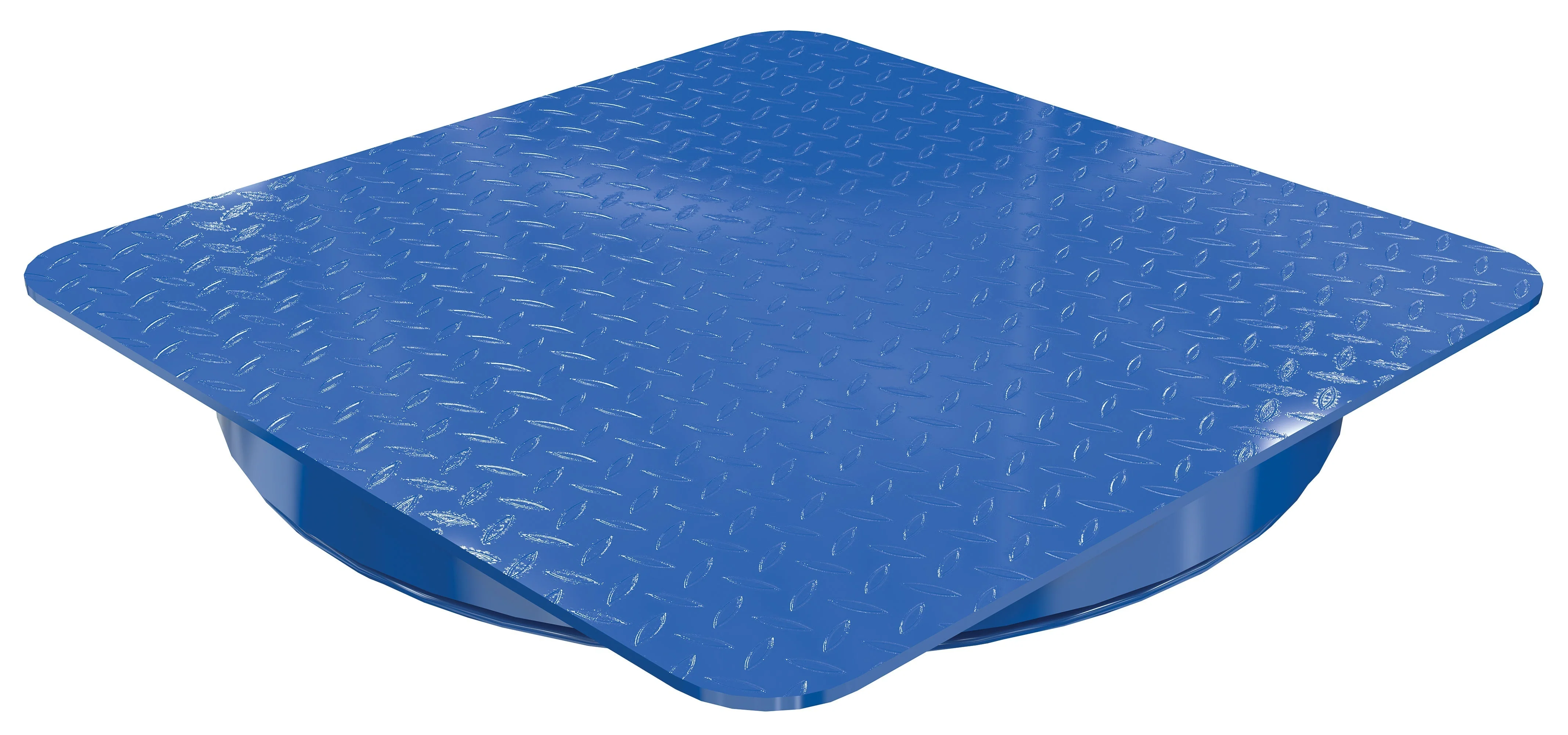

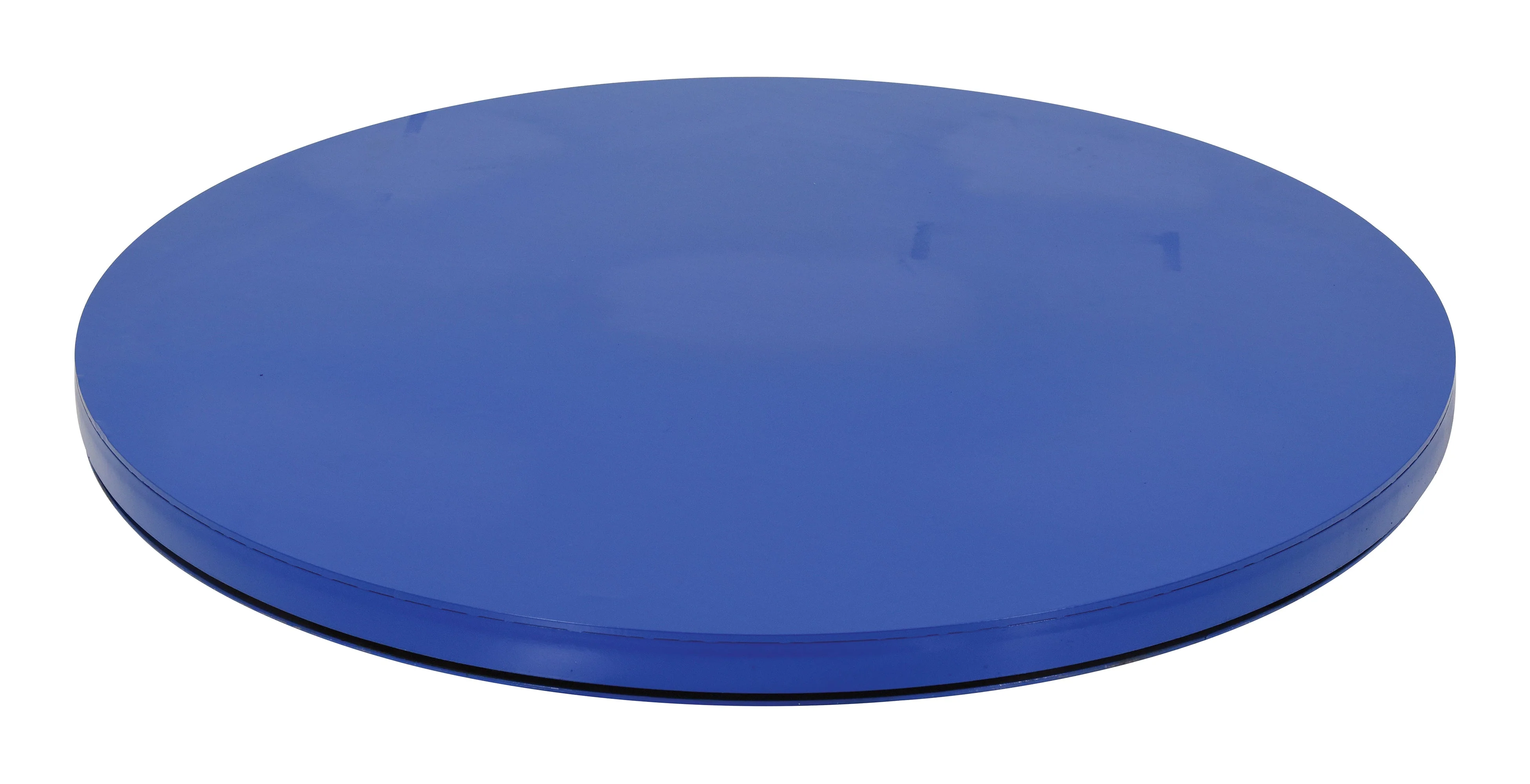

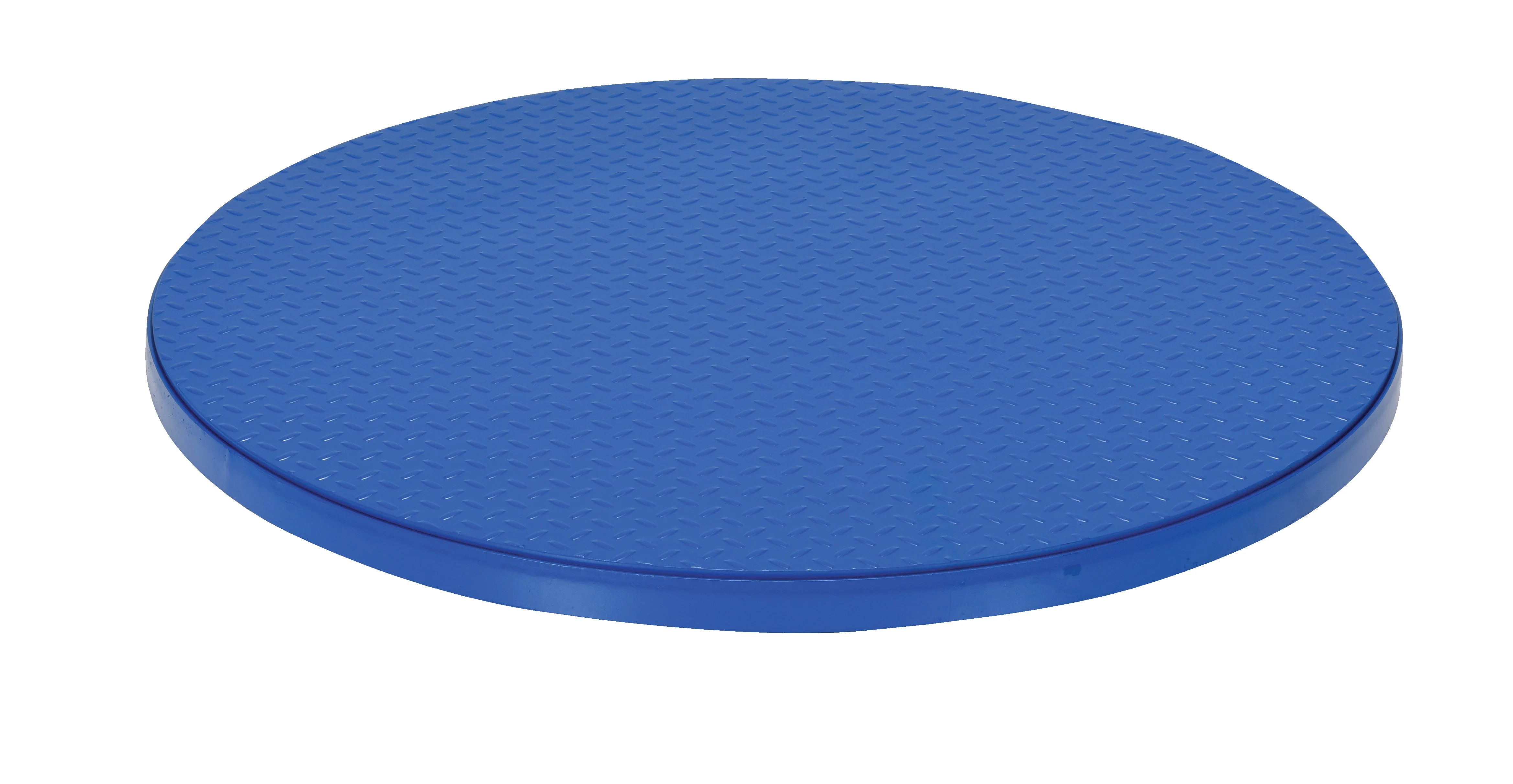

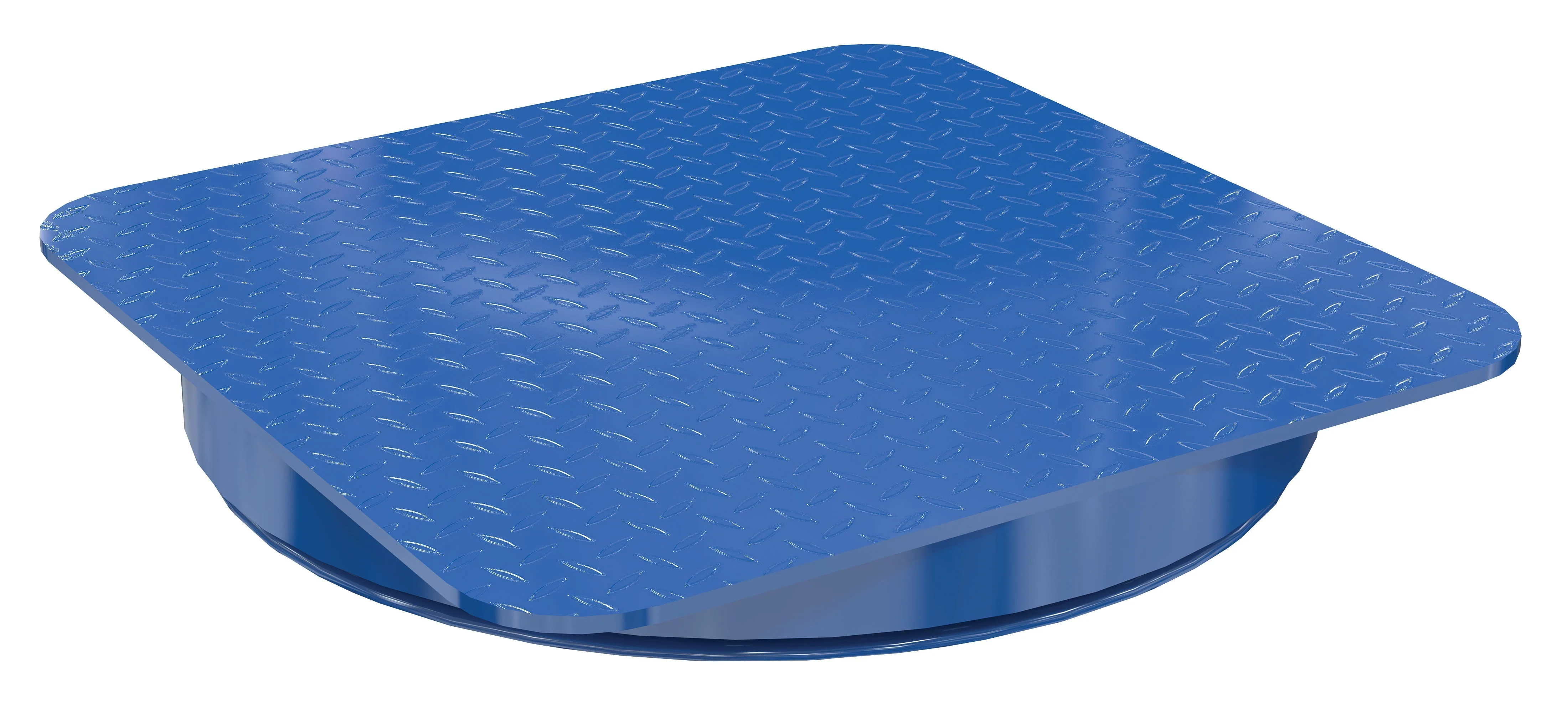

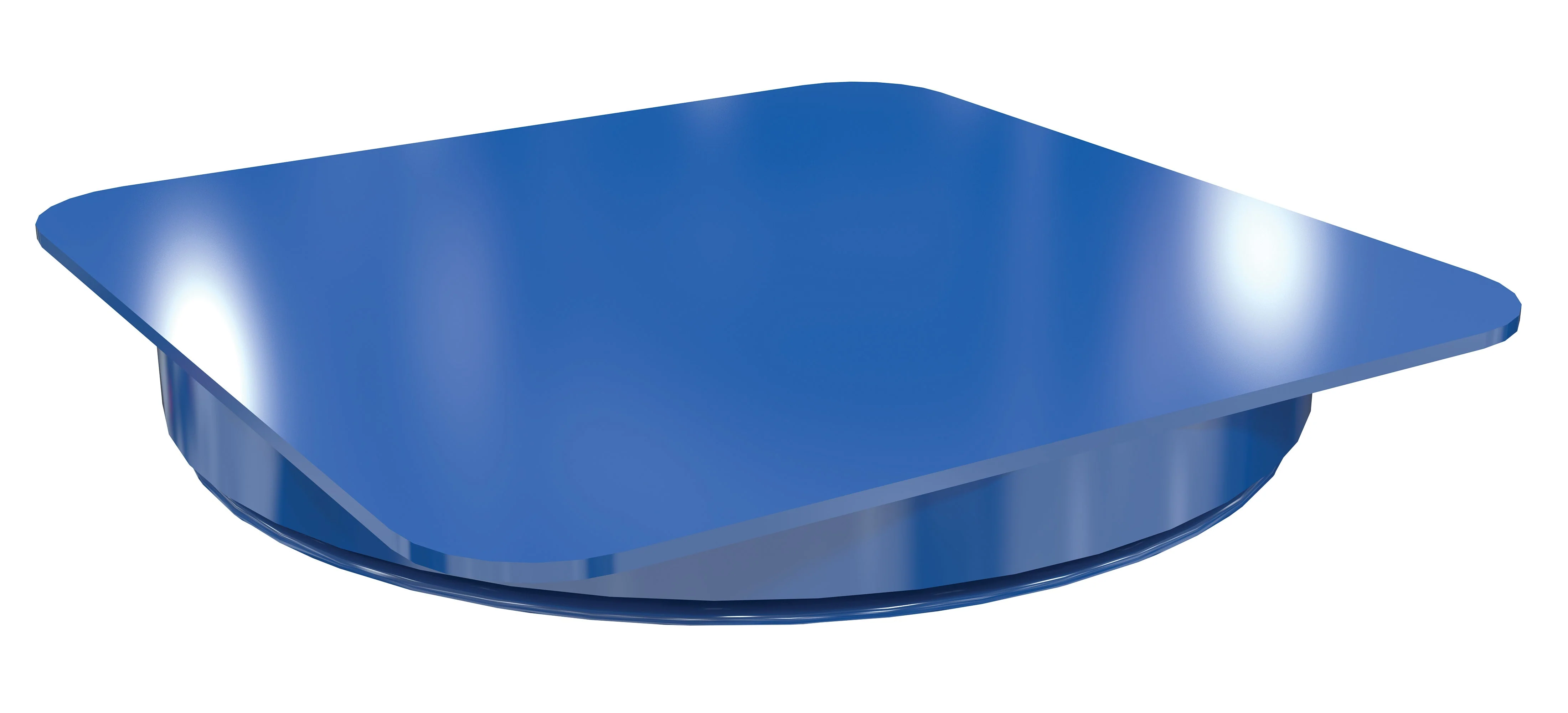

Steel Tread Plate Top Plates for Carousel (1/4" Thick)
Model Number
Diamond Plate		 Model Number
Smooth Plate		 Style Overall
Size		 Carousel
Diameter		 Wt.
(lbs)
CA-18-2-TP-RTP CA-18-2-TP-RSM Round 18" Dia. 18" 35
CA-24-2-TP-RTP CA-24-2-TP-RSM Round 24" Dia. 24" 52
CA-30-2-TP-RTP CA-30-2-TP-RSM Round 30" Dia. 30" 72
CA-36-2-TP-RTP CA-36-2-TP-RSM Round 36" Dia. 36" 136
CA-40-2-TP-RTP CA-40-2-TP-RSM Round 40" Dia. 40" 160
CA-48-2-TP-RTP CA-48-2-TP-RSM Round 48" Dia. 48" 210
CA-60-2-TP-RTP CA-60-2-TP-RSM Round 60" Dia. 60" 322
CA-72-2-TP-RTP CA-72-2-TP-RSM Round 72" Dia. 72" 445
CA-18-2-TP-STP CA-18-2-TP-SSM Square 18"Wx18"L 18" 35
CA-24-2-TP-STP CA-24-2-TP-SSM Square 24"Wx24"L 24" 52
CA-30-2-TP-STP CA-30-2-TP-SSM Square 30"Wx30"L 30" 72
CA-36-2-TP-STP CA-36-2-TP-SSM Square 36"Wx36"L 36" 136
CA-40-2-TP-STP CA-40-2-TP-SSM Square 40"Wx40"L 40" 160
CA-48-2-TP-STP CA-48-2-TP-SSM Square 48"Wx48"L 48" 210
CA-60-2-TP-STP CA-60-2-TP-SSM Square 60"Wx60"L 60" 322
CA-72-2-TP-STP CA-72-2-TP-SSM Square 72"Wx72"L 72" 445
Do not exceed the diameter of carousel when ordering top plates
Top Plate & Top Ring are welded together. Contact factory for other fastening options.

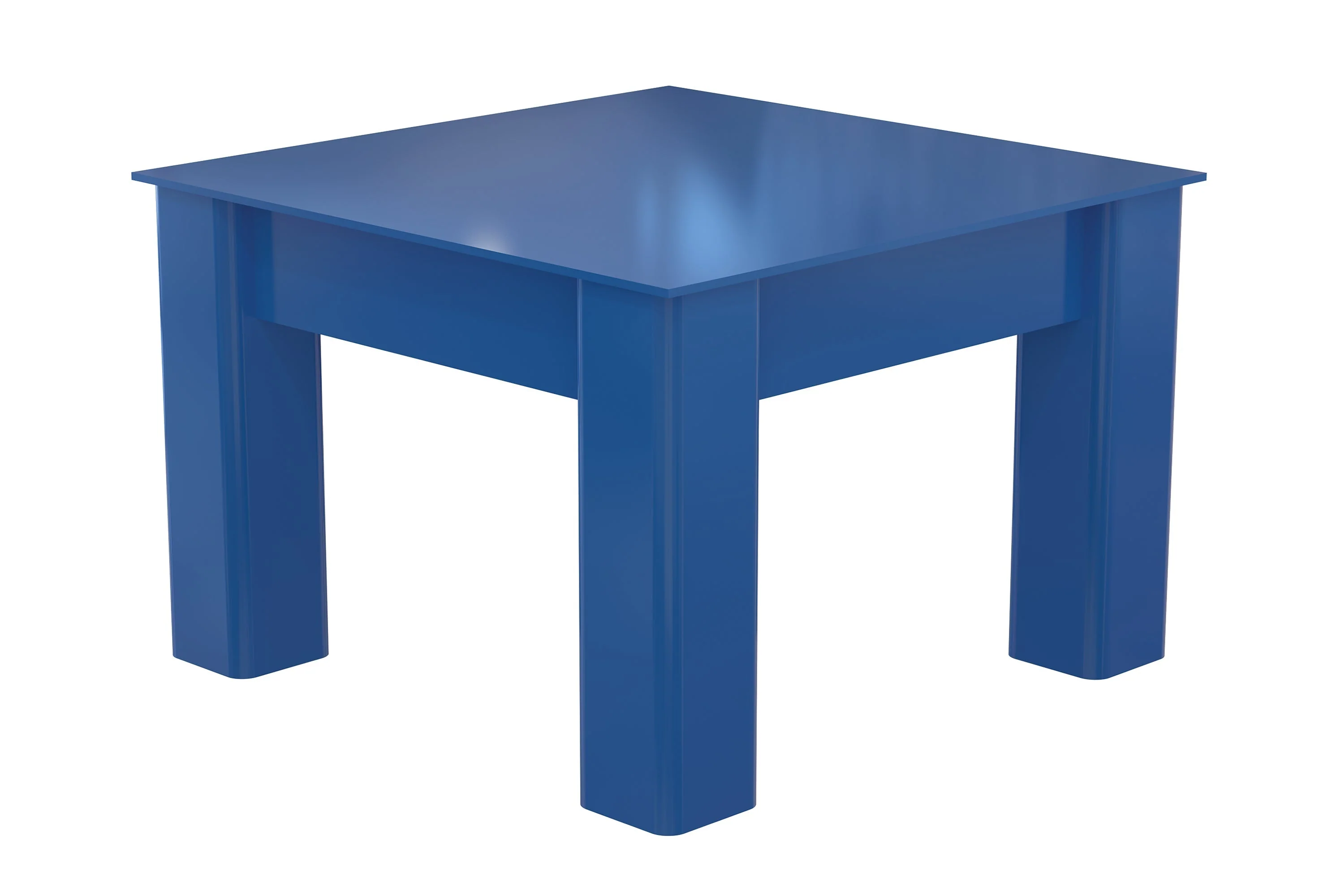

ELEVATED BASES FOR CAROUSELS - 12" HIGH
Model Overall Size
(WxL)		 Capacity
Up To (lbs)		 Wt.
(lbs)
CA-BASE-18-12 18"x18" 2,000 195
CA-BASE-24-12 24"x24" 4,000 245
CA-BASE-30-12 30"x30" 4,000 295
CA-BASE-36-12 36"x36" 4,000 345
CA-BASE-40-12 40"x40" 6,000 395
CA-BASE-48-12 48"x48" 6,000 450
CA-BASE-60-12 60"x60" 6,000 530
CA-BASE-72-12 72"x72" 6,000 590
ELEVATED BASES FOR CAROUSELS - 24" HIGH
Model Overall Size
(WxL)		 Capacity
Up To (lbs)		 Wt.
(lbs)
CA-BASE-18-24 18"x18" 2,000 330
CA-BASE-24-24 24"x24" 4,000 380
CA-BASE-30-24 30"x30" 4,000 430
CA-BASE-36-24 36"x36" 4,000 460
CA-BASE-40-24 40"x40" 6,000 510
CA-BASE-48-24 48"x48" 6,000 565
CA-BASE-60-24 60"x60" 6,000 645
CA-BASE-72-24 72"x72" 6,000 705
