Vestil Thin Spins

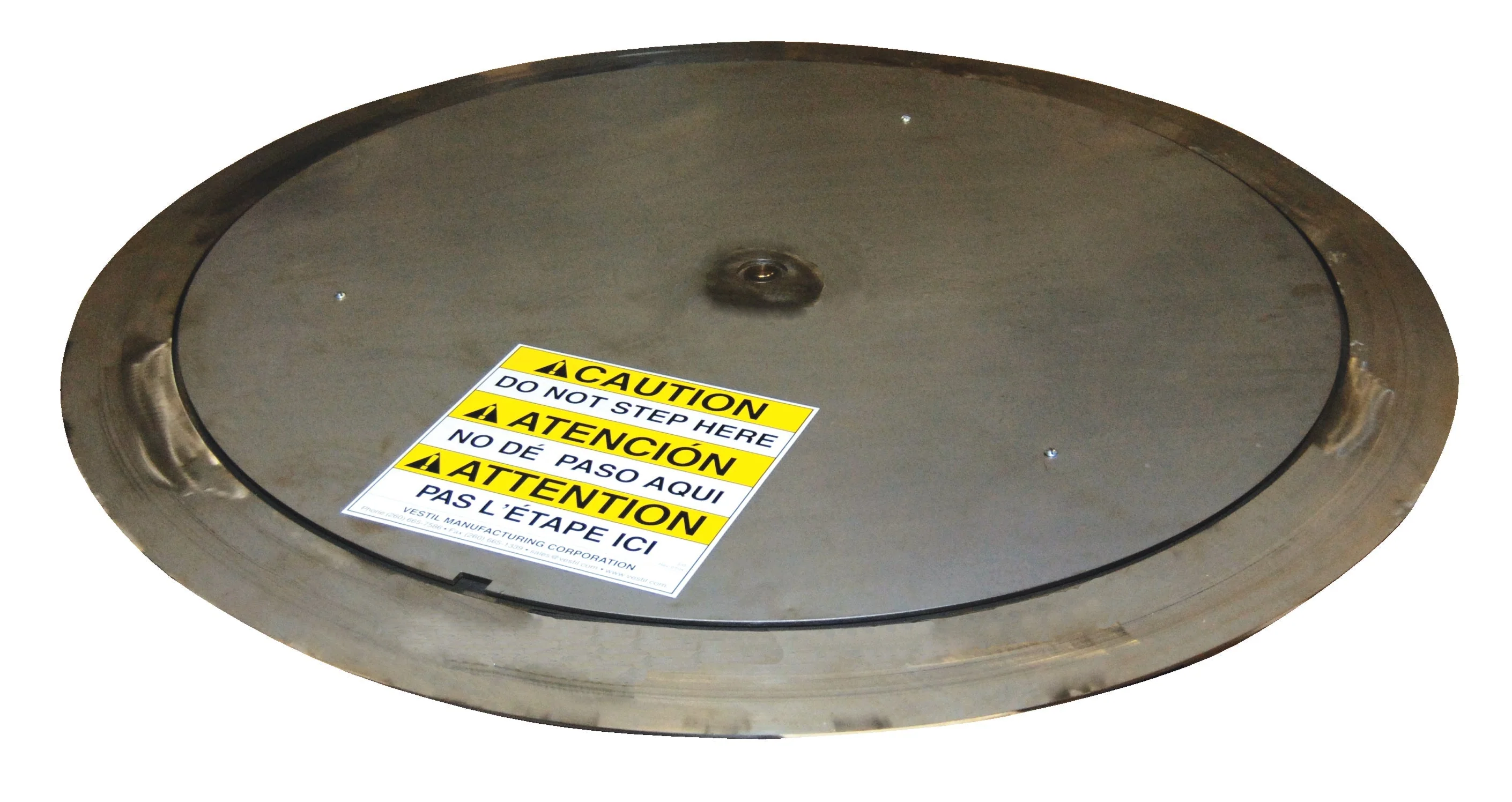

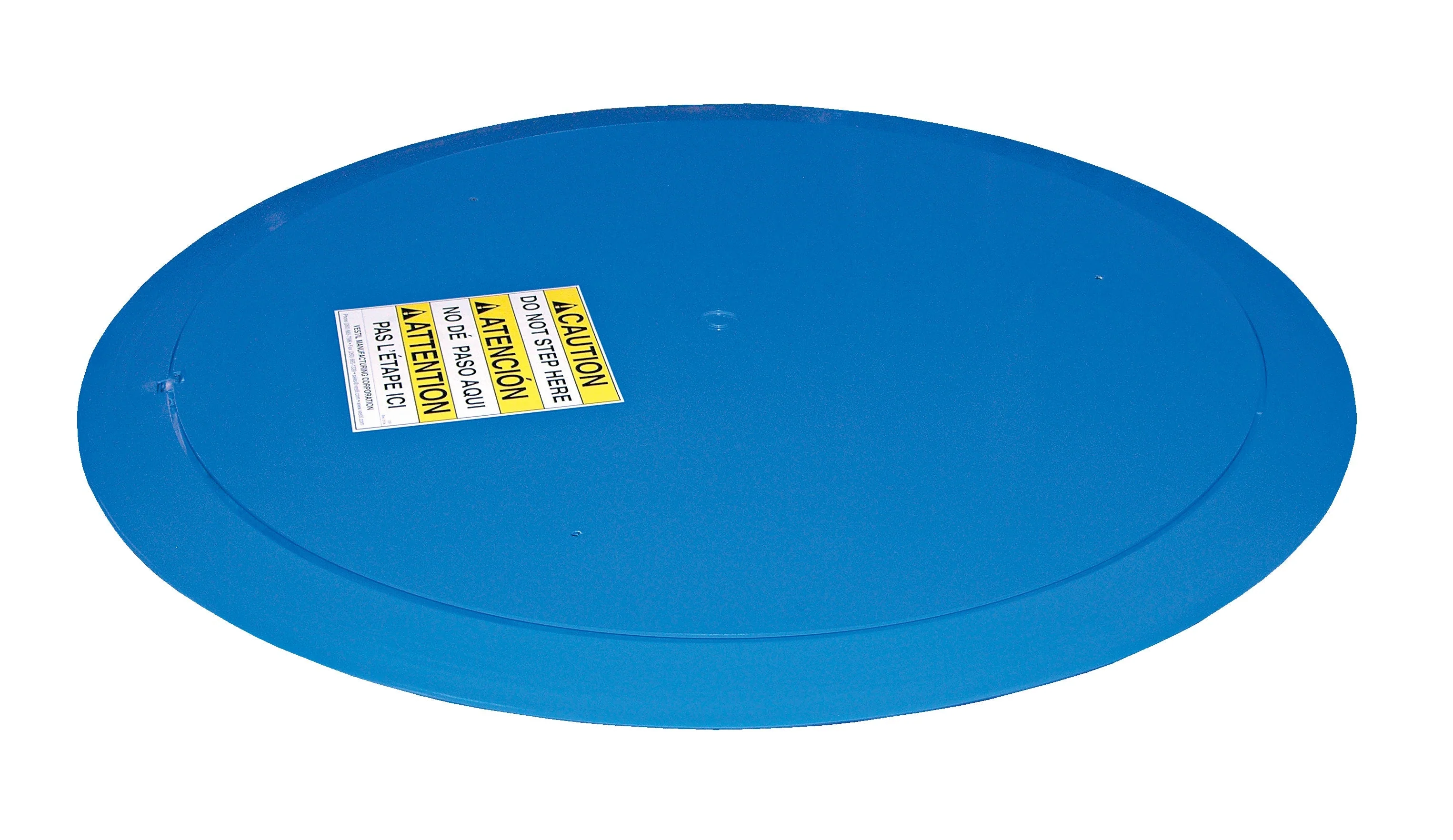

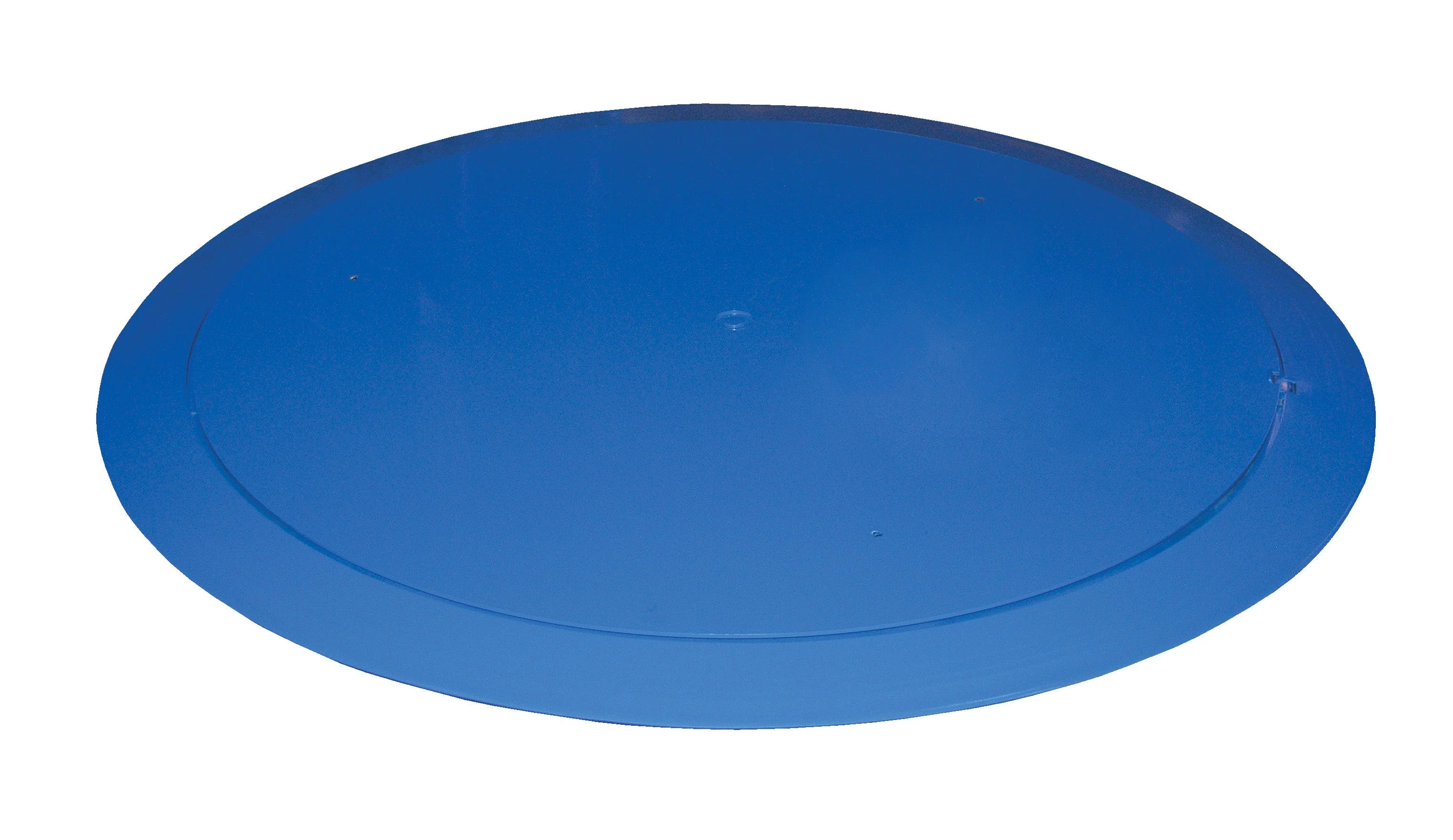

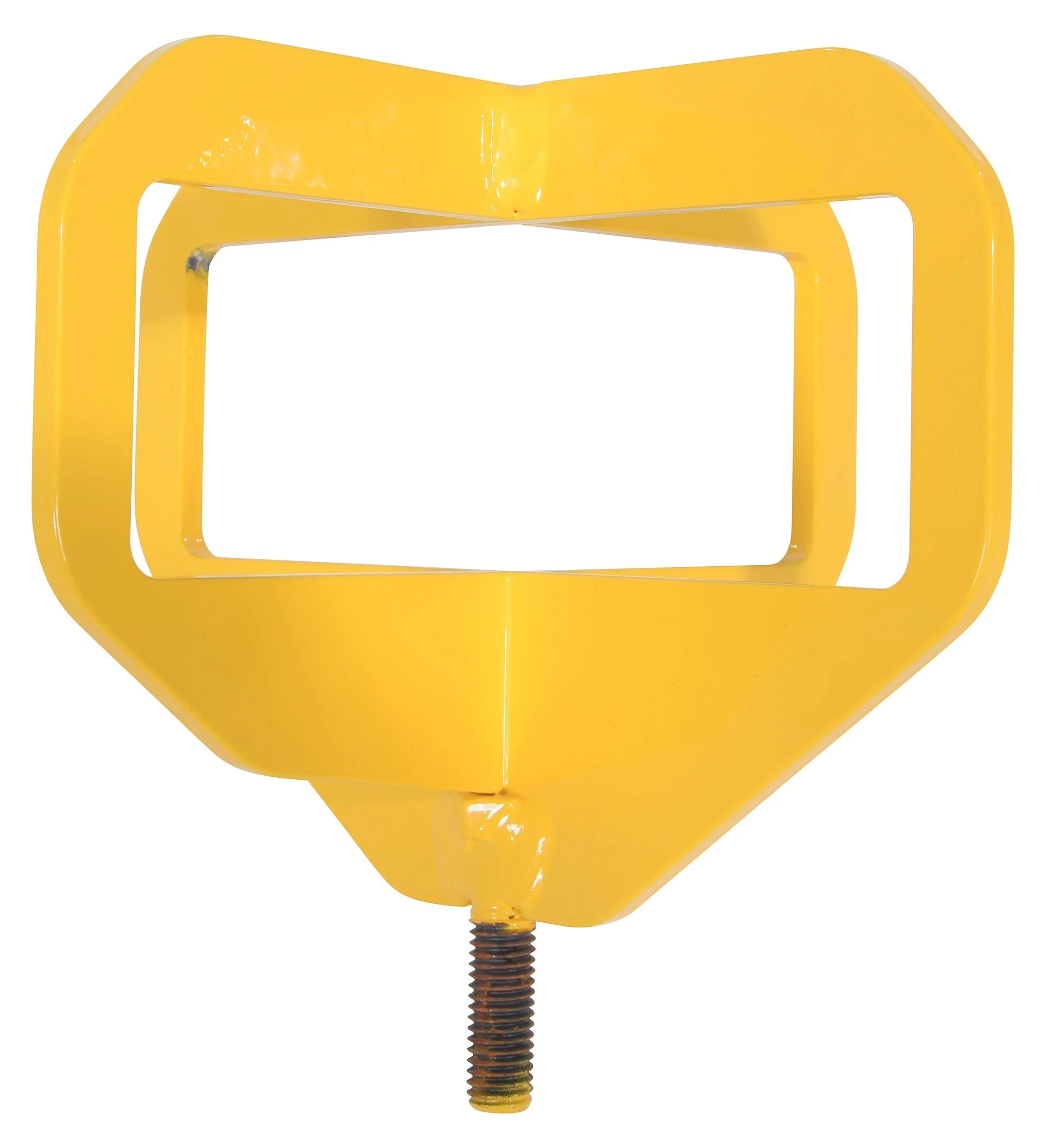

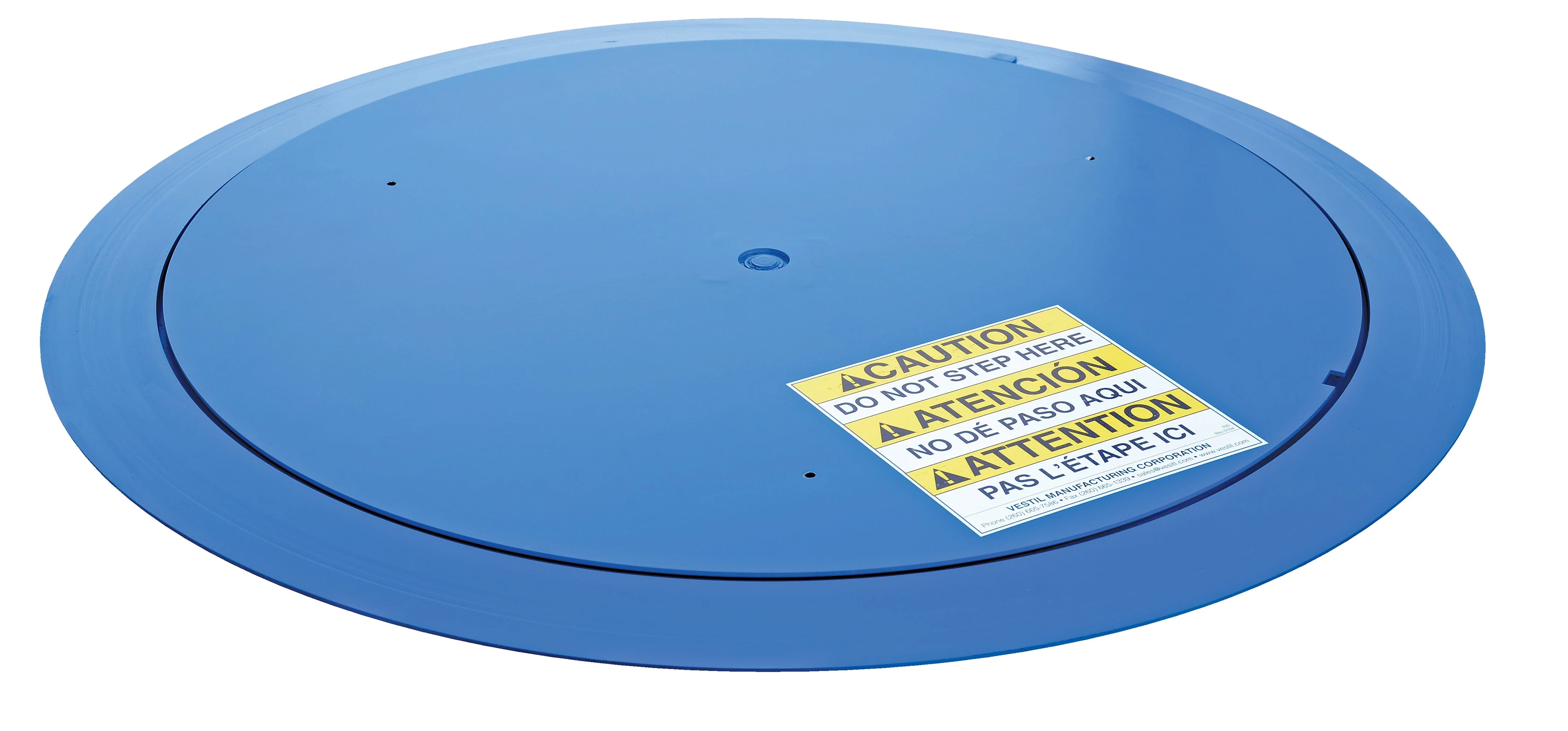

When confronted with minimum floor space and only a hand pallet truck, the Thin Spin low-profile carousel is ideal for loading and unloading pallet applications. The Thin Spin is pallet truck loadable because of its sleek 7/8" overall height. The effective ramping length is 4-3/8"; slope is a mere 11 degrees. A safety detent lock restricts carousel rotation when not in use. Units require a starting force of 35 lbs. and a maintaining force of 25 lbs. Units are not suitable for wash down applications. Please contact factory. * Low-Profile design is ideal for use with Pallet Trucks. Optional Lifting Loop (LP-LL): An optional lifting loop makes lifting thin spins, simple. The loop is specifically designed for the Vestil Thin spin models. With a four sided framework, the movement of the lifting fork is minimized. Once the fork is secured in place, the thin spin is ready to be lifted.
| Thin Spin | ||||||
| Model | Description | Starting Force | Maintain Force | Height | Capacity (lbs) | Wt. (lbs.) |
| LP-4000T | 51" Usable Diameter (59-11/16" Overall Diameter) | 35 Lbs. | 25 Lbs. | 7/8" | 4,000 | 270 |
| LP-4000T-45 | 45" Usable Diameter (53-11/16" Overall Diameter) | 35 Lbs. | 25 Lbs. | 7/8" | 4,000 | 257 |
| LP-4000T-39 | 39" Usable Diameter (47-11/16" Overall Diameter) | 35 Lbs. | 25 Lbs. | 7/8" | 4,000 | 189 |
|
Stainless Steel |
||||||
| LP-4000T-SS | 51" Usable Diameter (59-11/16" Overall Diameter) | 35 Lbs. | 25 Lbs. | 7/8" | 4,000 | 300 |
| LP-4000T-45-SS | 45" Usable Diameter (53-11/16" Overall Diameter) | 35 Lbs. | 25 Lbs. | 7/8" | 4,000 | 253 |
| LP-4000T-39-SS | 39" Usable Diameter (47-11/16" Overall Diameter) | 35 Lbs. | 25 Lbs. | 7/8" | 4,000 | 206 |
Original: $53.68
-65%$53.68
$18.79
Description
When confronted with minimum floor space and only a hand pallet truck, the Thin Spin low-profile carousel is ideal for loading and unloading pallet applications. The Thin Spin is pallet truck loadable because of its sleek 7/8" overall height. The effective ramping length is 4-3/8"; slope is a mere 11 degrees. A safety detent lock restricts carousel rotation when not in use. Units require a starting force of 35 lbs. and a maintaining force of 25 lbs. Units are not suitable for wash down applications. Please contact factory. * Low-Profile design is ideal for use with Pallet Trucks. Optional Lifting Loop (LP-LL): An optional lifting loop makes lifting thin spins, simple. The loop is specifically designed for the Vestil Thin spin models. With a four sided framework, the movement of the lifting fork is minimized. Once the fork is secured in place, the thin spin is ready to be lifted.
| Thin Spin | ||||||
| Model | Description | Starting Force | Maintain Force | Height | Capacity (lbs) | Wt. (lbs.) |
| LP-4000T | 51" Usable Diameter (59-11/16" Overall Diameter) | 35 Lbs. | 25 Lbs. | 7/8" | 4,000 | 270 |
| LP-4000T-45 | 45" Usable Diameter (53-11/16" Overall Diameter) | 35 Lbs. | 25 Lbs. | 7/8" | 4,000 | 257 |
| LP-4000T-39 | 39" Usable Diameter (47-11/16" Overall Diameter) | 35 Lbs. | 25 Lbs. | 7/8" | 4,000 | 189 |
|
Stainless Steel |
||||||
| LP-4000T-SS | 51" Usable Diameter (59-11/16" Overall Diameter) | 35 Lbs. | 25 Lbs. | 7/8" | 4,000 | 300 |
| LP-4000T-45-SS | 45" Usable Diameter (53-11/16" Overall Diameter) | 35 Lbs. | 25 Lbs. | 7/8" | 4,000 | 253 |
| LP-4000T-39-SS | 39" Usable Diameter (47-11/16" Overall Diameter) | 35 Lbs. | 25 Lbs. | 7/8" | 4,000 | 206 |
