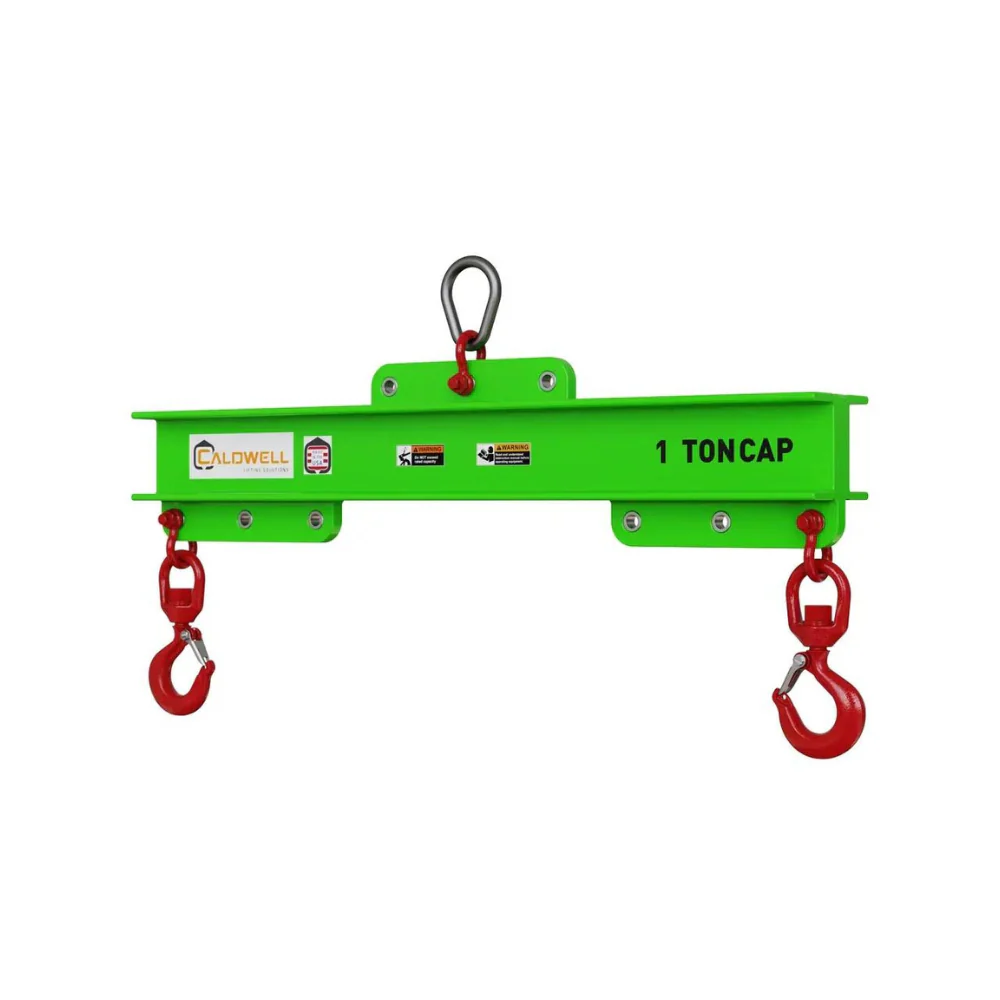

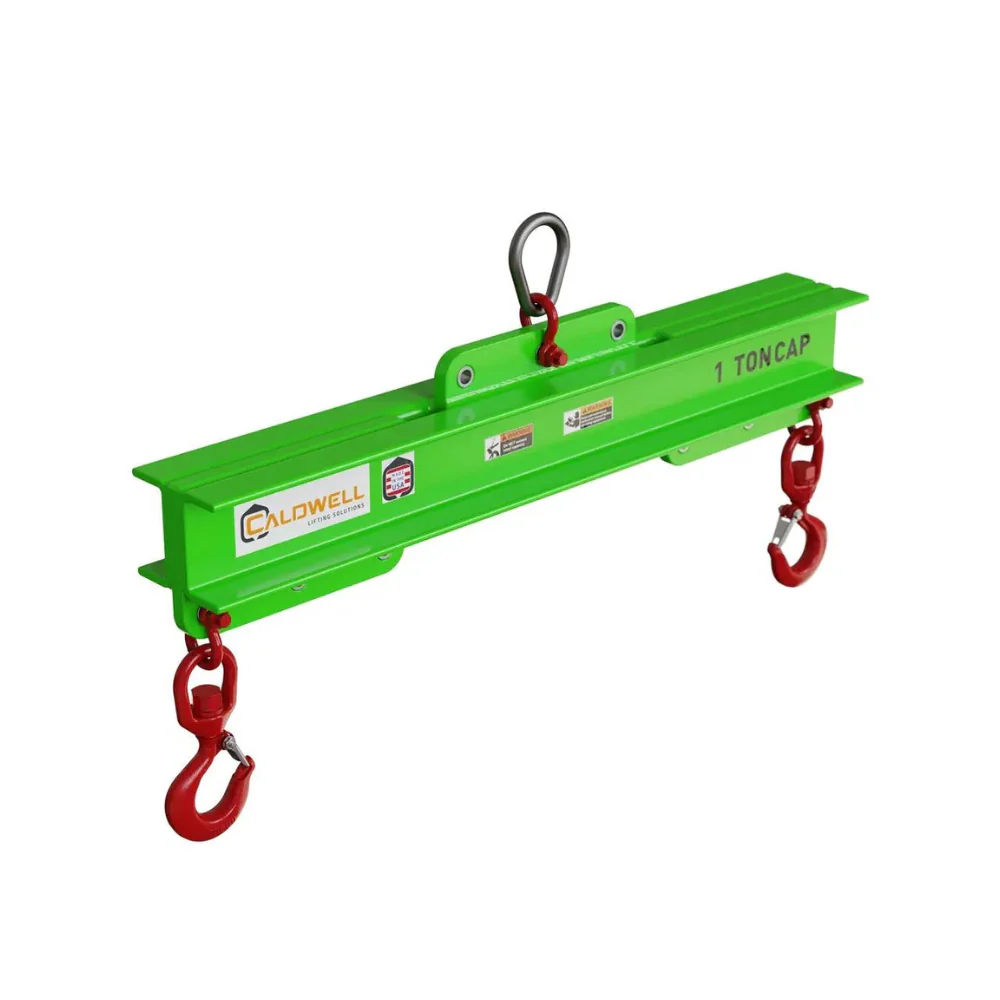

Caldwell Dura-Lite Composite Adjustable Lifting Beams
Ingeniously designed to cater for the rigors of corrosive environments, workspaces where sparks are a serious risk, or simply situations where a lighter beam can handle a heavy load, Caldwell's Dura-Lite Composite Adjustable Lifting Beams are a great option.
Available in a safe working load capacities from 0.25t up to 3t, with a range of spreads, these lifting beams are manufactured from heavy-duty non-corrosive materials, making them ideal for a plethora of applications.
Proof tested and supplied with a certificate of conformity, these units comply with ASME B30.20, design category B, service class 4, as well as being European Community standards CE.
|
SKU |
Capacity (tons) |
Max. Spread (in.) |
Min. Spread (in.) |
Bail Adj Increments (in.) |
HR (in.) |
Beam Weight Only (lbs) |
Weight w/ Hardware (lbs) |

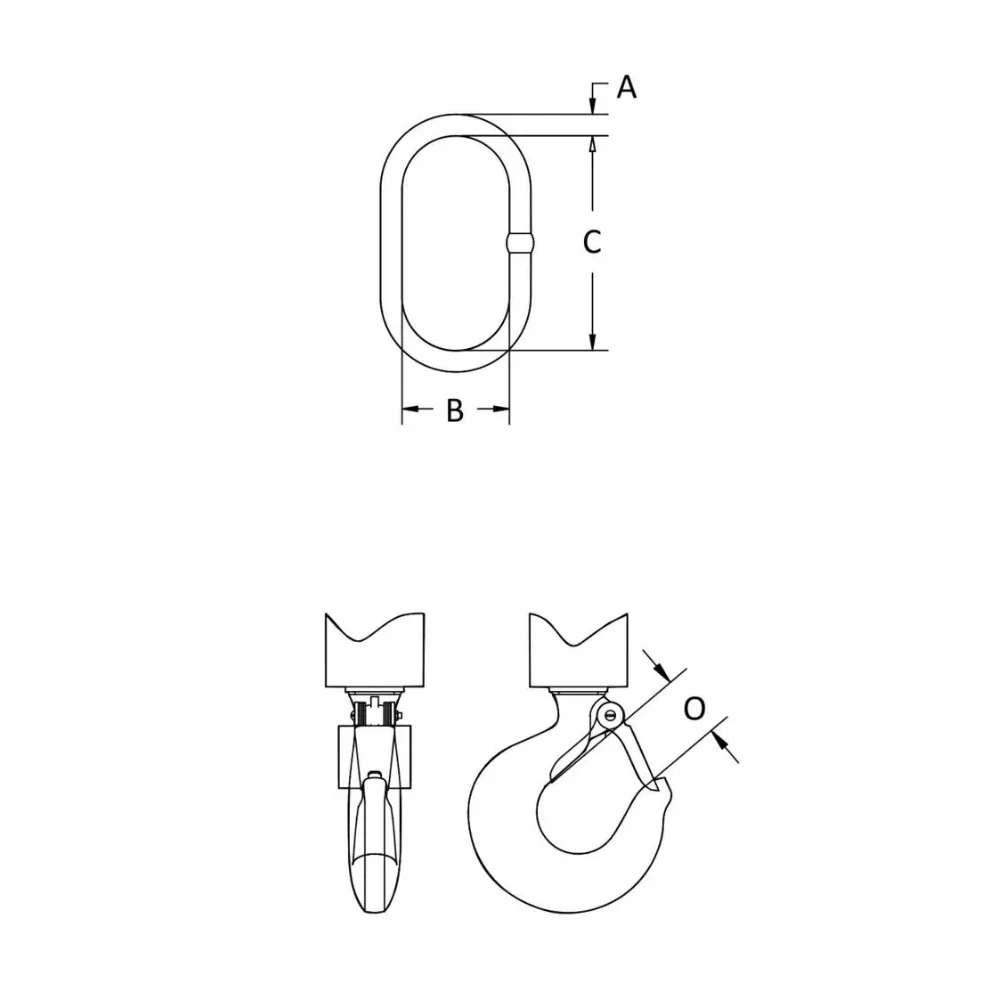

A (in.) |
B (in.) |
C (in.) |
O (in.) |
|
416-1/4-2 |
0.25 |
24 |
12 |
3 |
13.5 |
7 |
9 |
0.38 |
1.5 |
2 |
0.89 |
|
416-1/4-3 |
0.25 |
36 |
24 |
3 |
13.5 |
9 |
11 |
0.38 |
1.5 |
2 |
0.89 |
|
416-1/4-4 |
0.25 |
48 |
36 |
3 |
13.5 |
11 |
13 |
0.38 |
1.5 |
2 |
0.89 |
|
416-1/4-6 |
0.25 |
72 |
48 |
6 |
16.5 |
27 |
28 |
0.38 |
1.5 |
2 |
0.89 |
|
416-1/4-8 |
0.25 |
96 |
72 |
6 |
16.5 |
32 |
35 |
0.38 |
1.5 |
2 |
0.89 |
|
416-1/4-10 |
0.25 |
120 |
96 |
6 |
18.5 |
74 |
76 |
0.38 |
1.5 |
2 |
0.89 |
|
416-1/4-12 |
0.25 |
144 |
120 |
6 |
18.5 |
87 |
89 |
0.38 |
1.5 |
2 |
0.89 |
|
416-1/4-14 |
0.25 |
168 |
144 |
6 |
18.5 |
101 |
103 |
0.38 |
1.5 |
2 |
0.89 |
|
416-1/2-2 |
0.5 |
24 |
12 |
3 |
13.9 |
9 |
11 |
0.38 |
1.5 |
1.9 |
0.89 |
|
416-1/2-3 |
0.5 |
36 |
24 |
3 |
13.9 |
10 |
13 |
0.38 |
1.5 |
1.9 |
0.89 |
|
416-1/2-4 |
0.5 |
48 |
36 |
3 |
14.9 |
14 |
16 |
0.38 |
1.5 |
1.9 |
0.89 |
|
416-1/2-6 |
0.5 |
72 |
48 |
6 |
16.9 |
30 |
32 |
0.38 |
1.5 |
1.9 |
0.89 |
|
416-1/2-8 |
0.5 |
96 |
72 |
6 |
18.9 |
64 |
66 |
0.38 |
1.5 |
1.9 |
0.89 |
|
416-1/2-10 |
0.5 |
120 |
96 |
6 |
18.9 |
80 |
82 |
0.38 |
1.5 |
1.9 |
0.89 |
|
416-1-2 |
1 |
24 |
12 |
3 |
20.4 |
14 |
20 |
0.62 |
2.8 |
4.5 |
0.91 |
|
416-1-3 |
1 |
36 |
24 |
3 |
20.4 |
16 |
22 |
0.62 |
2.8 |
4.5 |
0.91 |
|
416-1-4 |
1 |
48 |
36 |
3 |
22.4 |
23 |
29 |
0.62 |
2.8 |
4.5 |
0.91 |
|
416-1-6 |
1 |
72 |
48 |
6 |
24.4 |
60 |
66 |
0.62 |
2.8 |
4.5 |
0.91 |
|
416-1-8 |
1 |
96 |
72 |
6 |
25.4 |
72 |
79 |
0.62 |
2.8 |
4.5 |
0.91 |
|
416-2-2 |
2 |
24 |
12 |
3 |
23.5 |
19 |
30 |
0.62 |
2.8 |
4.3 |
1.09 |
|
416-2-3 |
2 |
36 |
24 |
3 |
25.5 |
25 |
36 |
0.62 |
2.8 |
4.3 |
1.09 |
|
416-2-4 |
2 |
48 |
36 |
3 |
27.5 |
45 |
57 |
0.62 |
2.8 |
4.3 |
1.09 |
|
416-2-6 |
2 |
72 |
48 |
6 |
27.5 |
68 |
79 |
0.62 |
2.8 |
4.3 |
1.09 |
|
416-3-2 |
3 |
24 |
12 |
3 |
26.5 |
22 |
38 |
0.62 |
2.8 |
4.3 |
1.36 |
|
416-3-3 |
3 |
36 |
24 |
3 |
26.5 |
25 |
41 |
0.62 |
2.8 |
4.3 |
1.36 |
|
416-3-4 |
3 |
48 |
36 |
3 |
28.5 |
45 |
62 |
0.62 |
2.8 |
4.3 |
1.36 |
Original: $1,518.00
-65%$1,518.00
$531.30
