Renfroe WHSR Non-Locking Type Horizontal Lifting Clamps
Renfroe brings its eye for detail, quality design, and efficient lifting with the WSHR Non-Locking Type Horizontal Lifting Clamp.
With working load limit options from 0.5tons up to 8tons, there's a solution for your specific requirements.
Engineered to allowing both easy attachment and detachment of the clamp to the load, the dual spring-loaded gripping cams remain open until the load is applied, with effortless jaw opening adjustments via positioning pin.
NOTE: DESIGNED FOR USE IN PAIRS
|

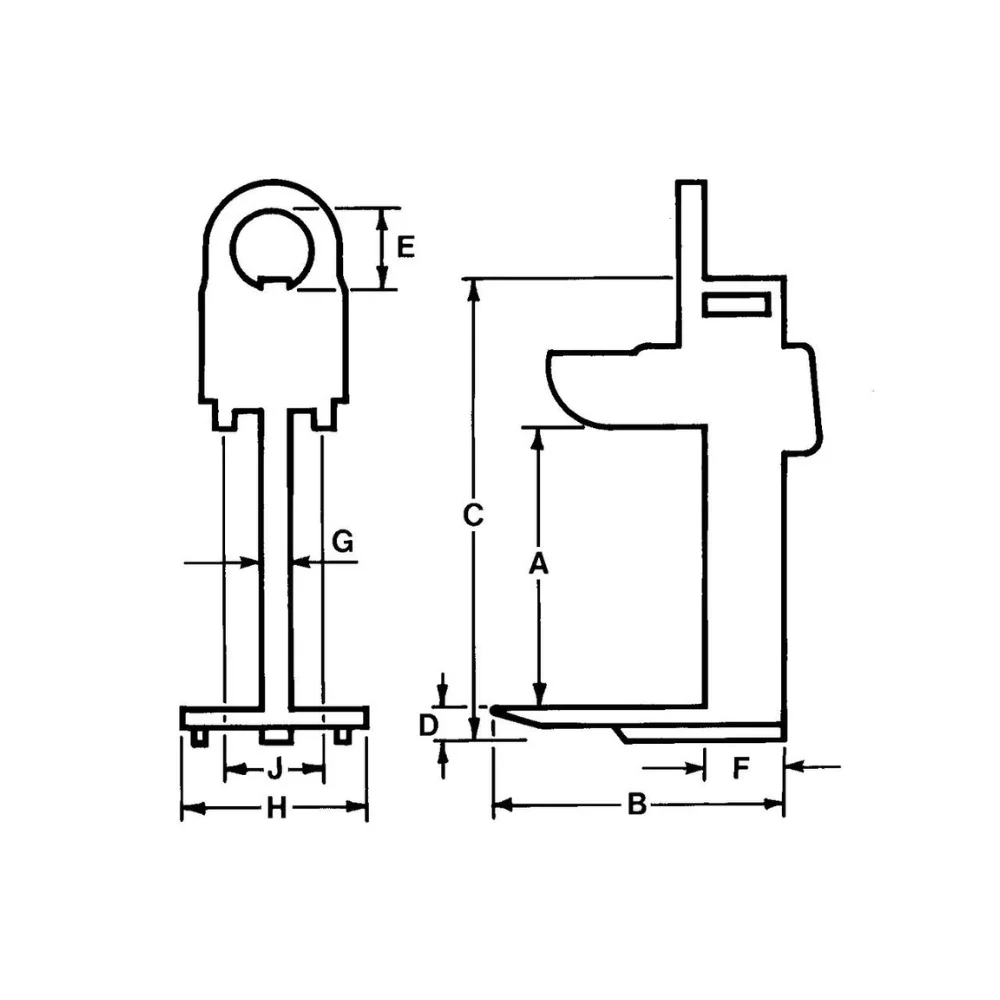

SKU |
Capacity (tons) |
Shackle Hole Dia (in.) |
Weight (lbs) |
Max Jaw Open (in.) |
Body Thick (in.) |
Clamp Body Width (in.) |
Clamp Height (in.) |
Clamp Length (in.) |
Jaw Thick (in.) |
Jaw Width (in.) |
Shackle Ctr-Ctr Length (in.) |
|
WHSR-00.50-A |
0.5 |
3.5 |
46 |
6 |
0.5 |
3 |
14.19 |
10.75 |
0.62 |
8.38 |
4.5 |
|
WHSR-00.50-B |
0.5 |
3.5 |
60 |
12 |
0.5 |
5 |
23.12 |
13 |
0.62 |
8.25 |
4.5 |
|
WHSR-00.50-C |
0.5 |
3.5 |
80 |
16 |
0.5 |
5 |
27.19 |
13 |
0.62 |
8.25 |
4.5 |
|
WHSR-01.50-A |
1.5 |
3.5 |
66 |
6 |
0.75 |
3 |
14.31 |
10.75 |
0.75 |
8.38 |
4.62 |
|
WHSR-01.50-B |
1.5 |
3.5 |
90 |
12 |
0.75 |
5 |
23.25 |
13 |
0.75 |
8.25 |
4.62 |
|
WHSR-01.50-C |
1.5 |
3.5 |
104 |
16 |
0.75 |
5 |
27.31 |
13 |
0.75 |
8.25 |
4.62 |
|
WHSR-03.00-A |
3 |
3.5 |
70 |
6 |
1 |
3 |
15.25 |
10.75 |
1.62 |
8.38 |
4.62 |
|
WHSR-03.00-B |
3 |
3.5 |
94 |
12 |
1 |
5 |
23.31 |
13 |
1.62 |
8.25 |
4.62 |
|
WHSR-03.00-C |
3 |
3.5 |
112 |
16 |
1 |
5 |
27.81 |
13 |
1.62 |
8.25 |
4.62 |
|
WHSR-06.00-A |
6 |
3.5 |
108 |
6 |
1 |
5 |
18.06 |
13 |
2.25 |
8.25 |
4.62 |
|
WHSR-06.00-B |
6 |
3.5 |
114 |
12 |
1 |
5 |
24.81 |
13 |
2.25 |
8.25 |
4.62 |
|
WHSR-08.00-A |
8 |
3.5 |
220 |
16 |
1 |
6 |
28.88 |
13 |
3 |
8.25 |
5.25 |
|
WHSR-08.00-B |
8 |
3.5 |
141 |
12 |
1 |
6 |
24.88 |
13 |
3 |
8.25 |
5.25 |
Original: $1,690.00
-65%$1,690.00
$591.50
Description
Renfroe brings its eye for detail, quality design, and efficient lifting with the WSHR Non-Locking Type Horizontal Lifting Clamp.
With working load limit options from 0.5tons up to 8tons, there's a solution for your specific requirements.
Engineered to allowing both easy attachment and detachment of the clamp to the load, the dual spring-loaded gripping cams remain open until the load is applied, with effortless jaw opening adjustments via positioning pin.
NOTE: DESIGNED FOR USE IN PAIRS
|
