Renfroe NM Locking Screw Type Non-Marring Lifting Clamps
Expertly manufactured with smooth gripping surfaces to prevent any marring of stainless steel, copper, aluminum, and any other polished metal plates, the NM Series has been specifically designed to keep your plates in tip-top condition during every lift.
Recommended for use in pairs and attached to a chain/wire rope sling, supported by a spreader beam, Renfroe's NM Lifting Clamps are available in safe working loads from 1Ton up to 12Tons, with jaw openings from 0.75-inch to 6-inch (model dependant).
NOTE: The NM Lifting Clamp is not intended for use in transporting plates when using mobile equipment due to shocking of load.
|

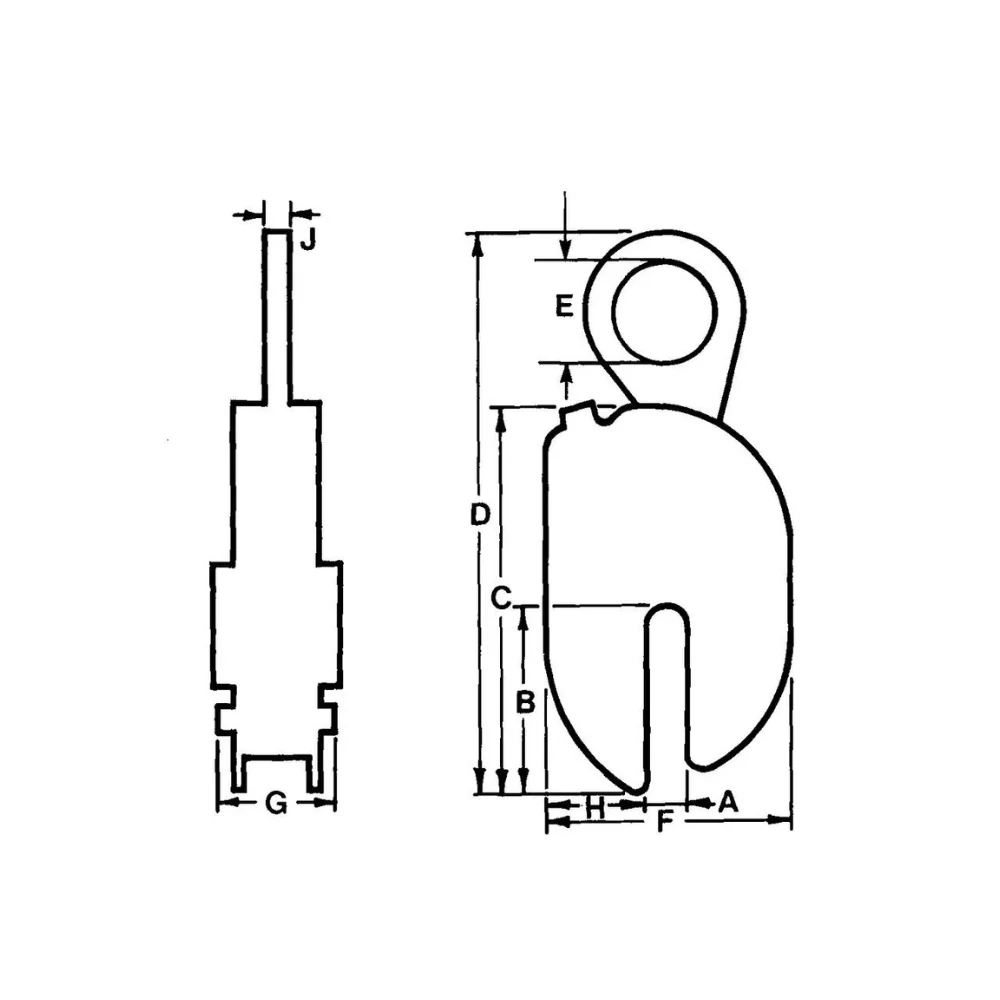

SKU |
Capacity (tons) |
Shackle Hole Dia. (in.) |
Weight (lbs) |
Max. Jaw Open (in.) |
Clamp Height (in.) |
Clamp Length (in.) |
Clamp Width (in.) |
Jaw Height (in.) |
Jaw Length (in.) |
Overall Clamp Length (in.) |
Shackle Thick (in.) |
|
NM-01.00-A |
1 |
2.375 |
17 |
0.75 |
5.875 |
9.375 |
3.125 |
2.375 |
4.5 |
15.375 |
0.625 |
|
NM-01.00-B |
1 |
2.375 |
19 |
1.25 |
6.375 |
9.375 |
3.125 |
2.375 |
4.5 |
15.375 |
0.625 |
|
NM-01.00-C |
1 |
2.375 |
21 |
1.75 |
6.875 |
9.375 |
3.125 |
2.375 |
4.5 |
15.375 |
0.625 |
|
NM-01.00-D |
1 |
2.375 |
23 |
2.25 |
7.375 |
9.375 |
3.125 |
2.375 |
4.5 |
15.375 |
0.625 |
|
NM-02.00-A |
2 |
2.625 |
23 |
1 |
6.75 |
10.0625 |
3.75 |
2.875 |
5.125 |
16 |
0.625 |
|
NM-02.00-B |
2 |
2.625 |
27 |
1.5 |
7.25 |
10.0625 |
3.75 |
2.875 |
5.125 |
16 |
0.625 |
|
NM-02.00-C |
2 |
2.625 |
28 |
2. |
7.25 |
10.0625 |
3.75 |
2.875 |
5.125 |
16 |
0.625 |
|
NM-02.00-D |
2 |
2.625 |
30 |
2.5 |
8.25 |
10.0625 |
3.75 |
2.875 |
5.125 |
16 |
0.625 |
|
NM-02.00-E |
2 |
2.625 |
33 |
3 |
8.25 |
10.0625 |
3.75 |
2.875 |
5.125 |
16 |
0.625 |
|
NM-04.00-A |
4 |
2.9375 |
45 |
1.5 |
7.75 |
12.125 |
4.5 |
1 |
5.375 |
18.5625 |
2.975 |
|
NM-04.00-B |
4 |
2.9375 |
48 |
2.5 |
8.75 |
12.125 |
4.5 |
2.9375 |
5.375 |
18.5625 |
1 |
|
NM-04.00-C |
4 |
2.9375 |
50 |
3 |
9.75 |
12.125 |
4.5 |
2.9375 |
5.375 |
18.5625 |
1 |
|
NM-04.00-D |
4 |
2.9375 |
55 |
4.25 |
11 |
12.125 |
4.5 |
2.9375 |
5.375 |
18.5625 |
1 |
|
NM-08.00-A |
8 |
3.875 |
193 |
3.25 |
15.375 |
20.25 |
6.375 |
5.875 |
11 |
27.75 |
2 |
|
NM-08.00-B |
8 |
3.875 |
195 |
3.5 |
15.625 |
20.25 |
6.375 |
5.875 |
11 |
27.75 |
2 |
|
NM-08.00-C |
8 |
3.875 |
210 |
4.5 |
16.625 |
20.25 |
6.375 |
5.875 |
11 |
27.75 |
2 |
|
NM-08.00-D |
8 |
3.875 |
225 |
5.5 |
17.625 |
20.25 |
6.375 |
5.875 |
11 |
27.75 |
2 |
|
NM-12.00-A |
12 |
3.875 |
200 |
4 |
16.125 |
20.25 |
7.875 |
5.875 |
11 |
27.75 |
2 |
|
NM-12.00-B |
12 |
3.875 |
220 |
5.5 |
17.625 |
20.25 |
7.875 |
5.875 |
11 |
27.75 |
2 |
|
NM-12.00-C |
12 |
3.875 |
240 |
6 |
18.125 |
20.25 |
7.875 |
5.875 |
11 |
27.75 |
|
Original: $3,665.00
-65%$3,665.00
$1,282.75
Description
Expertly manufactured with smooth gripping surfaces to prevent any marring of stainless steel, copper, aluminum, and any other polished metal plates, the NM Series has been specifically designed to keep your plates in tip-top condition during every lift.
Recommended for use in pairs and attached to a chain/wire rope sling, supported by a spreader beam, Renfroe's NM Lifting Clamps are available in safe working loads from 1Ton up to 12Tons, with jaw openings from 0.75-inch to 6-inch (model dependant).
NOTE: The NM Lifting Clamp is not intended for use in transporting plates when using mobile equipment due to shocking of load.
|
