Renfroe AST Non-Locking Type Lifting Clamps

Similar to the ASTL Model, Renfroe's AST Non-Locking Type Lifting Clamps have been engineered for lifting, turning, and stacking of lightweight beams and structural shapes, while a constant tension is applied to the lifting shackle.

The horizontal shackle allows the beam to be lifting with the web in a near sideways position by attaching the clamp to the load with the shackle positioned over the web, and between the flanges.

With a beam laying in a horizontal position, the clamp placed with the shackle overhanging the flange, users can lift, turn through 90-degrees, and raise the beam in a vertical position.

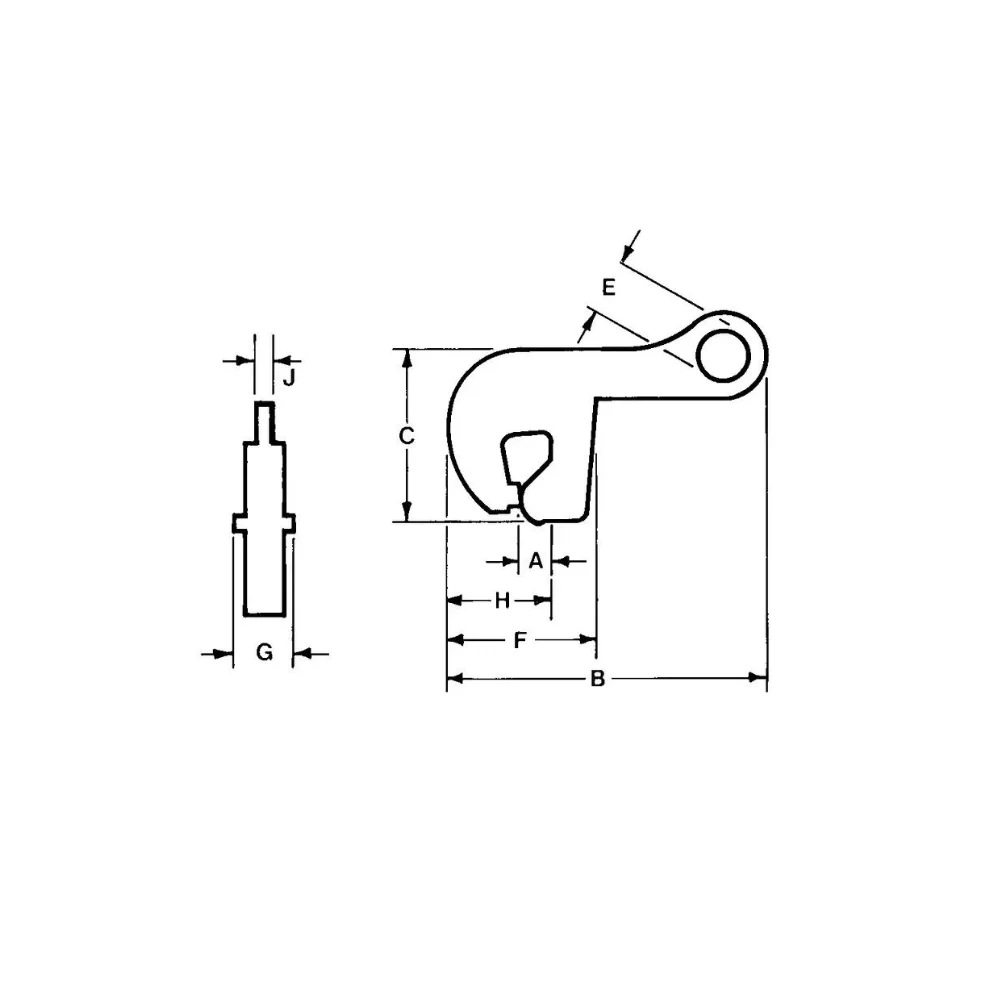

SKU	Plate Thickness A (in.)	Max. B (in.)	C (in.)	D (in.)	E (in.)	F (in.)	G (in.)	H (in.)	J (in.)	Weight (lbs)
AST-00.50-A	0 - 3/4	10-3/4	6-11/16	-	1-3/4	6-3/16	1-5/8	2-1/2	1/2	10
AST-01.50-A	0 - 3./4	13	8-1/2	-	2-1/2	7	2-9/16	3	5/8	20
AST-03.00-A	0 - 1-1/2	19-1/4	12-1/2	-	3-3/4	11	3	4-5/8	3/4	50
