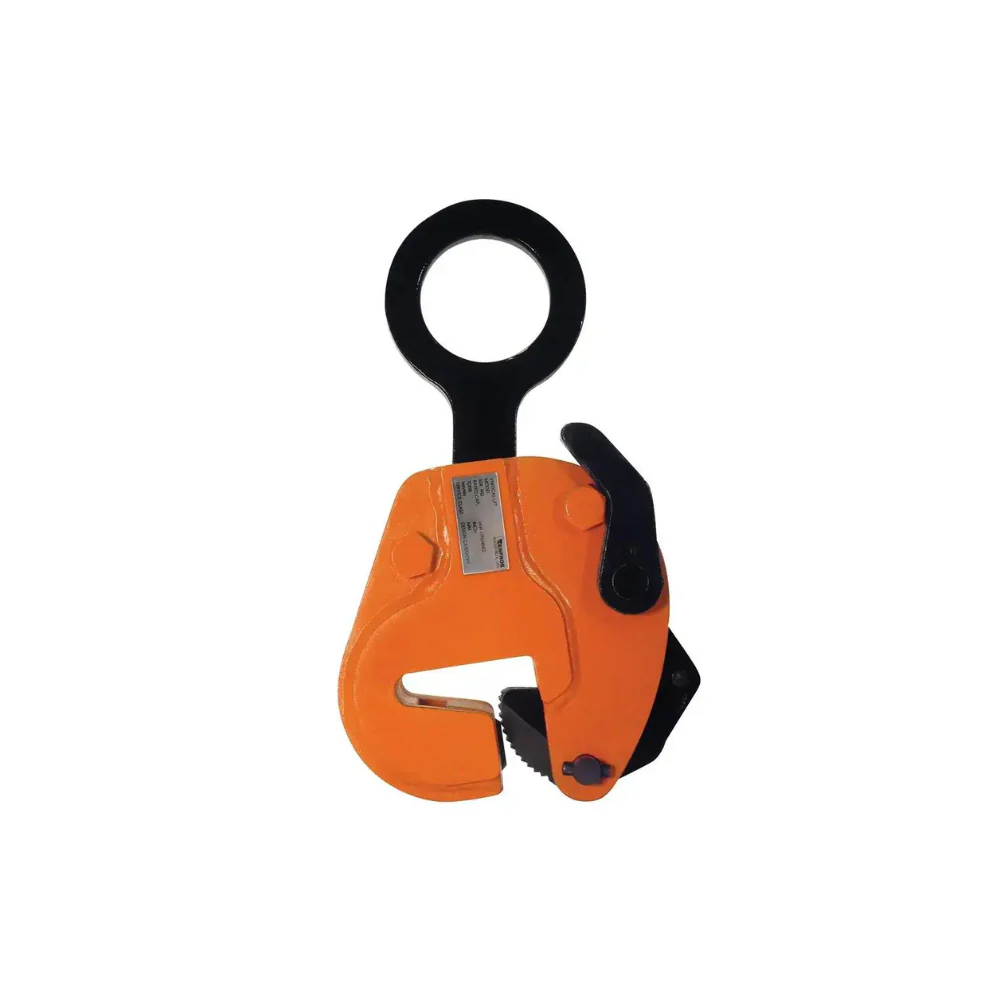

Renfroe SX Locking Type Lifting Clamps
Renfroe's Model SX Locking Type Lifting Clamps have been designed for the purpose of lifting and transporting angle in both fabrication and steel erection applications.
Available in 2t and 4t safe working loads, the model SX incorporates the brands signature 'LockOpen-LockClosed' technology, enabling the easy attachment and removal of clamp to plate.
|
SKU |

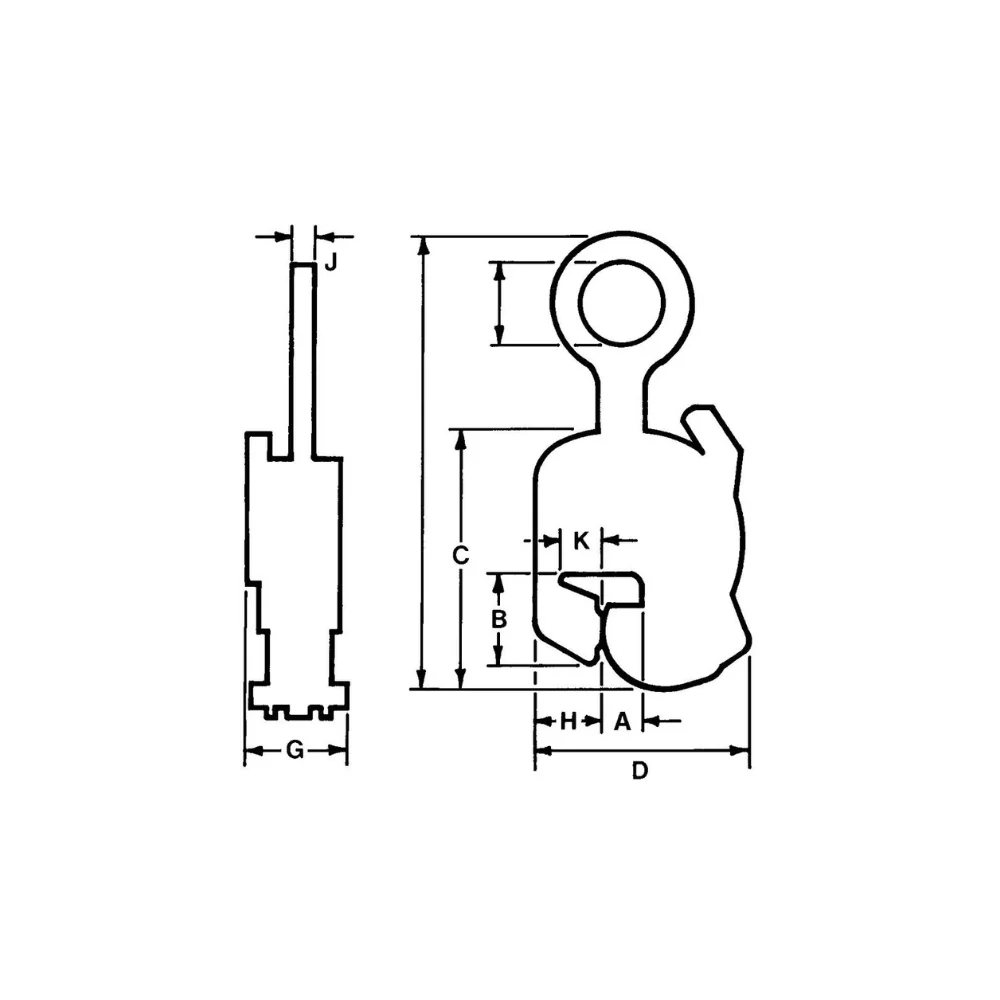

Capacity (tons) |
Shackle Hole Dia. (in.) |
Weight (lbs) |
Clamp Height (in.) |
Clamp Length (in.) |
Clamp Width (in.) |
Flange Length (in.) |
Jaw Height (in.) |
Jaw Length (in.) |
Overall Clamp Length (in.) |
Max Plate Thickness (in.) |
Min Plate Thickness (in.) |
Shackle Thickness (in.) |
|
SX-02.00-B |
2 |
3.5 |
34 |
18.5 |
9.5 |
3.75 |
2.5 |
4.125 |
3.625 |
10.25 |
1.5 |
0.5 |
0.75 |
|
SX-04.00-A |
4 |
3.625 |
51 |
19.625 |
11.5 |
4.875 |
2.5 |
4.75 |
4.125 |
10.5 |
1.5 |
0.5 |
0.75 |
|
SX-02.00-A |
2 |
3.5 |
34 |
18.5 |
9.5 |
3.75 |
2.5 |
4.125 |
3.625 |
9.25 |
1 |
0 |
0.75 |

Original: $1,315.00
-65%$1,315.00
$460.25
